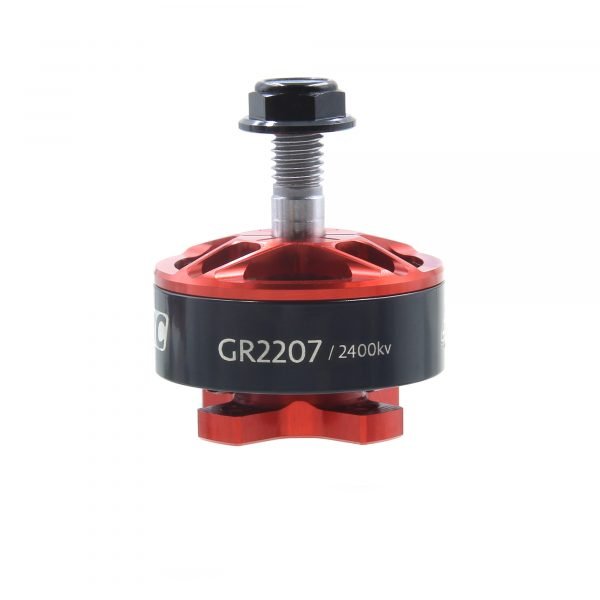

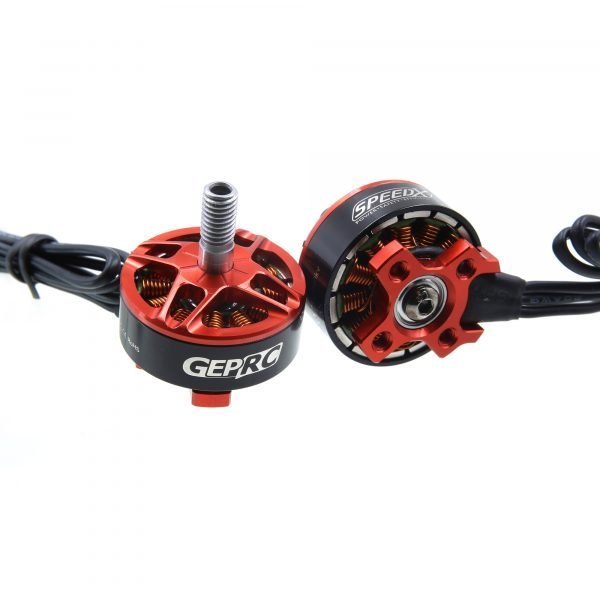

GEPRC-GR2207 2400kv motors

GEPRCSKU: GP100223

Price:
Sale price$11.90 USD

Description

After two months of testing optimization, GEP-GR2207 was finally produced. The exterior still USES the four-sided structure of GR2306, which is durable and beautiful.

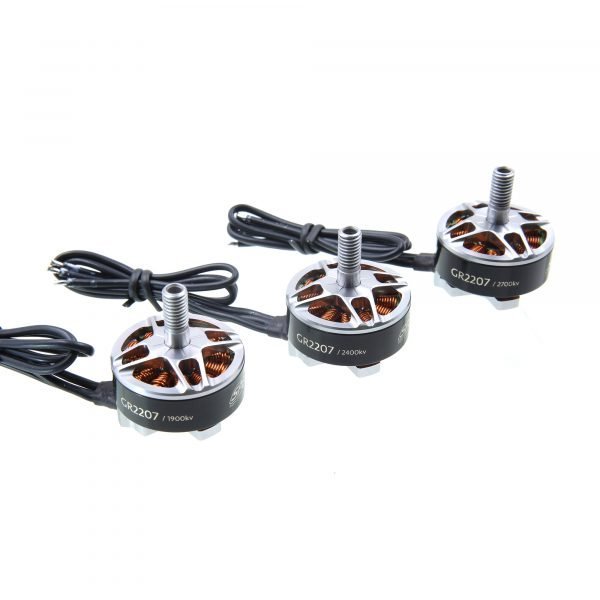

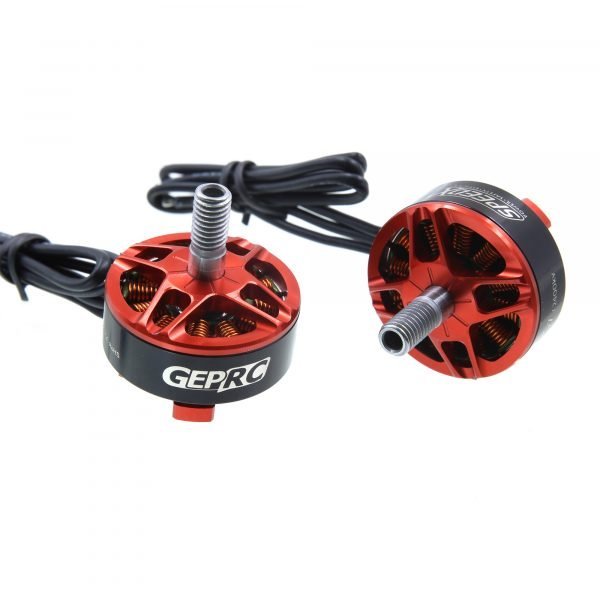

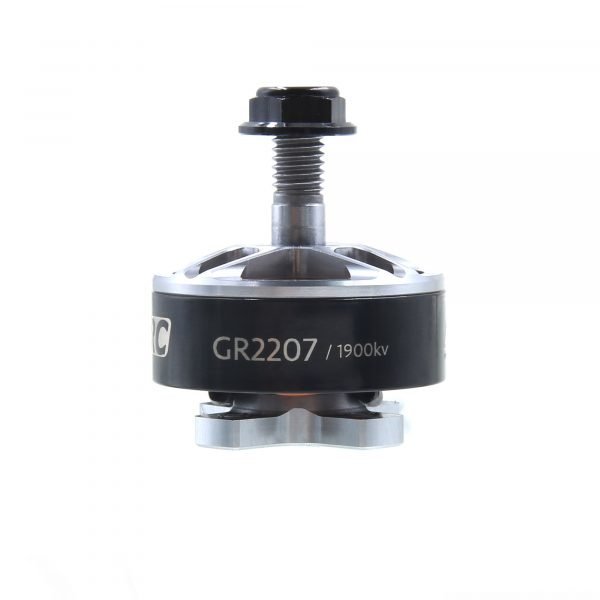

GR2207 is made of advanced materials, including NSK bearings, 7075 aluminum, high precision CNC, N52H arc magnets, etc. GR2207 provides 3 kv, which is 1900kv, 2400kv and 2700kv respectively. Each kv can meet different needs. 1900kv is efficient for long range flight. The 2400kv is suitable for Freestyle flight, efficient and powerful. 2700kv is more suitable for racing. In addition, GR2207 also provides two colors, Chinese red and titanium.

Specifications

  • Item name: GEP-GR2207
  • KV:2700kv
  • Configuration:12N14PStator Diamter:22mm
  • Stator Length:7mm
  • Shaft Diameter:4mm(Hollow)
  • Motor (Dimension(Dia.*Len)): Φ26.7*30.5mm
  • Idle current(10)@10V(A):2.8
  • No.of Cells(Lipo):4~5S
  • Max Continuous (Power(W)15S):1000
  • Internal Resistance:29mΩ
  • Max Current(30S):48A
  • Max.Effciency Current:(4-8A)>81%
  • Rotor: N52H arc magnets
  • Bearings:NSK
  • Base casing: Al 7075
  • Wire AWG: 20AWG
  • Weight(g):31



Features:

  1. NSK high-efficiency bearings
  2. 0.15mm silicon steel laminations
  3. N52H arc magnets
  4. Al 7075 CNC
  5. 3Kv 1900/2400/2700kv
  6. The weight is 32g only

Includes:

1x GEPRC GR2207  Motor
1x GEPRC M5 Aluminum Lock Nut
4x M3x6 Button head screws
4x M3x7 Button head screws
4x M3x8 Button head screws
