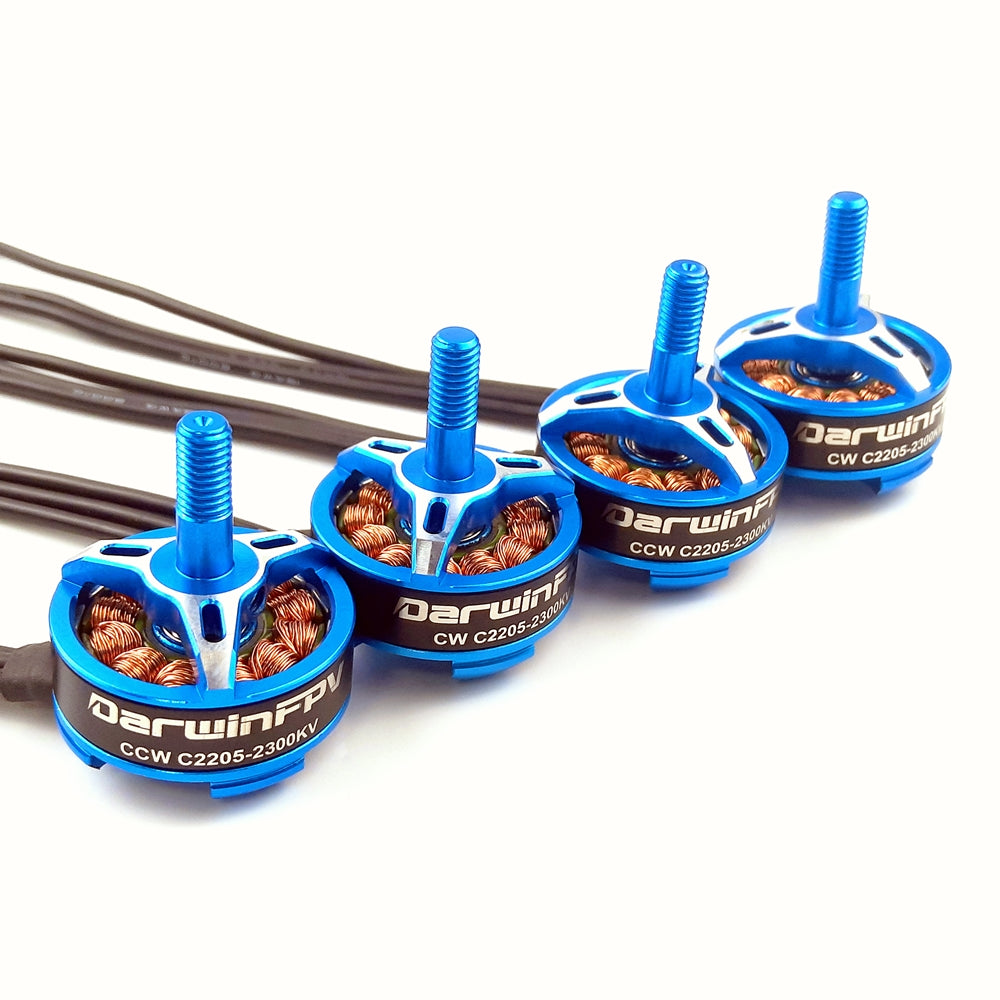

DarwinFPV 2205 2300KV Brushless Motor

Brand Name: DarwinFPV

Origin: CN(Origin)
KV 2300
Configu-ration 12N14P
Stator Diamter 22mm
Stator Length 5mm
Shaft Diameter 3mm
Motor Dimension(Dia.*Len) Φ27.7*17.7mm
Weight(g) 31
Idle current(10)@10V(A) ≤1.12
No.of Cells(Lipo) 3-4S
Max Continuous Power(W)60S 451
Internal Resistance 62.8mΩ
Max Current(60S) 28.2A
