MAMBA Ultra Tiny Video Transmitter

Specification:

Manuel：

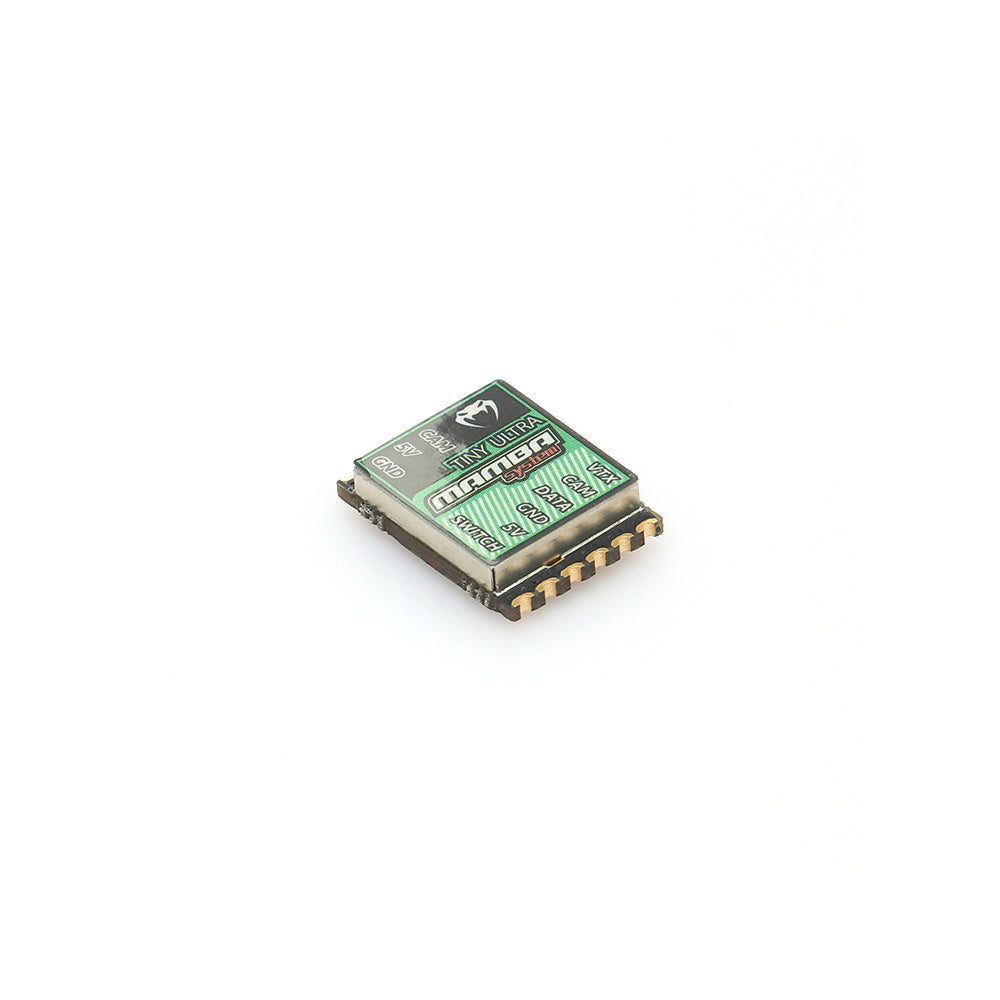

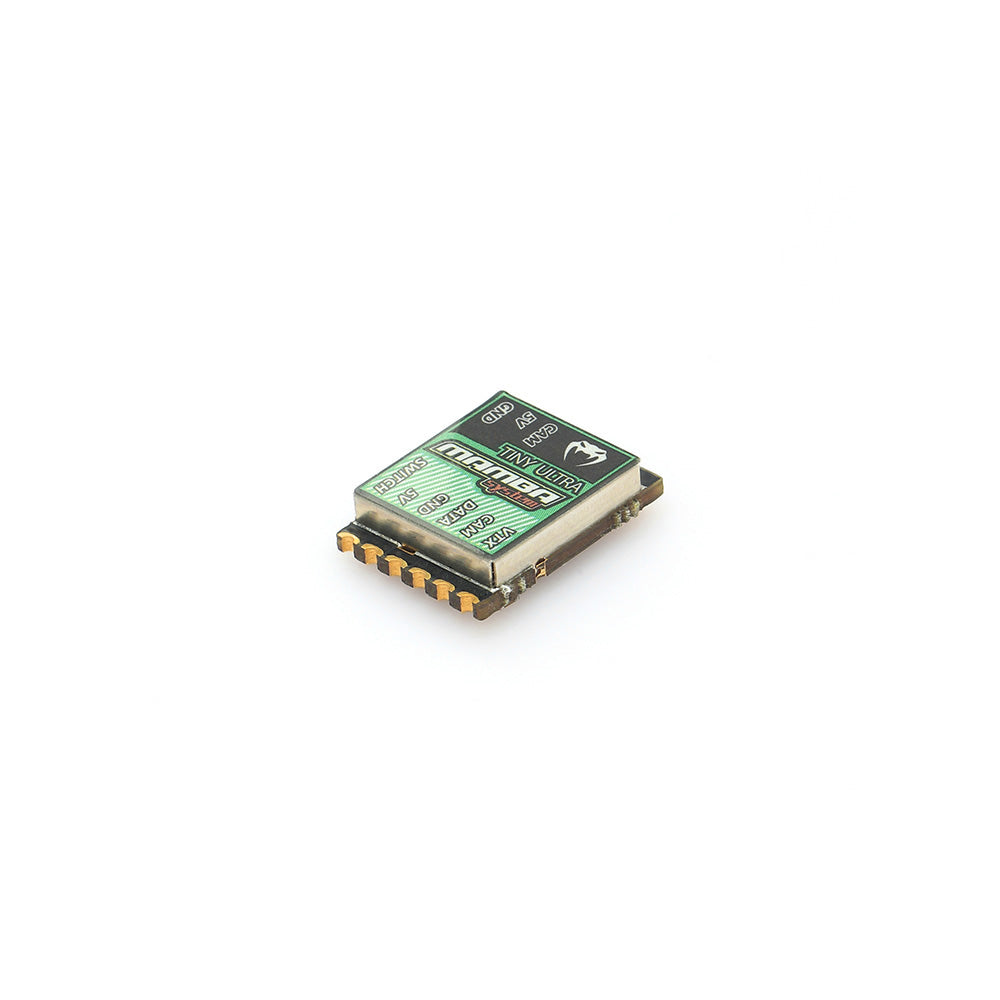

MAMBA Ultra Tiny  VTX

Working Voltage:4.5- 5.5V
Working Current: 380mA (5V/400mW)
Working Temperature: 80 ℃
Video Input Impedance:75Ω
Size: 12.2×17×4.5mm
Antenna Connector: IPEX
Video Format: NTSC / PAL  Protocol：IRC
Output Power: 25mw/100mw/200mw/400mw/

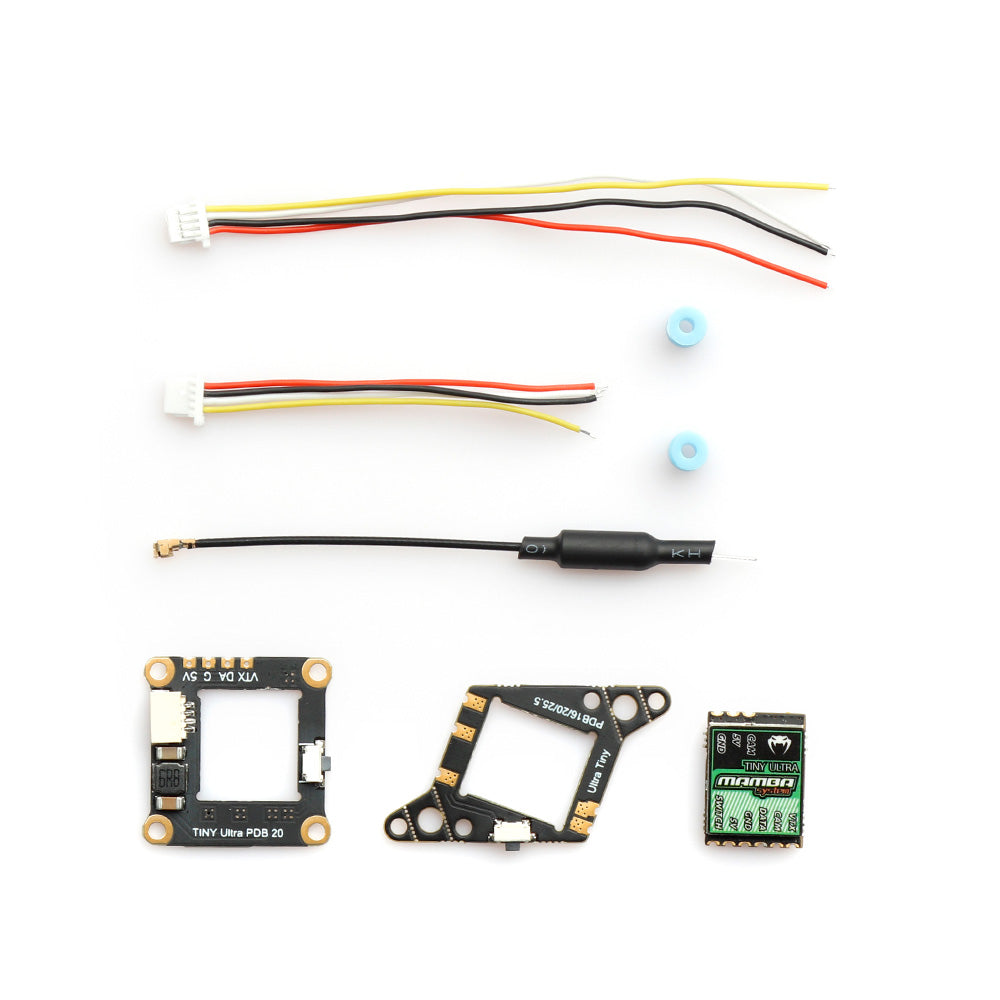

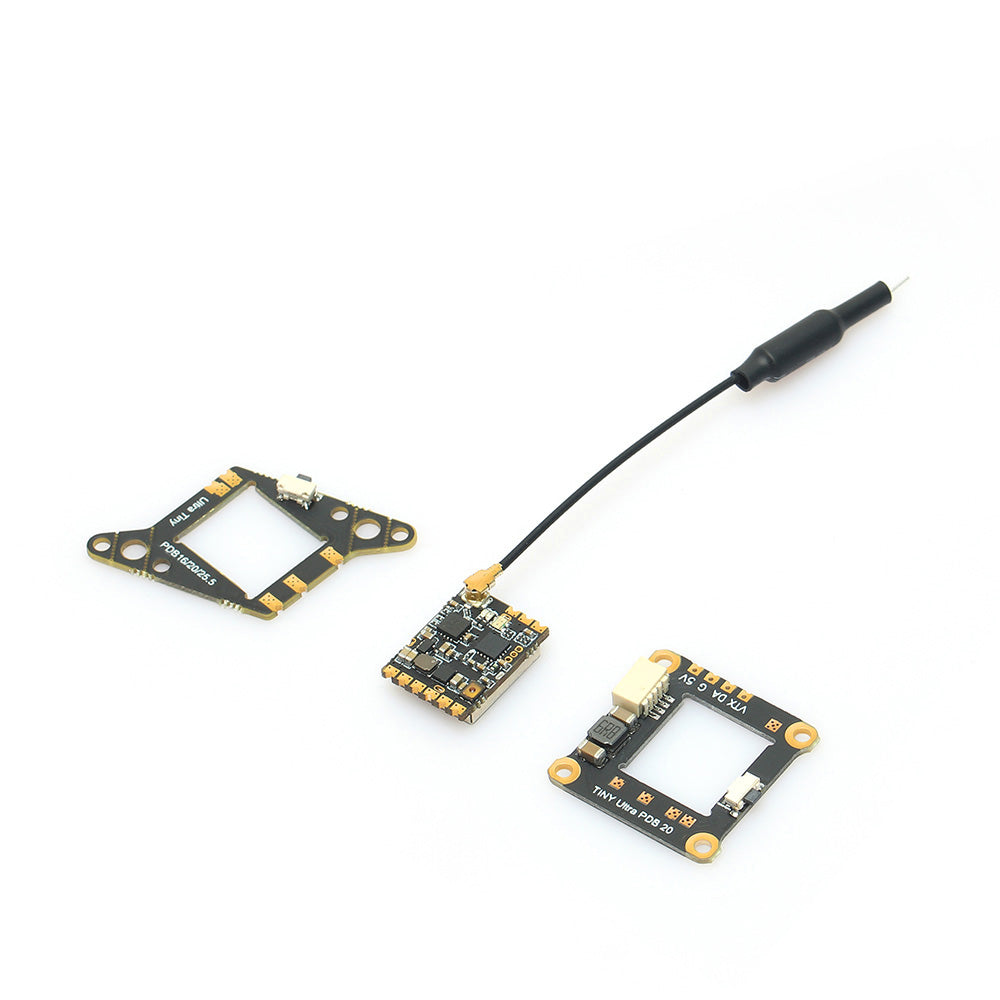

Supply :

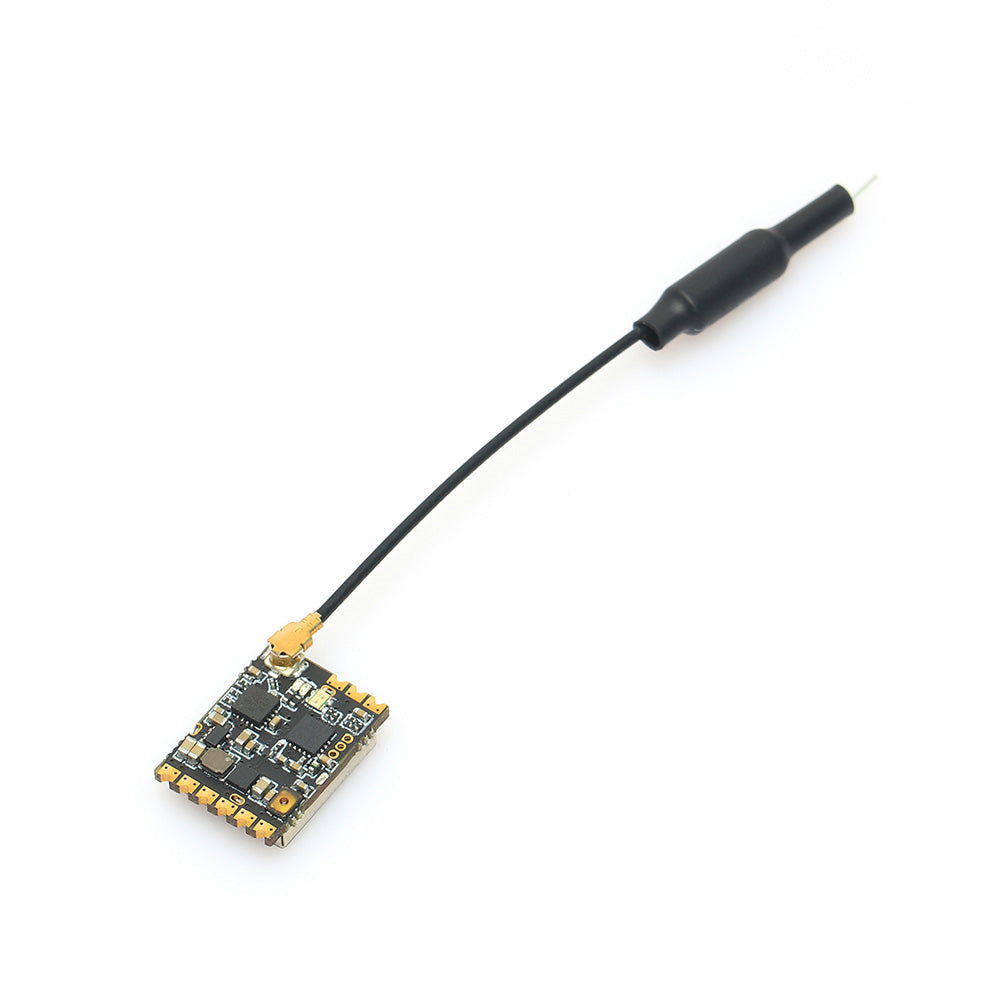

Ipex Antenna×1
4pin wire×2

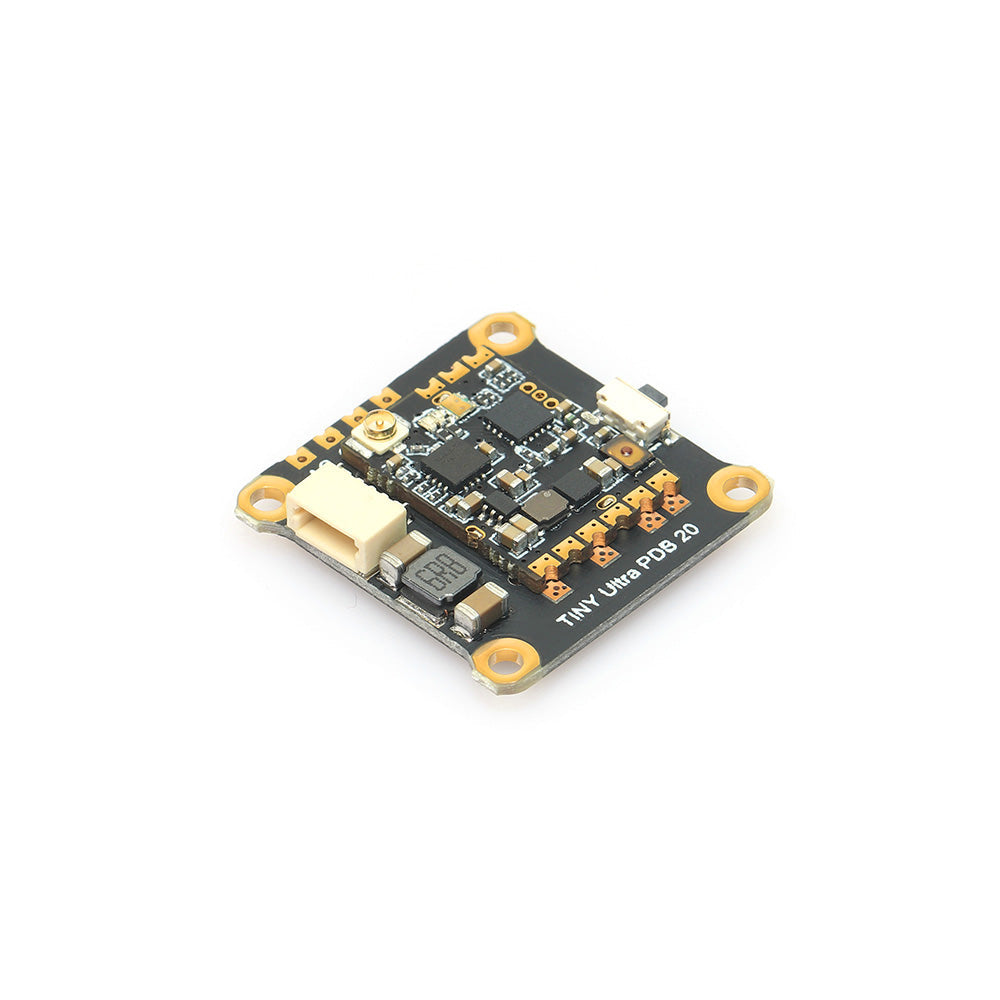

Ultra Tiny PDB20mm board ×1

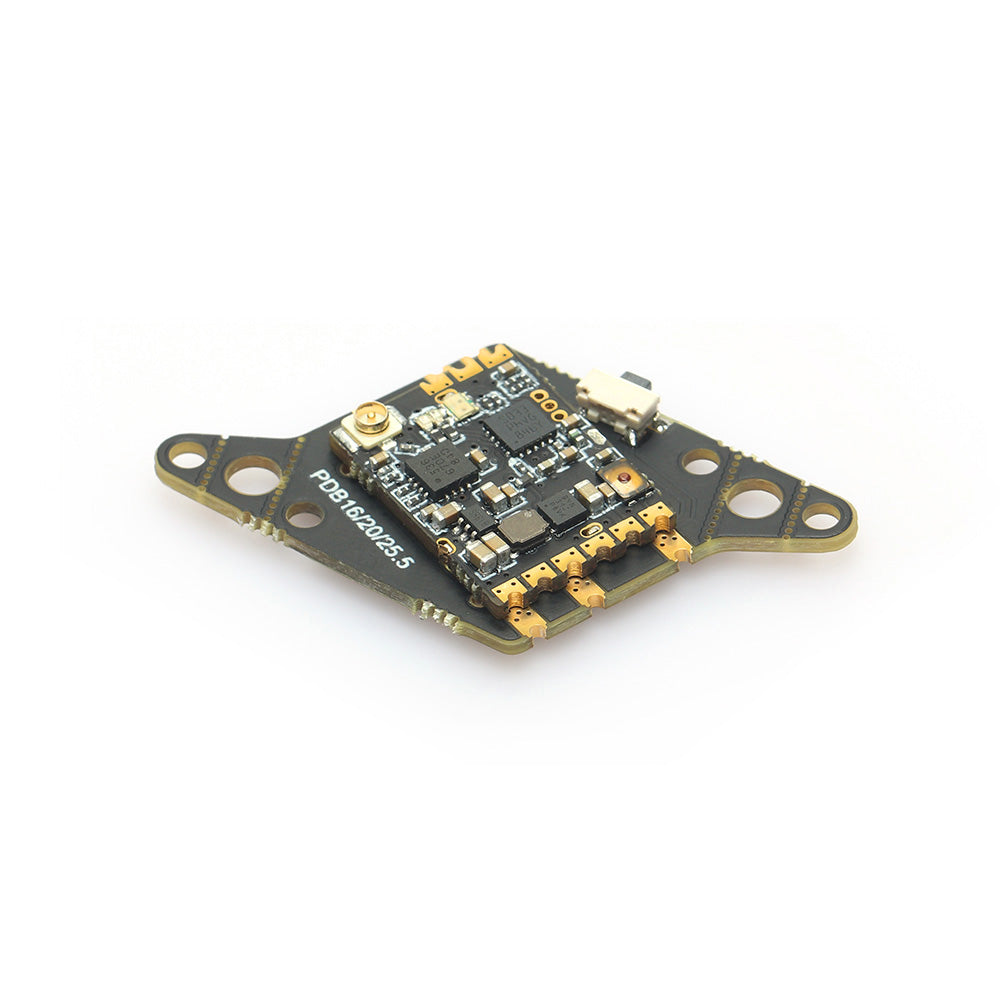

Ultra Tiny PDB16/20/25.5mm board×1
