Description
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.
The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.
Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.
The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
Features

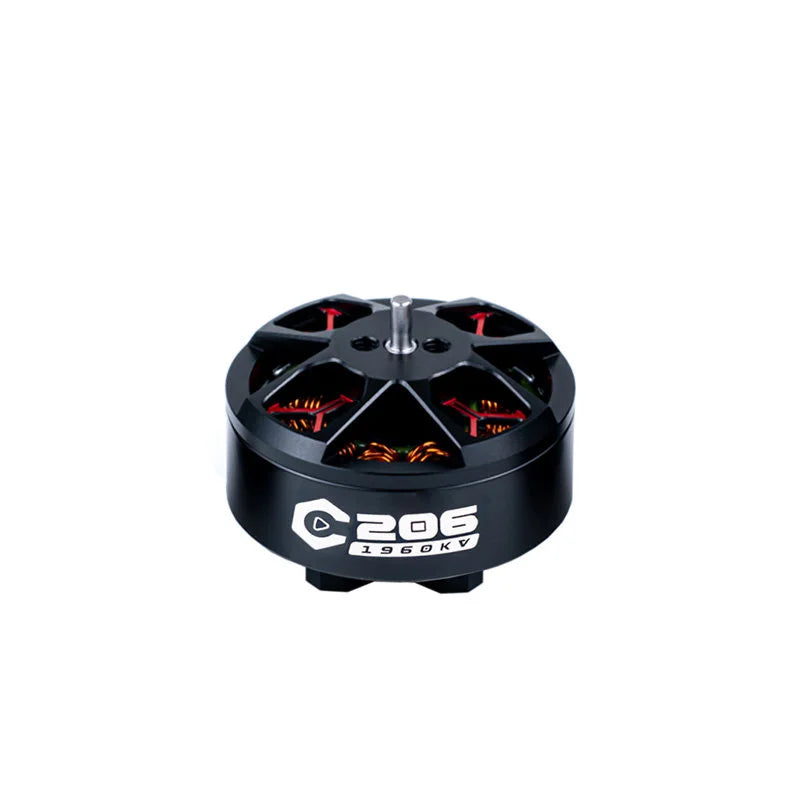

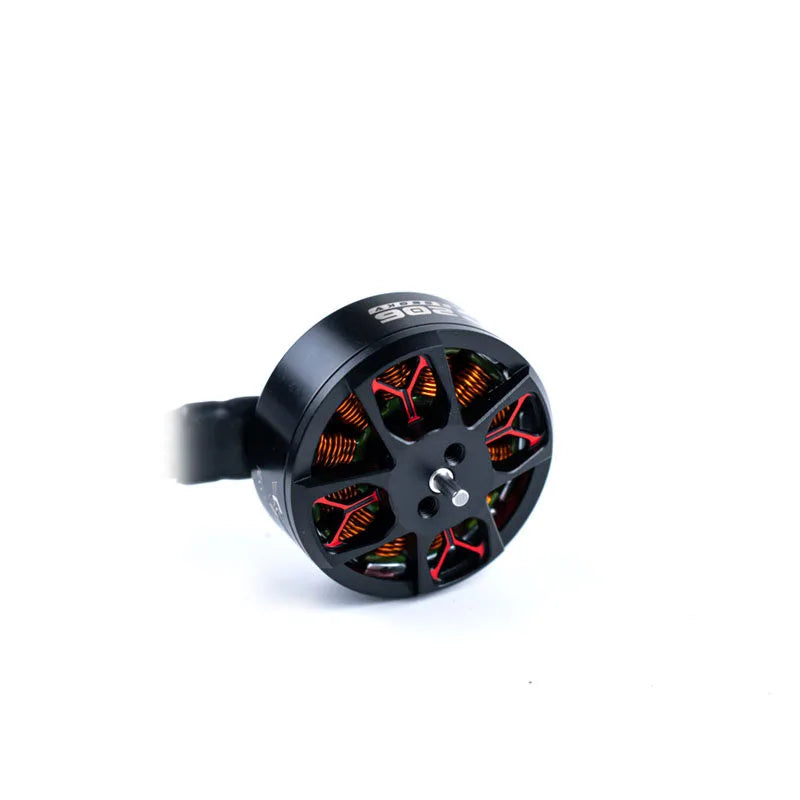

- C206 motor is special designed for 3.5inch cinewhoop and cinematic drone
- It is easy to carry heavy GP Camera 10 or GP Camera 11.

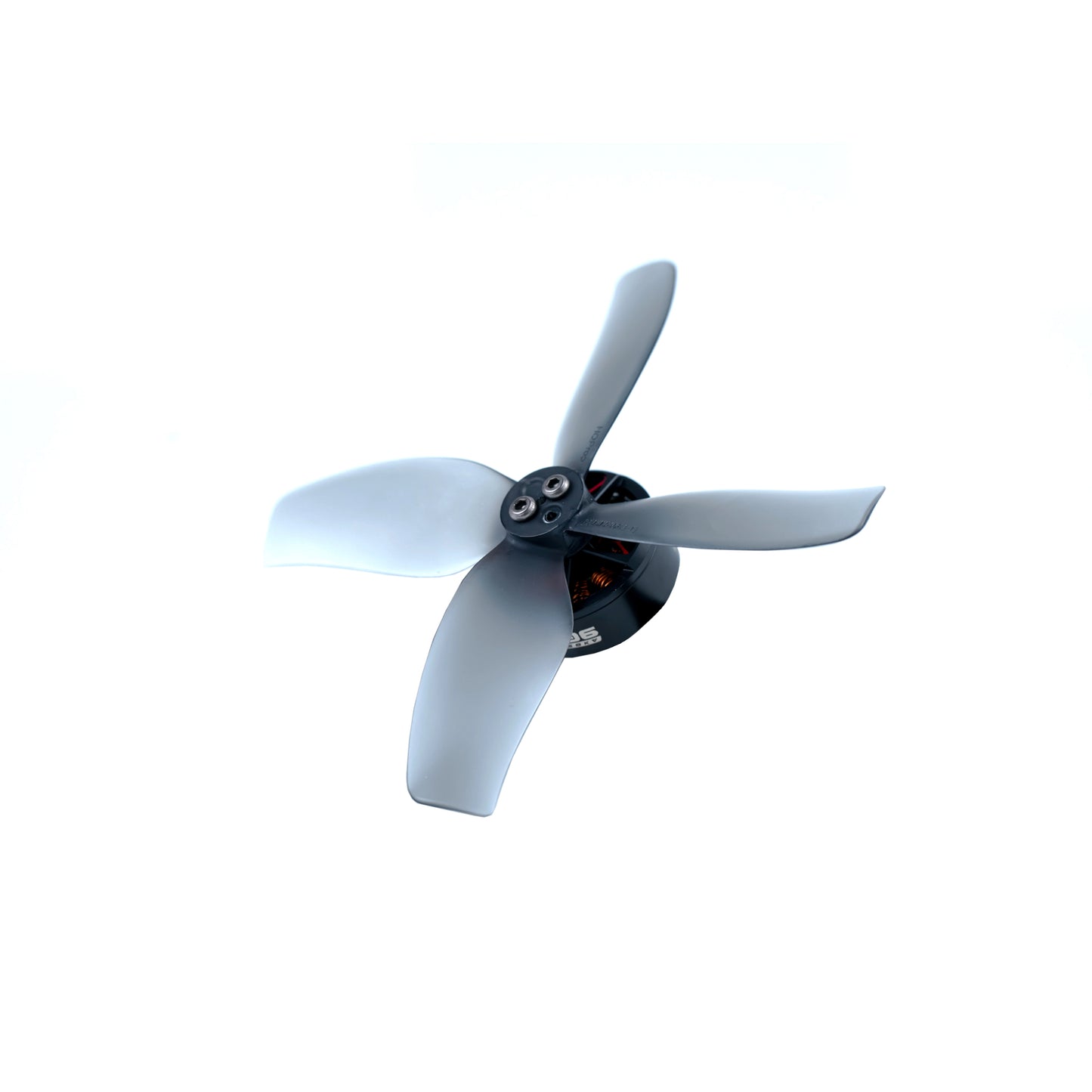

- C206 motors run perfect with Gemfan D90-3 or HQ D90-3 and 4 props.
Bearing Shield Technology
- An IP53 rating dustproof and waterproof bearing placement design.
- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
- Increased thrust effciency and say goodbye to crush motor bearings
Specification
- 1960KV is for 6S
- Configuration: 12N14P / N52H arc magnet
- Motor stator size: 2006

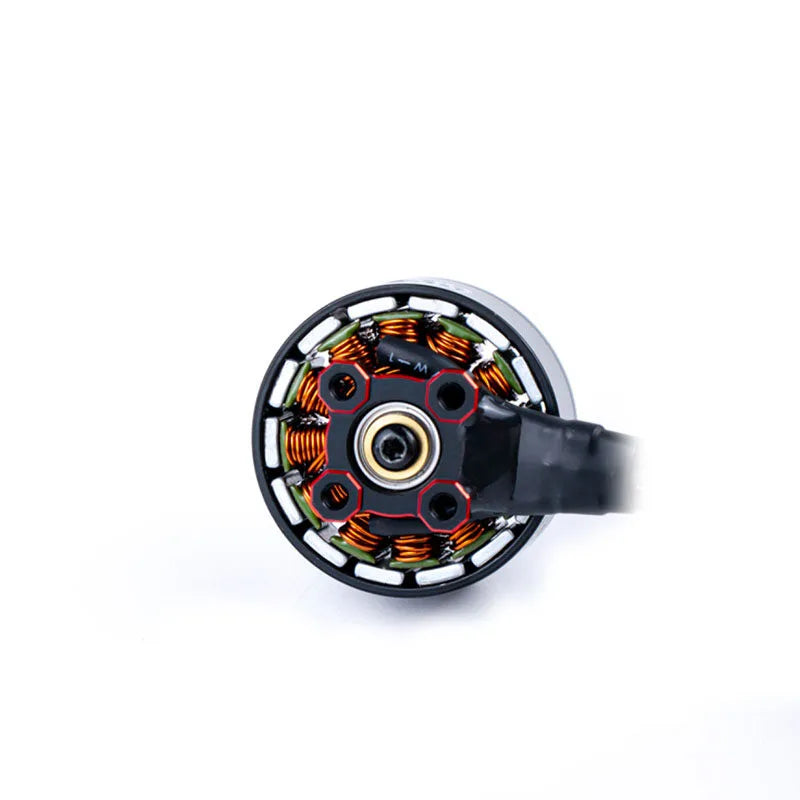

- Motor mounting hole size: 4*M2 (Φ12mm)
- Motor cables: AWG 20#, 150MM
- Motor dimensions (Dia *Len): Φ24.6*20.6MM / T-MOUNT
- Motor weight (including 150MM cables) : 22g
- The motor is very powerful that can get over 0.9KG and most current is about 21.5A
Package List
- 1* C206 motor
- 4* M2*5 screws for motor
- 1* M3*4 screw for lock shaft
- 2* M2*8 to lock Props
