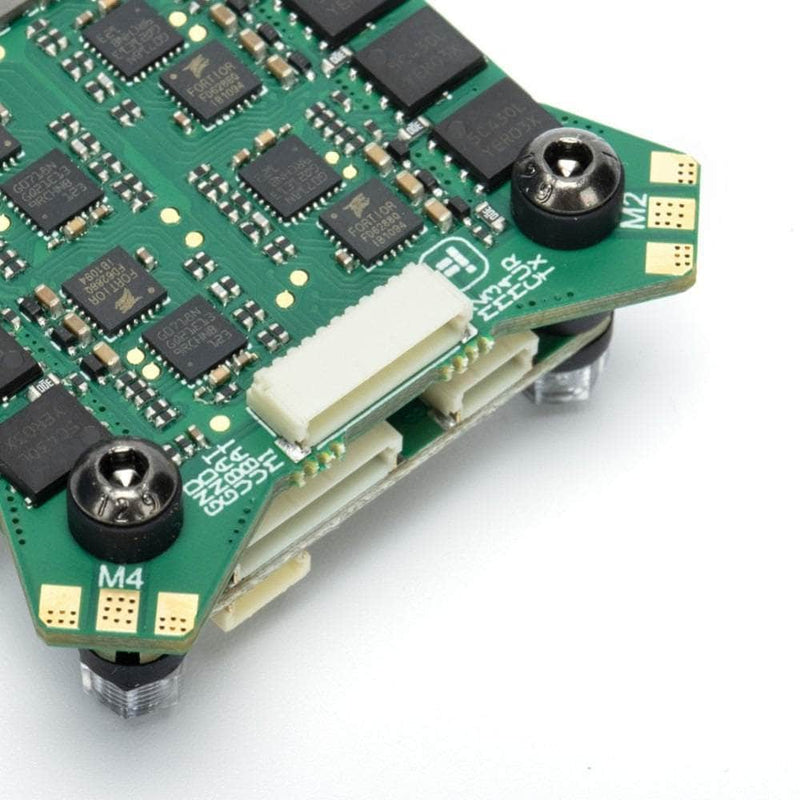

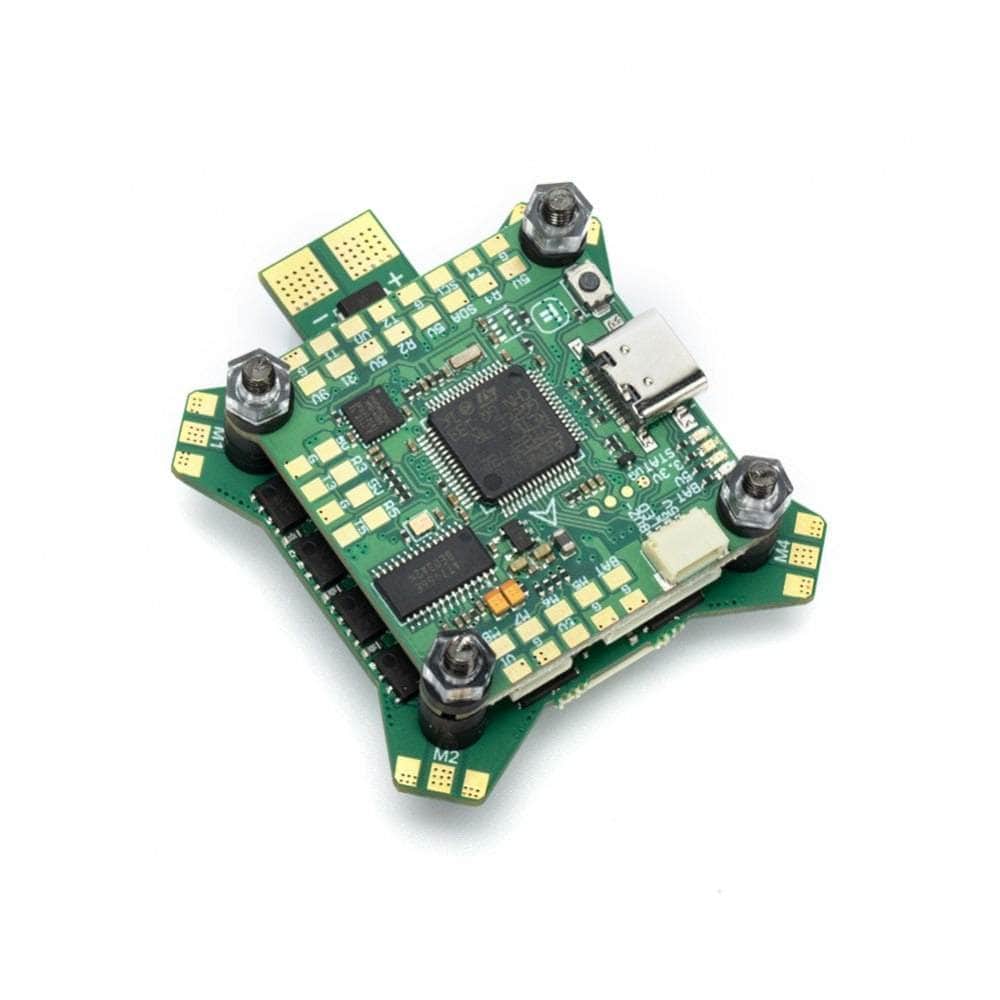

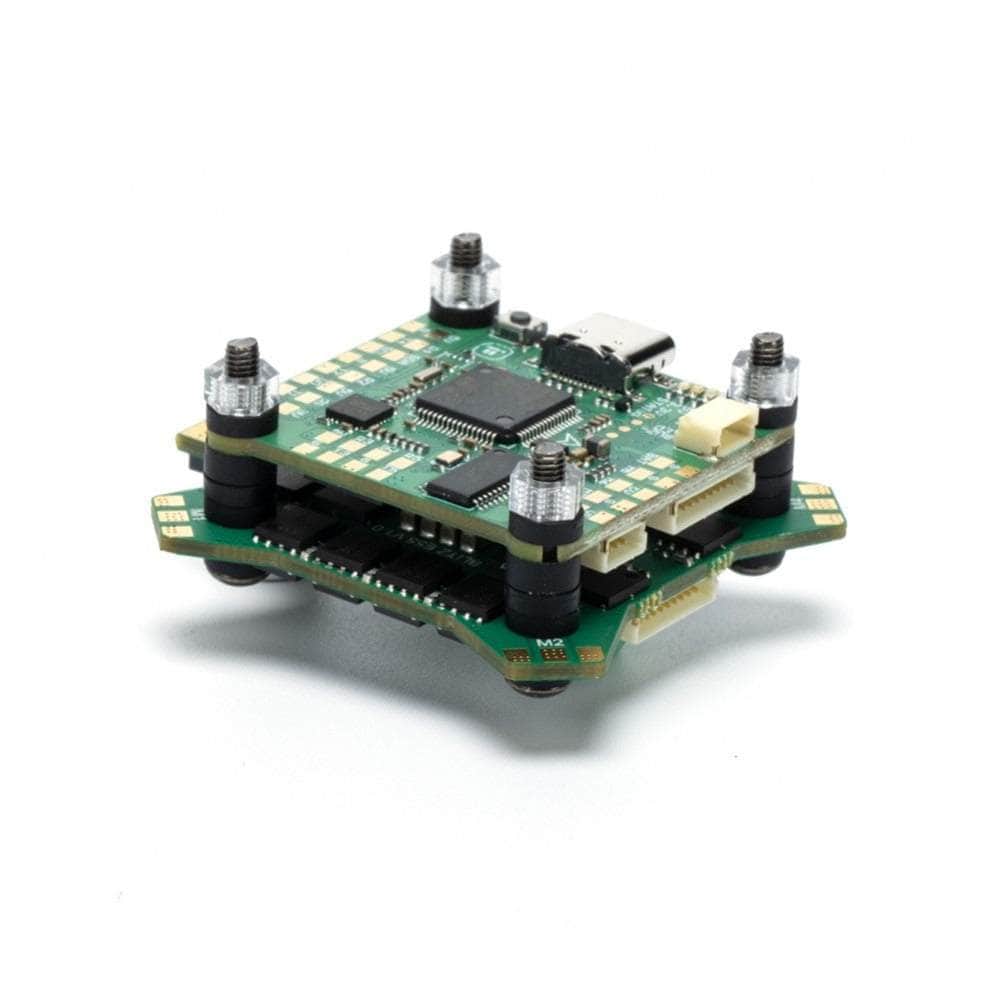

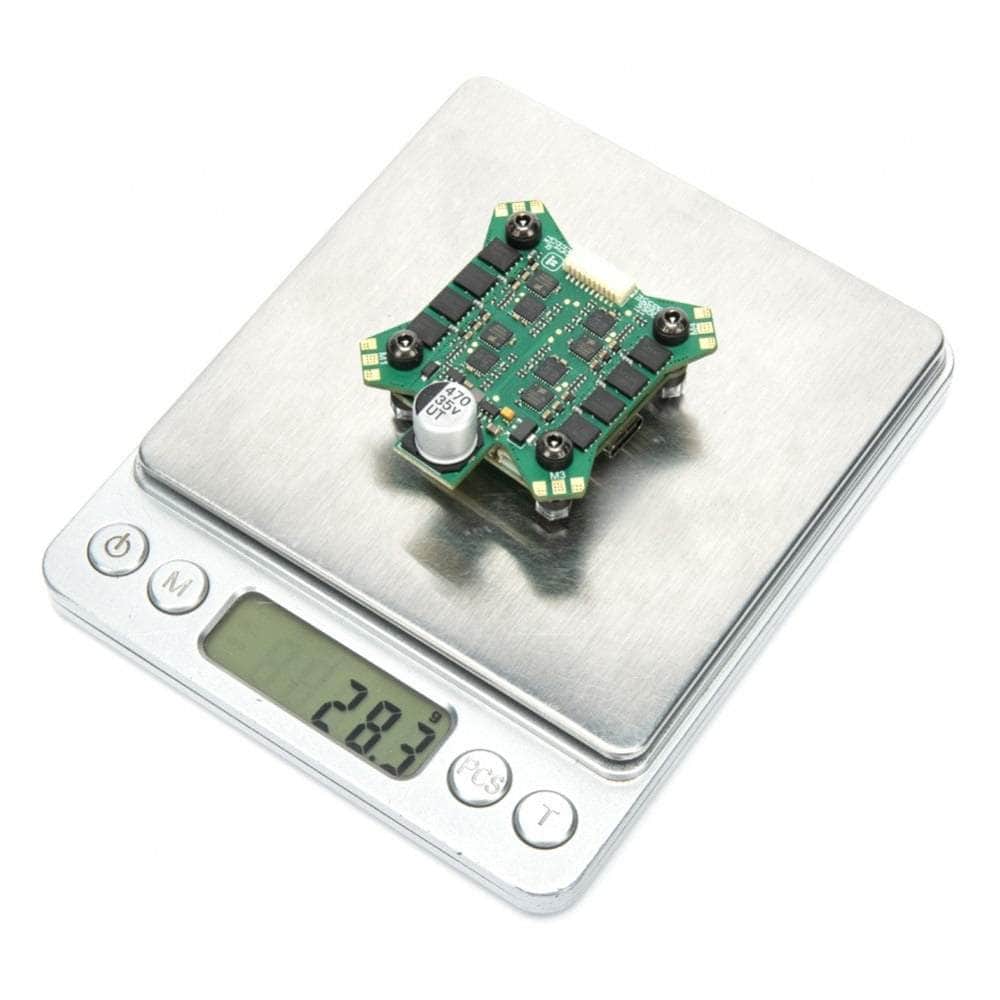

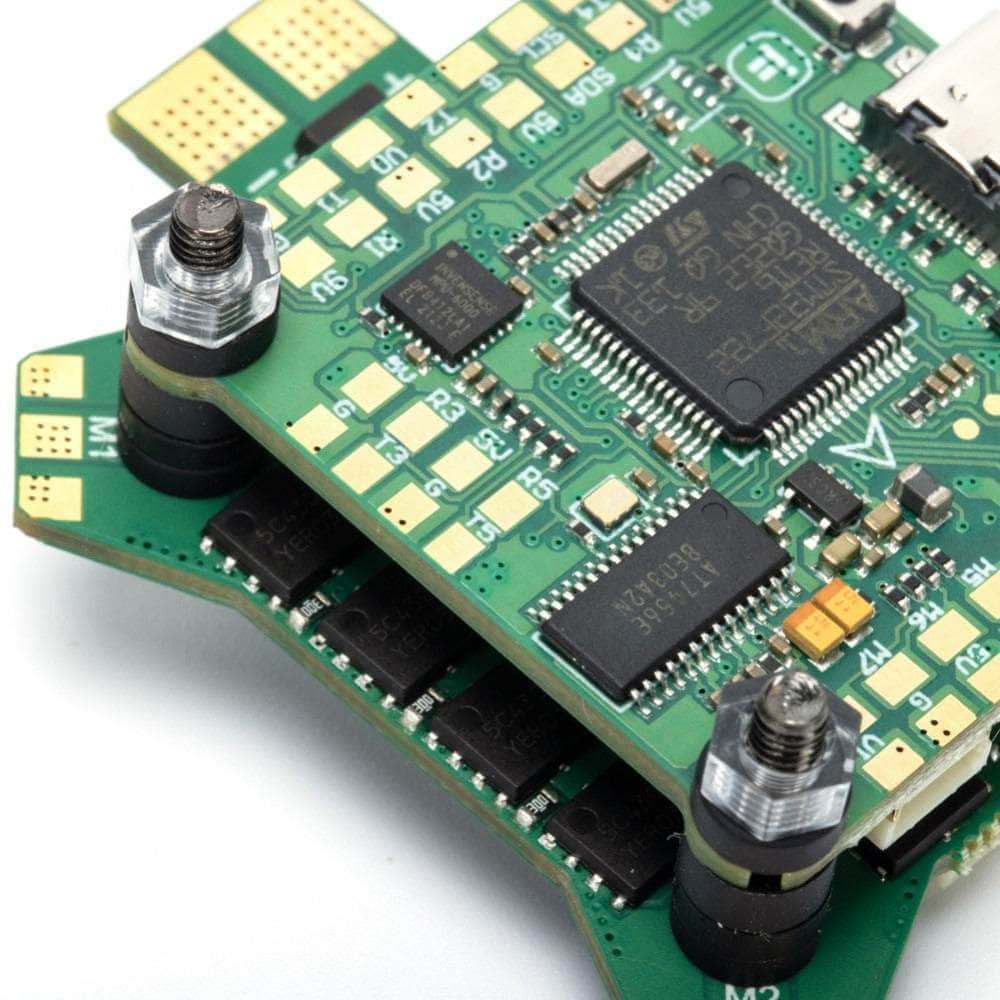

iFlight Blitz F722 E55 2-6S 30x30 Stack/Combo (F722 FC/ 55A 32bit 4in1 ESC)

IFLIGHTSKU: IFLI-BF12010

Price:
Sale price$155.99 USD

Description

The next generation of Flight Controllers and ESC's from iFlight have arrived. These new flight controllers are equipped with a plug and play connectors making connecting your video transmitter, radio receiver, and other periphery sensors a breeze.

They also make diagnosing issues in the field much easier with status indicator LED's that let you know in seconds if you are having a problem with the 3.3V, 5V, or VBat. Coupled with iFlight's new 55 Amp BLHeli_32 Blitz 4-in-1 ESC, this stack can handle even the most amp hungry motors.

Specifications

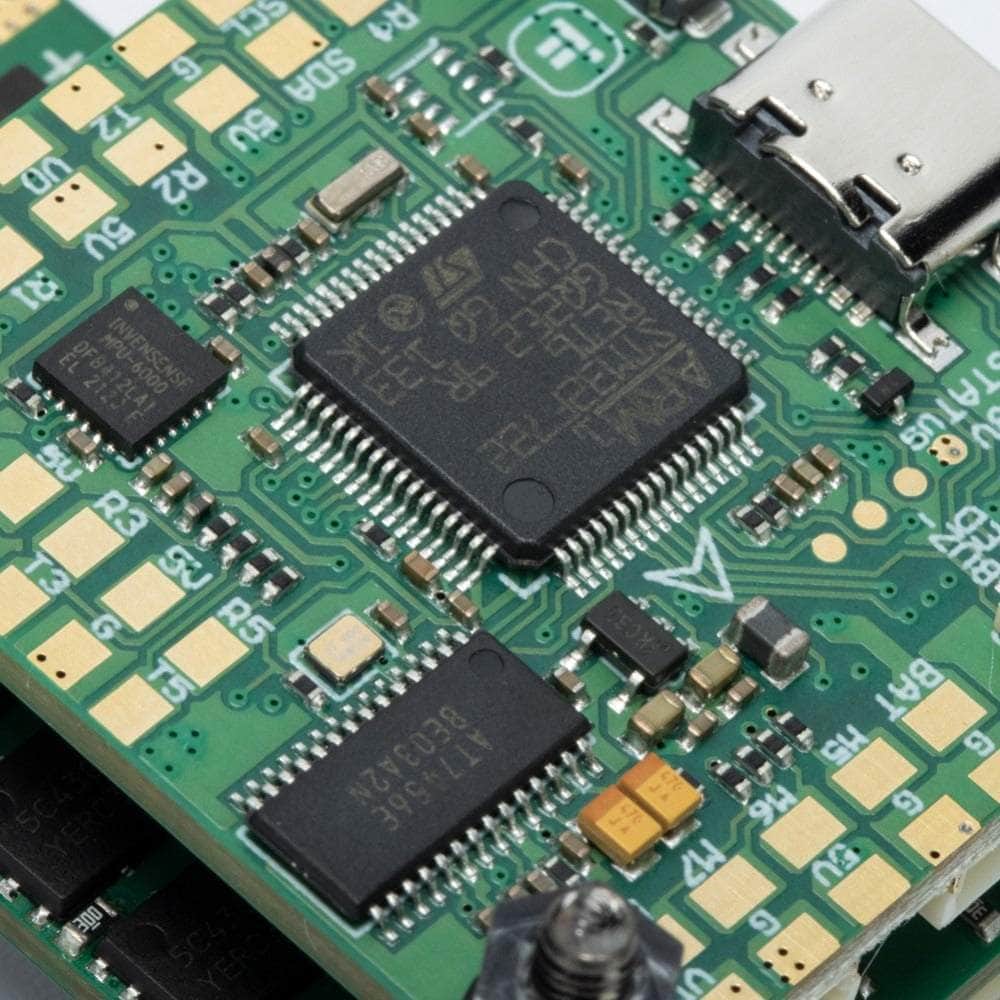

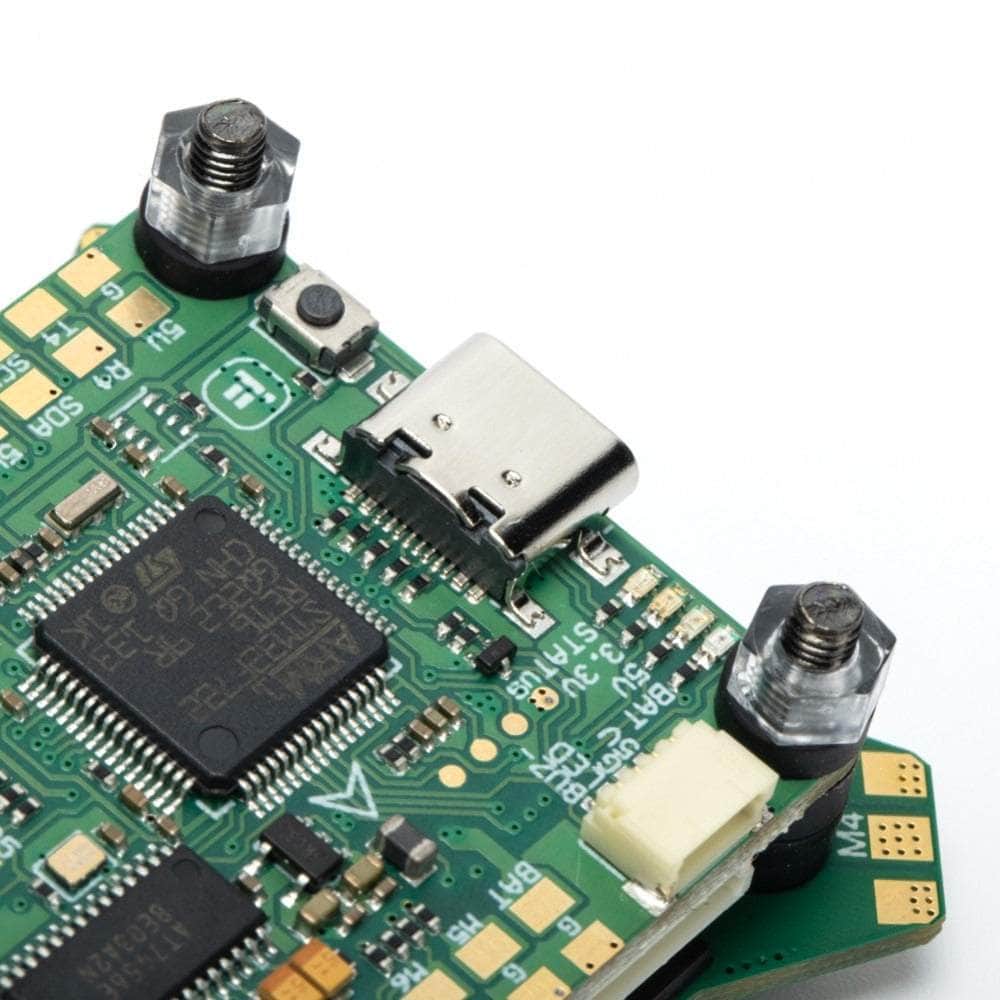

Blitz F722

  • MCU: STM32F722
  • Gyro: BMI270
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Blackbox: 32MB (Blackbox flash)
  • UARTS: 6
  • Motor outputs: 4x (SH1.0 connector)
  • I2C: SDA / SLA pads
  • LED: Yes
  • Beeper: Yes
  • Firmware Target: IFRC-IFLIGHT_BLITZ_F722
  • FC Mounting Pattern: 30.5x30.5mm
  • Dimensions: 36.5x35mm
  • Input Voltage: 2-6S
  • BEC: 5V 2.5A

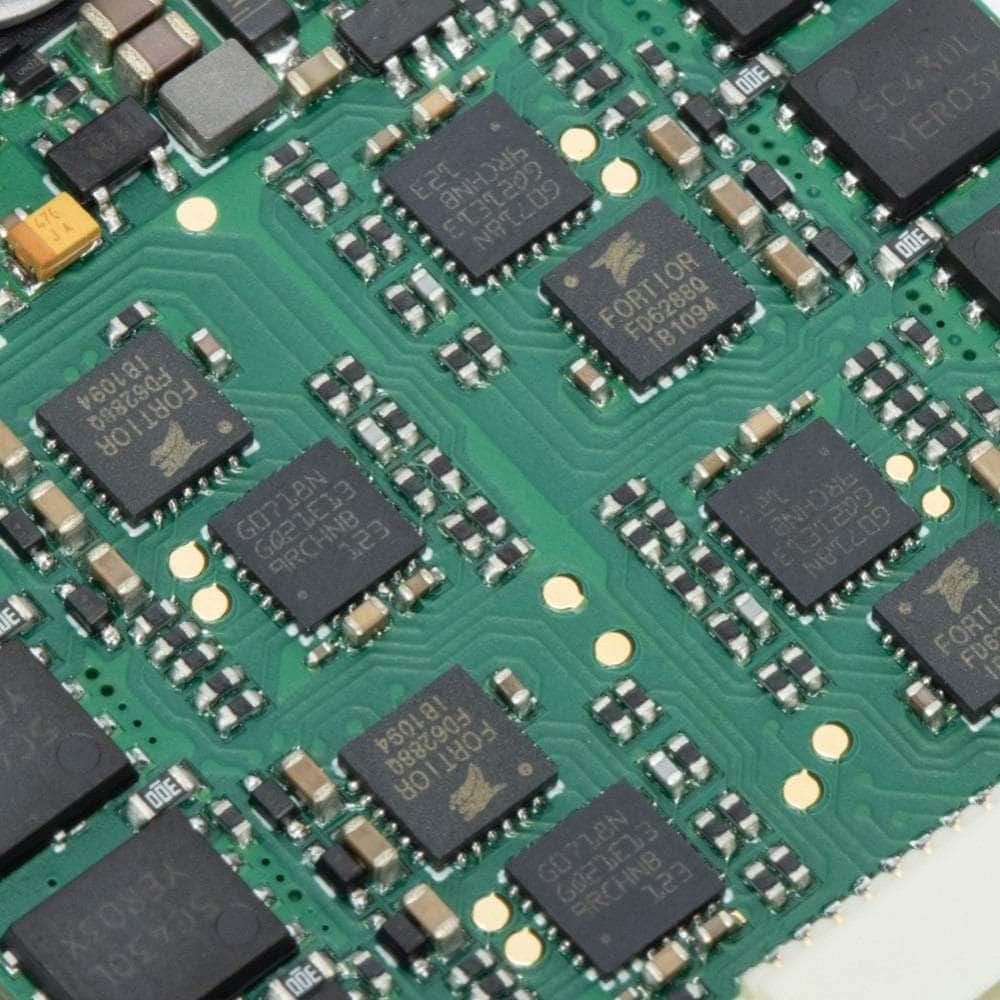

E45 4in1 ESC

  • Input Voltage: 2-6S
  • Max. Continuous Current: 55A
  • Max. Burst Current: 65A
  • Firmware: BLHeli 32
  • MCU: G071
  • BEC: No
  • Current Sensor: Yes
  • Target: IFLIGHT_BLITZ_G2
  • Mounting Dimensions: 30.5x30.5mm/Φ4mm
  • Dimensions 35x42mm

Includes

  • 1x iFlight BLITZ F7 V1.1 30x30 Flight Controller
  • 1x iFlight BLITZ E55 55A 2-6S 30x30 4in1 ESC
  • 1x Wiring Set

Wiring Diagram
