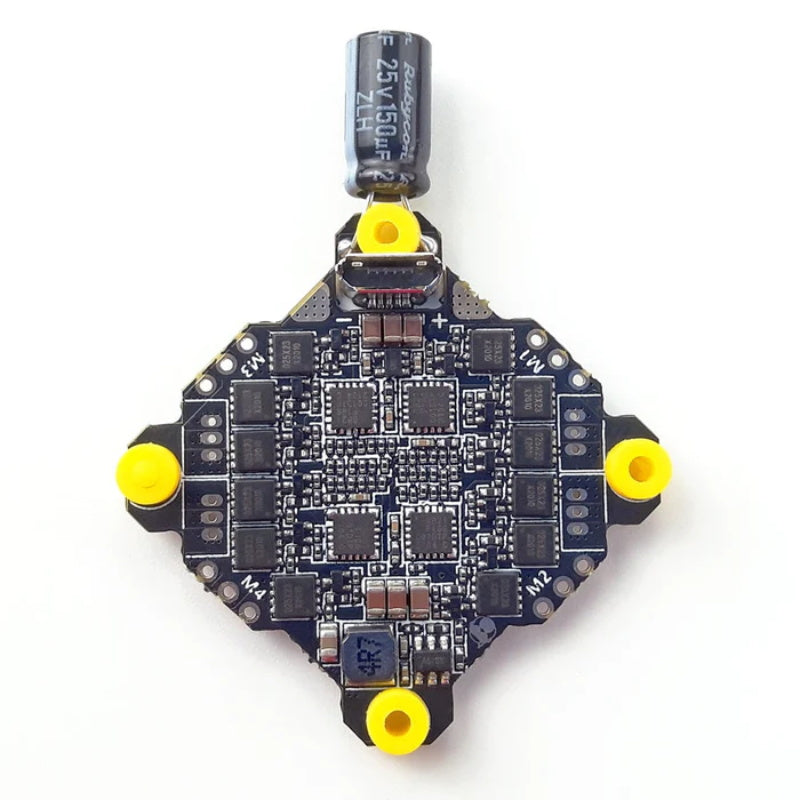

Darwinfpv 15A 1-3S F411 Ultralight/Whoop AIO

Description:

DarwinFPV 15A 1-3S F411 AIO great for Ultralight and Whoop builds! Capacitor Pre-soldered for convenience!

ESC Specifications

Input voltage: 3.7 ~ 13V DCIN(1 ~ 3 6slipo)

Constant current: 15A

Peak current: 17A

BEC Output: No

Mcu: 48mhz efm8bb21f16g protocol: dshot/oneshot/multishot blheli_s

firmware target: SH-50

Telemetery: No

Current Sensor: No

FC:

Mcu Specifications : 100mhz stm32f411ceu6

Imu: MPU6500 (spi) or ICM20689

Baro: No

Blackbox: No

OSD:AT7456E

2xuarts (1,2)

Built in drive for sbus input (UART1-RX) 1xsoftserial supported (s5)

3.7 ~ 13V DCIN(1 ~ 3 6slipo)

Bec: 5v 2nd cont.(max 2.5a )

LDO3.3V:Max 200mA

Battery voltage sensor: 1:10 (scale110)

BetaFlight target: MATEKF411

Package Includes:

1 x DarwinFPV 15A 1-3s Ultralight/Whoop AIO
