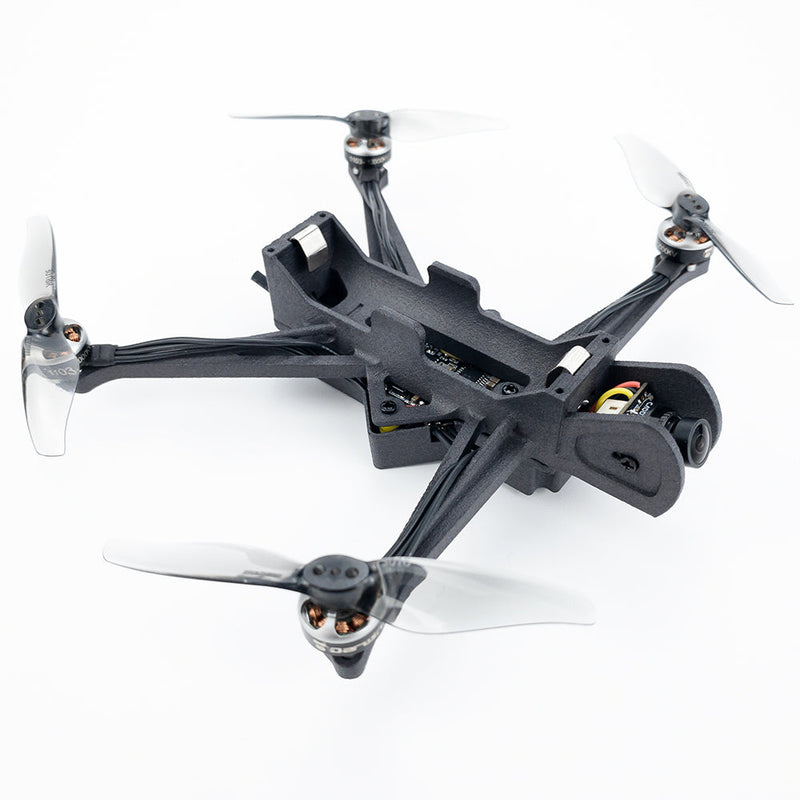

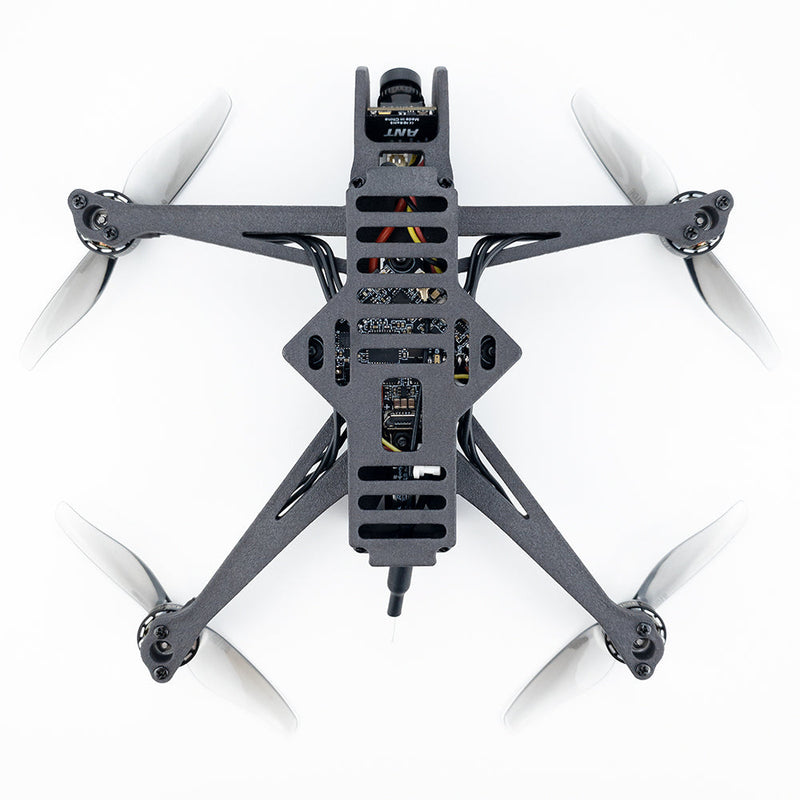

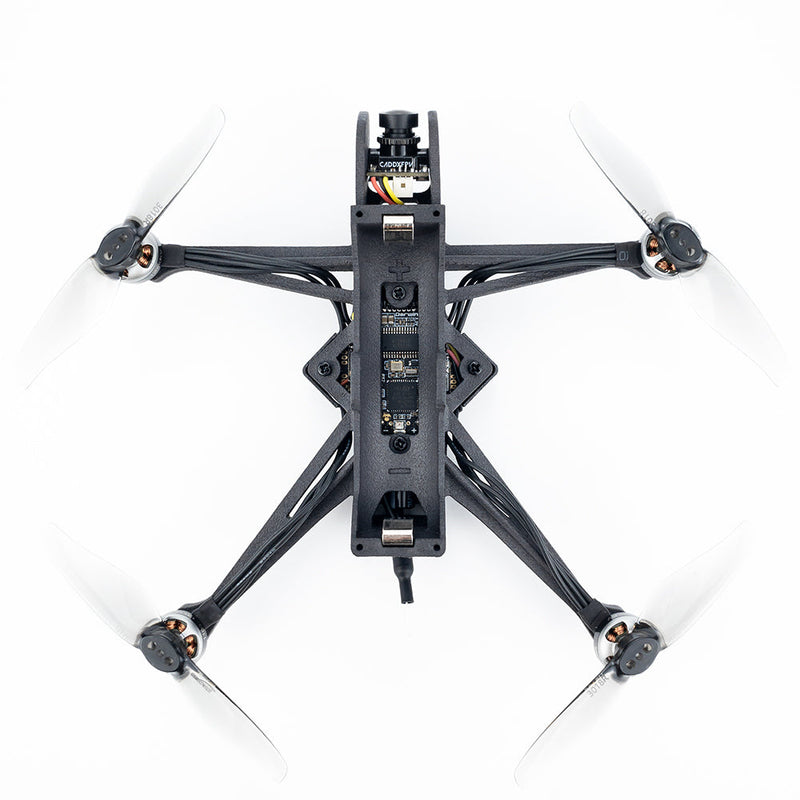

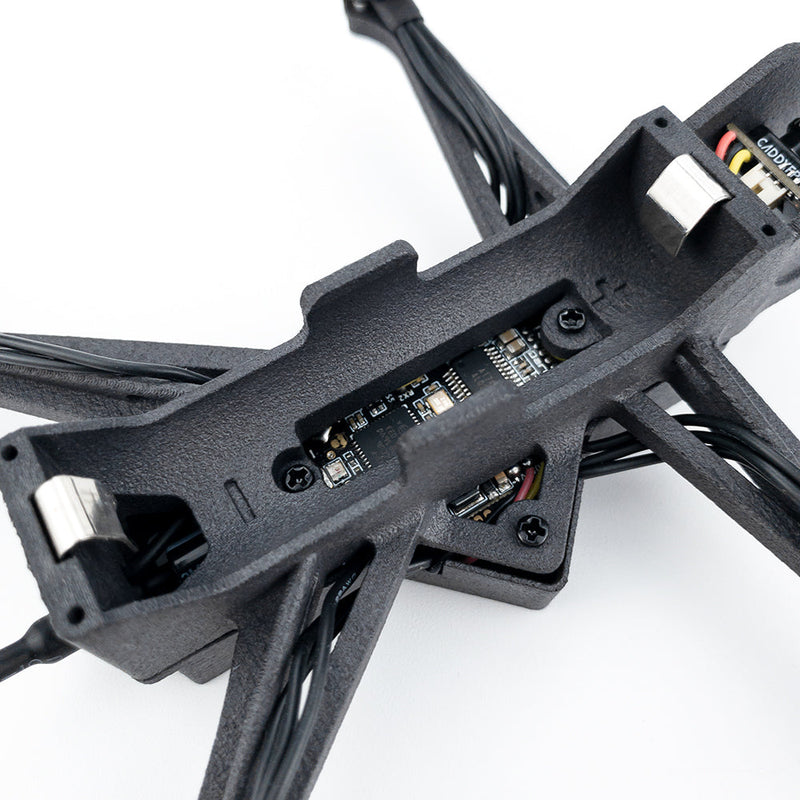

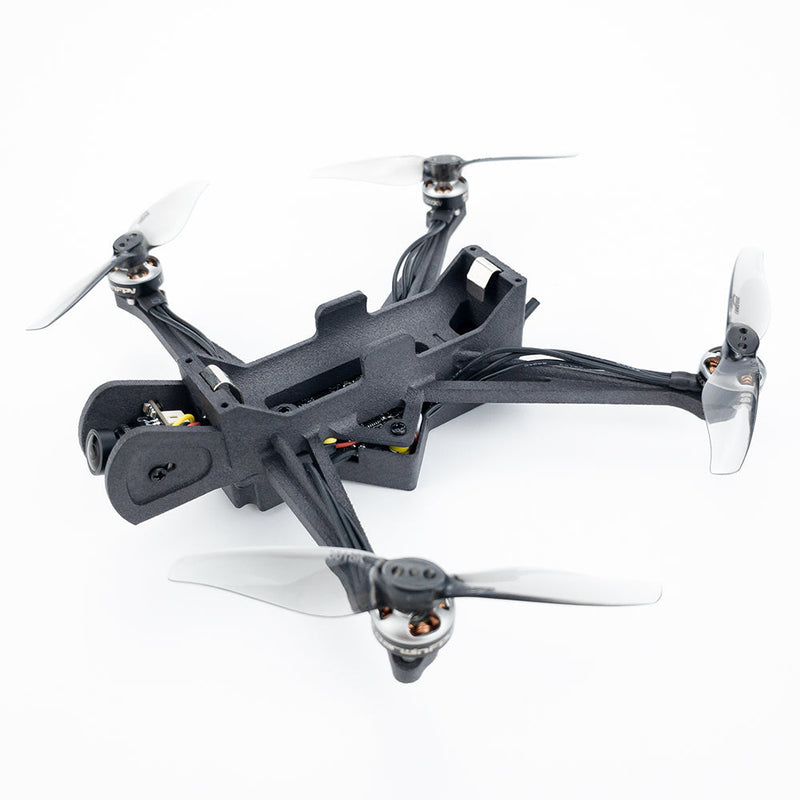

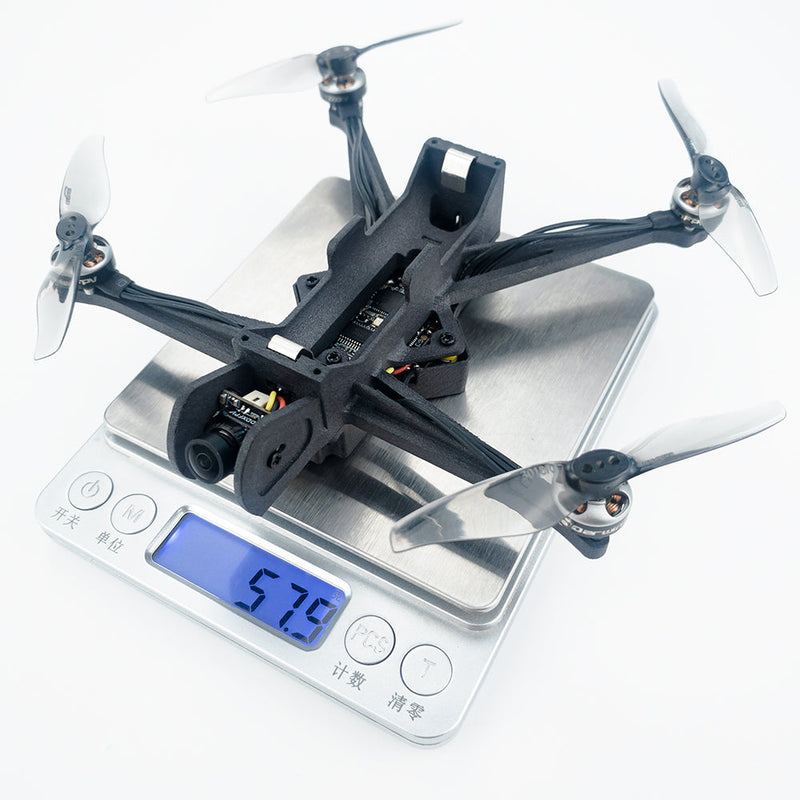

Darwin18650 3inch LR PNP Drone


Sale price$120.39 USD


We are a  design team from China has rich design experience in the field of FPV drone racing. They strive to provide low cost and high performance products for every member in the world who loves flying!

We have upgrated the drone so it comes without battery, charger, receiver or remote control.


  • Wheel base: 145mm
  • Motor: 1103 12000KV 1-3S Brushless Motor
  • Propeller: Gemfan Hurricane 3018 2-Blade propeller 3018-propeller 2L2R
  • Flight controller: F411-15A AIO Flight Controller

Camera: CADDX Camera ANT

1103 12000KV 1-3s Brushless Motor

KV: 12000kv

Lipo cell: 1-3s

Weight: 3.6g

Prop adapter shaft: M2

Bolt thread: PM1.6

Propeller: 3''

4 IN 1 15A BL Heli-S ESC

Input voltage: 3.7~13v DCIN(1-3S LiPo)

Constant current: 15A

Peak current: 17A

BEC output: NO


Protocol: DSHOT/ Oneshot/ MultiShot

BLHeli-S Firmware target: S-H-50

Telemetery: No

Current Sensor: No

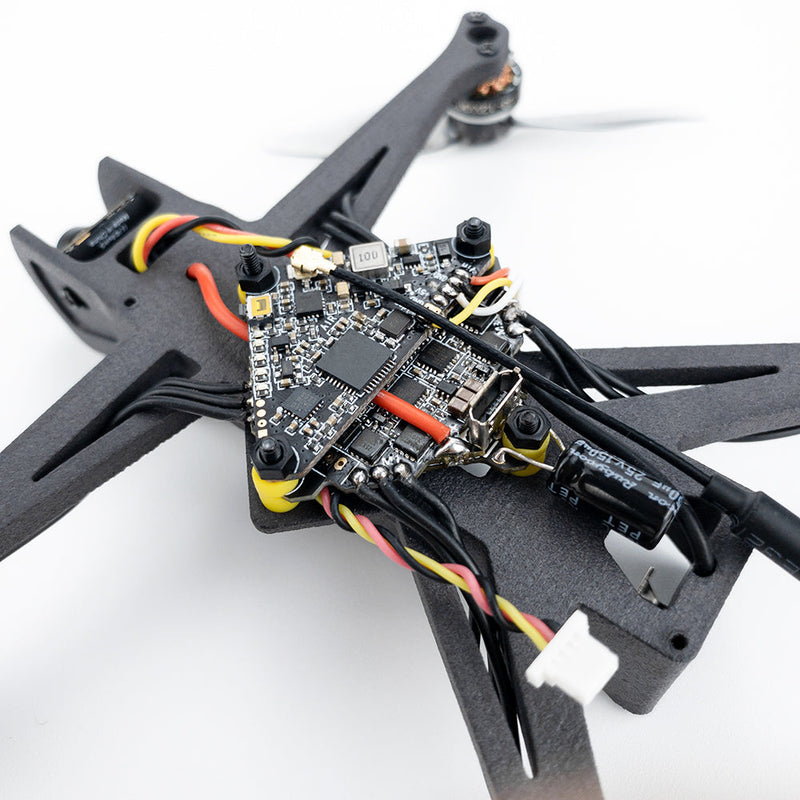

F411-15A AIO Flight controller

MCU: 100MHz STM32F411CEU6

IMU: MPU 6500(SPI) or ICM20689

Baro: No

Blackbox: No

OSD: AT7456E


Bailt in inverter for SBUS input (UARTI-RX)

1XSoftserial supported(S5)

3.7~13v DCIN(1~3SLiPo)

BEC: 5V 2A cont (Max 2.5A)

LDO3.3V: Max 200mA

Battery Voltage sensor: 1:10 (scale 110)

Beta Flight target: MATEKF411

VT 5840 AIR 5.8GHz 40CH

Model: VT5804 AIR

Output power: 25mw/50mw/100mw/200mw/400mw

Input voltage: 6~26v

Output power: 25/50/100/200/400mw Switchable

Frequency: 48 channels

Weight:3g (not including altenna)

Size: 28.8*28.5*3mm

Mounting holes Dimension: 25.5mm*25.5mm

Connector: IPX-E

Video format: NISC/PAL

Device configuration through OSD

PIT Mode Feature

Stable output power and Long transmission distance: 0.5@25mw, 1km@200mw, 5km@400mw(Orignal Antenna)

Device Configuration through OSD

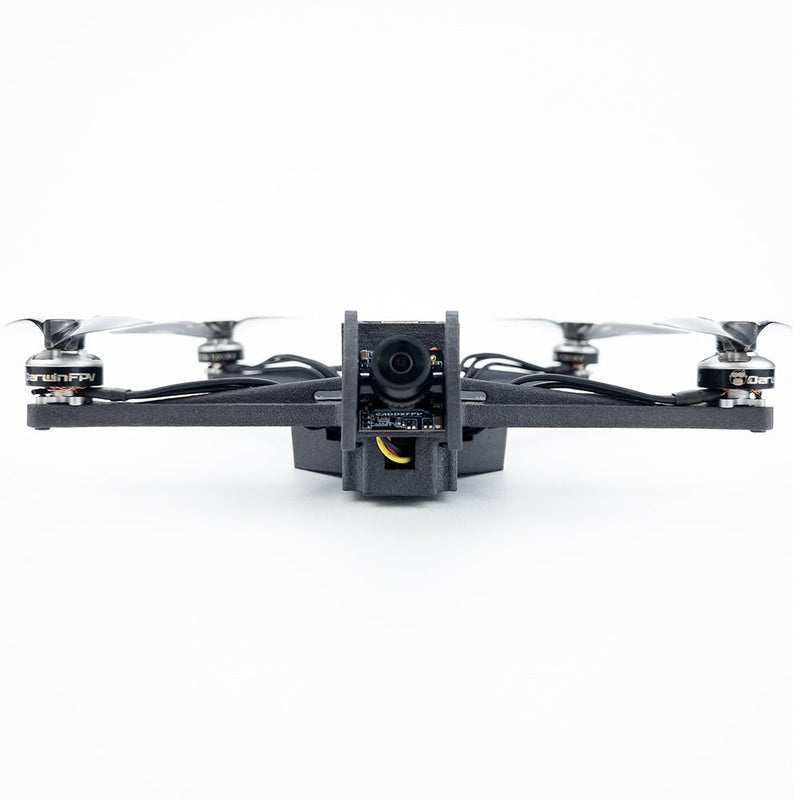

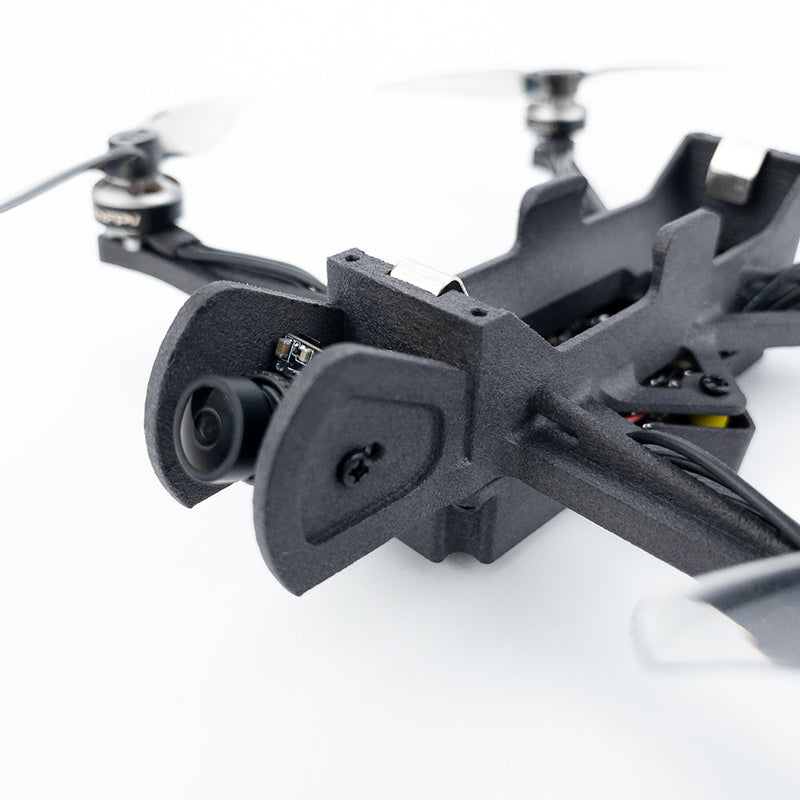

CADDX Camera

Image sensor: 1/3''CMOS Sensor

Horizontal resolution:1200TVL

TV system: NTSC or PAL

MENU: support PICTURE: 16:9 OR 4:3

Synchronization: internal

Electronic shutter: PAL: 1/50~100000

NTSC: 1/60~100,000

S/N ratio: >52dB(AGC OFF)

Video output: CVBS


Min Lighting: 0.001 Lux@F1.2

Auto Gain control: YES


WDR: Global WDR


Dimensions: 14*14mm

Wide power input: DC3.7-18V

Work temperature: -20~+60

Working humidity: 20% ~80%

Weight: 2g (N.W.)
