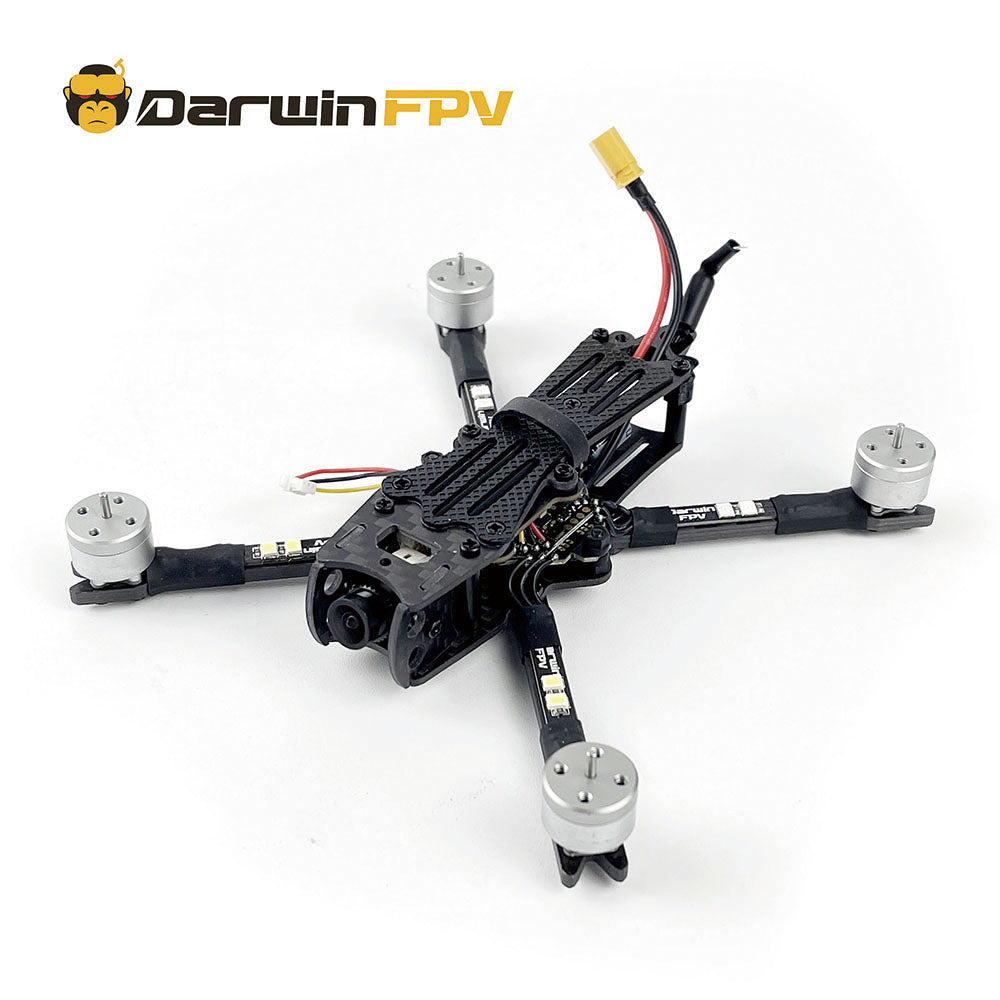

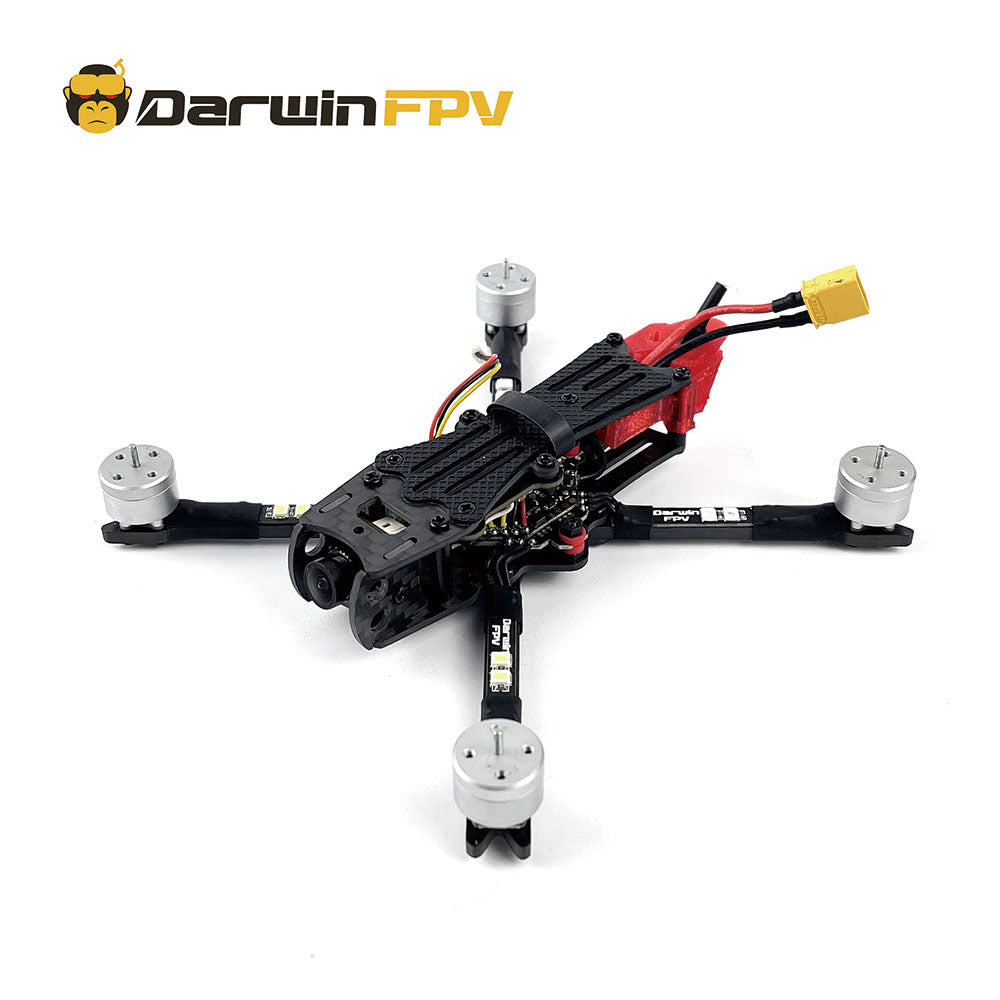

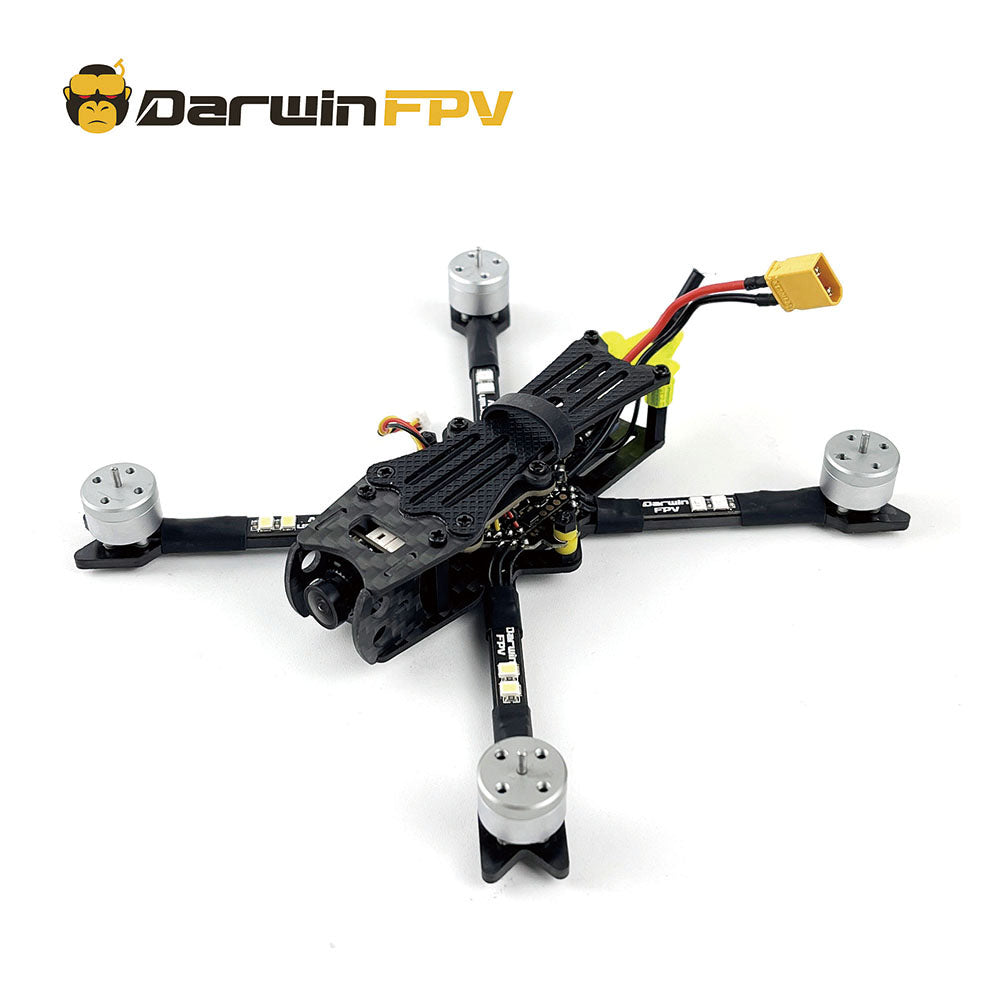

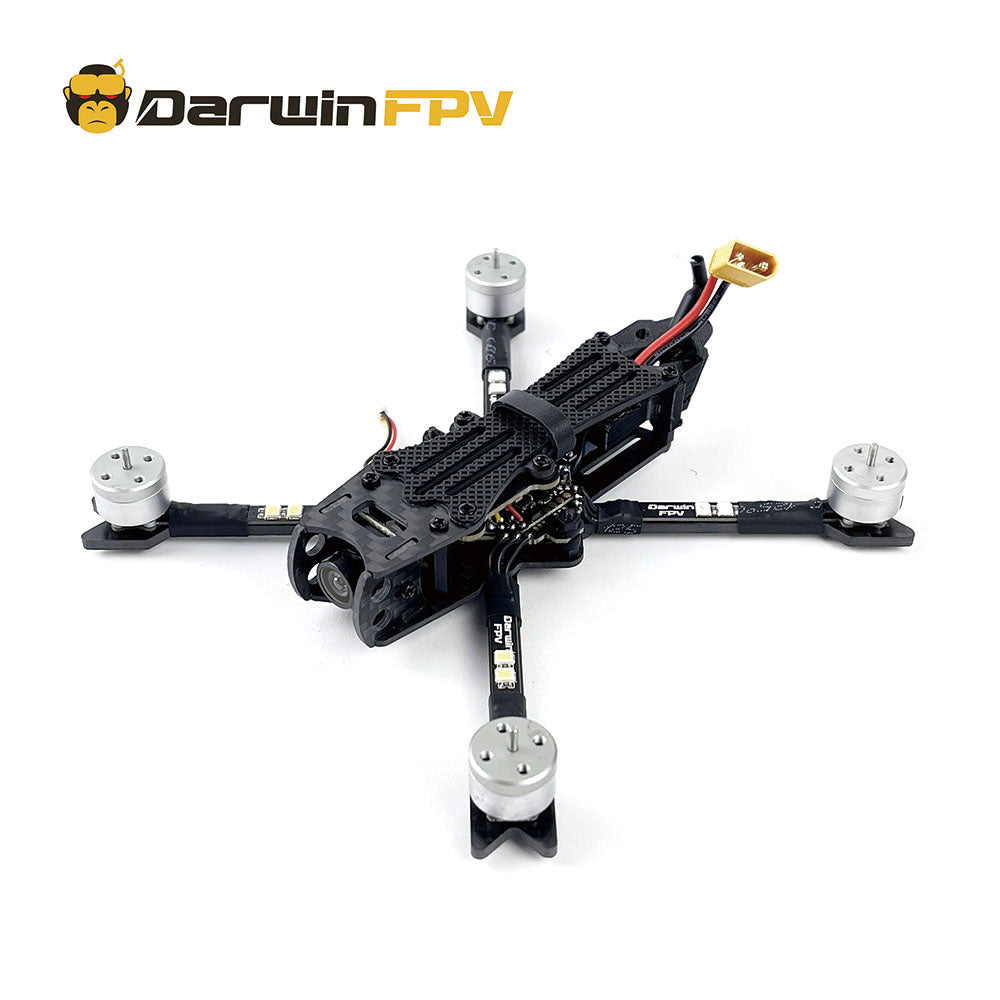

DarwinFPV BabyApe 3''

DarwinFPVSKU: DRONE-06-black

Price:
Sale price$84.99 USD

Description

After summarizing the comments from drone players and we have upgraded our drone. it comes with F4-15A AIO FC(1-3S Lipo-HV) Flight Controller, 1104 4300kv Motor, 700 TTL 3.6mm Camera and so on. If you want a better one and  there is also Baby Ape Pro that could be provided. Comes without battery, charger, receiver or remote control.

The difference between Baby Ape 3'' and Baby Ape Pro : the camera of Baby Ape Pro has upgraded to CADDX ANT)

Baby Ape 3''Darwinfpv 700TVL Camera

Resolution:700TVL

Lens: 1.8mm

Input: 3.5-5V

TV System: PAL/NTSC

Baby Ape Pro CADDX ANT

Resolution:1200TVL

mage Sensor: 1/3" CMos Sensor

Input: DC 3.7-18V

TV System: PAL/NTSC

Baby Ape 3''

It equiped with Darwin205 700TVL Camera5.8G 40CH 0mw/25mw/200mw switchable VTXF411 AIO Flight Controller and 1104 4300KV 2-3S Brushless MotorComes without battery, charger, receiver or remote control.

Specifications:

1104 4300KV 2-3S Brushless Motor

KV: 4300KV

Lipo cell: 2-3S

AIO 4 IN 1 15A BLHeli_S  ESC

Input voltage: 1-3SLiPo

Continuous current: 15A

Pe ak current:17A (10S)

BEC output: no

Main control chip:EFM8BB21

Firmware upgrade: Supports Dshot600/Oneshot125

MOS: 3*3

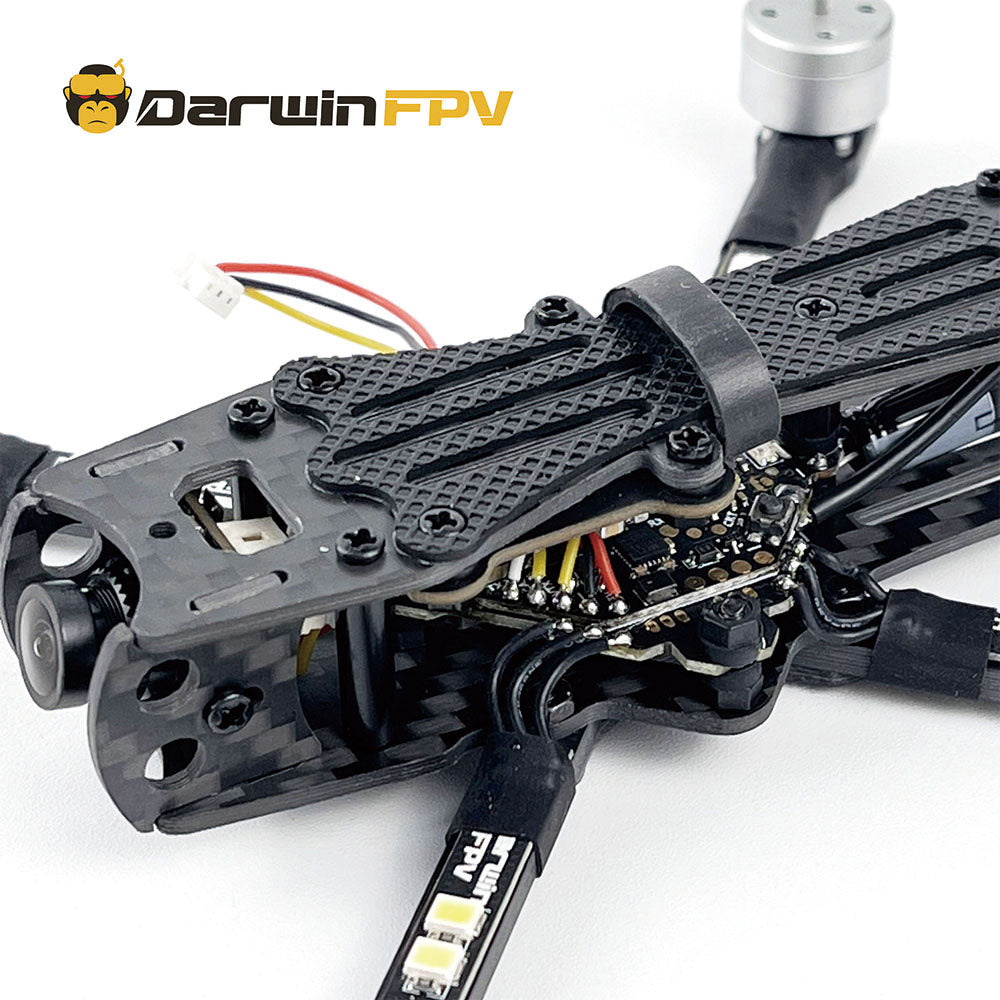

F411 AIO Flight Controller

Main control chip: STM32F411

Sensor: MPU6000 or ICM20689

Integrated OSD

PPM/DSM/IBUS/UAR share: UART1-RX

IMU: MPU6500 (SPI)

Mounting holes distance: 25.5*25.5mm

Supports Betaflight firmware

5.8G 40CH 0mW/25mw/200mw switchable VTX

upports TBS SmartAudio

Transmitting power: 0mW/25mW/100mW/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V/600MW

Size: 25×20×6mm

Weight: ≤3.2g (except antenna)

With copper pipe mini antenna (ipex antenna)

Baby Ape pro

Based on the many times' experience we find that maybe there are some friends need the better camera so we publish a upgraded Baby Ape named Baby Ape Pro. This drone can meet the needs of most people whaever you are beginners or past master.

Specifications:

Resolution:1200TVL

mage Sensor: 1/3" CMos Sensor

Input: DC 3.7-18V

TV System: PAL/NTSC

5.8G 40CH 0mW/25mw/200mw switchable VTX

Supports TBS SmartAudio

Transmitting power: 0mW/25mW/100mW/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V/600MW

Size: 25×20×6mm

Weight: ≤3.2g (except antenna)

With copper pipe mini antenna (ipex antenna)

30163-blade propelle

Material: PC

Mounting hole: 1.5mm

Center thickness: 5.5mm

Quantity: 2 pairs

Weight: 1.18g a pair

 Baby Ape 3"/Pro RTF

Darwin Baby Ape RTF  can solve many problems for you. We have prepared all the equipment for you and have already welded and adjusted the parameters. The only thing you need to do is enjoy the flight.

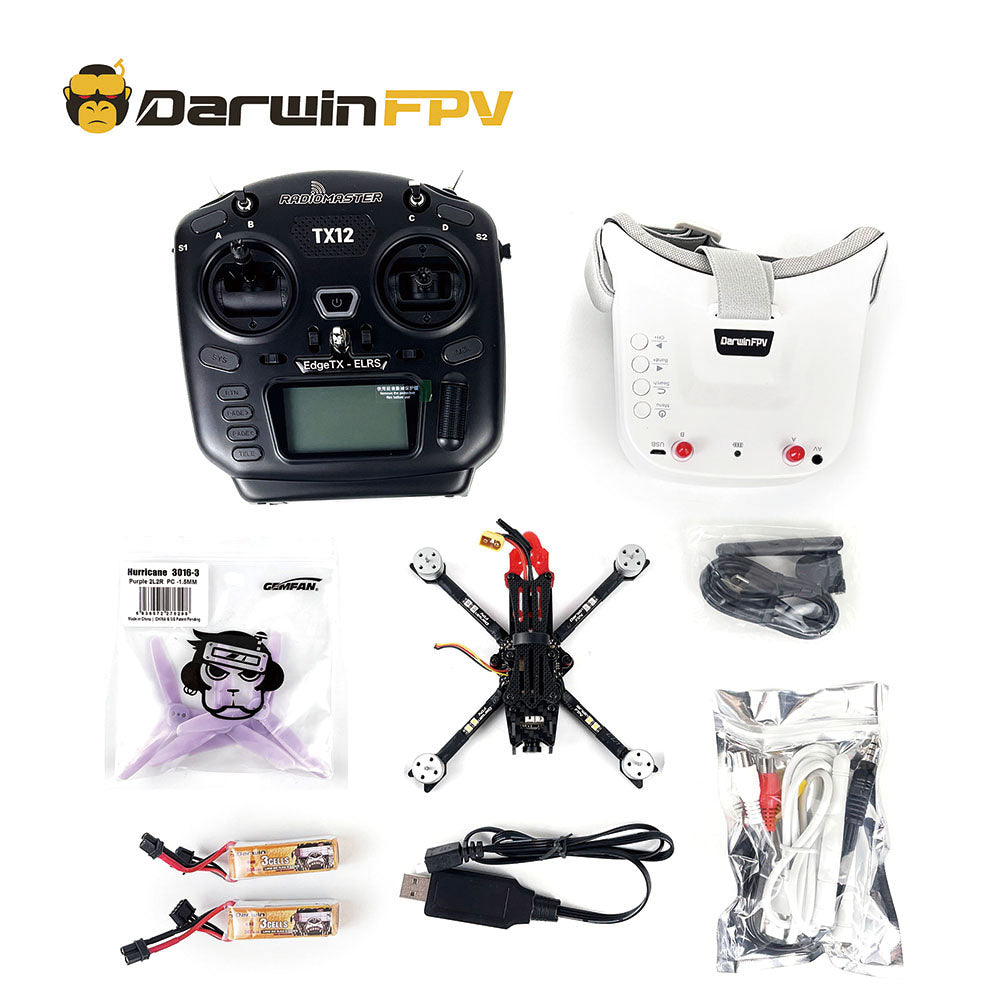

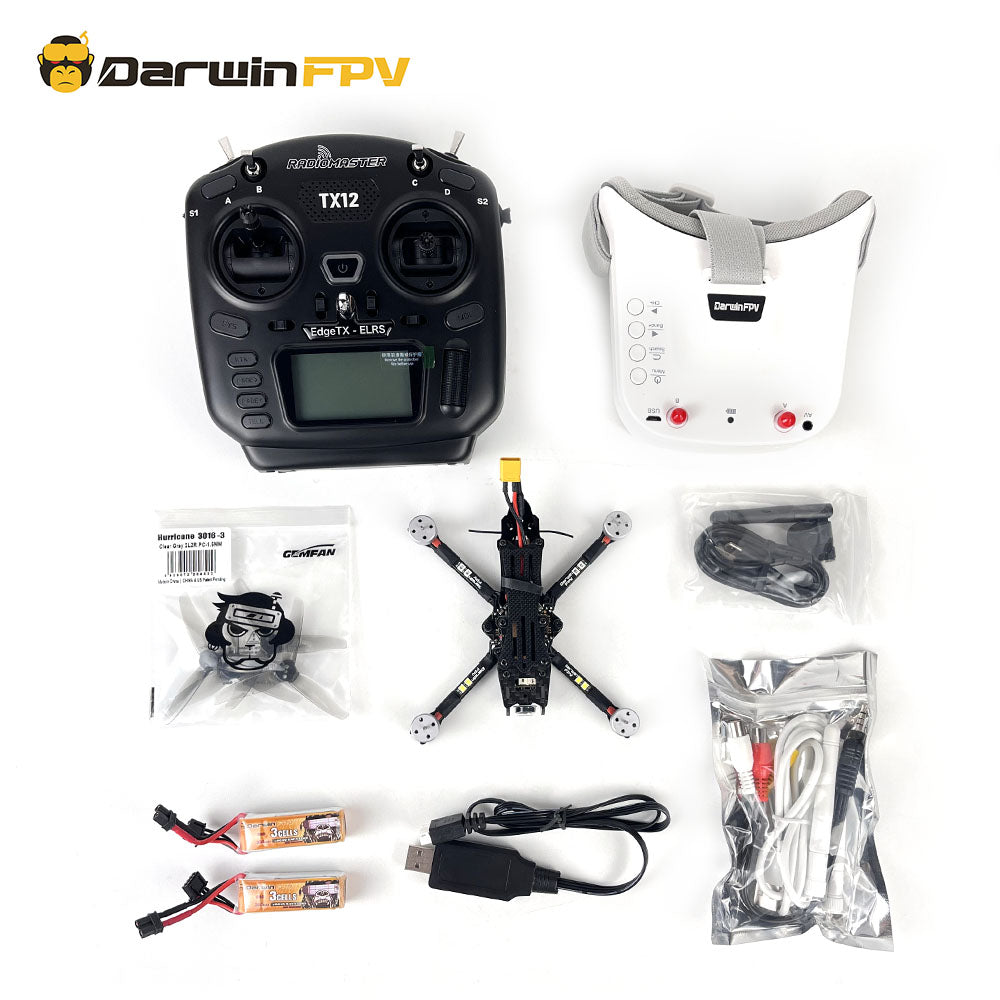

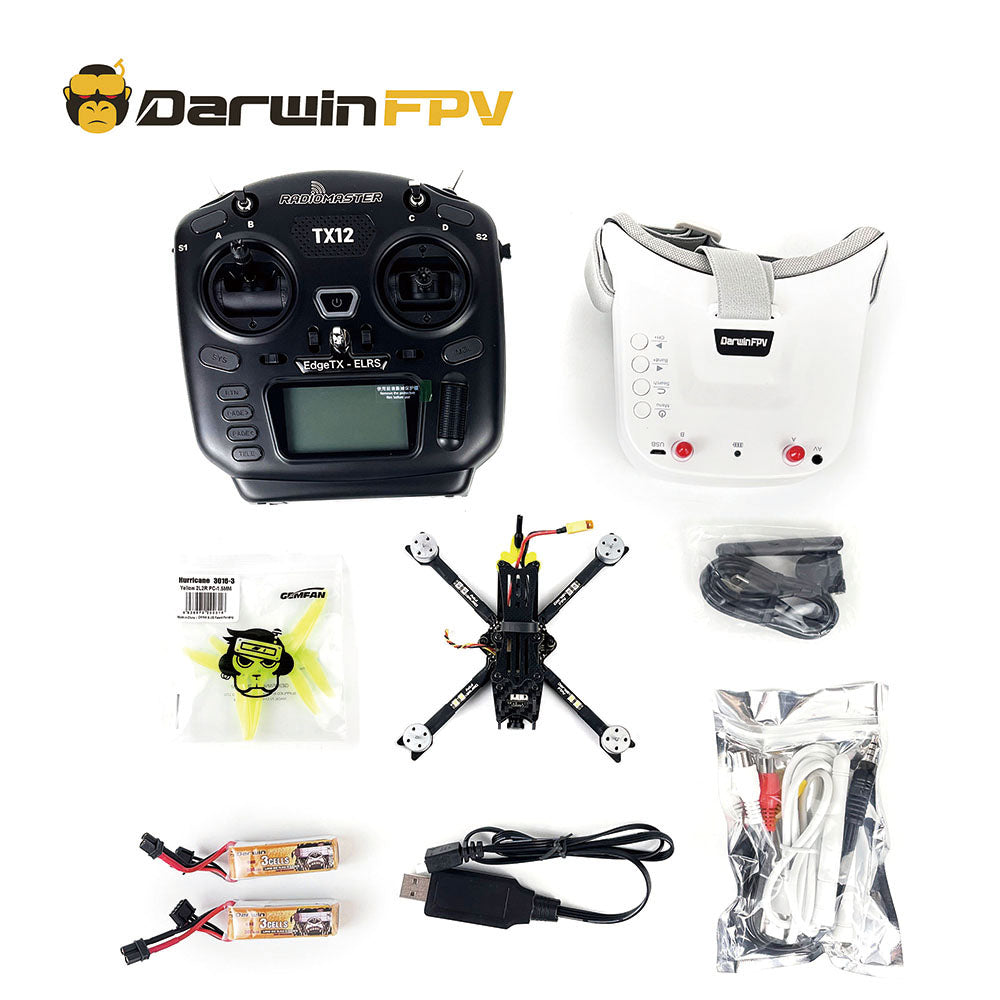

Baby Ape 3"/Pro Package:


1 * Baby Ape 3"/ Baby Ape Pro


1 * Radiomaster T8 LITE Transmitter


1 * VR009 5.8G Dual Antenna 40CH 3 inch FPV Goggles


2 * 380mAH 80C 3S Lipo Battery


1 * 3S USB Battery Charger and Voltage Tester
