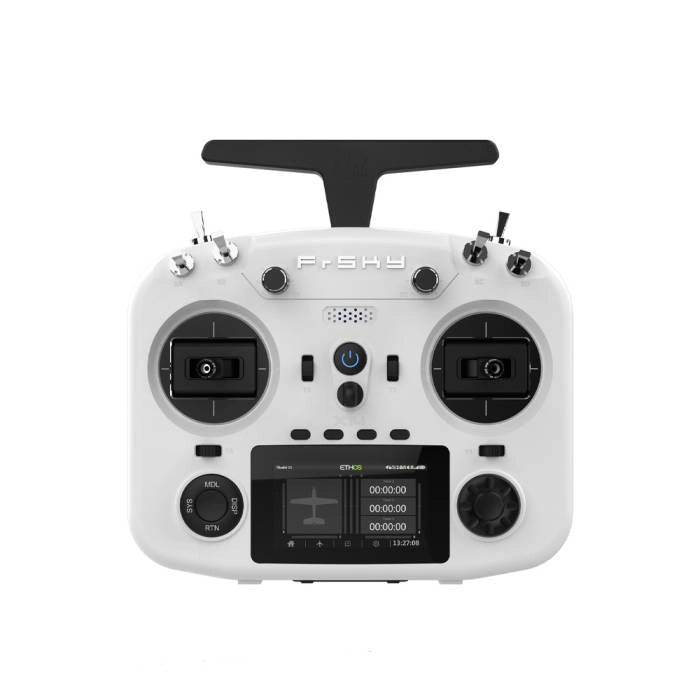

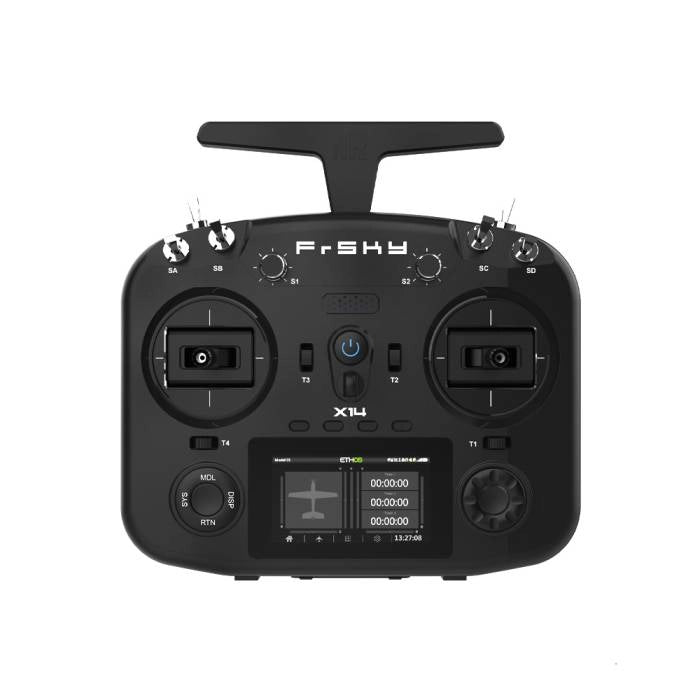

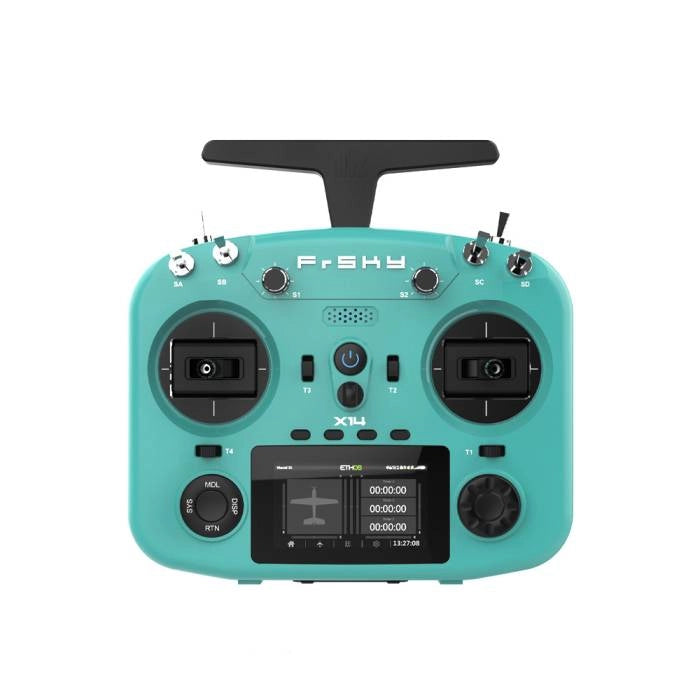

FrSky TWIN X14 ACCESS 2.4GHz Radio Transmitter


Sale price$199.99 USD


The FrSky TWIN X14 ACCESS 2.4GHz Radio Transmitter stands out as a robust radio system, boasting the capability of simultaneously utilizing dual 2.4G frequencies on the same receiver in TW mode. Unlike standard active-standby redundancy solutions, the TW active-active protocol ensures that both 2.4G frequency bands are simultaneously actively engaged on the TWIN series RF module and receiver. Equipped with two internal 2.4G RF antennas, the TWIN X14 offers expansive multi-directional coverage for transmitting signals. Leveraging these attributes alongside the exterior antenna mounting frame, the Twin system provides less latency, higher reliability, and faster data rates with confidence. In addition to the TW mode, TWIN X14 supports ACCST D16 and ACCESS modes. This means users can benefit from a wide range of compatible receiver options to choose from and bind to when building the RC model.


  • Ergonomic and compact lightweight design with comfortable rounded hand grips
  • High-precision hall-sensor Gimbals with a Metal Panel
  • Built-in Dual 2.4G Band TW-ISRM Internal RF Module
  • 2.95" 640x360 Resolution Color TFT Display Screen
  • Haptic Vibration Alerts & Voice Speech Outputs
  • 4 Trims & 4 Quick-Mode custom buttons (front)
  • High-Speed PARA Wireless Training System
  • Supports Recharge System for 2S Li Battery
  • Easy-to-reach Top Switches and Sliders
  • CNC Aluminum Backshell Stand Holder
  • Integral Flash Drive Storage - 128MB
  • Lite Type External Module Bay
  • 2 Momentary Buttons (Rear)


In alignment with the form factor concept of TANDEM X18, the TWIN X14 has been crafted to enhance its portability, reduce weight, and streamline its design. The ergonomic layout ensures that the momentary buttons, shoulder sliders, and switches on the top are effortlessly accessible. The TWIN X14 offers 4 customizable buttons, thoughtfully placed at the radio panel center for real-time and frequent operations. Take, for instance, when flying an RC glider. To configure these buttons as additional Trim functions by ETHOS, these buttons become invaluable for on-the-fly adjustments, allowing pilots to adapt the angle of the flaps/surface according to the real-time air environment.


Eliminating the need for users to fret over storage decisions, the TWIN X14 boasts built-in 128MB flash storage, providing ample space for your file storage requirements. Its practicality extends to a battery bay accommodating a 2600mAh Li Battery, easily replaceable and featuring a Type-C port for recharging.


  • Data Transmission & Charging Interface: USB Type-C
  • 2.95” Color TFT Display Screen Resolution: 640×360
  • Operating Voltage Range: 6.5V ~ 8.4V (2S Li-Battery)
  • Operating Temperature: -10℃ ~ 60℃ (14℉~140℉)
  • USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
  • Compatibility: ACCST D16 / ACCESS / TW modes
  • Battery Bay Size: 69.5×38.5×20mm (L×W×H)
  • Number of Channels: Up to 24 Channels
  • Operating Current: 330mA@7.4V (typ.)
  • Dimension: 192×193×72mm (L×W×H)
  • Internal RF Module: TW-ISRM
  • Built-in Flash Storage: 128MB
  • Weight: 610g (Battery Excl.)
  • Operating System: ETHOS


  • Battery is NOT included
  • Kickstand NOT included


  • 1x FrSky TWIN X14 ACCESS 2.4GHz Radio Transmitter
  • 1x FrSky Lanyard
