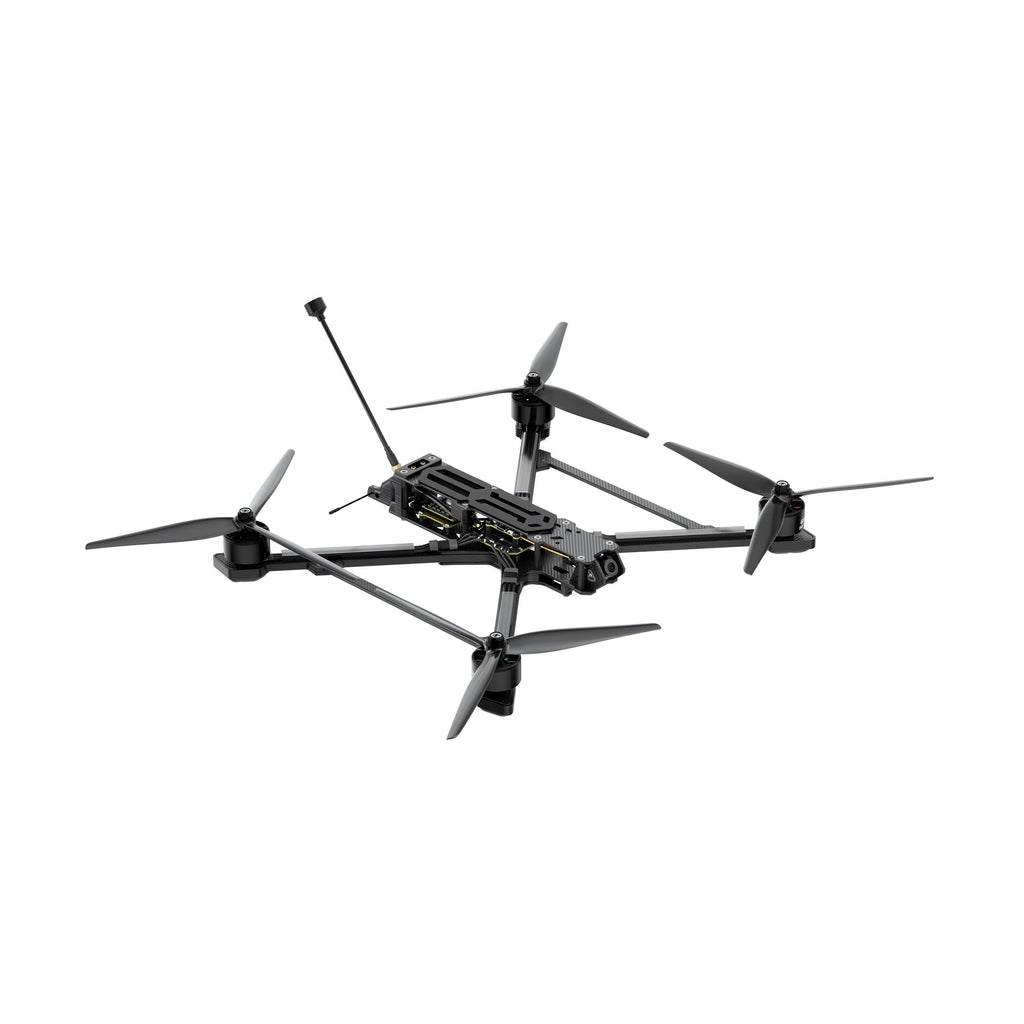

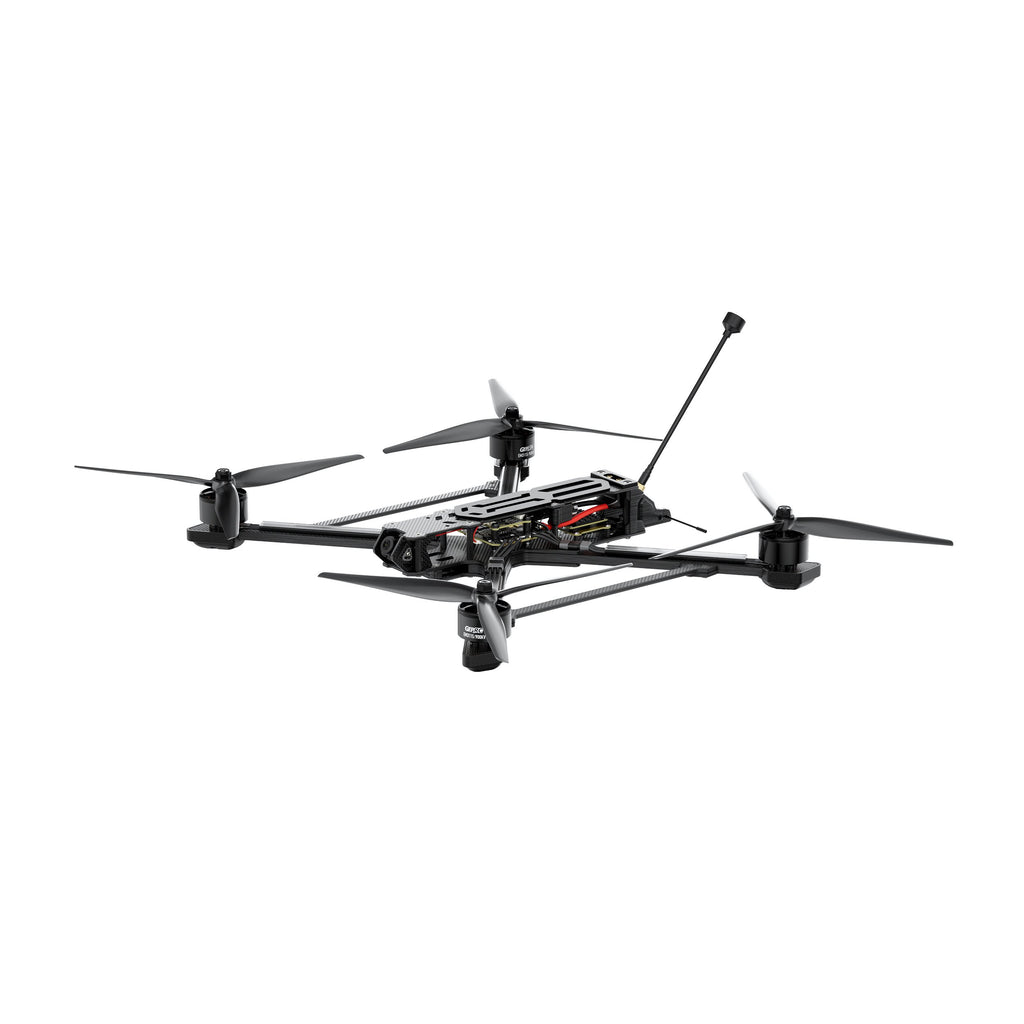

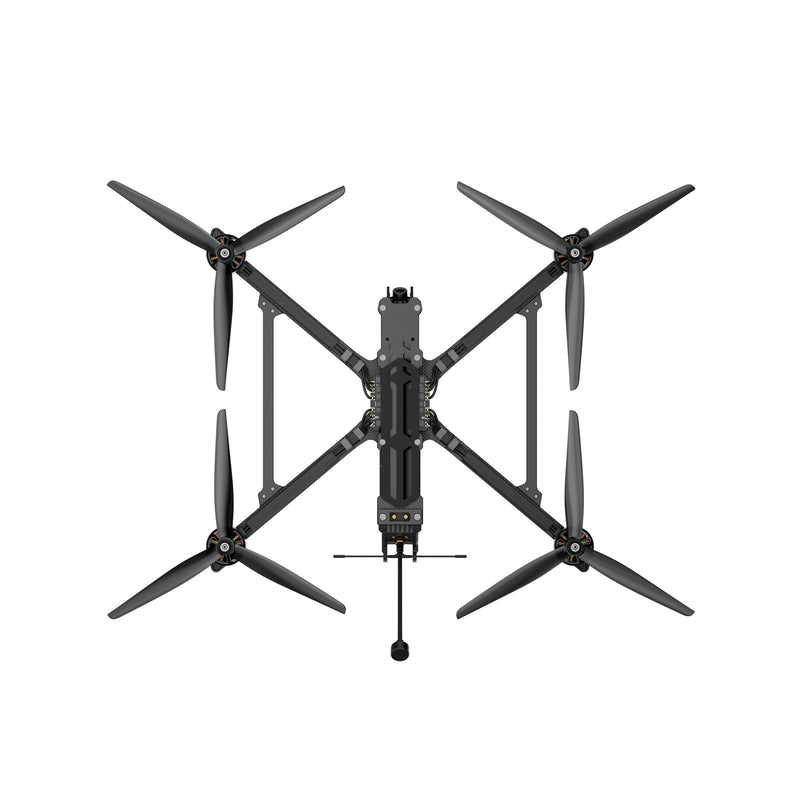

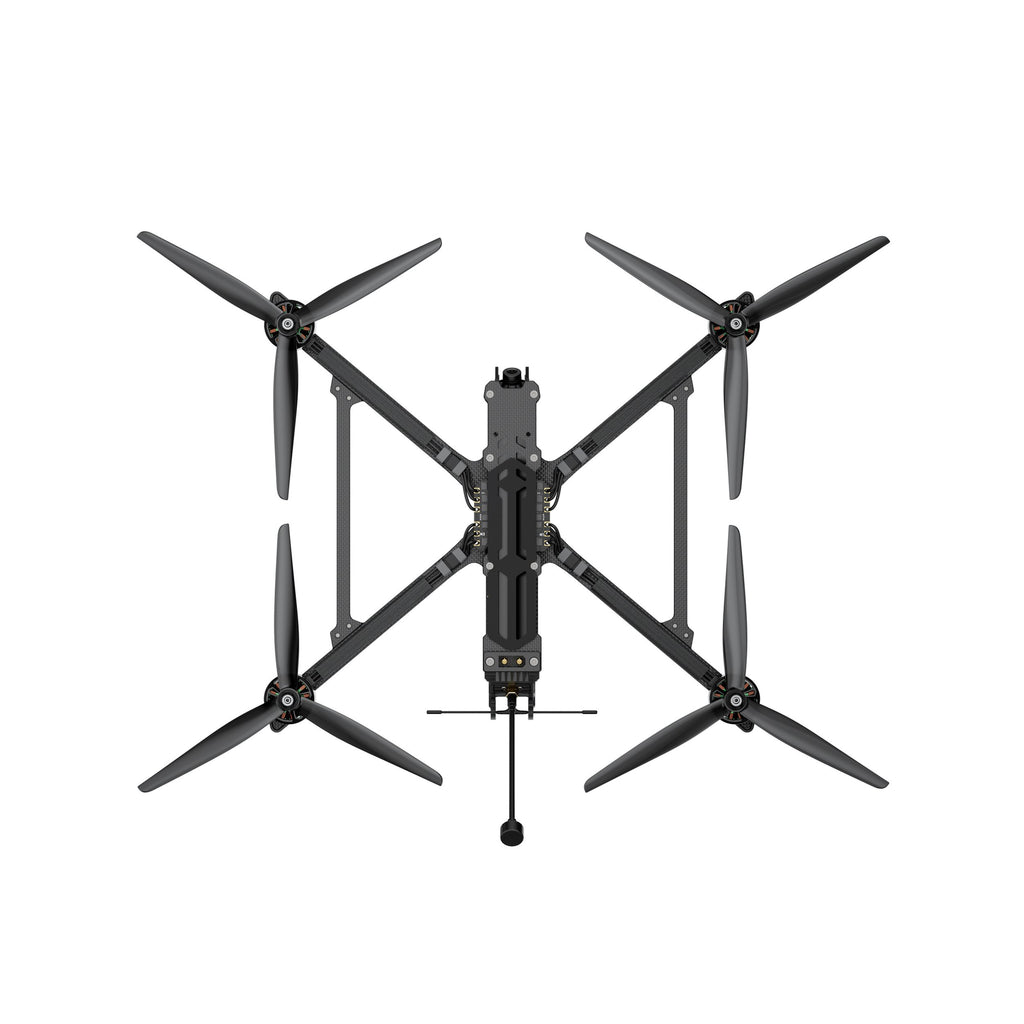

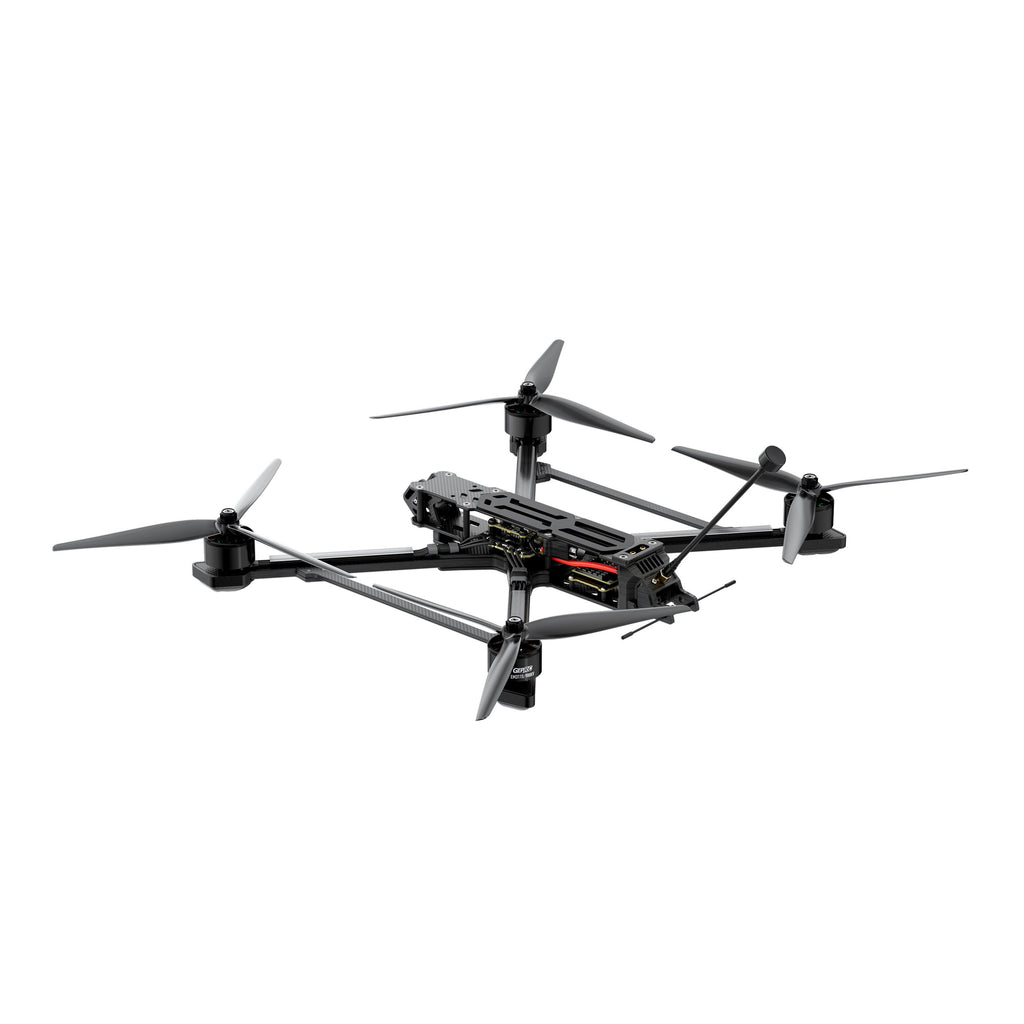

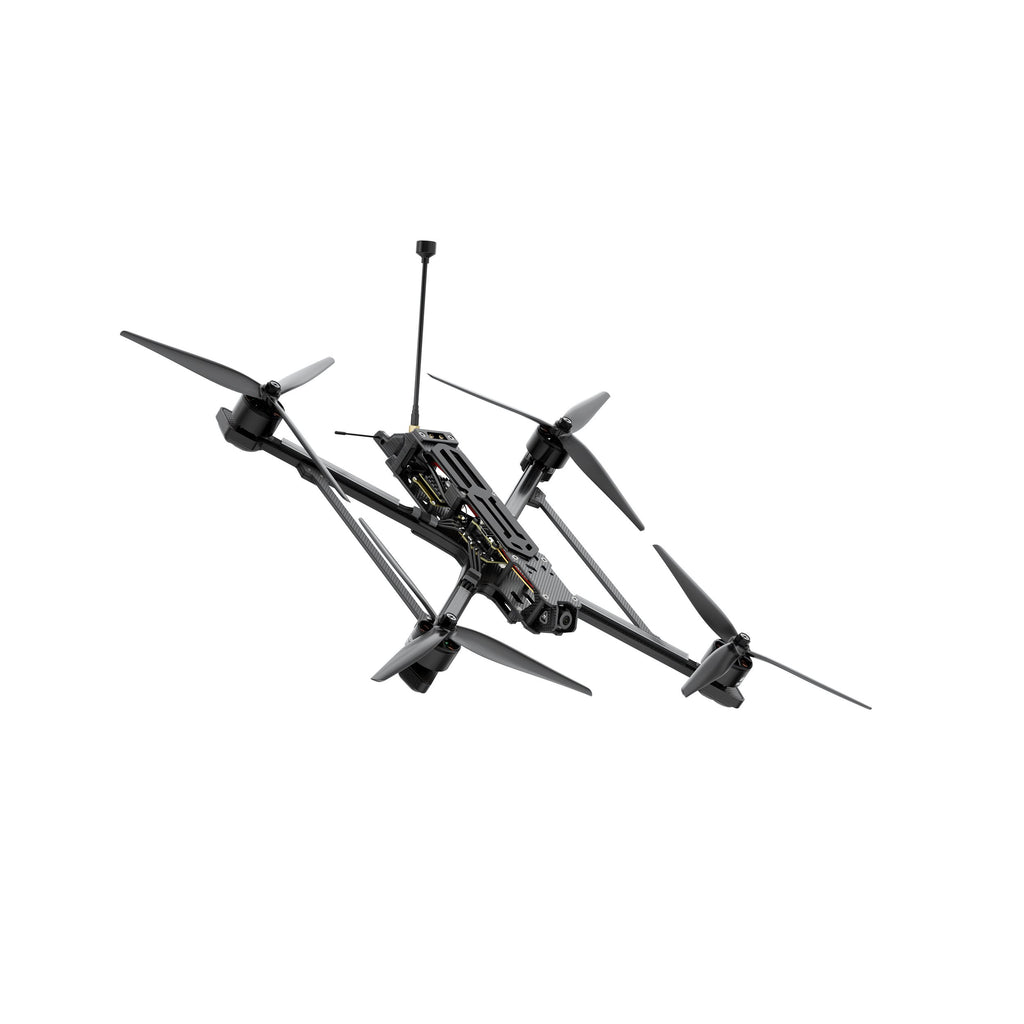

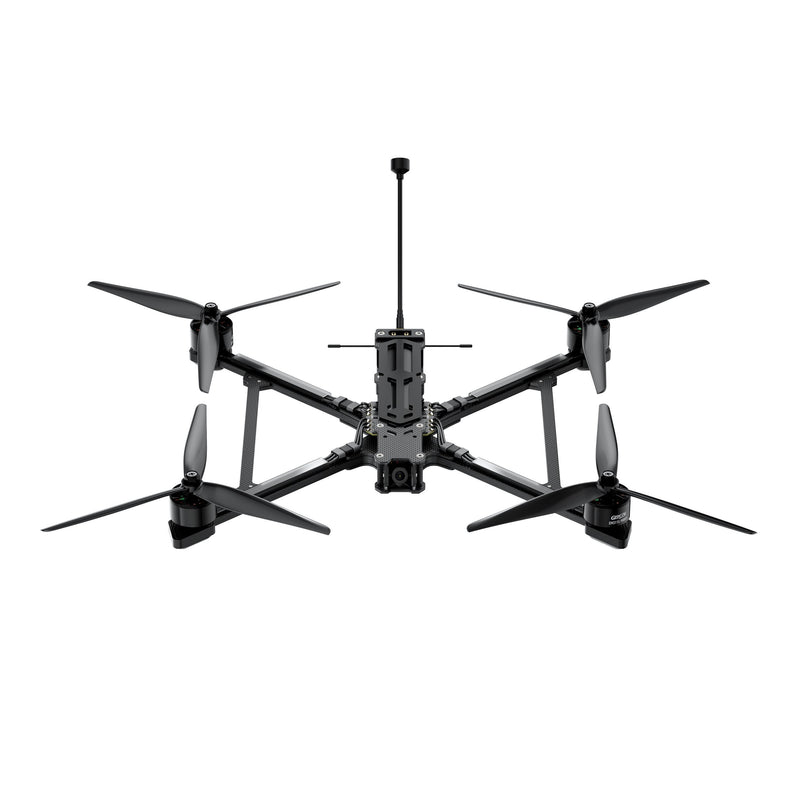

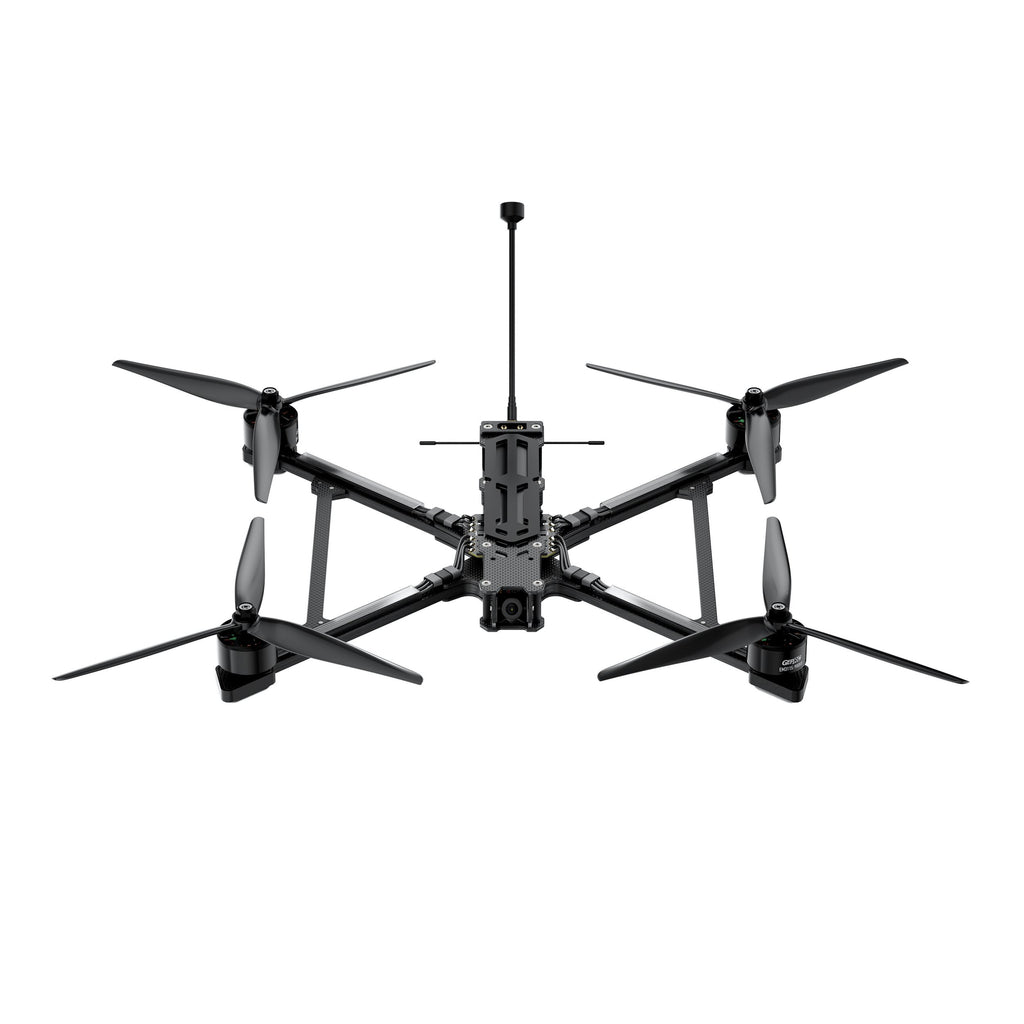

GEPRC EF10 5.8G 2.5W Long Range FPV

Feature

1.  High-power VTX ensures signal stability and reliability
2.  Equipped with EM3115 KV900 motors, using 10-inch propellers, maximum load 4kg
3.  Using TAKER BLS 80A ESC high-performance hardware, 48 high-power MOS for more stable output
4. GEP-F405-BT flight controller, supports mobile phone Bluetooth parameter adjustment
5. Upgraded high-strength, 7-mm-thick arms and wide X-shape structure ensure overall flight stability
6.  Newly designed fixed power plug makes powering on more convenient

Specfications

• Model: GEPRC EF10 Long Range FPV
• Frame: GEP-EF10
• Wheelbase: 430mm
• Top plate thickness: 2mm
• Medium plate thickness: 3mm
• Bottom plate thickness: 3mm
• Side panel thickness: 2.5mm
• Arm thickness: 7mm
• FC: GEP-F405-BT
• ESC: TAKER BLS 80A 4IN1
• MCU: STM32F405RGT6
• Gyro: ICM-42688-P
• VTX: RAD VTX 5.8G 2.5W / RAD VTX 5.8G 1.6W / MATEN 1.2G 2W VTX
• Camera: Caddx Ratel2
• Antenna: Momoda 5.8G RHCP SMA interface
• Motor: EM3115 KV900
• Propeller: HQProp 1050-3
• Connector：XT90
• Weight: 969g

Includes

1 x GEPRC EF10

4 x HQProp 1050-3

2 x Battery anti-slip pads

1 x Spare screw pack

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x M5 wrench
