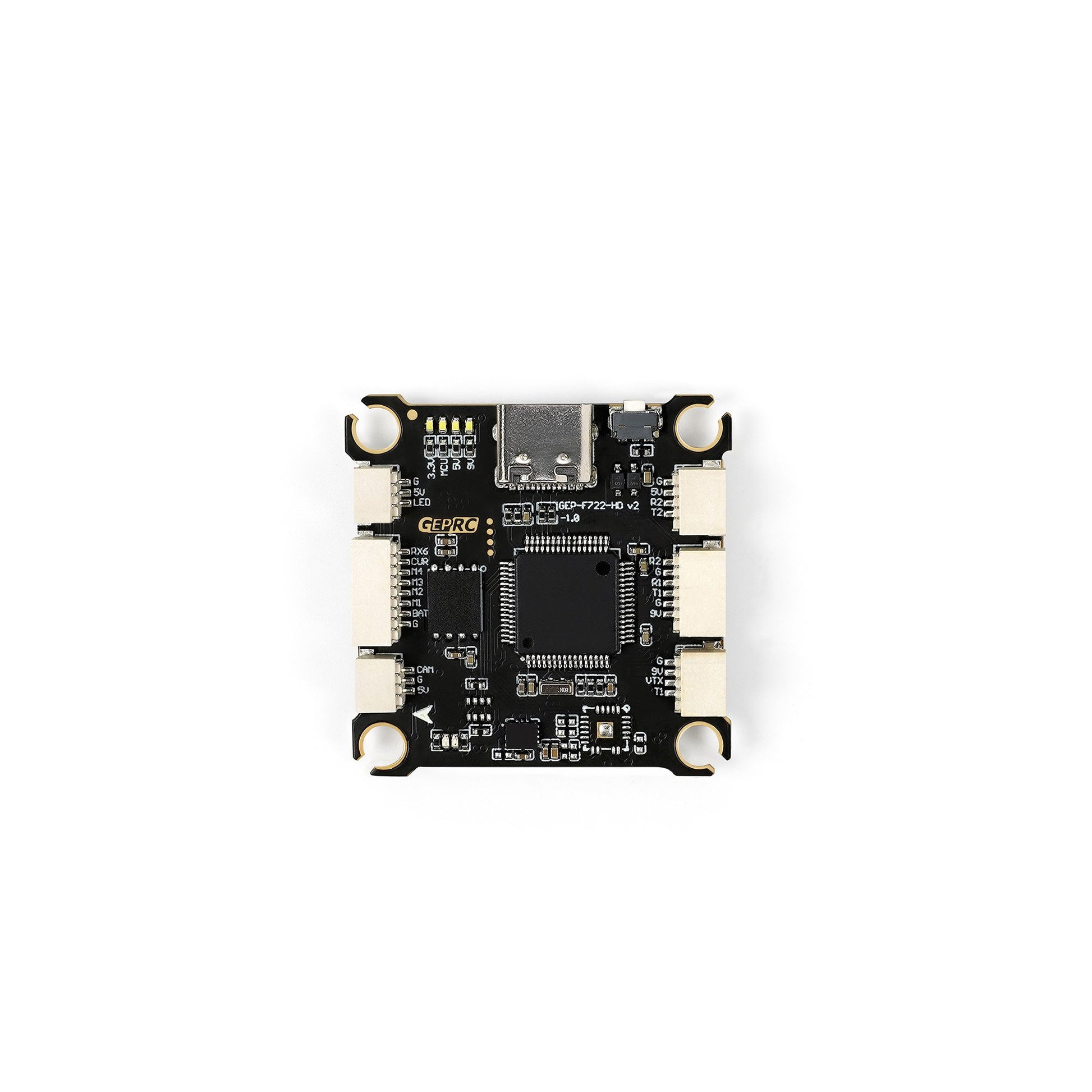

GEPRC GEP-F722-HD V2 Flight Controller

Specifications

• MCU：STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target：GEPRCF722
• Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：5
• Power Filter：Integrated LC filter
• Weight：8.1g

Includes

1x GEP-F722-HD V2 Flight Controller
