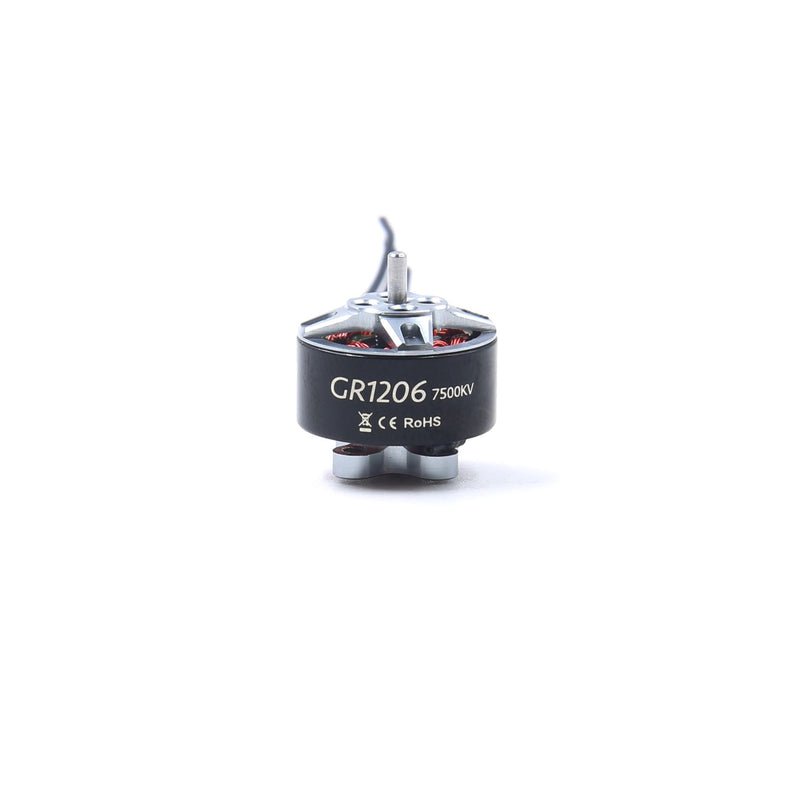

GEPRC GEP-GR1206 7500kv Motor

Save $7.40
GEPRCSKU: GP100735

Price:
Sale price$7.50 USD Regular price$14.90 USD

Description

Summary:

The Micro-FPV quads gives players a lot of fun, but the power is also being upgraded. The new GEP-GR1206 will be a stronger power output. GR1206 will have 3 KV options to meet players’ needs for different situations.The 4500KV is recommended with 3-inch propeller and 3~4S battery.The 6000KV is recommended with 2.5~3 inch propeller and 3S batteries.The 7500KV is recommended with 2.5 inch propeller and 3S battery.

Specifications

  • Item name: GEP-GR1206
  • KV: 7500KV
  • Configuration:9N12P
  • Stator Diamter:12mm
  • Stator Length:6mm
  • Shaft Diameter:1.5mm
  • Motor (Dimension(Dia.*Len)):Φ8*17mm
  • of Cells(Lipo):2~4S
  • Internal Resistance:120mΩ
  • Max Current(180S):15A
  • Rotor: N52H arc magnets
  • Bearings:NMB 520
  • Base casing: Al 7075
  • Wire AWG: 28AWG
  • Weight(g):8.3g

Features:

  1. The new 1206 brushless motor has a stronger power output
  2. Lightweight base design, no change in weight reduction intensity
  3. The upper cover is specially designed for efficient heat dissipation and strong structure
  4. Precision CNC processing, aviation aluminum 7075 aluminum, high precision, high strength
  5. N52H magnet is adopted to ensure torque and high temperature resistance without losing magnetism
  6. NMB520 bearing of Japan ensures low vibration and low noise when the motor runs at high speed
  7. Excellent heat dissipation structure design and 20% reduction of temperature of the same type of motor
  8. 180 ℃high temperature resistant enameled wire
  9. Reliable magnetic circuit optimization, smoother start
  10. The weight is only 8.3g (including wire)
