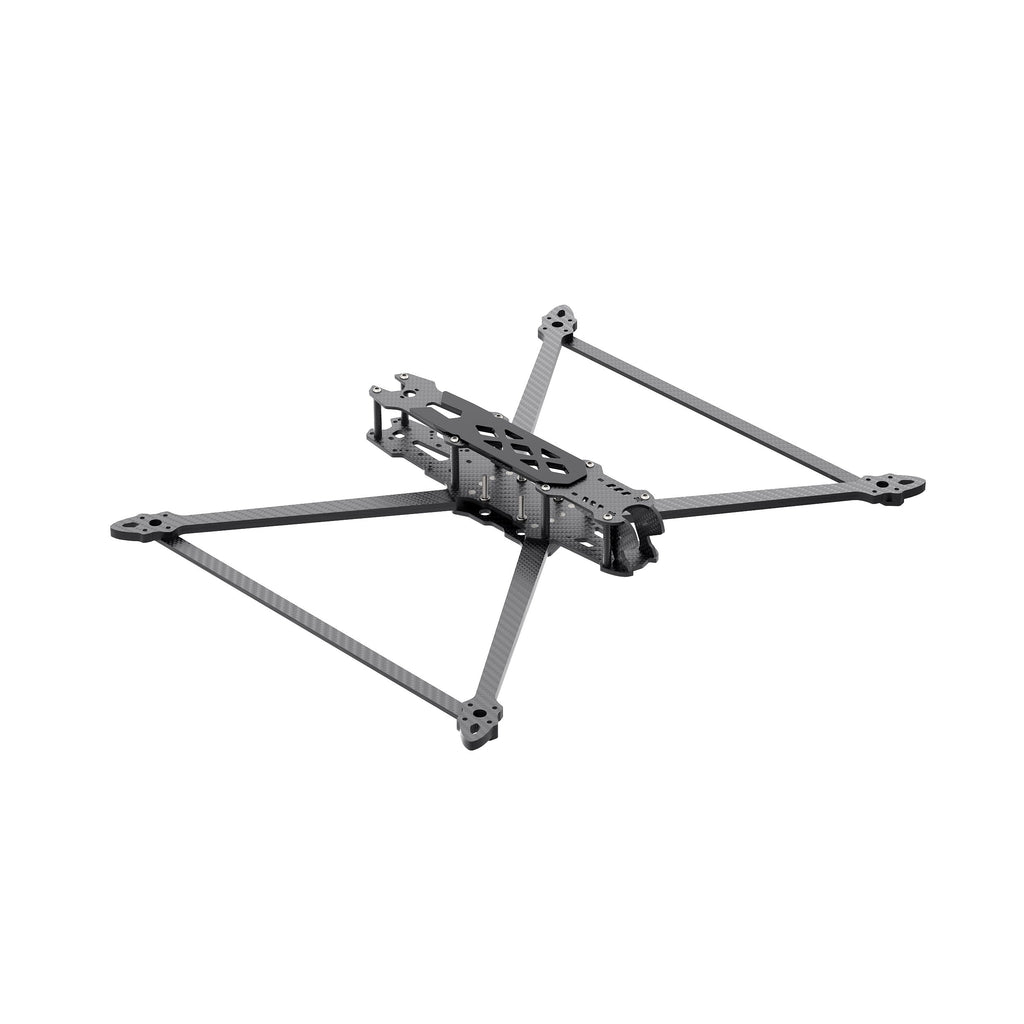

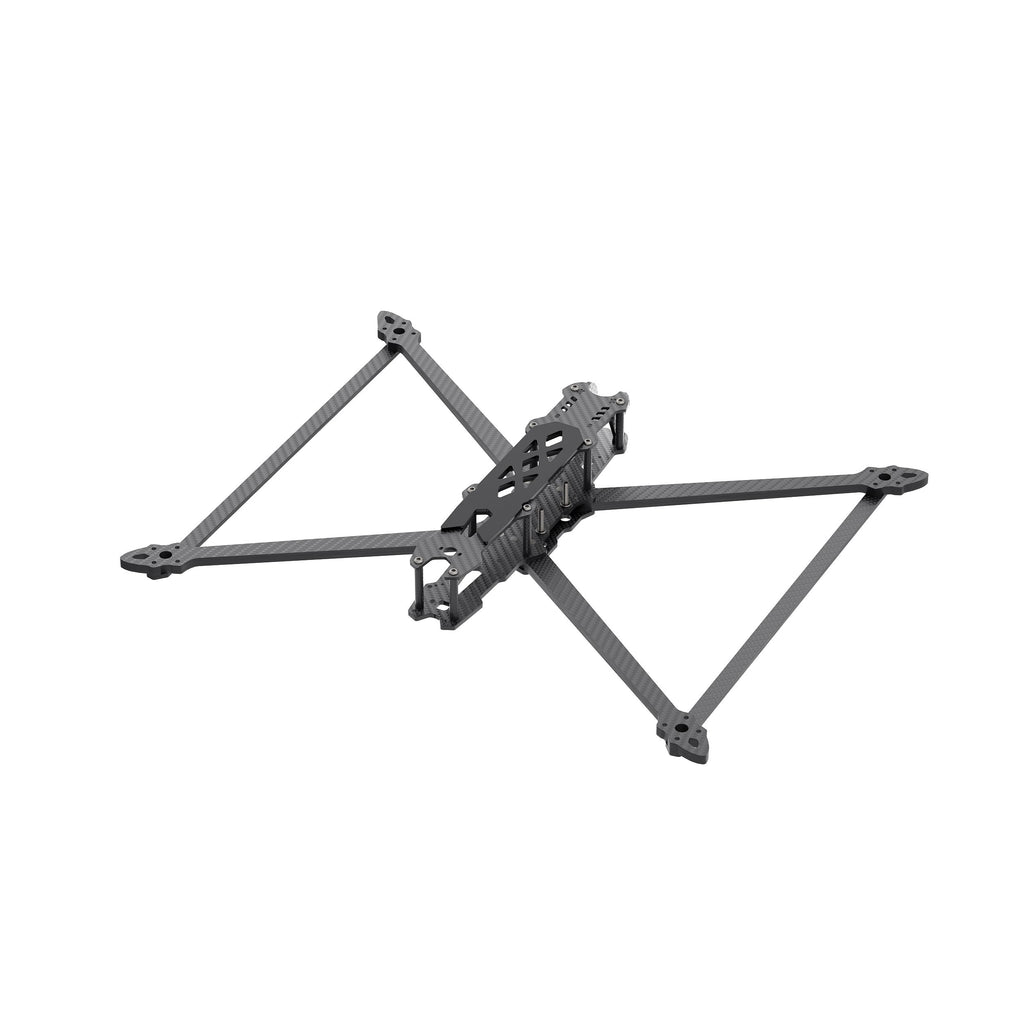

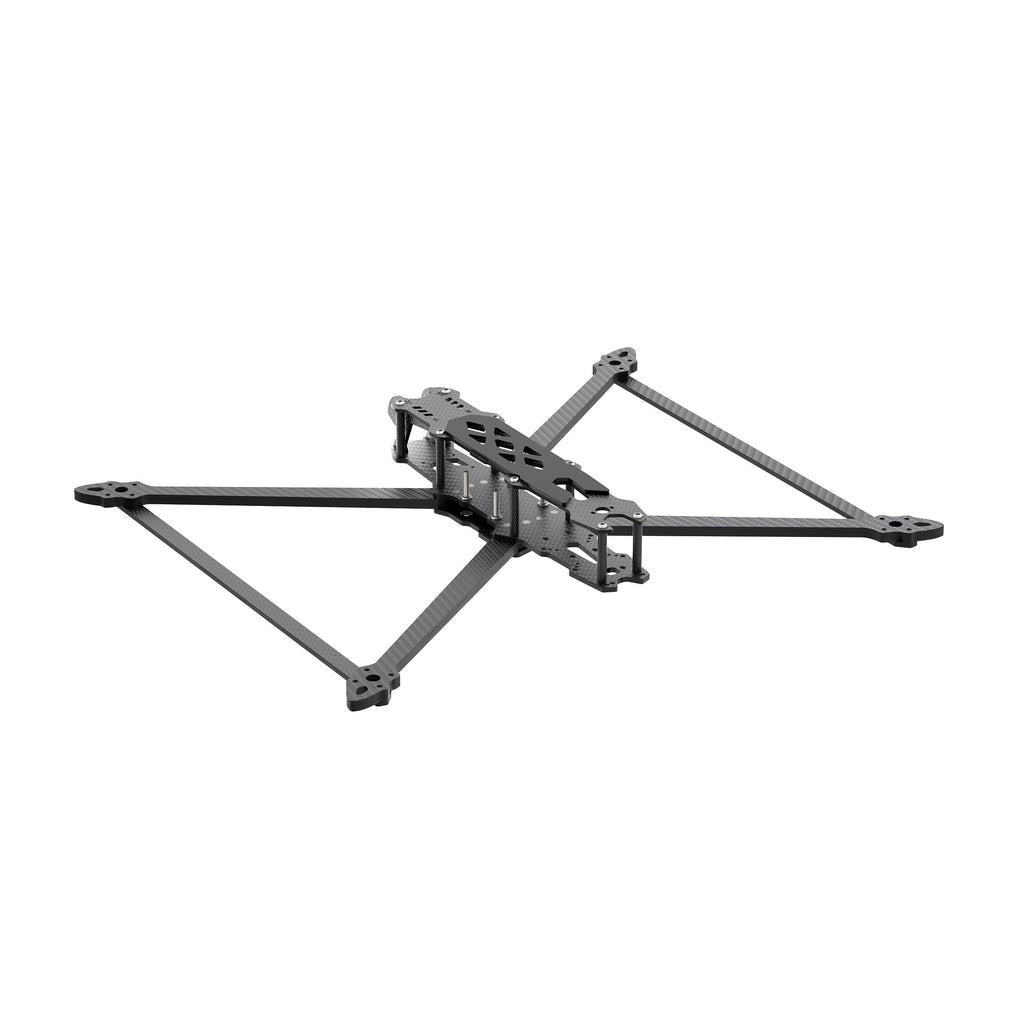

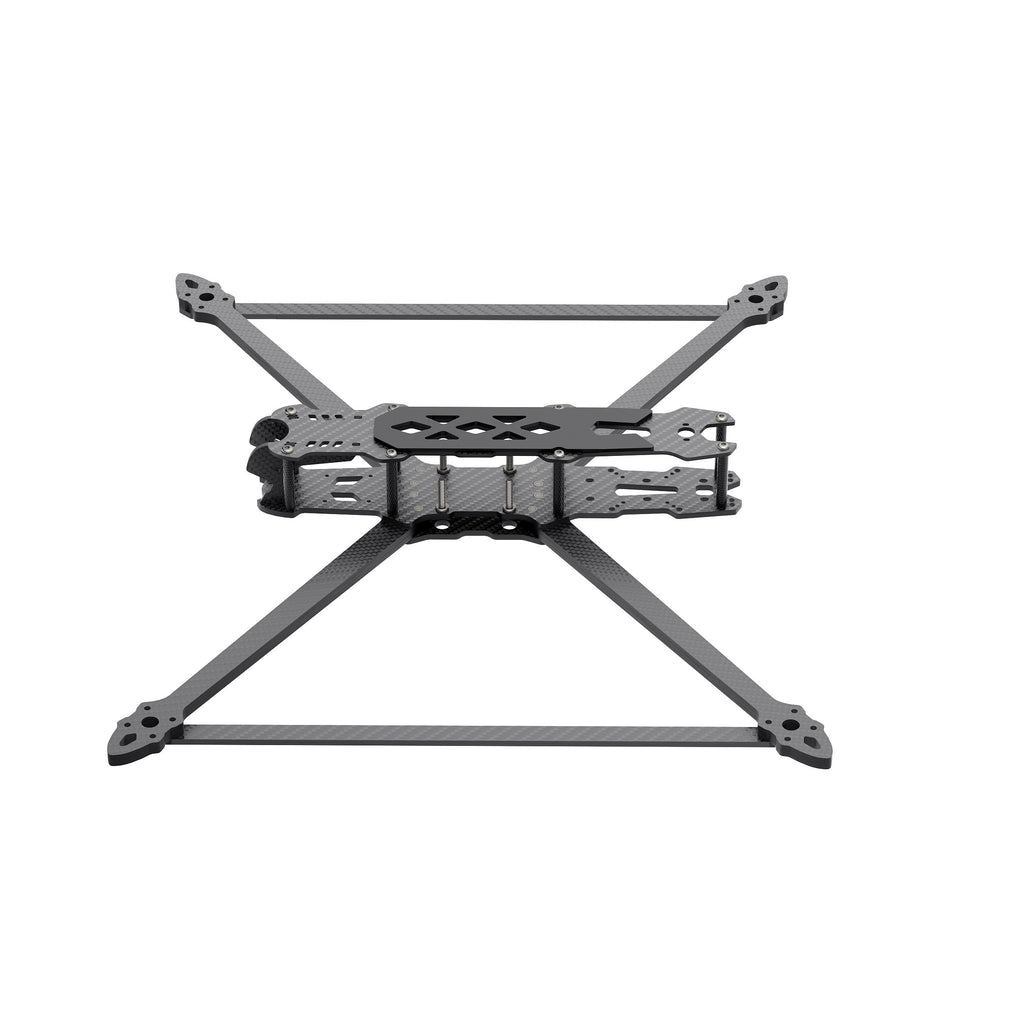

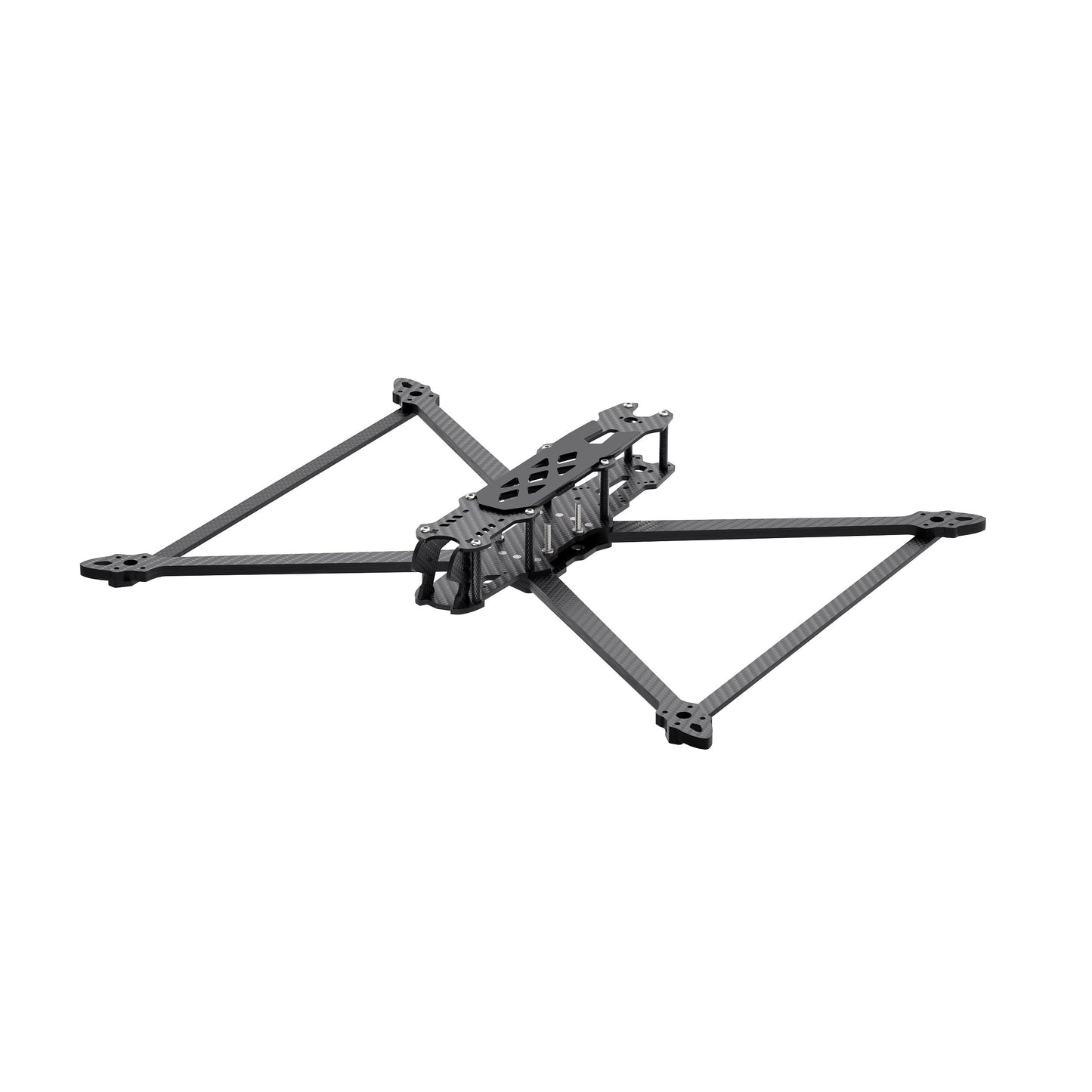

GEPRC GEP-Mark4-10 Frame


Sale price$59.99 USD



GEP-Mark-10 is a frame designed to manage heavy-loads flights. It can carries a maximum payload of 3kg when applied with a 3214 or 3115 900KV motor. The light-design structure enables immediate response even when flying with extra weight.

The FC fixing hole size is 30.5×30.5mm(M3), Camera lens fixing hole size is19x19mm(M2), Motor fixing hole size is 19x19mm(M3). Reserved enough space for VTX installation at the end of the frame, and the extended dimension frame can mount up to LiPo 6S 8000mah battery.


  1. The extended dimension frame leaves enough space to accommodate the large-capacity battery and increases flight time.
  2.  Equipped with the vertical-shaped reinforce arm to enhance stabilization and reduce the impact of unsteady on the gyroscope.
  3.  The 3.7mm thickness arm structure ensures the rigidity of the frame.
  4.  Adopting the 30 mm Aluminum standoff leaves sufficient stacking space.
  5.  It supports three types of fixing hole size of VTX : 30.5×30.5mm(M3)、25.5×25.5mm(M2)、20x20mm(M2).


  • Item: GEP-Mark4-10 Frame
  • Dimension: 376mmx303mm
  • Motor to motor:428mm
  • Top plate: 2mm
  • Base plate: 3mm
  • Side plate: 2.5mm
  • Arm plate: 7mm
  • Midplate:3mm
  • Arm bar:3mm
  • Camera fixing hole size: 19x19mm(M2)
  • Motor fixing hole size: 19x19mm(M3)
  • FC fixing hole size: 30.5×30.5mm(M3
  • VTX fixing hole size: 30.5×30.5mm(M3)/25.5×25.5mm(M2)/20x20mm(M2)
  • Weight: 270.0g


1x GEP-Mark4-10 Frame

1x M20*300mm battery strap

1x Battery Silicone anti-slip Pad

4x EVA landing Pads
