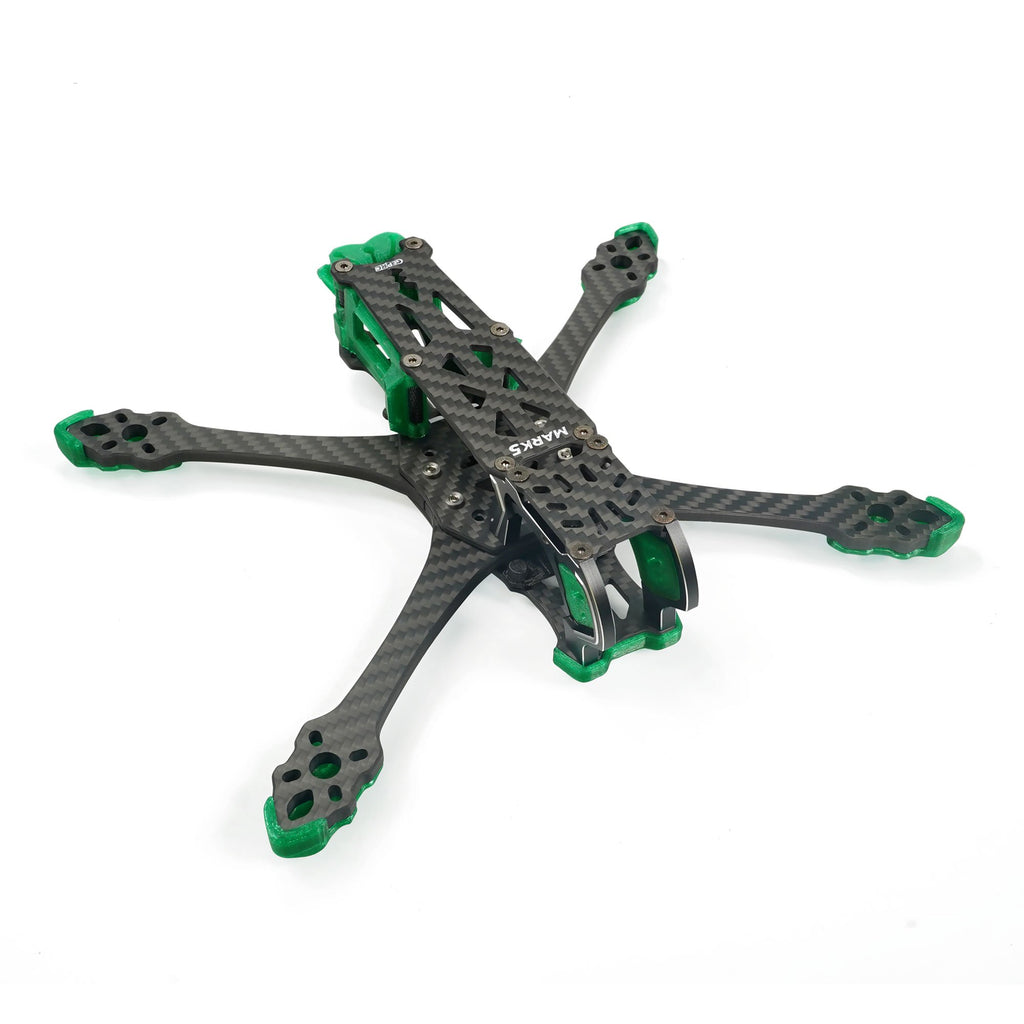

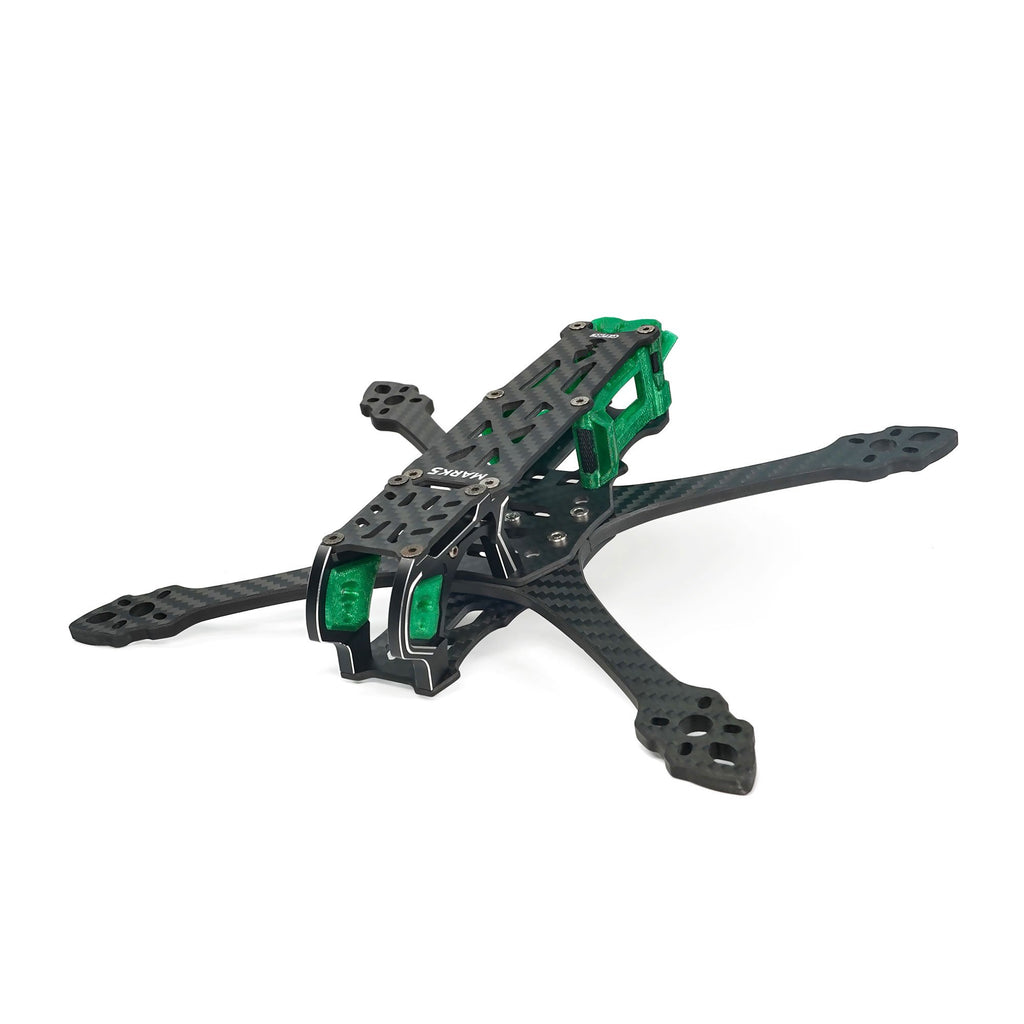

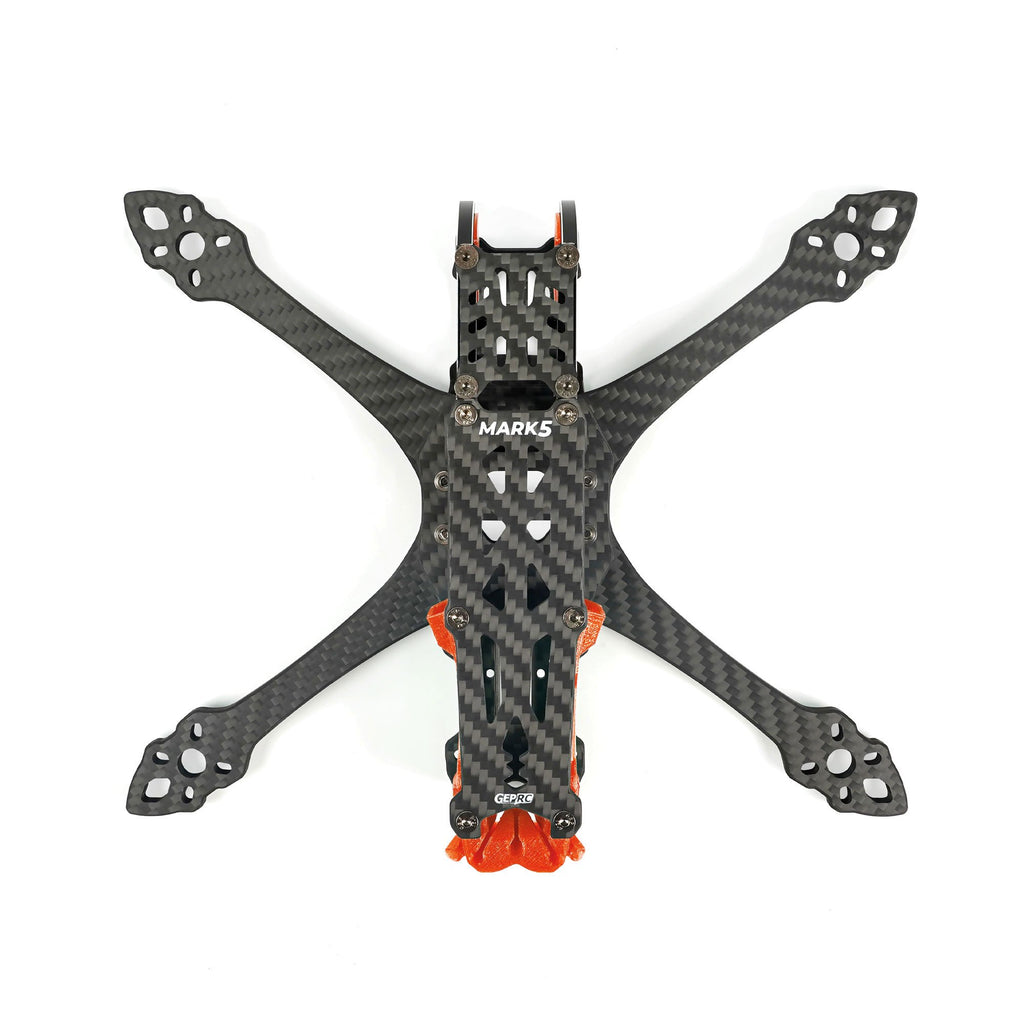

GEPRC MARK5 Frame GEP-MK5 O3 Squashed X FPV Frame


Sale price$59.99 USD



The HD VTX ushered in a new upgrade, and the brand new VTX of DJI O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance on the basis of MARK5. At the same time, it will be equipped with DJI O3 air unit to design the new MARK5 O3 version.

The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to DJI’s new O3 air unit camera, with a field of view (FOV) of 155°, and can support up to 4K 60FPS recording. We also specially designed TPU soft printing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. GEP-MK5 O3 Pro is shipped with two different camera mounts, which can be mounted with a full range of GP action cameras, as well as Naked Camera 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.


  • Model: GEP-MK5 O3

  • Brand: GEPRC

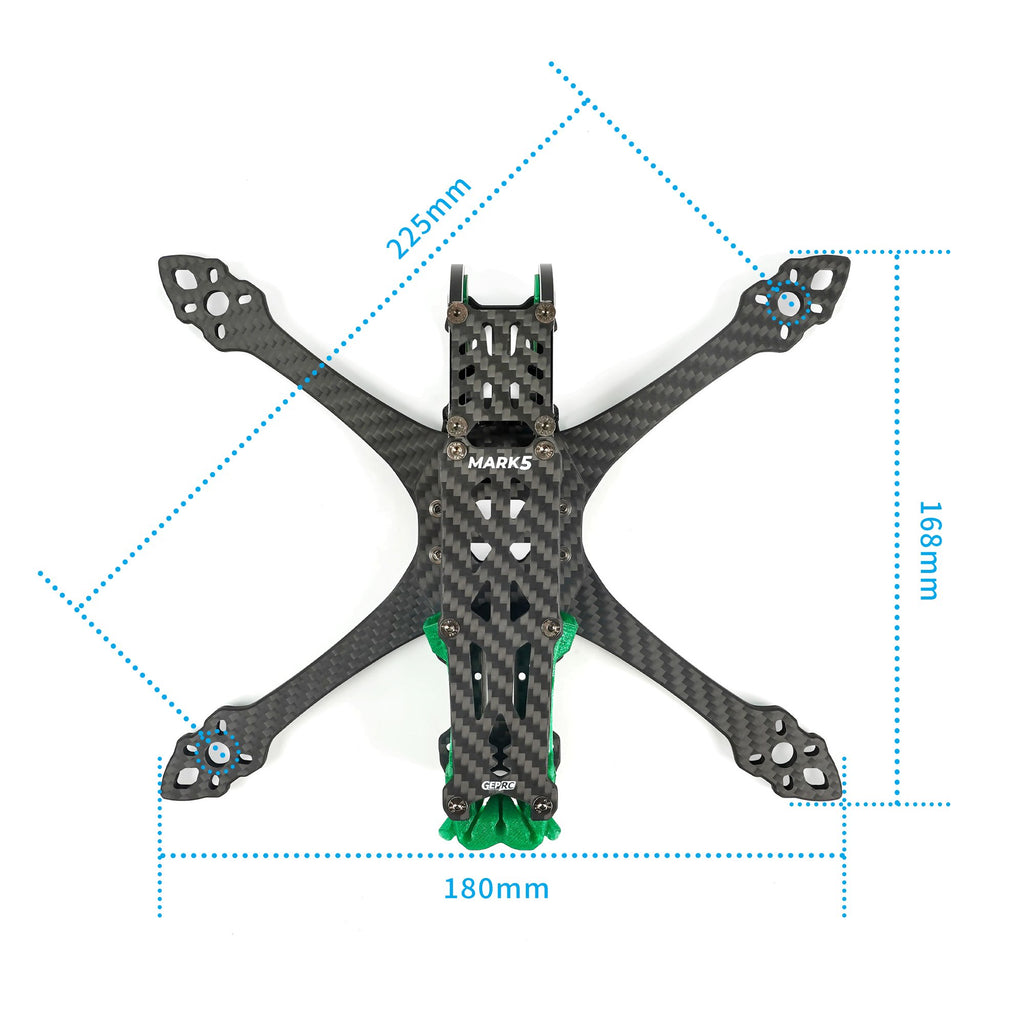

  • Wheelbase: 225mm

  • Top plate: 2.5mm

  • Bottom plate: 2.5mm

  • Arm plate: 5mm

  • FC mounting holes: 30.5mm x 30.5mm

  • Camera installation space: 20mm

  • Suitable propeller size: 5″propeller

  • Dimension: 214mm x 168mm x 42mm

  • Standard Version Weight: 141.9g

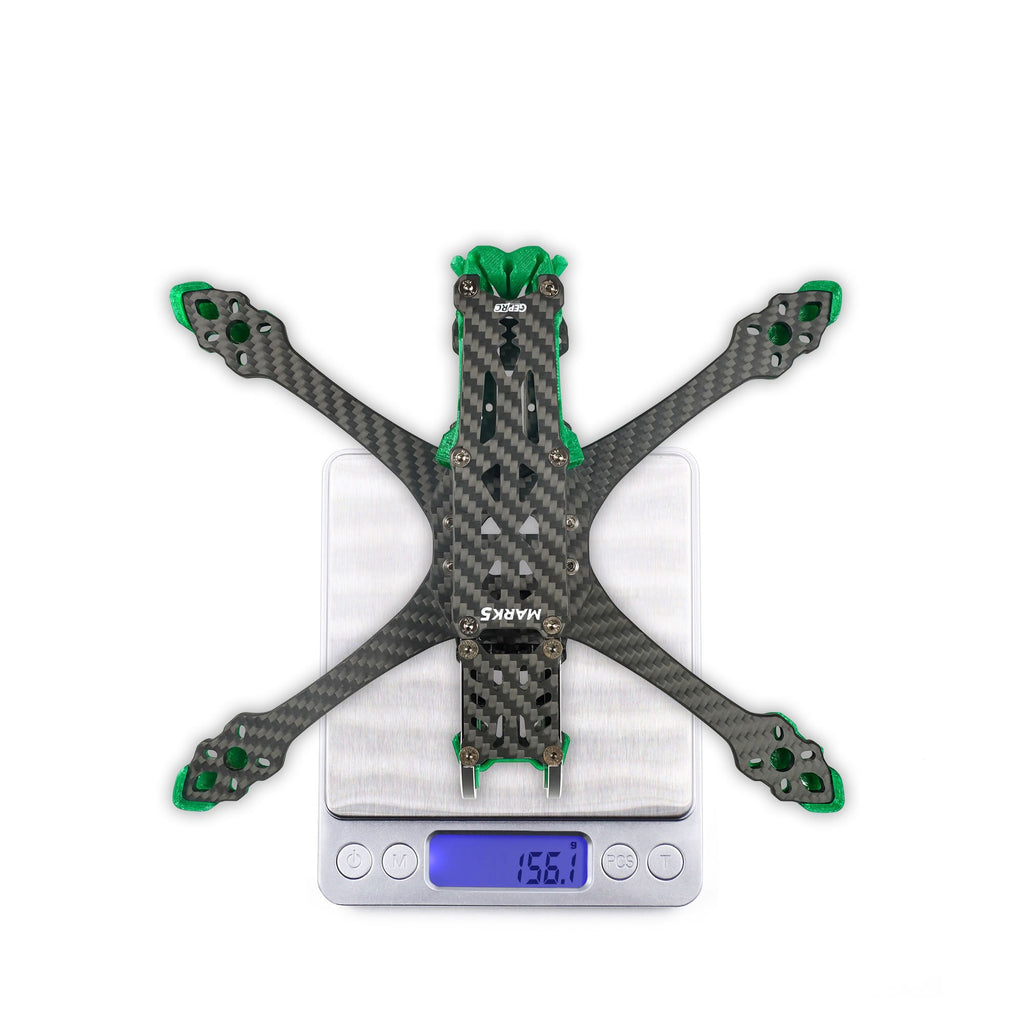

  • Pro Version Weight: 156.1g


1. Upgraded lens aluminum alloy side plate, durable and more visual impact

2. Developed specifically for freestyle with squashed X arm design.

3. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment

4. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

5. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GP cameras, as well as Naked Camera 8, and Caddx Peanut cameras. The shooting effect is stable and clear

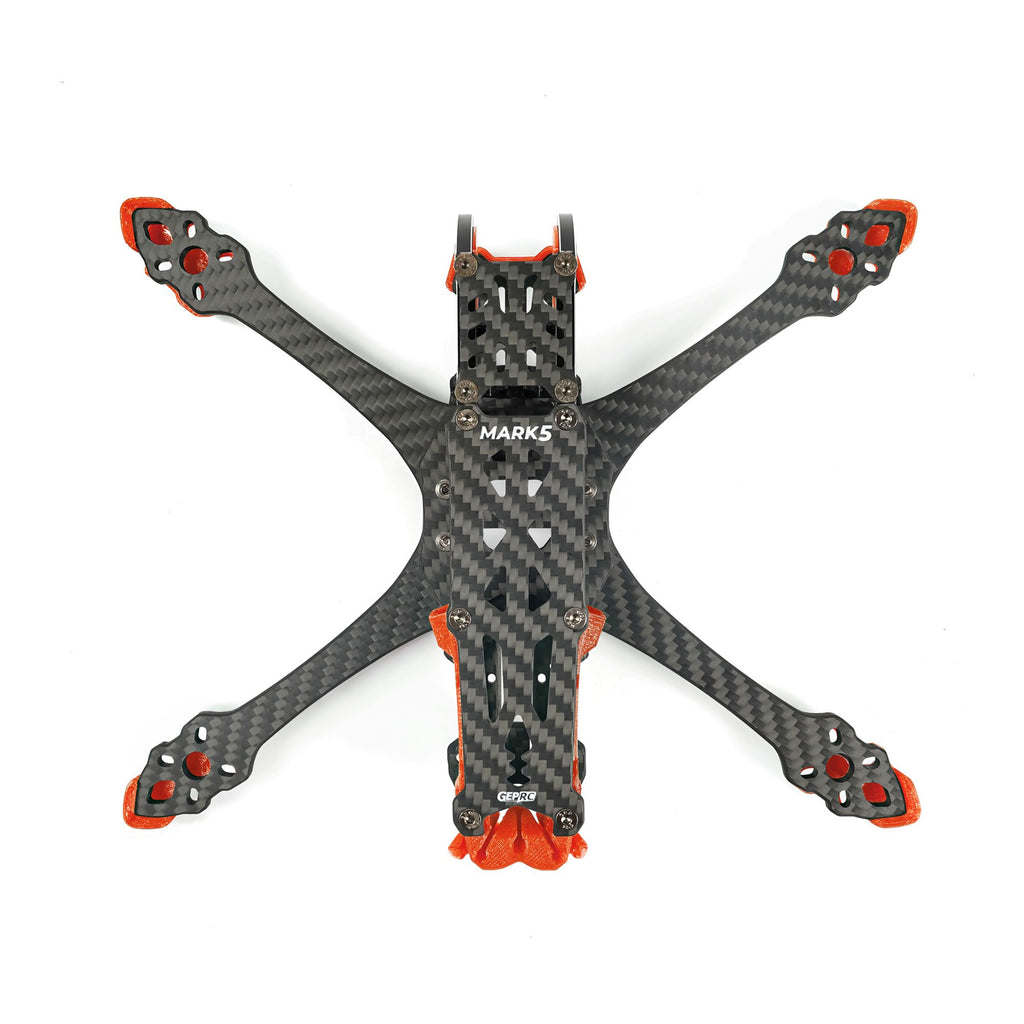

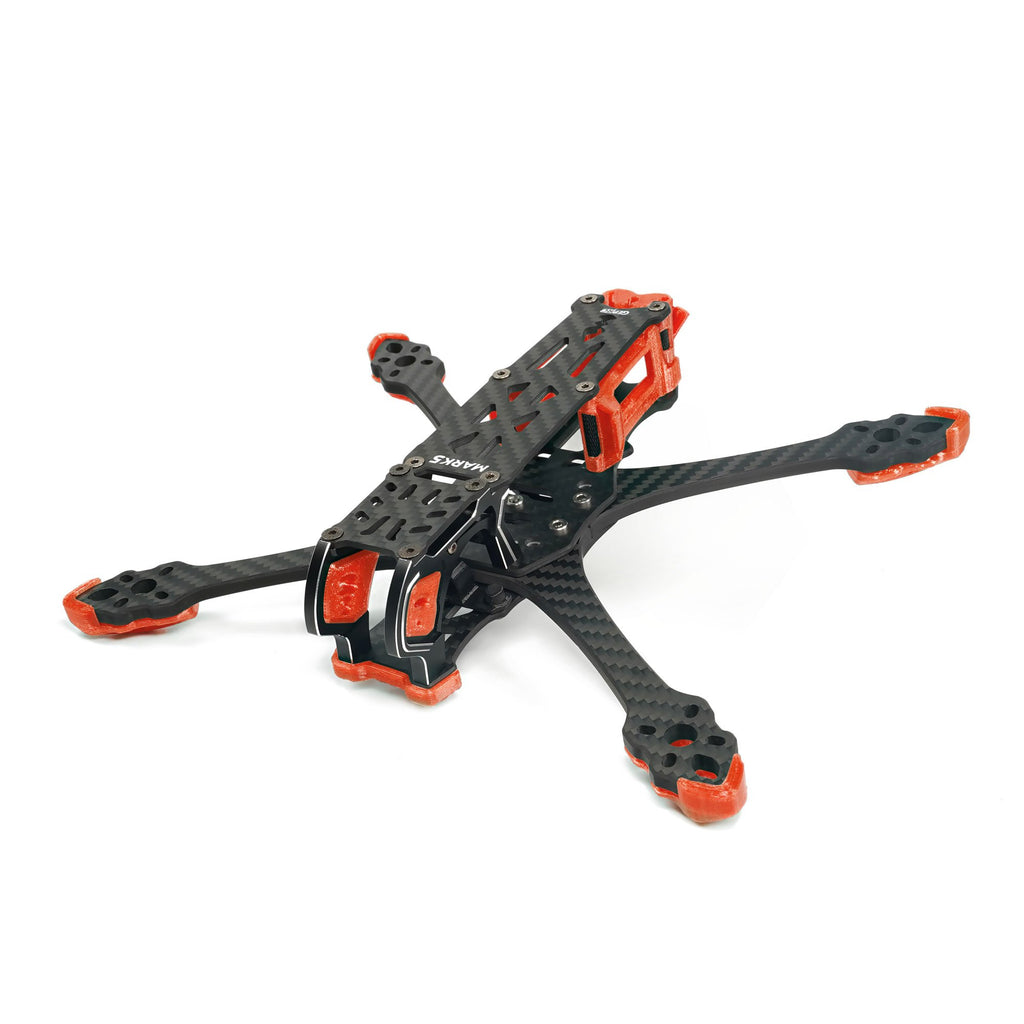

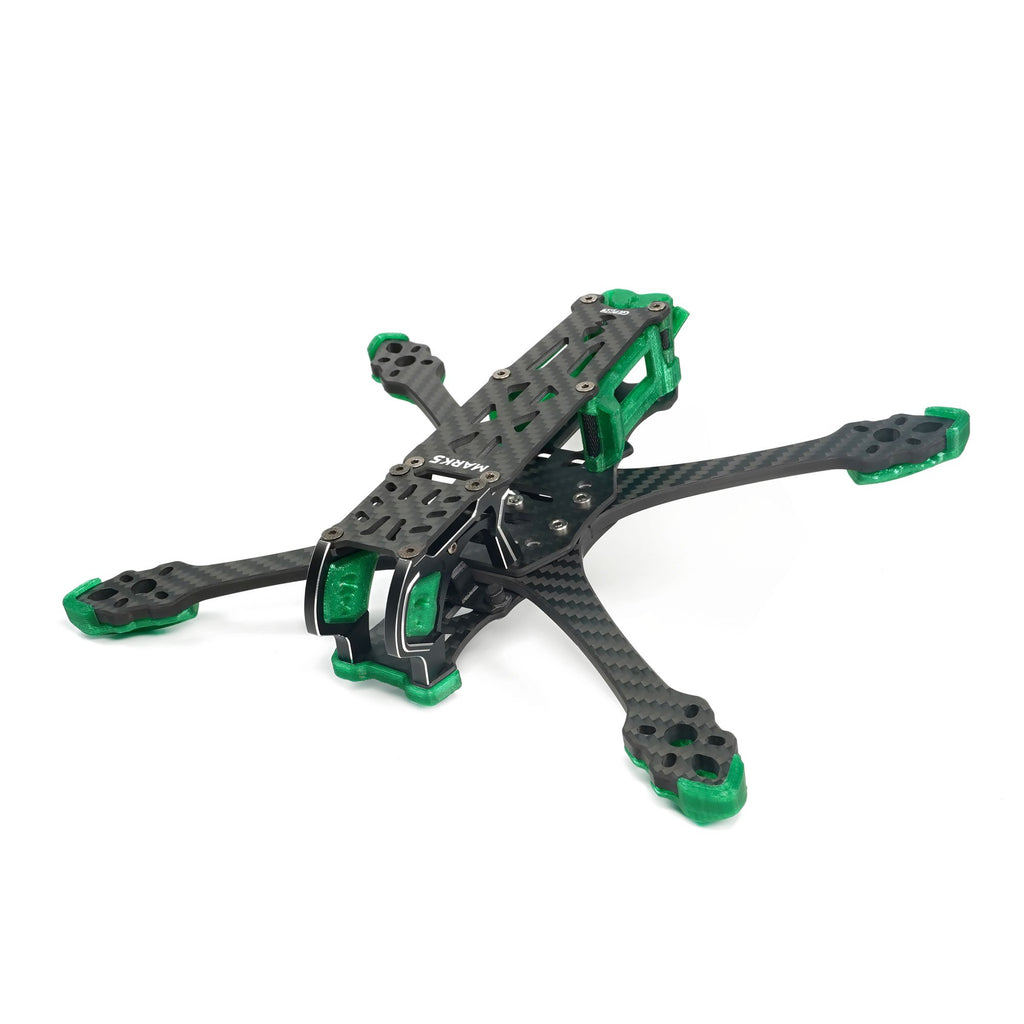

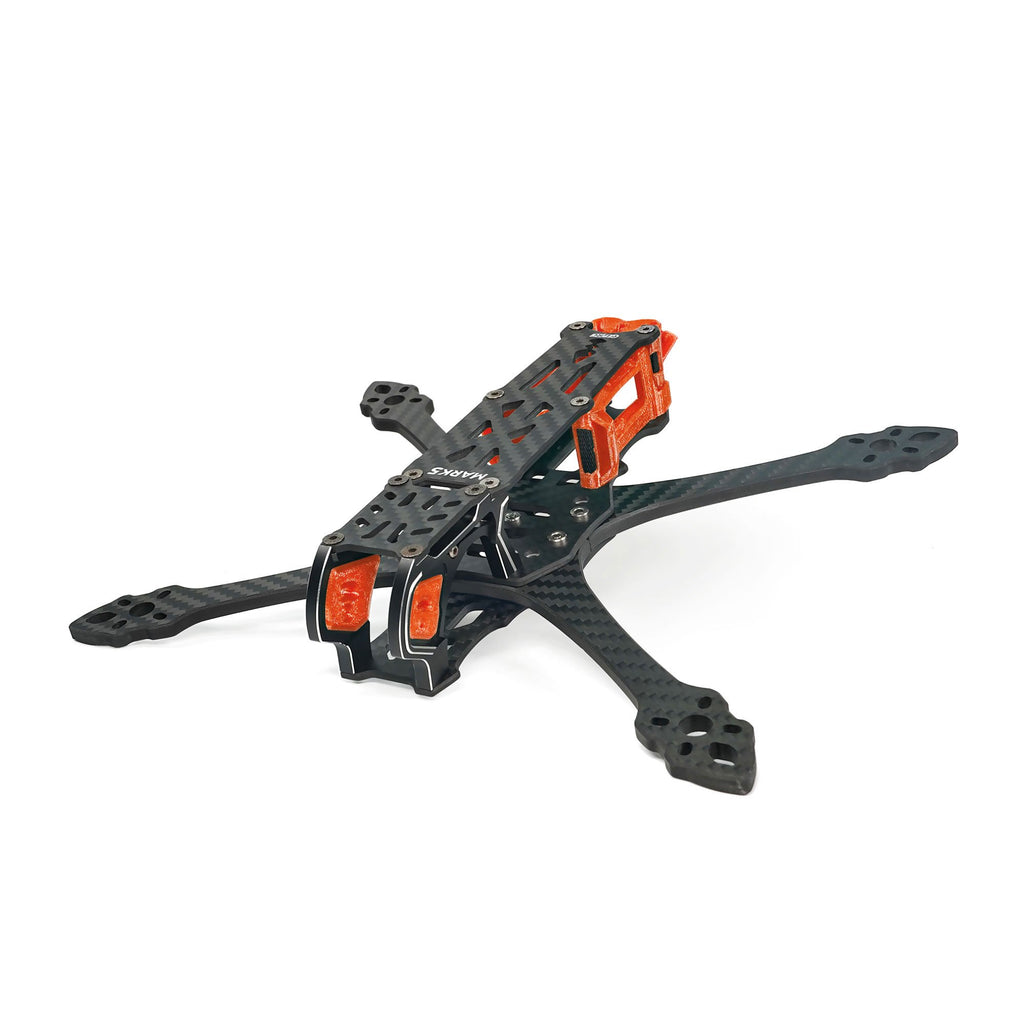

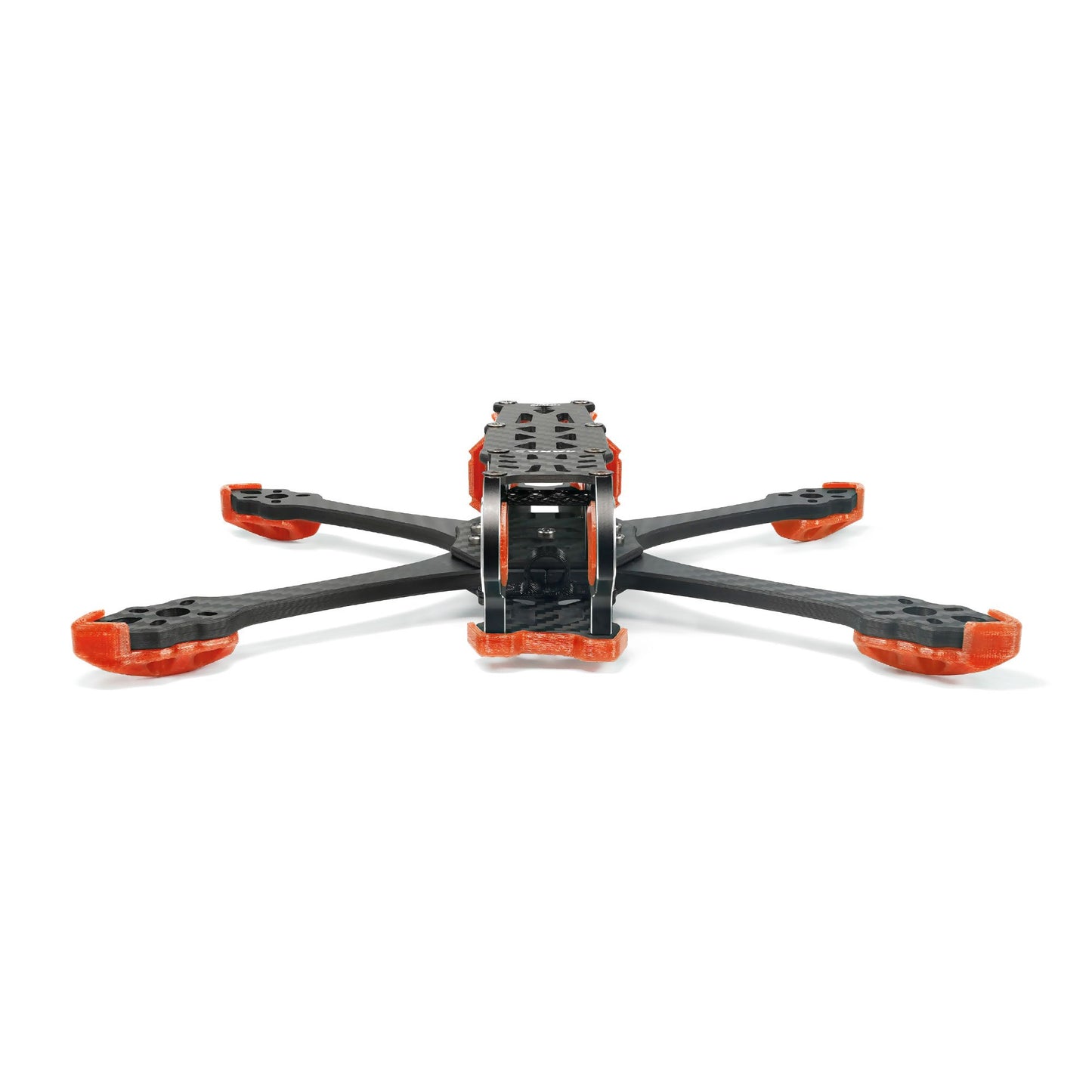

6. Add coral orange and emerald green colors to the O3 version to add more colors to your flight

7. MARK5 O3 is optimized for freestyle, with a smoother flight experience


1 x MARK5 Frame Kits

1 x Battery strap M15x250mm

2 x Battery strap M20x250mm

2 x Battery Silicone Pads

1 x Set of 3D printings

2 x Action camera mount holder

1 x Set of screws

1 x Set of screwdrivers

1 x Antenna fixed tube
