Summary

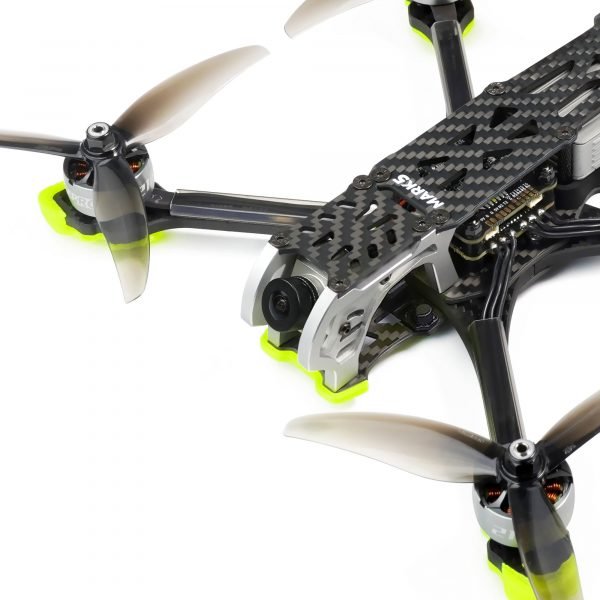

GEPRC new generation freestyle drone MARK5. We are proud to say the MARK5 HD quad is the best freestyle quadcopter in the market.It is now launched in three versions: HD AIR UNIT, HD VISTA and Analog.
MARK5 is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-BT-HD V2 FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed. The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that can be fitted with Naked Camera8/9/10, Naked Camera8, and Caddx Peanut cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun!
We’ve been pursuing for lighter weight, better flying experience, and more functionality for all our products!
Changelog
June 2nd,2022: The flight controller will be gradually replaced with the latest version of F722, which has better and more stable performance.
June 2nd,2022: New F722 FC without Barometer.
Tips:It is recommended to use the latest 10.8.0 betaflight to correspond to the corresponding FC Firmware and Factory CLI Dump to avoid setting errors.
Feature
-
Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
-
Supports Bluetooth wireless connection for easy field tuning.
-
Developed specifically for freestyle with squashed X arm design.
-
Analog version is equipped with our latest incredible RAD 1.6W VTX paired with Caddx Ratel 2 cam.
-
A variety of receiver choices including our brand new ExpressLRS Rx.
-
Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed.
-
Unique shock absorbing structure design, less vibrations and resonance.
-
Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
-
The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience.
-

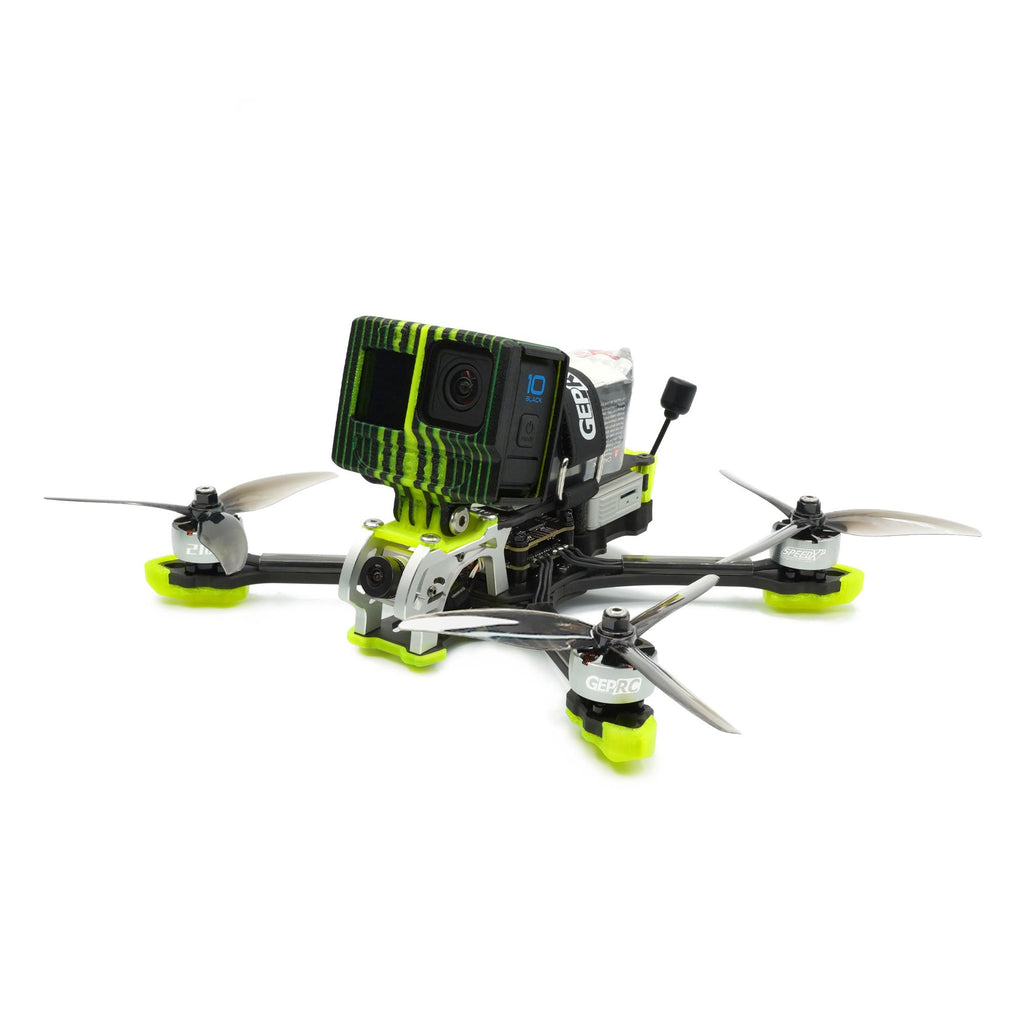

Shipped with two different 3D printed action cam mounts that can be fitted with GP Camera, Naked Camera8, and Caddx Peanut cameras.
-
MARK5 is the most ideal for freestyle flying and bando-bashing resistant.
Specifications

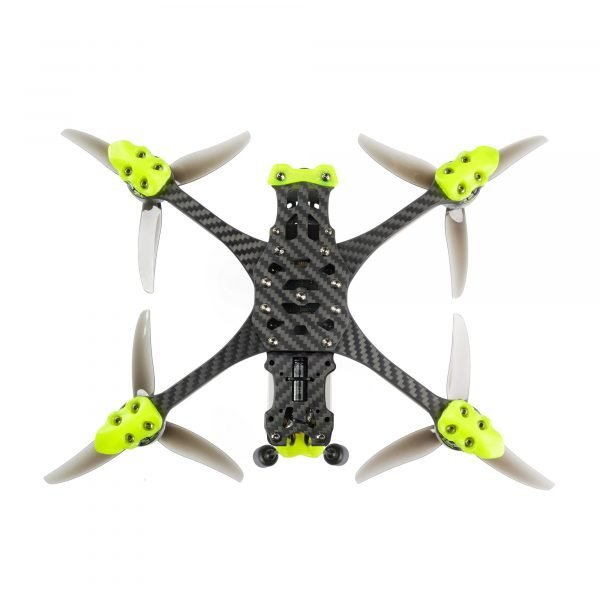

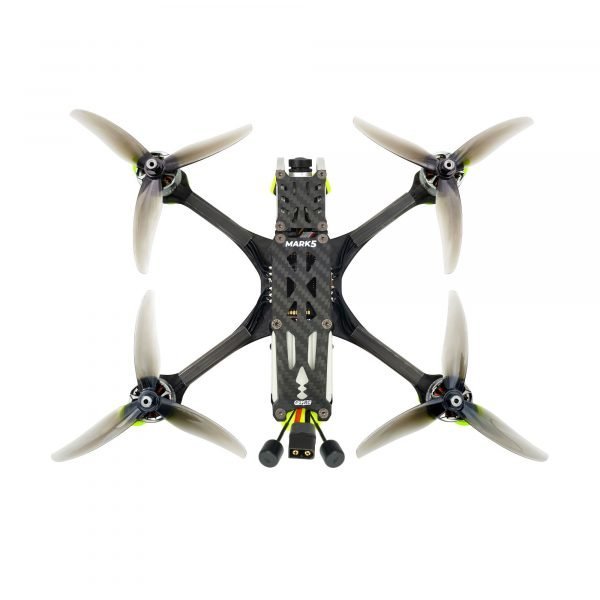

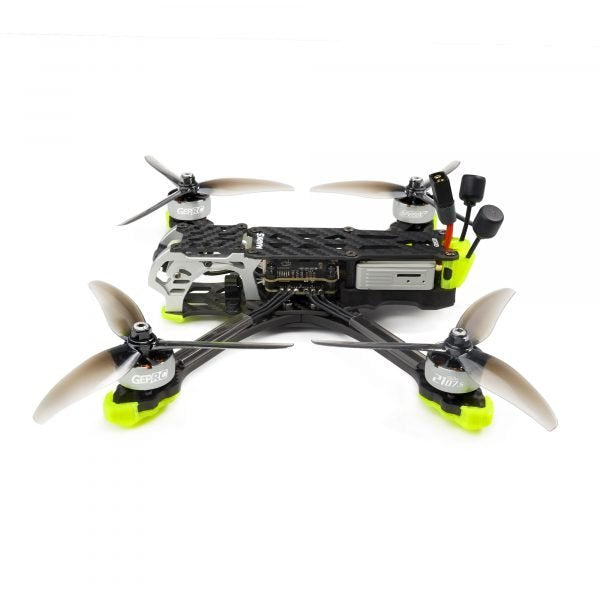

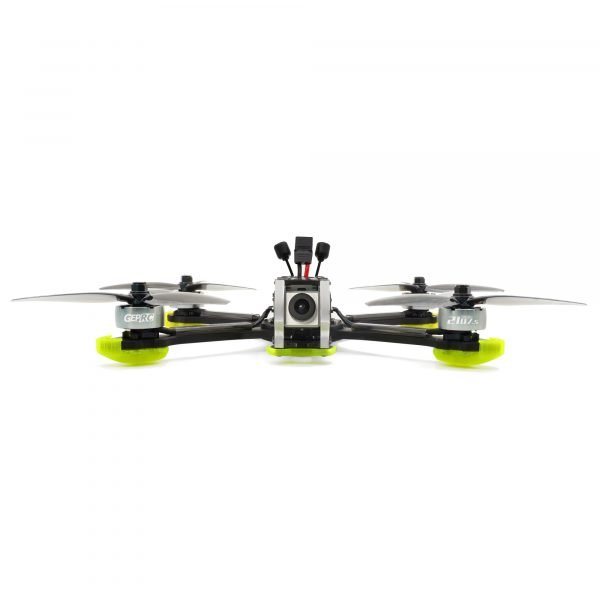

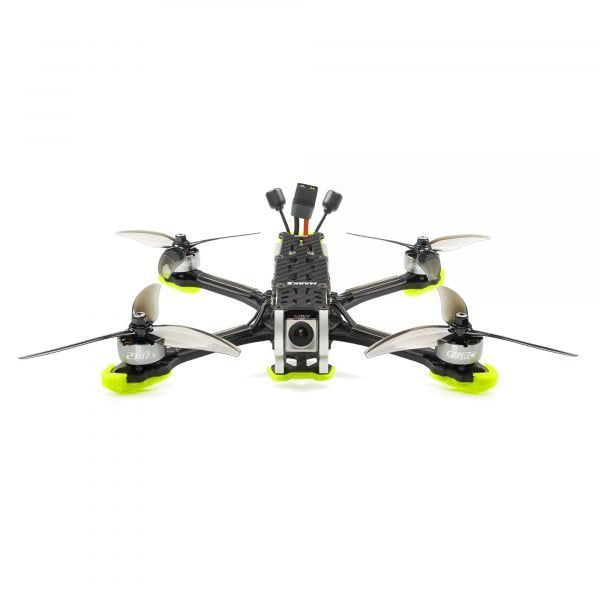

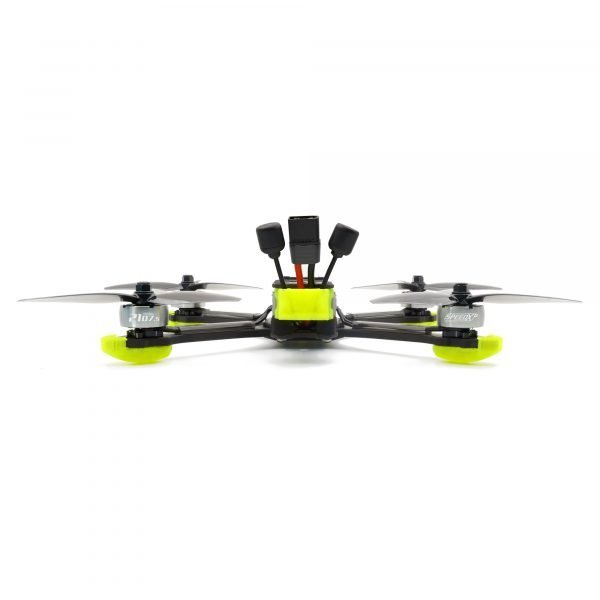

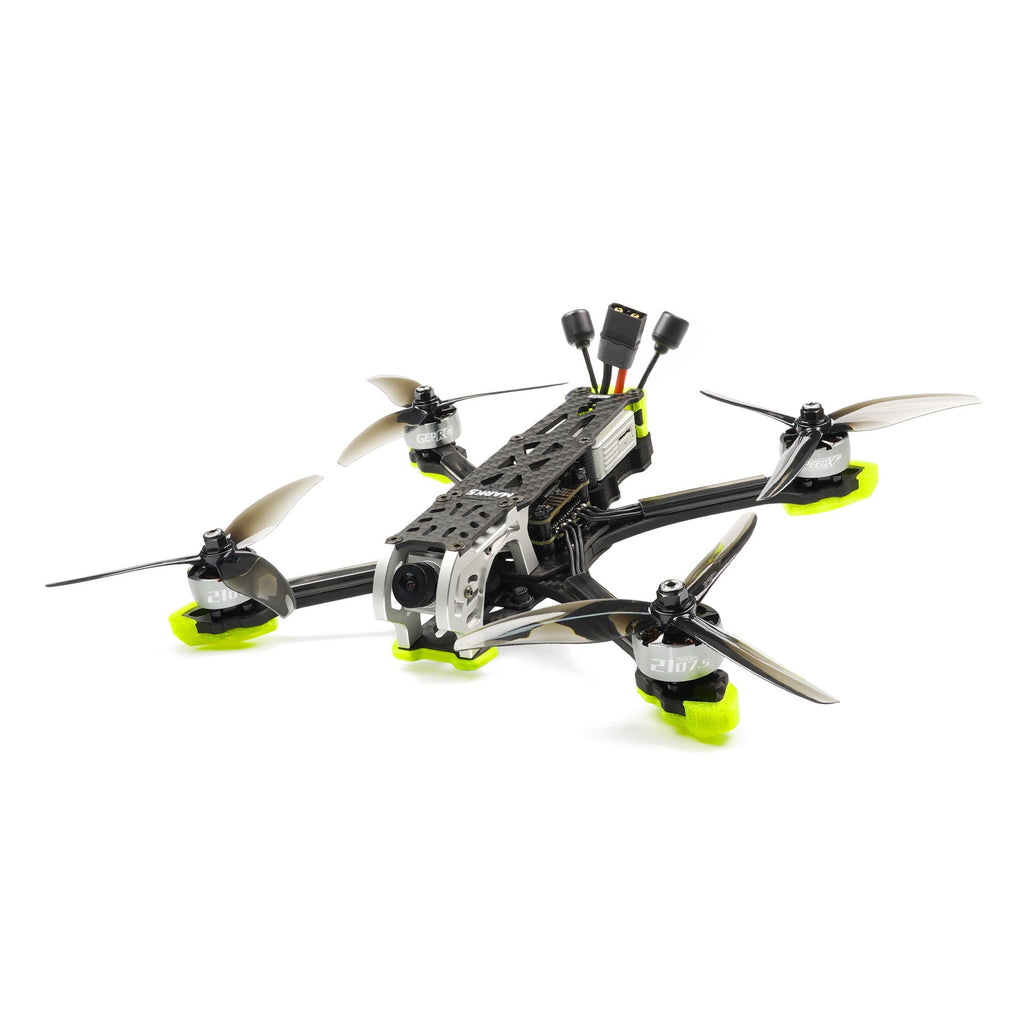

- Model: MARK5 Analog Quadcopter
- Brand: GEPRC
- Frame: GEP-MK5
- Wheelbase: 225mm
- Top plate: 2.5mm
- Bottom plate: 2.5mm
- Arm plate: 5mm
- FC system: SPAN F722-BT-HD V2
- MCU: STM32F722
- Gyro: 6-Axis
- OSD: BetaFlight OSD w/AT7456E chip
- ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
- VTX: RAD VTX 5.8G 1.6W
- Camera: Caddx Ratel2
- Charge connector: XT60
- Propeller: Freestyle 4S
- Antenna:GEPRC Momoda 5.8G MMCX RHCP 100mm
- Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV（4S Version）
- Weight: 385.0g (MARK5 Analog 6S TBS )
- Receiver: PNP，Frsky R-XSR ，TBS Nano RX，ELRS 915，ELRS 2.4G
- Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)
Includes
1 x MARK5 Analog Quadcopter
4 x Freestyle 4S propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x Camera cage carbon top plate
1 x 3D print mountings combination
2 x Action camera mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
