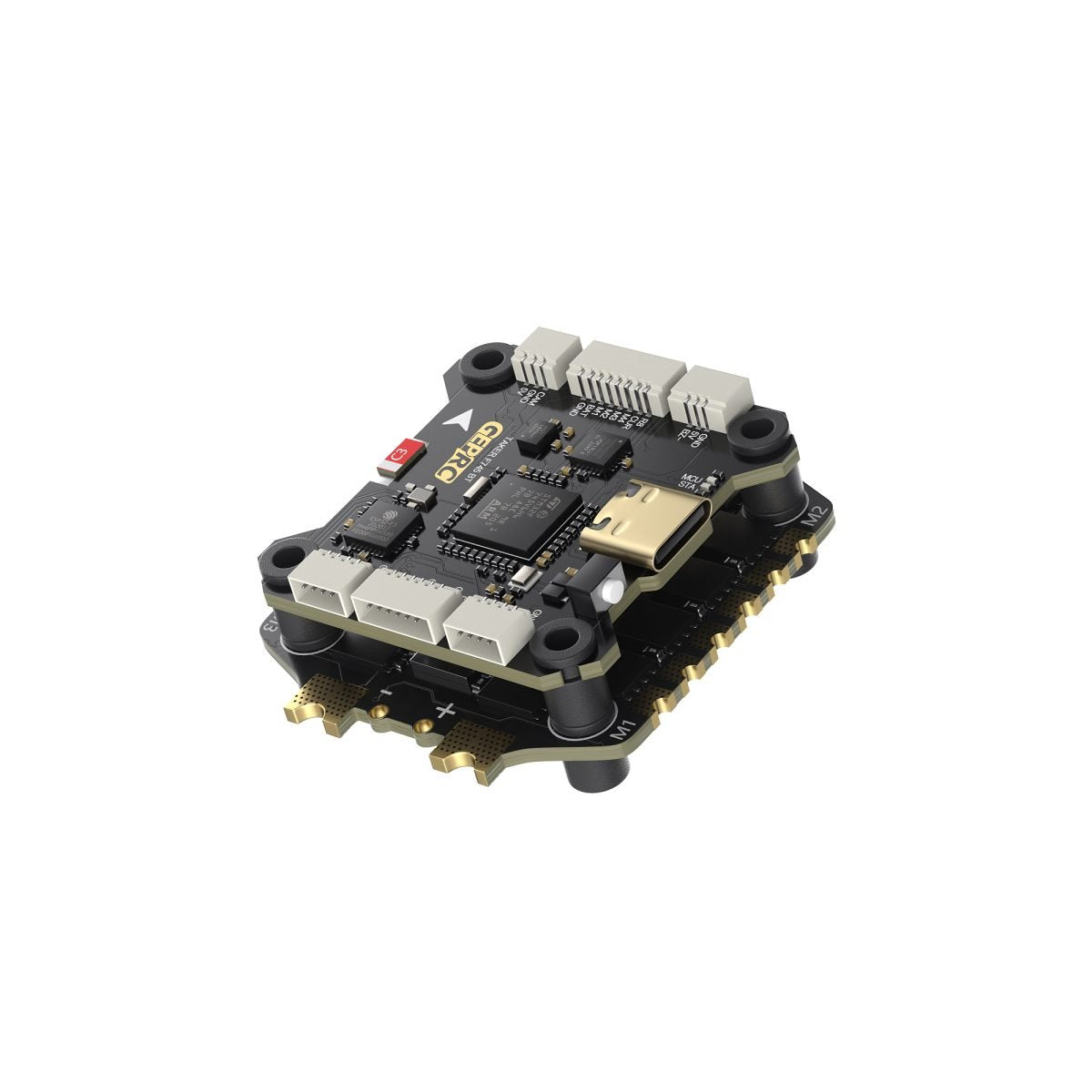

GEPRC TAKER F745 BT 8Bit 60A STACK

Summary

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.

Features

1. Adopts the high-performance STM32F745 as the main controller
2.  Equipped with MPU6000 and 42688-P dual gyroscopes
3.  512MB high-capacity black box storage
4.  Bluetooth parameter tuning
5.  Upgraded Type-C USB interface
6.  Plug-and-play, no soldering required.
7.  Integrated barometer
8.  Features 7 UART ports
9.  Independent BEC with 12V@2.5A and 5V@3A outputs
10.  Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.

Specifications

TAKER F745 BT Flight Controller

• FC model: TAKER F745 BT Flight Controller
• MCU: STM32F745
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: direct plug for DJI Air Unit
• Black Box：512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,12V@2.5A dual BEC
• Target: GEPRCF745_BT_HD
• Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight: 8.4g

TAKER H60_BLS 60A 4IN1 ESC

• ESC Model: TAKER H60_BLS 60A 4IN1 ESC
• Input Voltage: 3-6S Lipo
• Continuous Current: 60A
• Peak Current: 65A（5 seconds）
• Supported Protocol: Dshot 150/300/600
• Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
• Weight: 14.9g
• Target: B_X_30
