Description

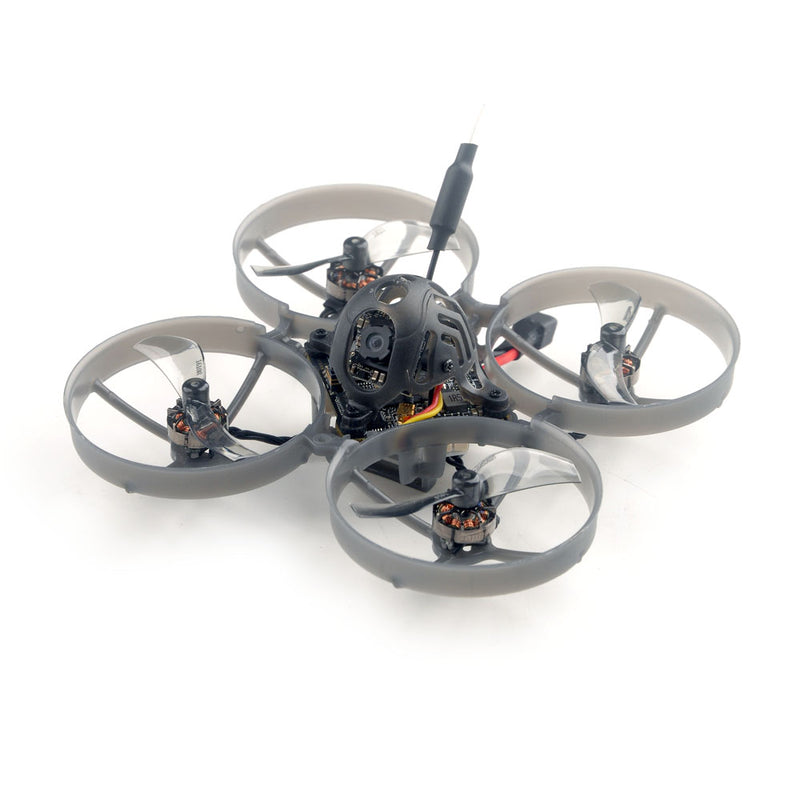

We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.
The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.
New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.
FEATURES:
-
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
-
VTX Power up to 400mw
-
ELRS V2.0 Support
-
NEW RS0802 KV20000 motors
-
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
-
Smooth and powerful
-
Compatible for 1S Lipo/LIHV
- Recommend 1S 450mah/550mah/650mah battery(Not include)
SPECIFICATIONS:
Motor
- Model: RS0802 KV20000
- Configuration:9N12P
- Stator Diamter:8mm
- Stator Length:2mm
- Shaft Diameter:Φ1.5mm
- Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
- Weight(g):2.0g
- No.of Cells(Lipo):1S only
Propellers:
- Weight: 0.24g
- Material: PC
- Pitch: 1 inch
- Props Dia: 40mm
- Center Thickness: 5mm
- Center Hole Dia: 1.5mm
Flight controller:
- X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
- X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1S battery input (DC 2.9V-4.35V)
- Built-in 12A(each) Blheli_S 4in1 ESC
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G OpenVTX 0mw~400mw
- Built-in ExpressLRS 2.4G,Frsky D8/D16
- Built-in voltage detection
- Built-in current sensor
Onboard 4in1 ESC:
- Power supply: 1S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support Bluejay firmware
- When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver:
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS Firmware version: V2.0
- RF Frequency: 2.4GHz
- Antenna : SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol: SPI ExpressLRS
- Compatible with ExpressLRS V2.0 TX Module
- Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version:
- SPI BUS receiver Frsky D8 compatible
- Compatible Non EU transmitter D8 modelChannels: 8ch
- No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Onboard 5.8g VTX:
- Firmware version: OPENVTX
- Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels:48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
Runcam Nano3:
- Model: RunCam Nano 3
- Image Sensor: 1/3″ CMOS
- Horizontal Resolution: 800TVL
- Lens : 2.1mm(M8) FOV 160°
- Signal System: PAL/NTSC Non Switchable
- S/N Ratio: >50dB
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power:DC 3-5.5V
- Current: 110mA@5V 120mA@3.3V
- Housing Material: ABS
- Net Weight: 1.2g
- Dimensions: L14mm*W14mm*H9mm
PACKAGE INCLUDES:
- 1 x Happymodel Mobula7 1s 75mm Analog FPV Brushless Whoop Drone - Chosen Receiver
- 1 x Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
- 1 x 1S Lipo/LIHV USB Charger
- 1 x Propeller disassemble tool
- 1 x Extra camera canopy
