Description

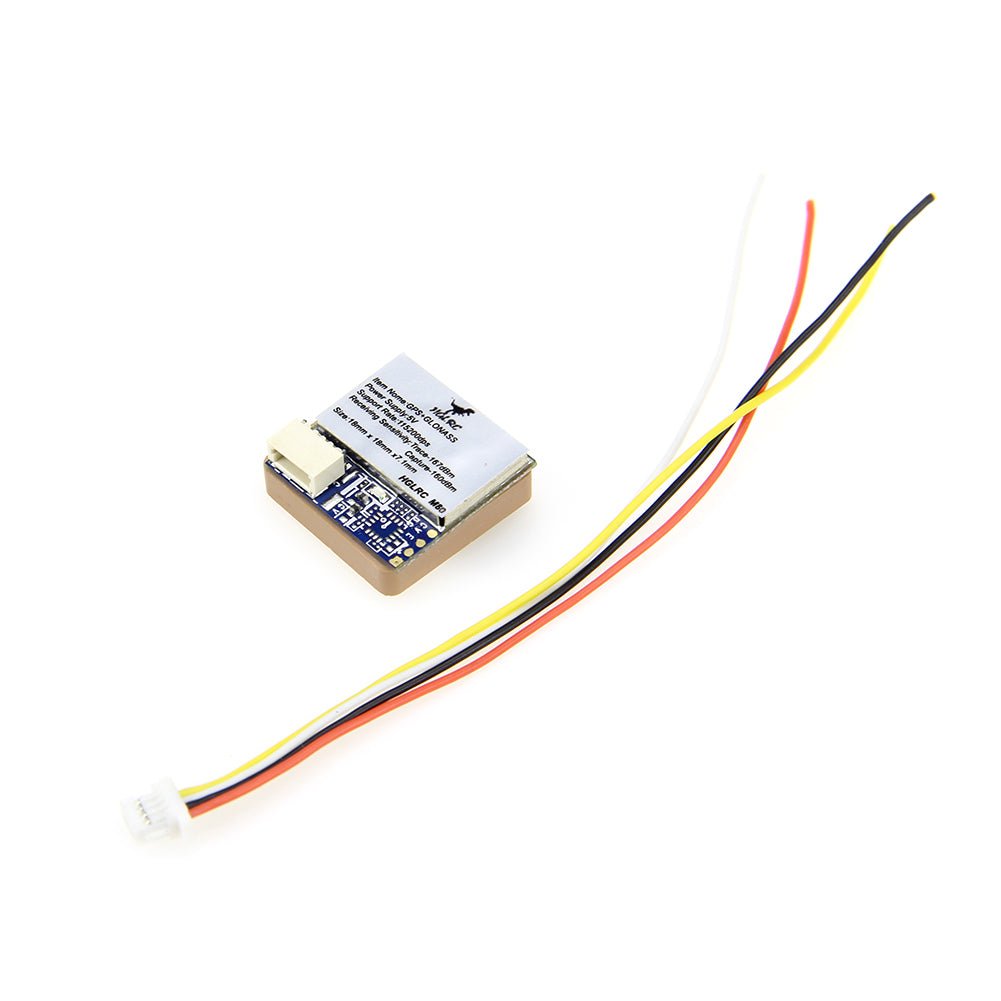

HGLRC M80 GPS for FPV Racing Drone
Item Name:HGLRC M80 GPS
Chip:SWID XN2282IQM-1U
Power Supply:5V
Antenna:Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,BDS
Receiving Channel:72 Searching Channel
Support Rate:115200dps
Output Protocol:UBLOX
Output Frequency:1Hz-10Hz,Default 10Hz
Speed Precison:0.05 m/s
Level Positioning Precison:2D Acc1.5m(ln Open Sky)
Receiving Sensitivity:Trace -167dBm
Capture-160dBm
Dynamic Characteristics:Max Height:50000m
Max Speed:500m/s
Max Acceleration:4G
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+105℃

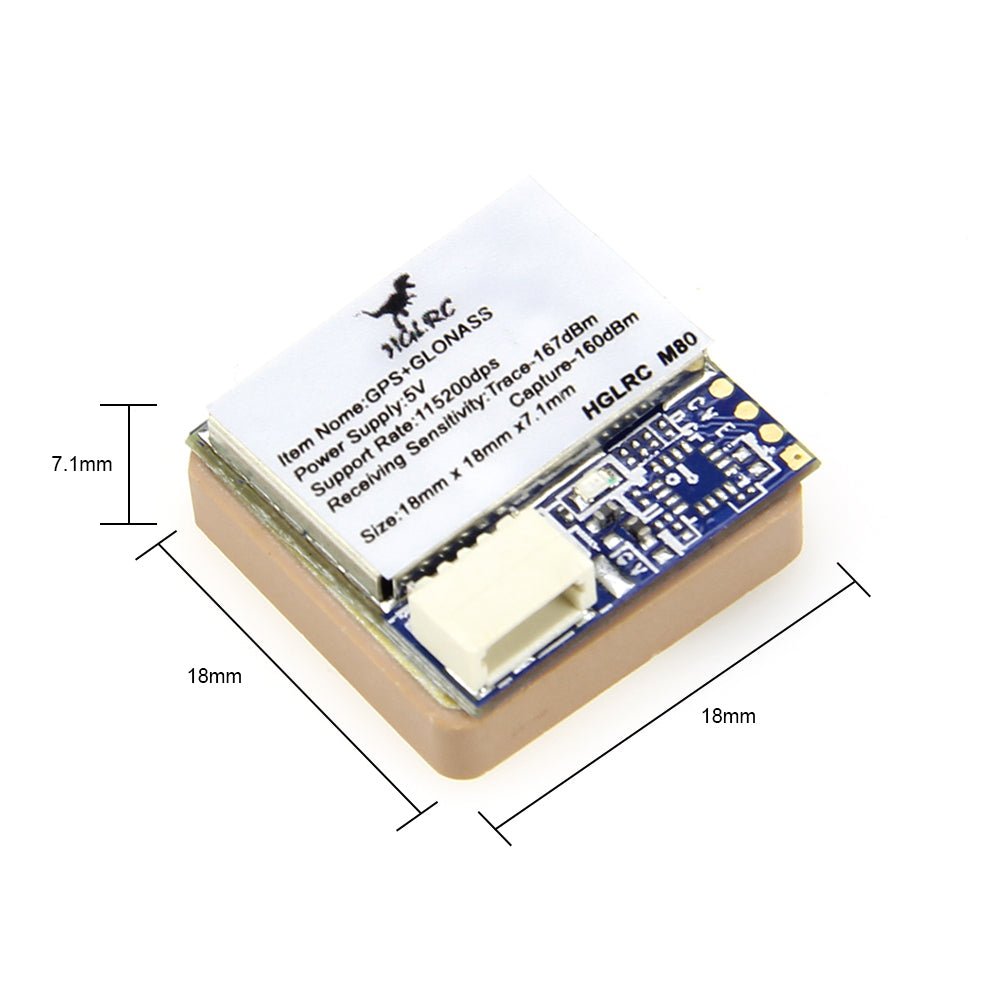

Size:18.5mm x 18.5mm x 7.1mm
Weight:9.4g
Note: the old batch uses 115200 dps rate.
