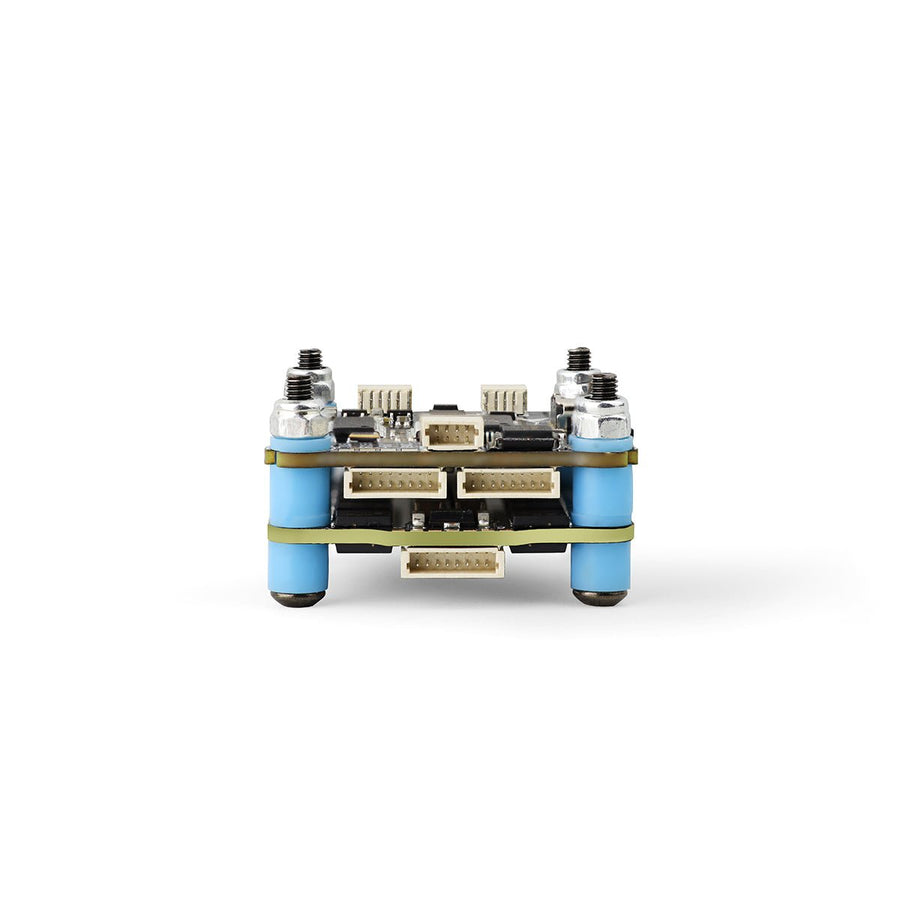

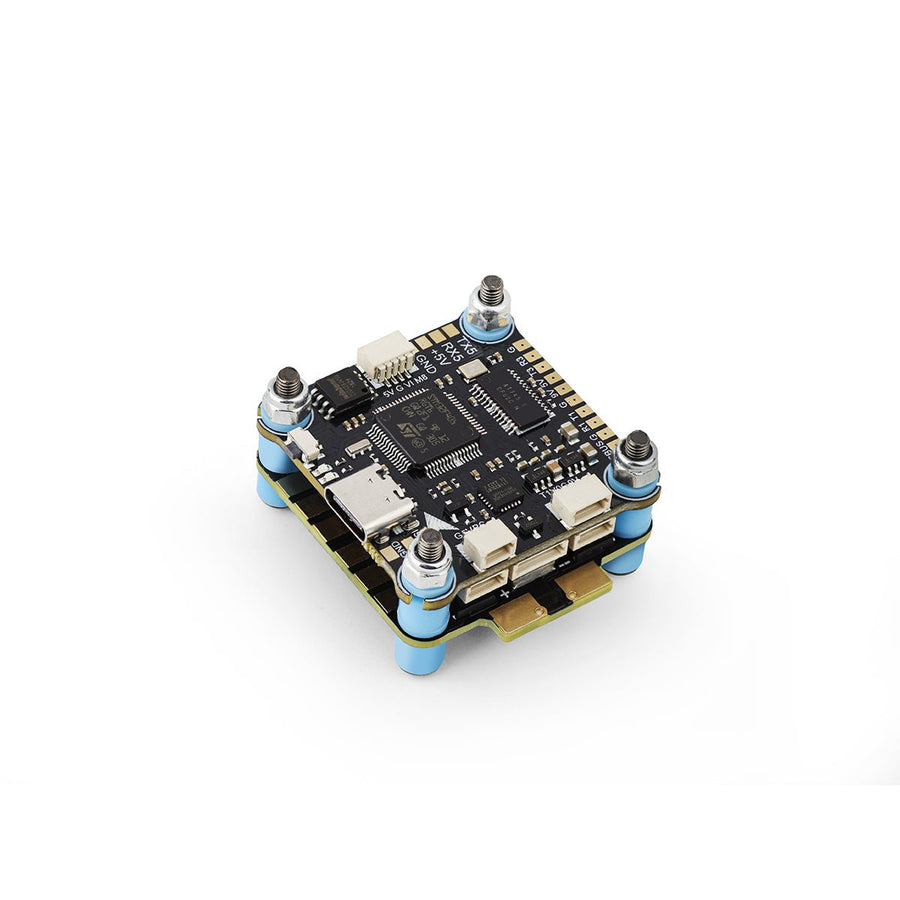

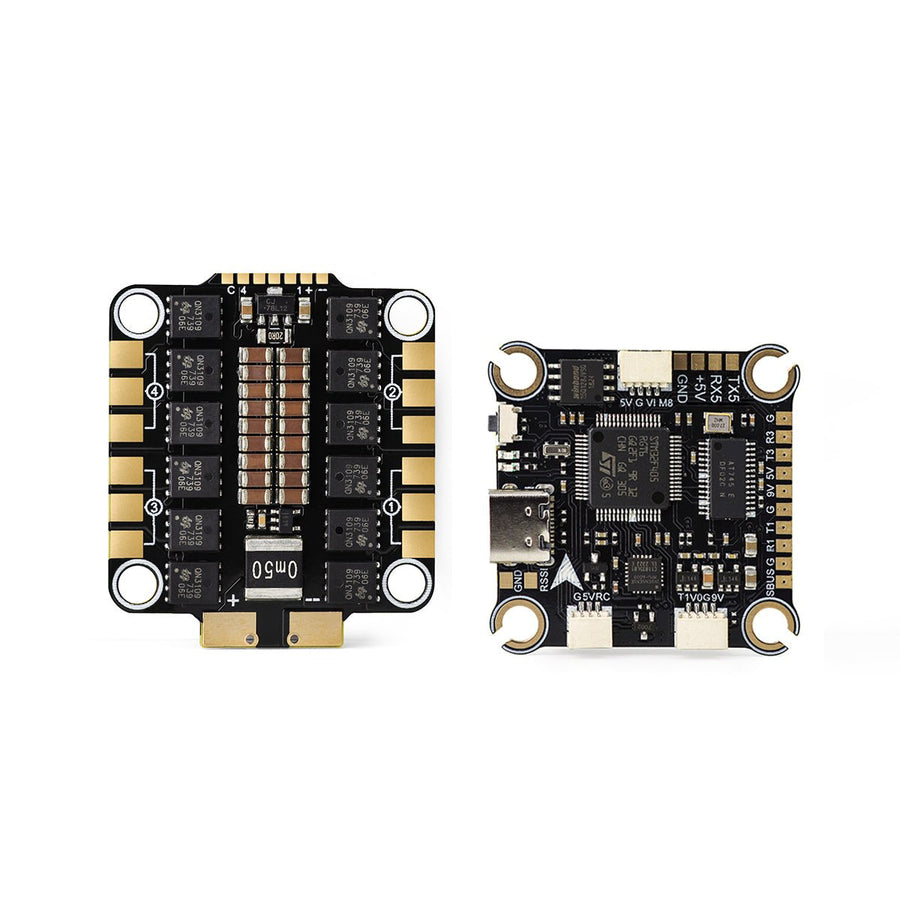

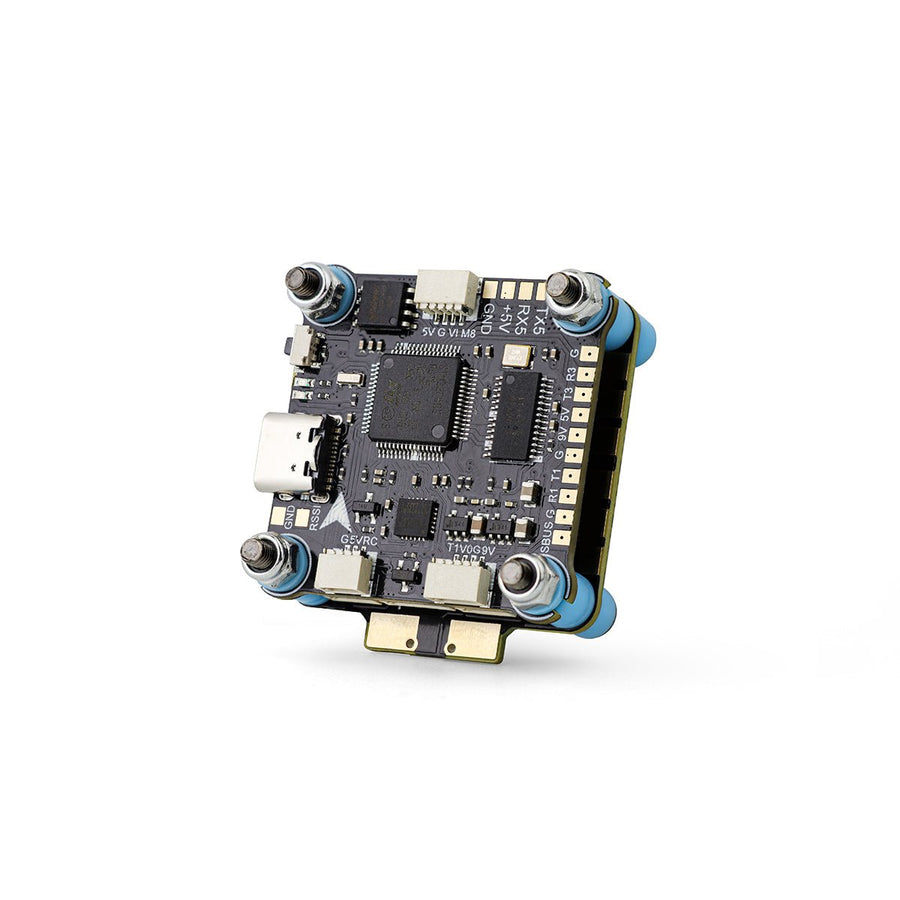

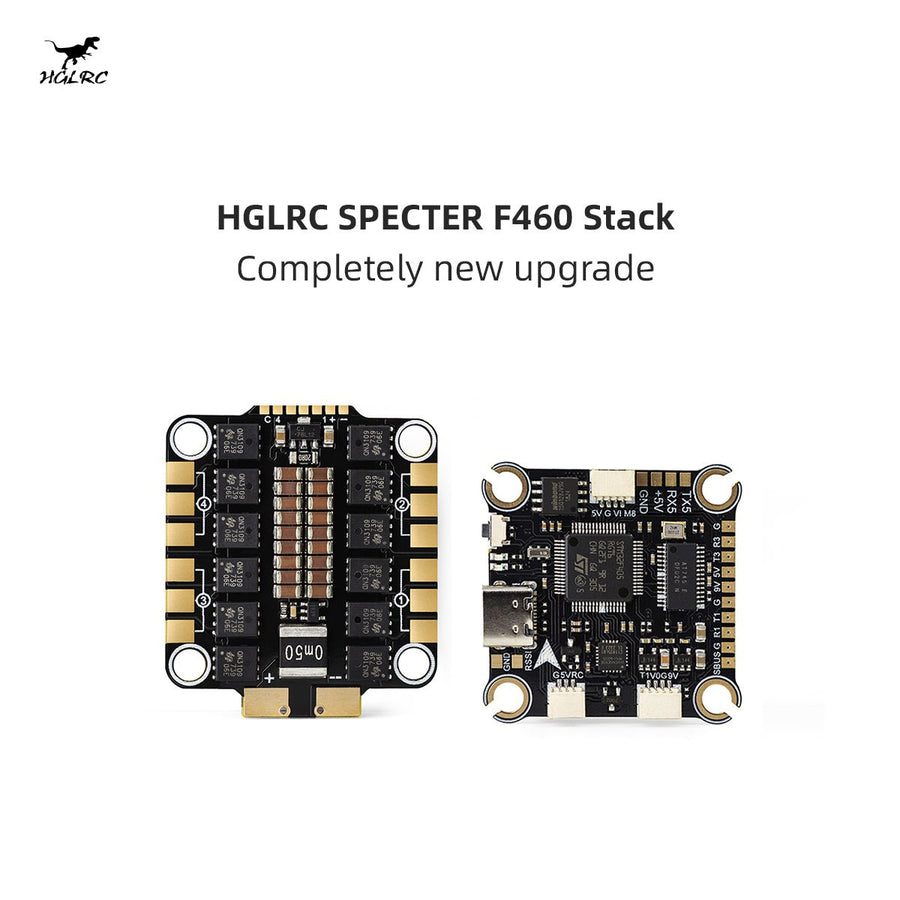

HGLRC SPECTER F460 STACK for FPV Racing Drone Freestyle

HGLRCSKU: WG000522

Price:
Sale price$63.99 USD

Description

Features:
* The flight control adopts the extremely stable MPU6000 gyroscope;
* The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;
* The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
* It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
* Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;
* Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;
* Integrated 16M black box, can record flight data;
* Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

Item Name:HGLRC SPECTER F460 STACK
Input Voltage:2-6S Lipo (7.4V-22.8V)
Installing Hole:30.5x30.5mm, M3
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
Weight:29g

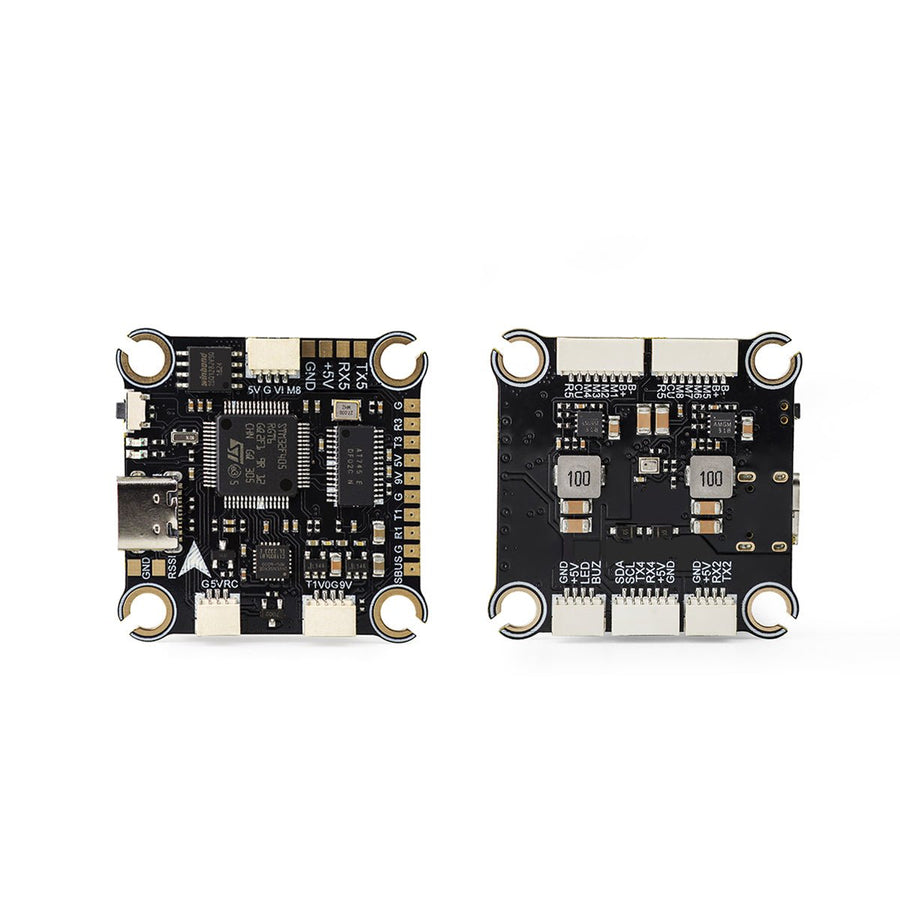

SPECTER F405 FC
MCU:STM32F405
GYRO:MPU6000
OSD:AT7456E
Blackbox:16MB
UART:4
BEC:9V2A/5V2.5A
FC Firmware:HGLRCF405V2
Size:38mm*38mm

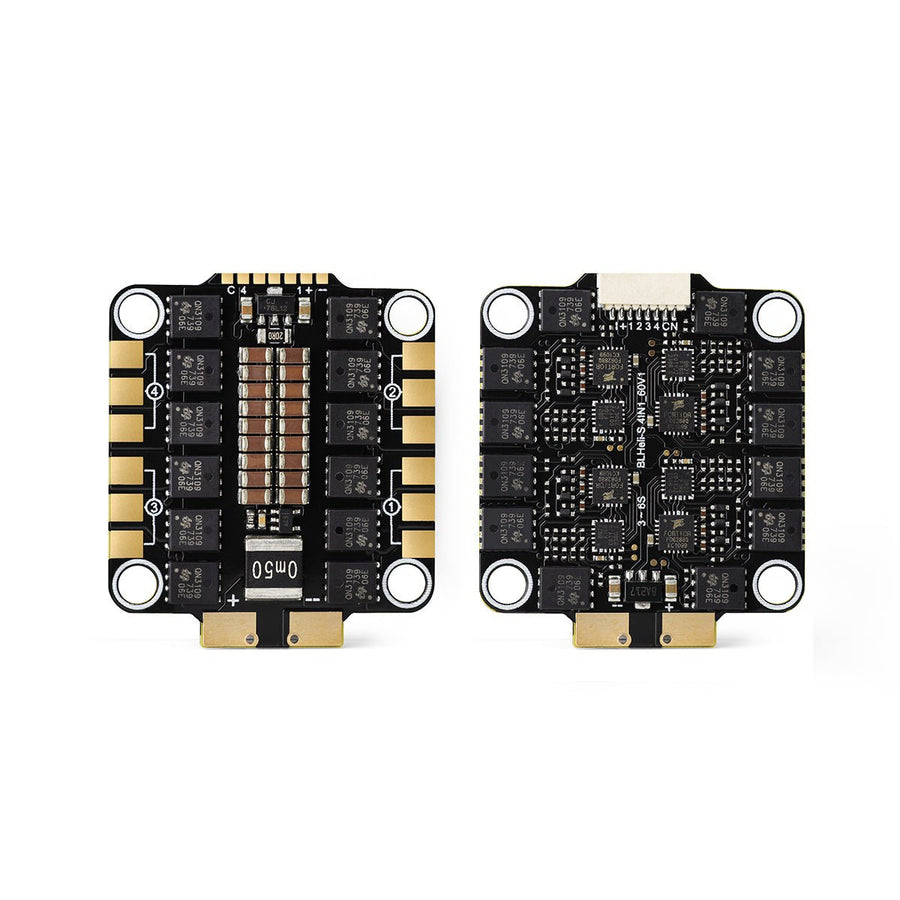

SPECTER 60A ESC
Constant Current:60A
Peak Current:70A(10s)
ESC Firmware:BL_S (J-H-30)
Size:37x42.7mm

Package Includes:
1x HGLRC SPECTER 60A ESC
1x HGLRC SPECTRE F405 V2 FC
1x Accessory Bag
