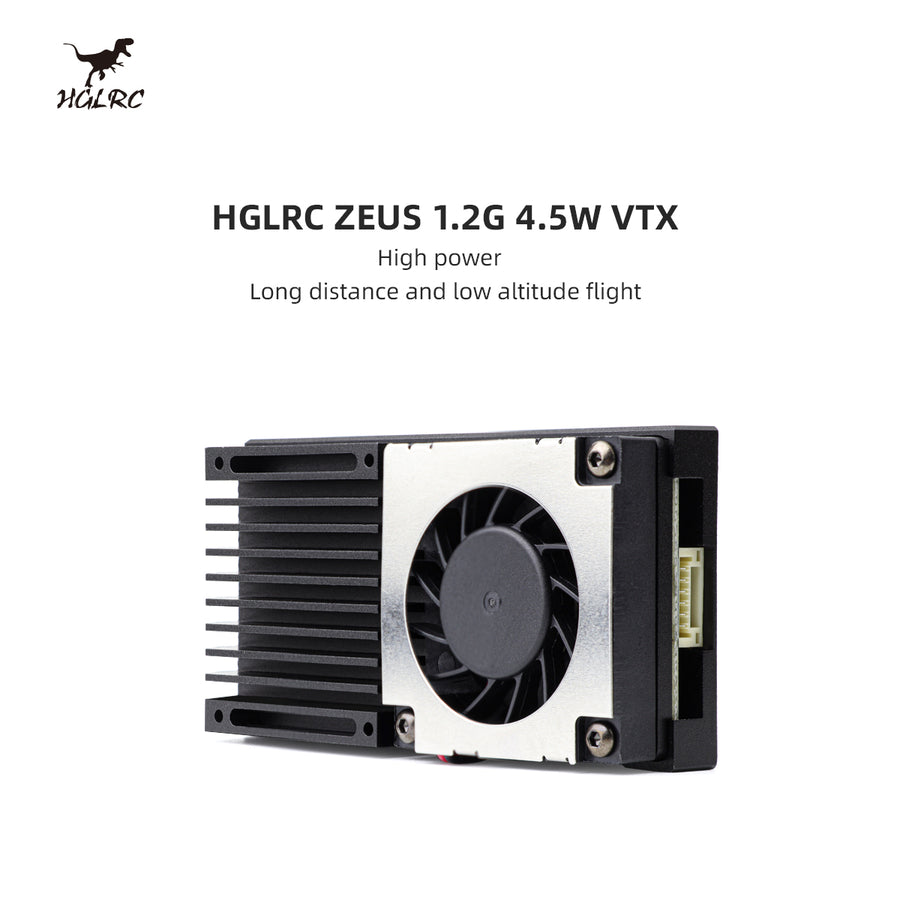

HGLRC ZEUS 1.2G 4.5W High Power Image Transmission Adjustable Power Aerial Photography Travel FPV


Sale price$70.99 USD



* 4.5W high power, maintaining sufficient power output, suitable for long range and ultra-long distance flights.
* 3 power levels adjustable PIT/25mW/800mW/4.5W.
* CNC integrated upper and lower shell covering structure, with built-in cooling fan, has strong heat dissipation effect and maintains stable performance.
* Dual-function buttons make parameter adjustment easier, and 2 sets of LED indicators display power/frequency group/frequency points at a glance.
* Supports IRC Tramp protocol OSD parameter adjustment.
* Supports 2-8s (DC 7-36V) wide voltage input.
* Supports 20X20 M2 hole installation.

Function Description:

* IRC tramp "PIT/25mW /800mW /4.5W"
* Press and hold the channel selection button for 1 second to switch CH 1-8 cycle.
* Press and hold the power selection button for 1 second to switch the power to  25mW/800mW/4.5W cycles.
* Press and hold the power selection button for more than 2 seconds to switch between entering PITMODE and exiting PITMODE
* When using this product, please comply with local regulations and install the antenna before use

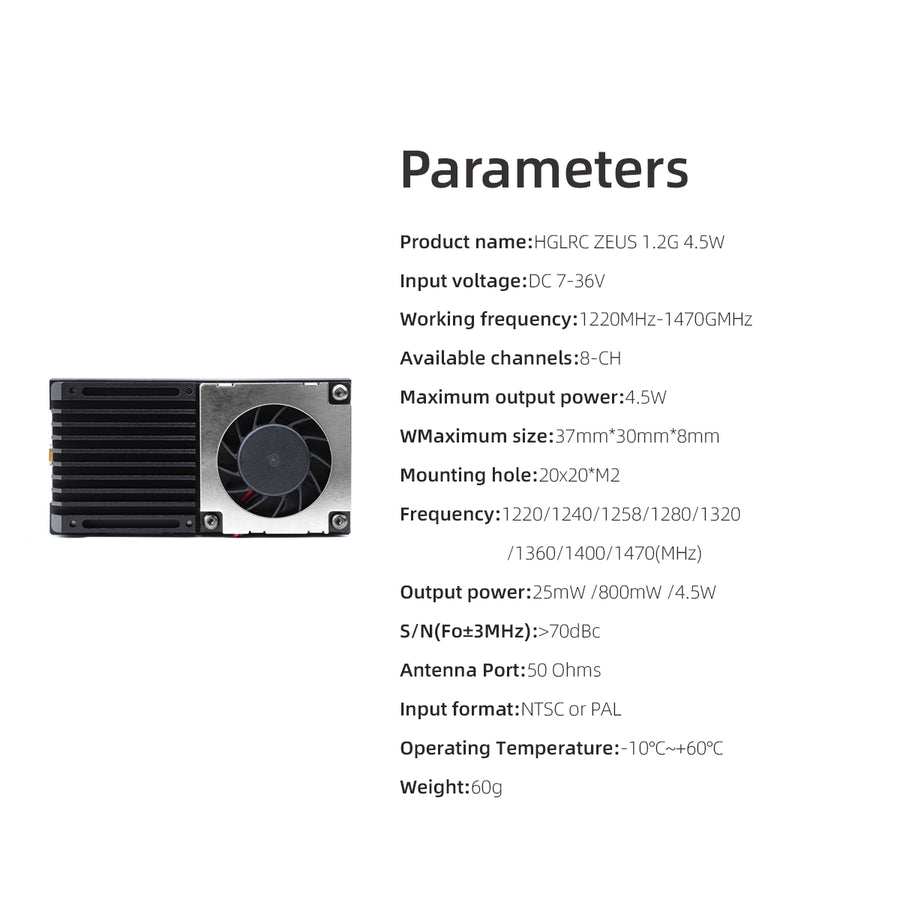

Product parameters:

Input voltage: DC 7-36V
Working frequency: 1220MHz-1470GMHz
Available channels: 8-CH
Maximum output power: 4.5W

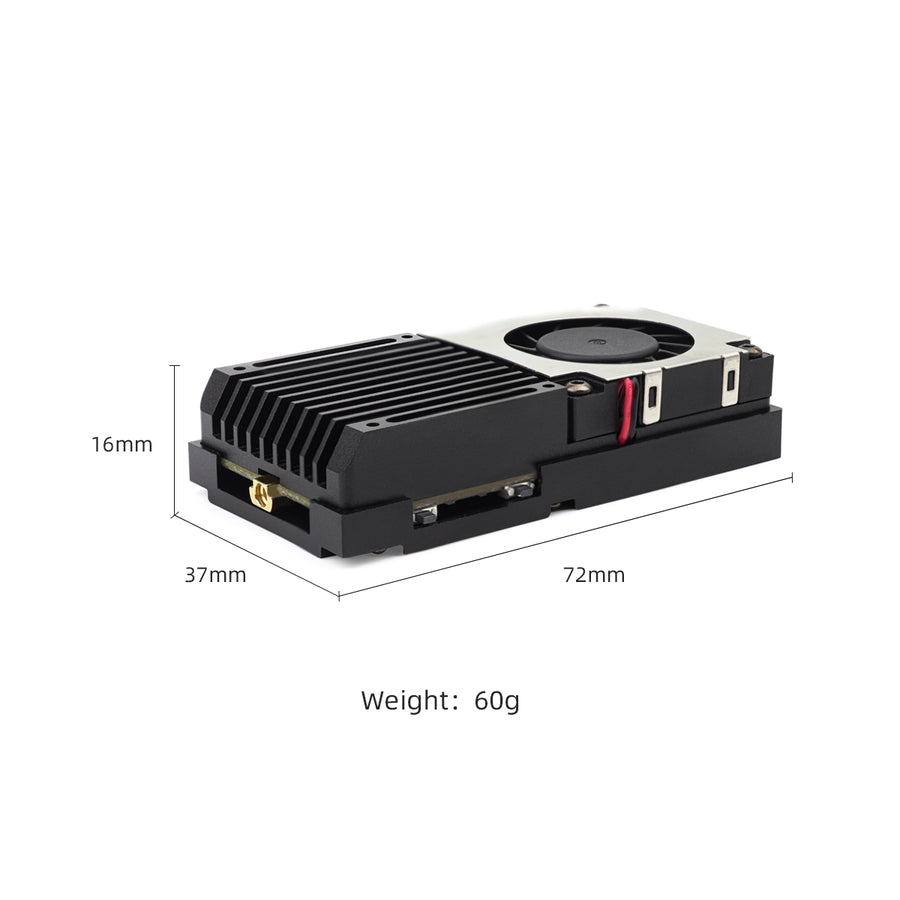

WMaximum size: 37mm*30mm*8mm
Mounting hole: 20x20*M2
Output power:25mW /800mW /4.5W
Antenna Port:50 Ohms
Input format:NTSC or PAL
Operating Temperature:-10℃~+60℃

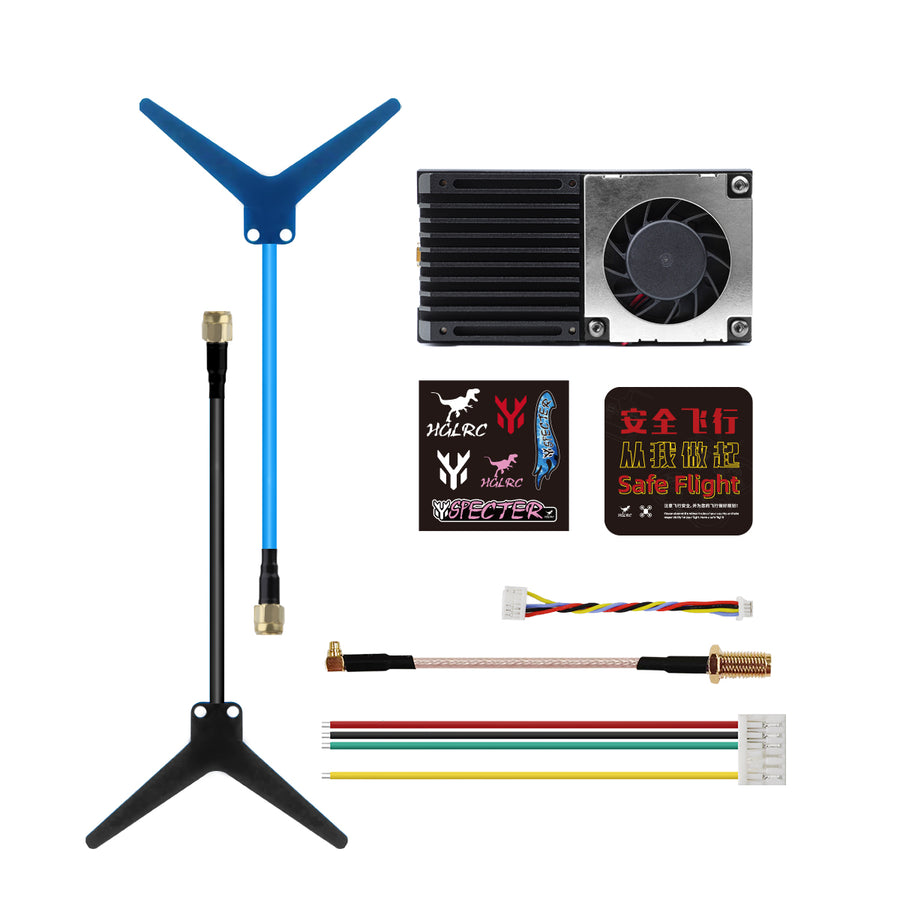

Product List:

1 x Zeus 1.2G 4.5W VTX
1 x MMCX to SMA 100mm adapter
2 x 1.2GHz-1.4GHz SMA Dipole Antenna
1 x GH1.25 6Pin 100mm single-ended cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
