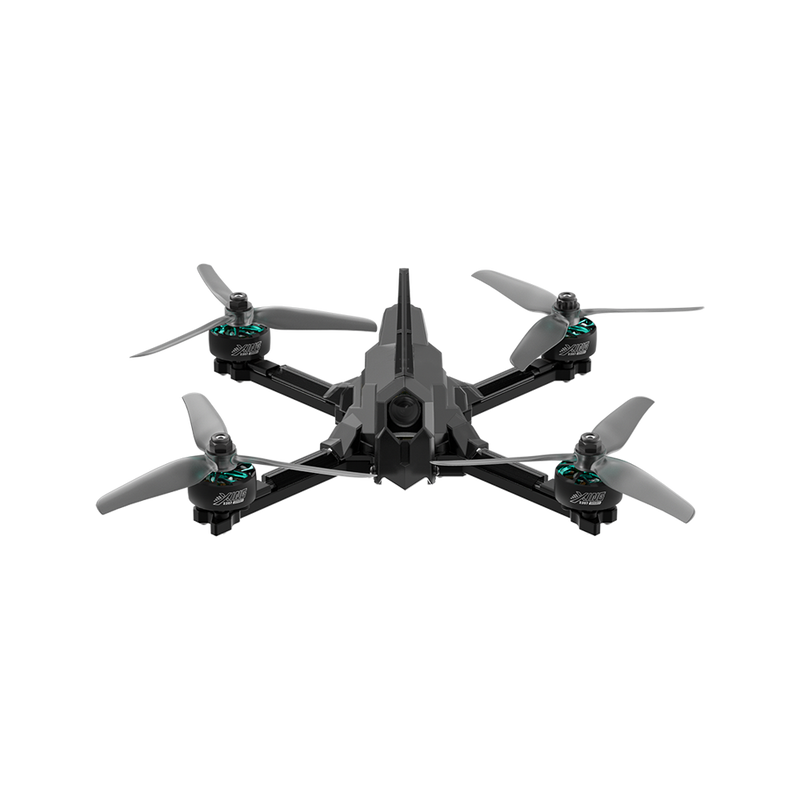

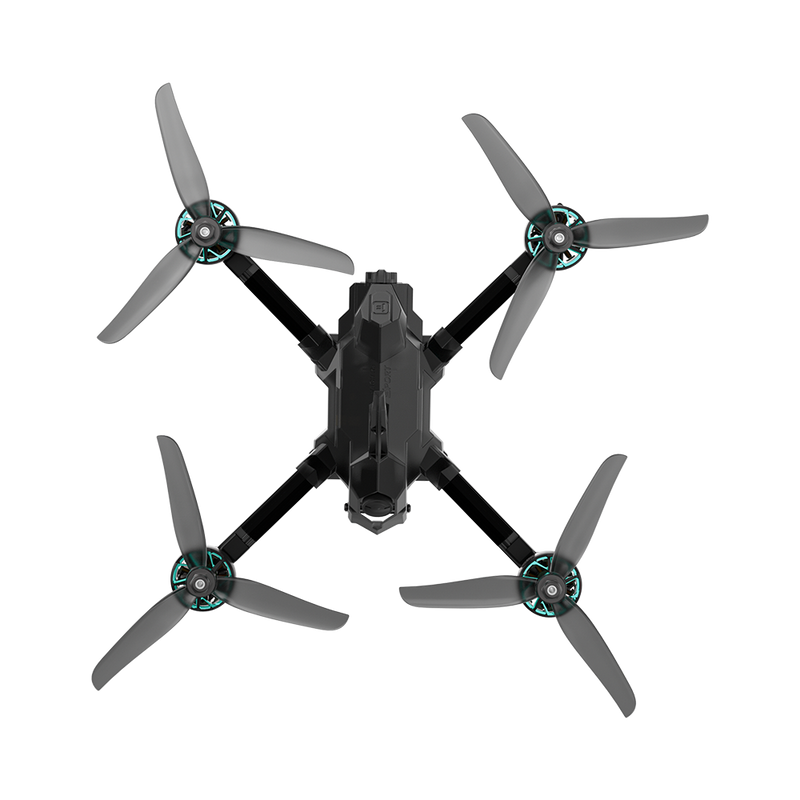

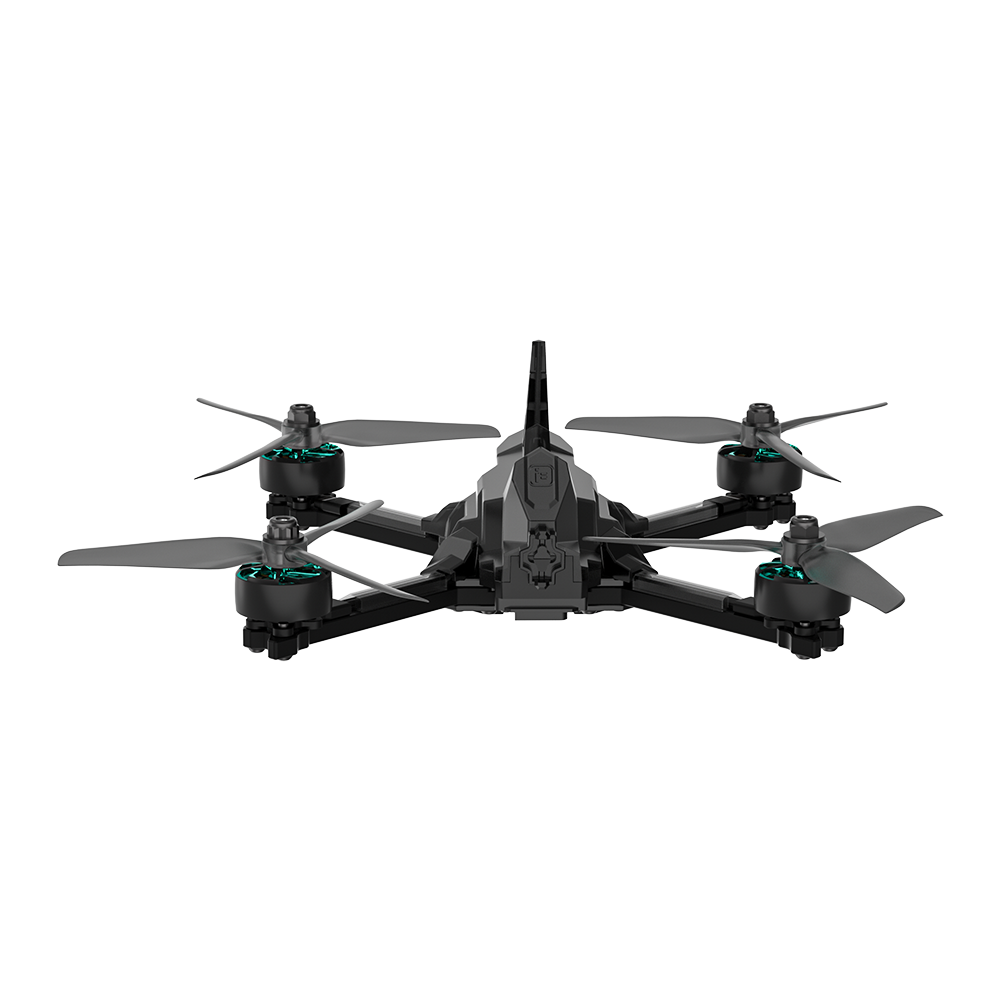

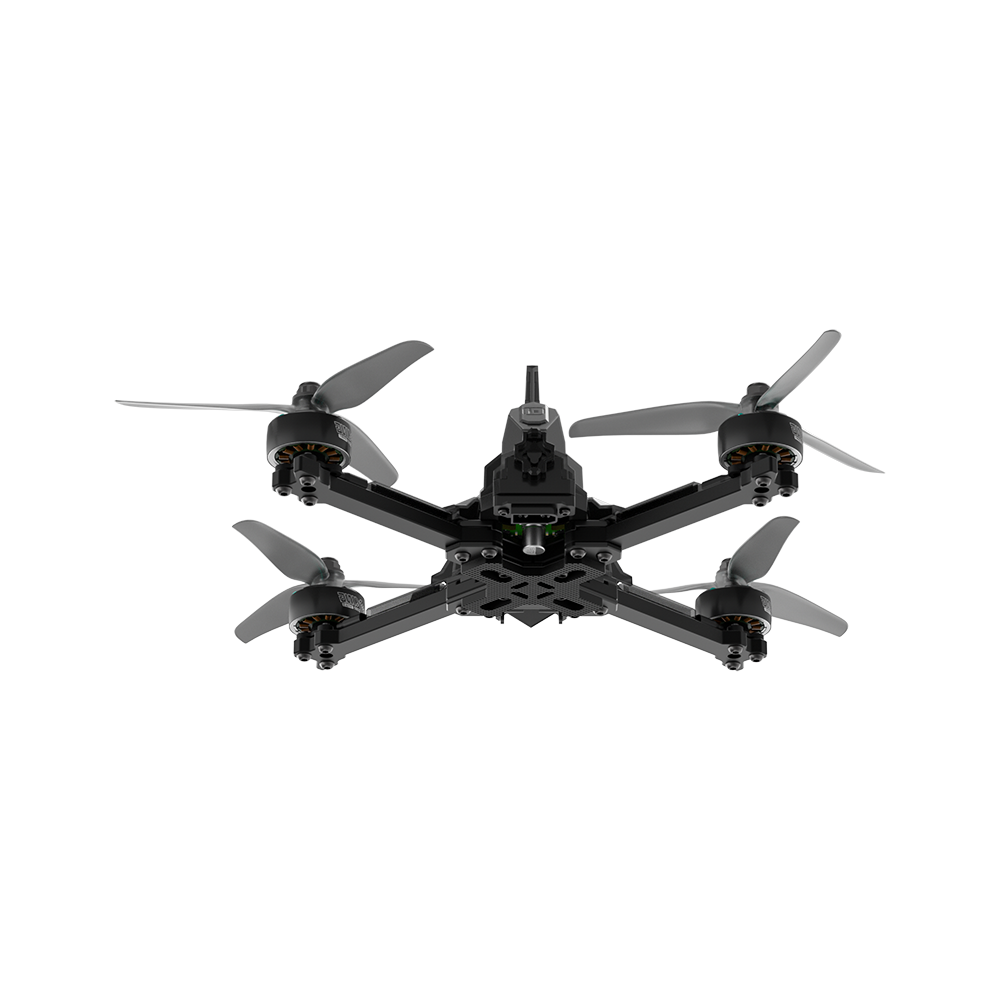

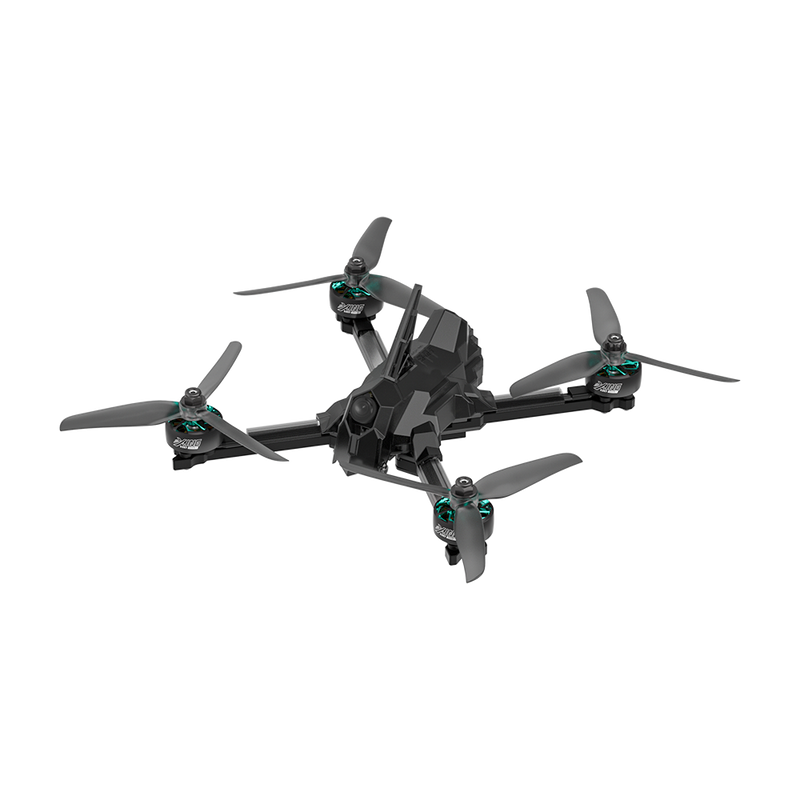

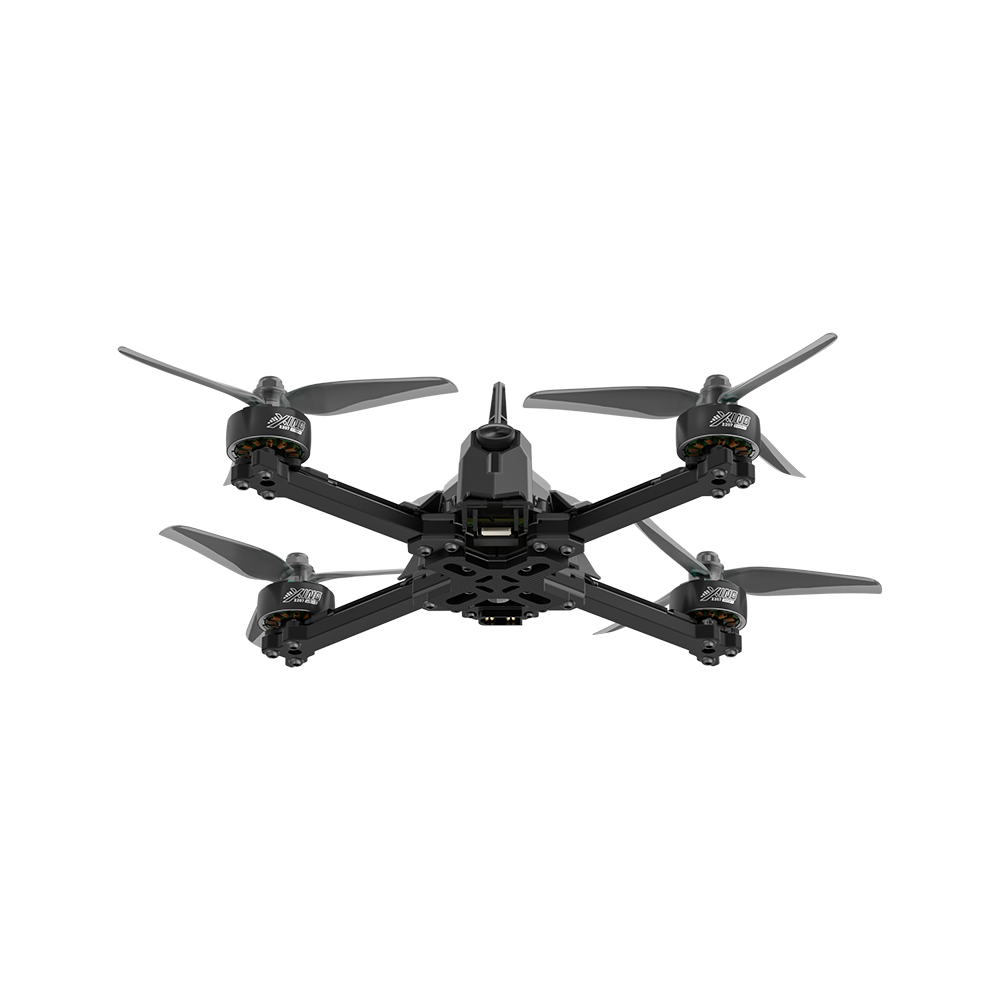

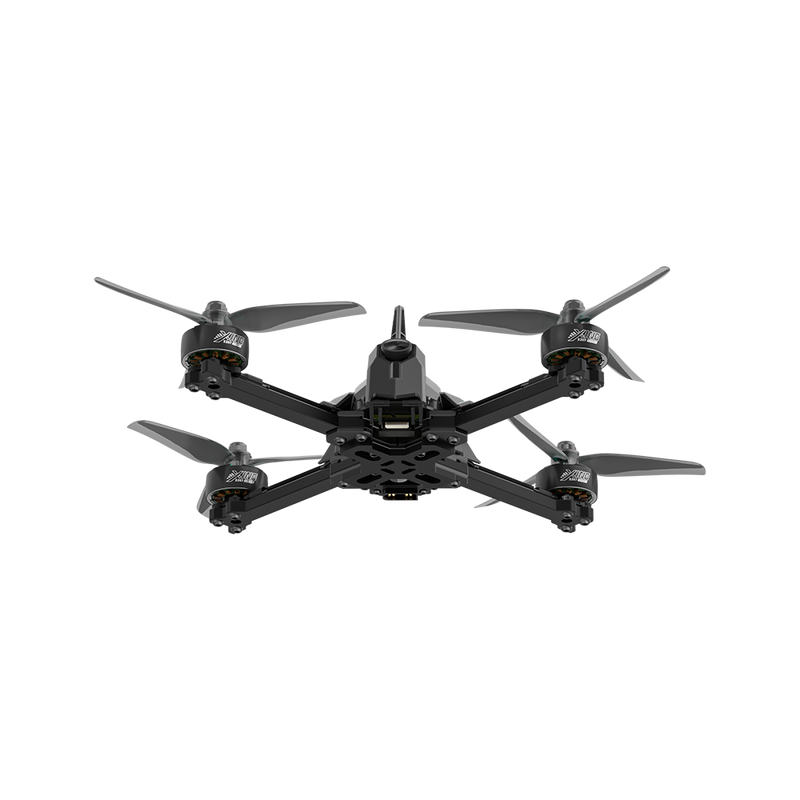

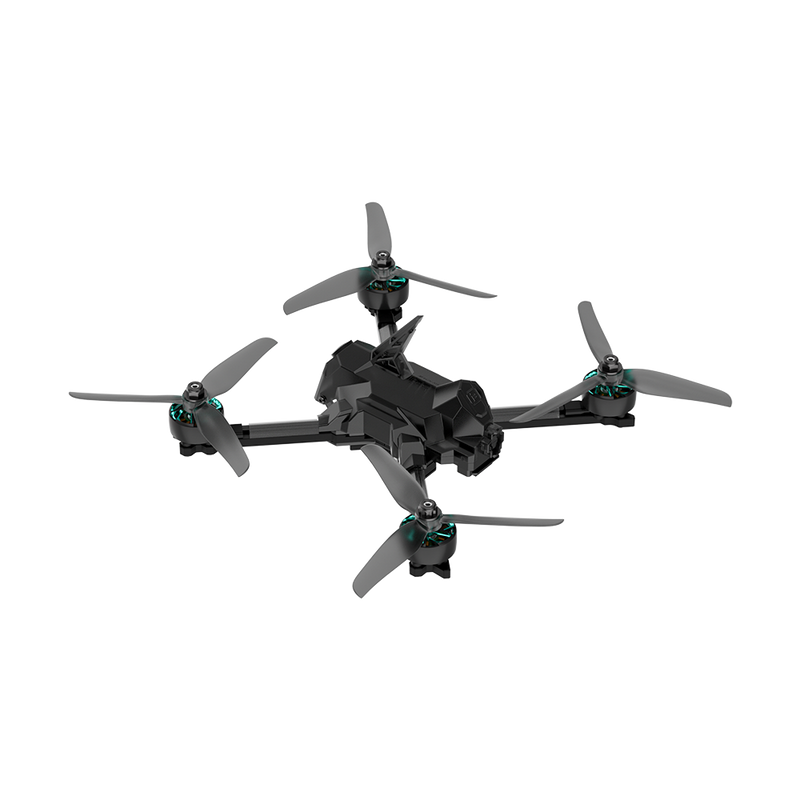

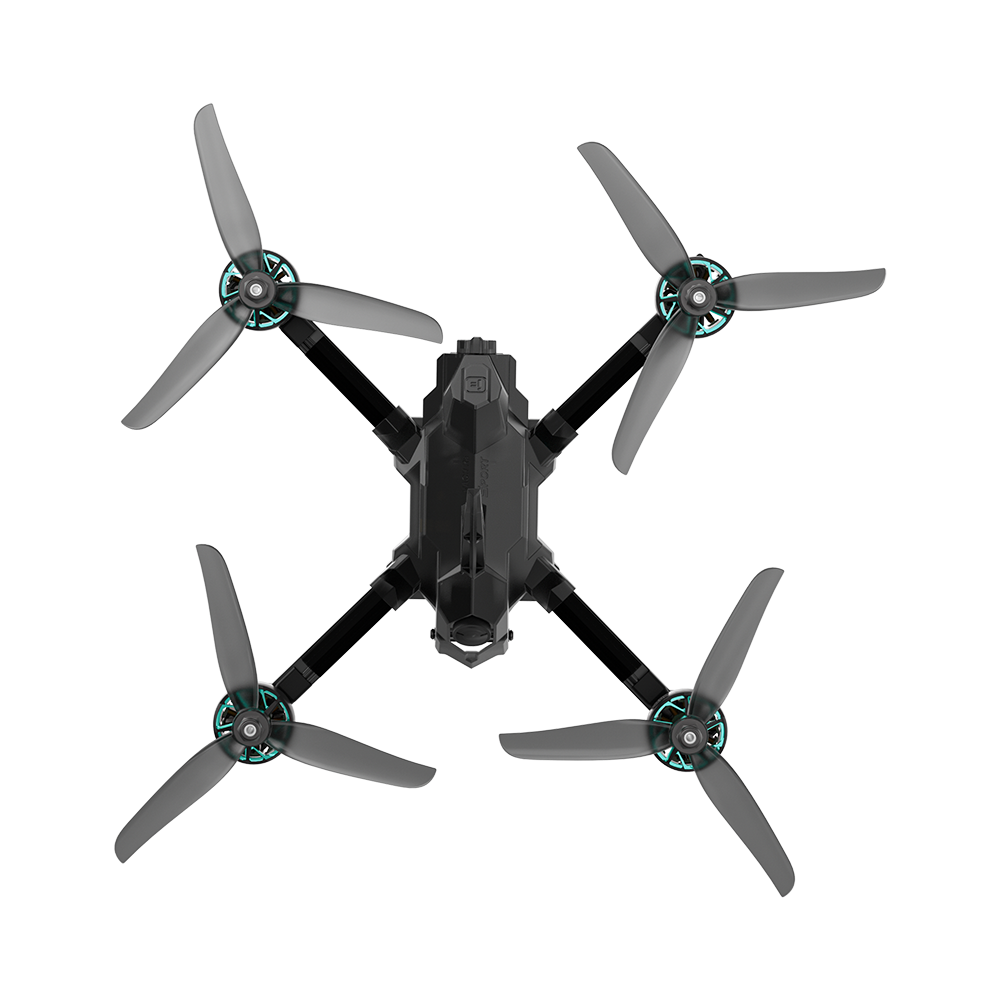

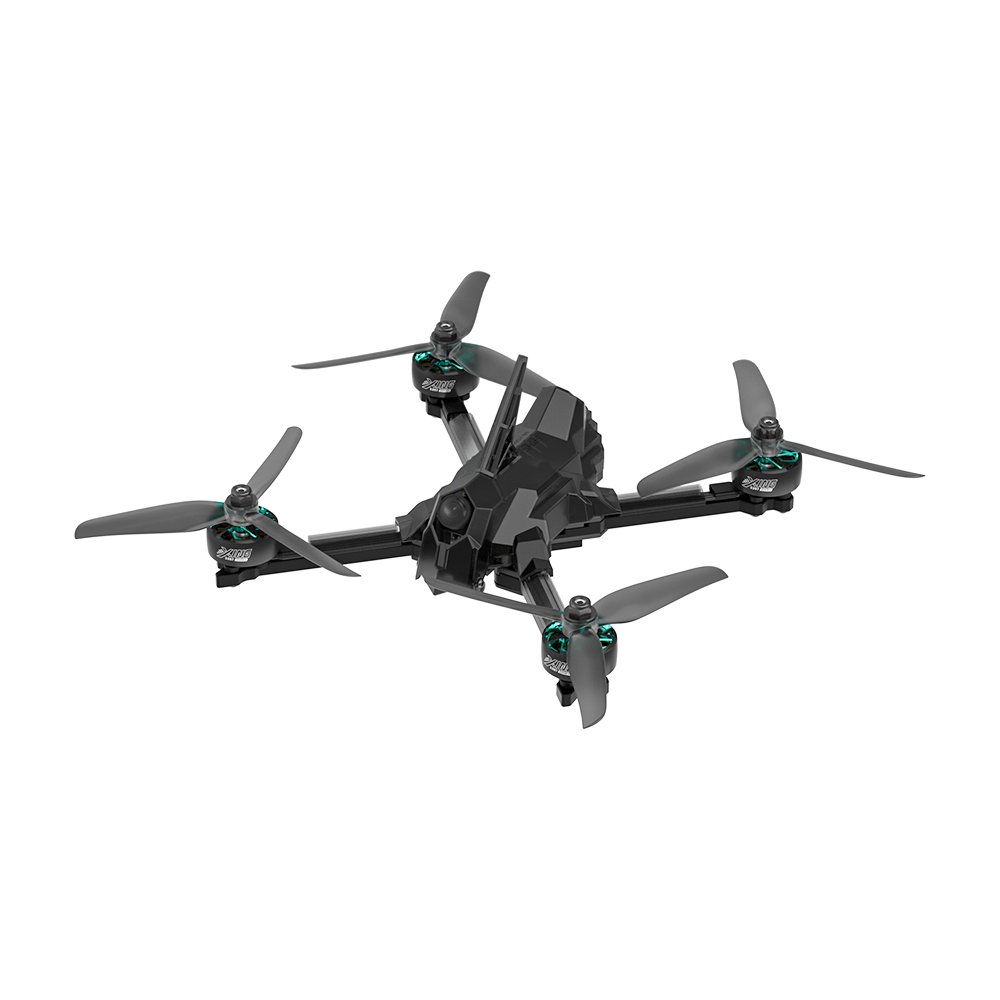

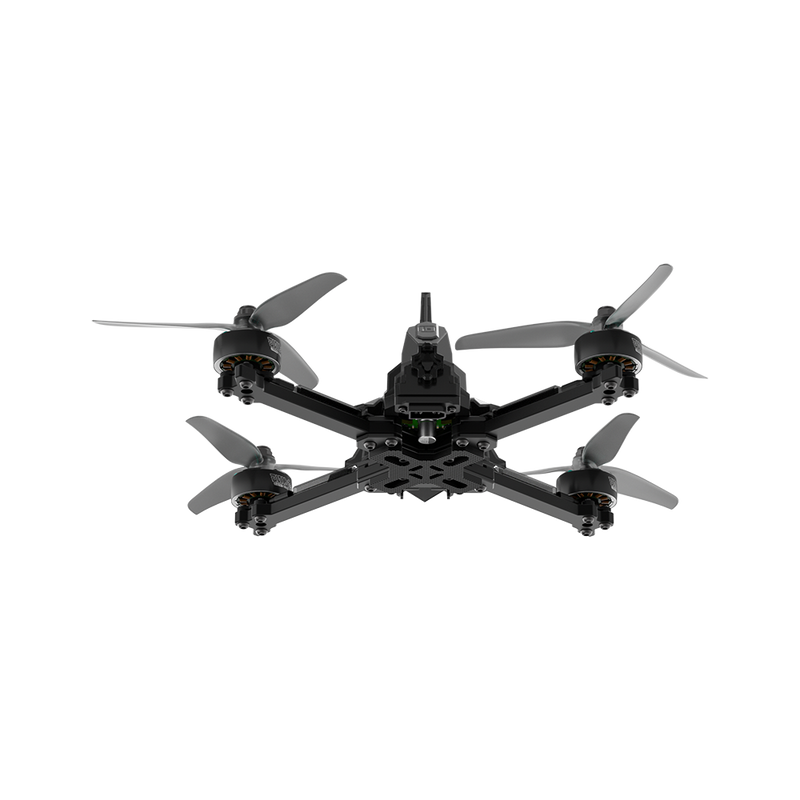

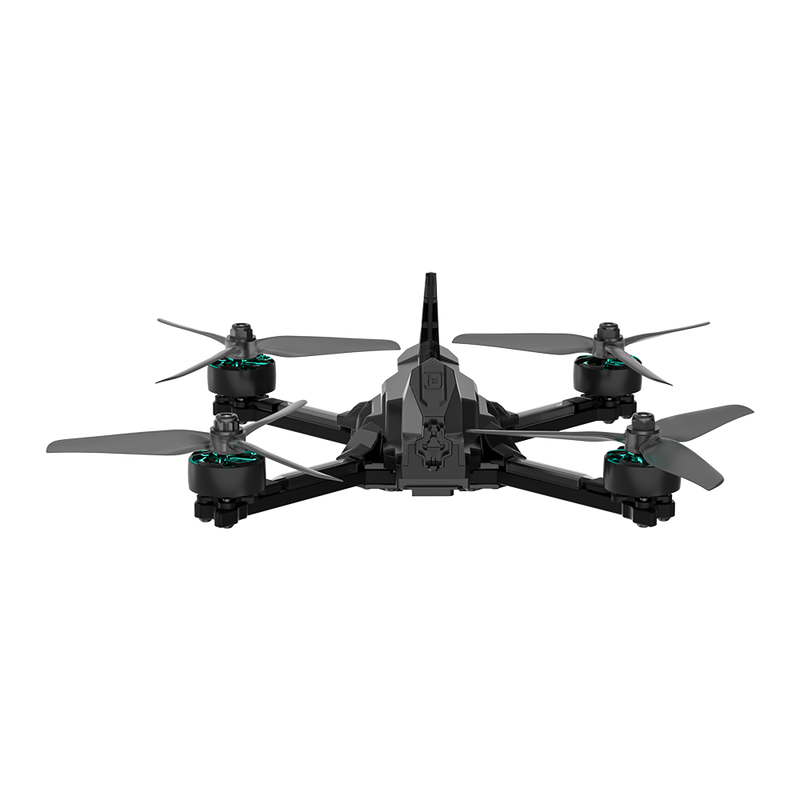

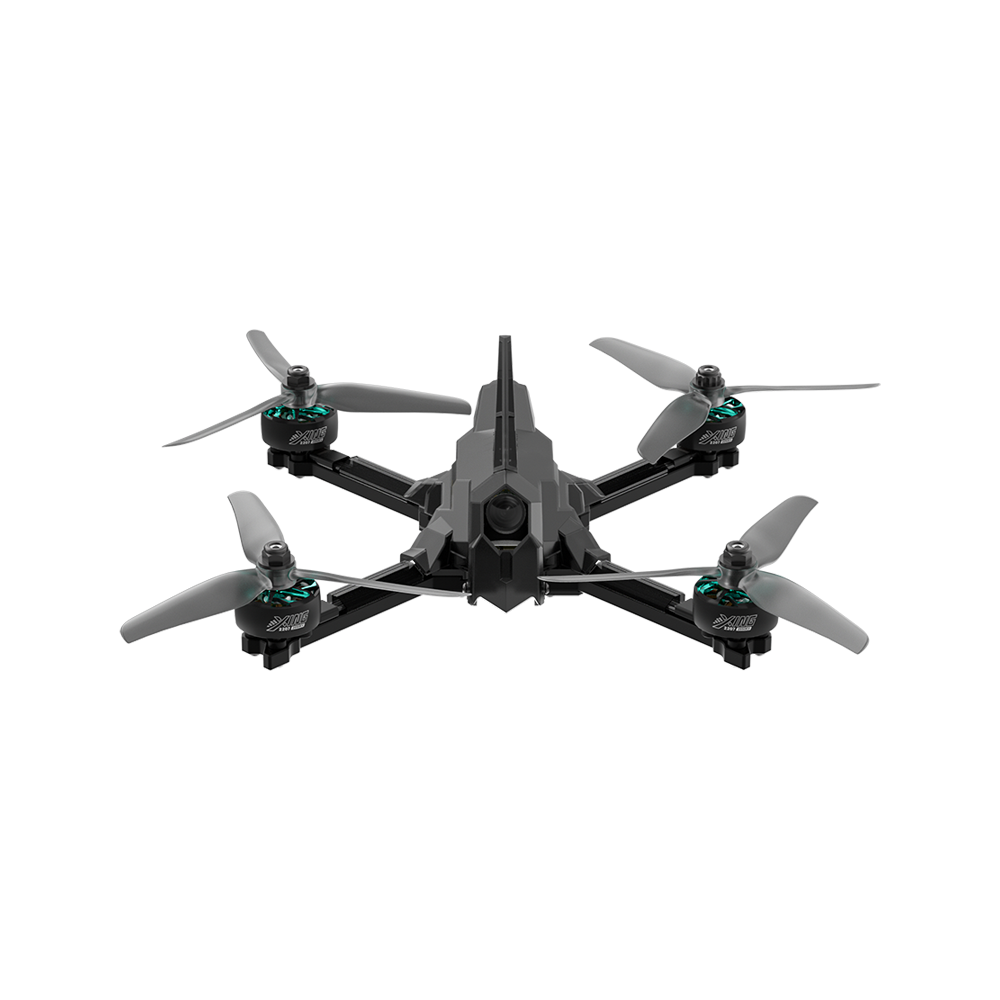

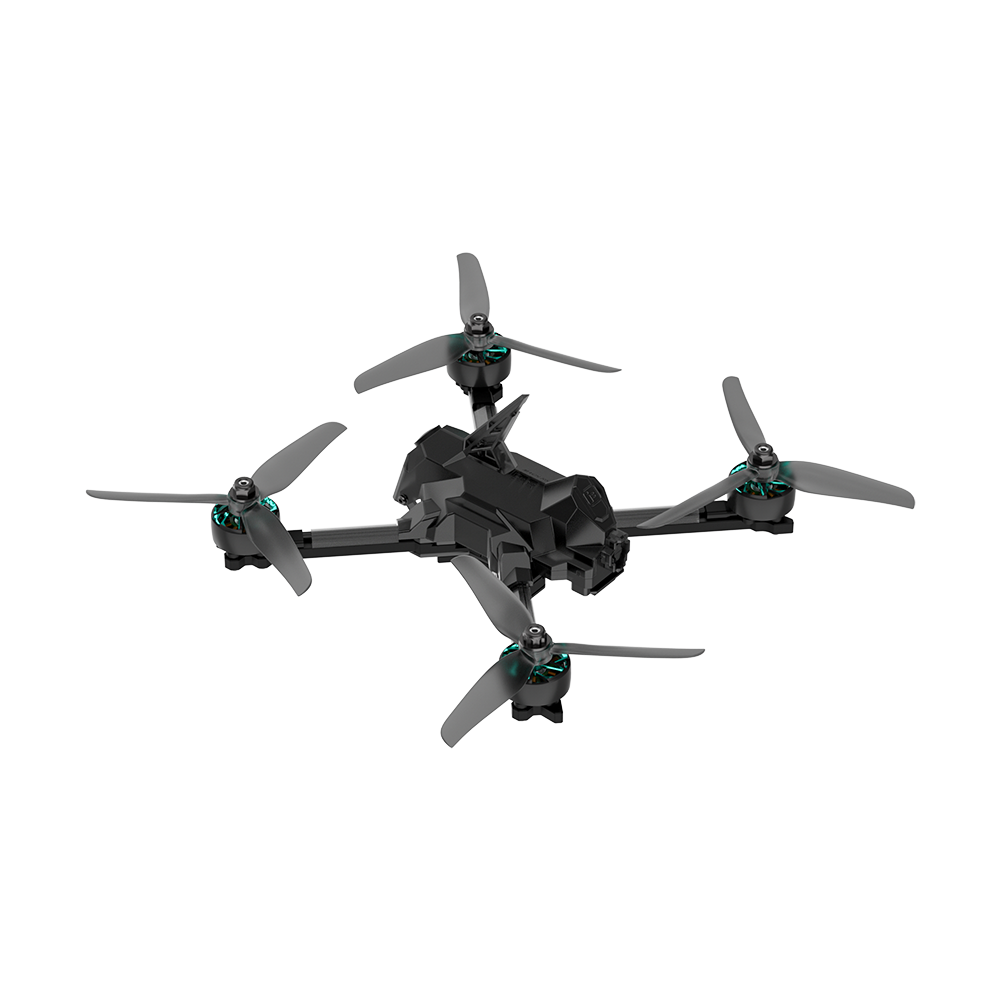

iFlight Mach R5 Sport 6S HDZero PNP/BNF Racing Drone

This version requires the use of the corresponding HDZERO goggles, or the addition of the HDZERO module to Analog goggles.

Not compatible with DJI remote controls and DJI goggles.

The Mach R5 Sport aims to provide racing pilots a high-quality finished FPV drone while still allowing for DIY customization. By utilizing carbon plates and plastic components, the internal structure layout has been significantly improved. This not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability. The organized space layout guarantees that hardware components can be positioned logically, thus minimizing the risks of damage from crash impacts.

June 7, 2024: Black canopy upgrade.

Note: BNF purchased after June 7, 2024, will be given an additional black Canopy.

Lightweight and Compact

As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.

Innovative Quick-Release Aero Sell

The unique canopy is not only engineered with aerodynamics, but also features quick-release buckle for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

Convenient User Experience

Secured battery plug to prevent the power cable from being hit by the propellers, and with built-in antenna to keep everything well protected and enhancing the overall appearance.

The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.

DIY customized space

Standard 20*20 mounting holes, compatible with HDZERO and others VTX.

Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.

Canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.

Product Name: Mach R5 Sport 6S HDZero

FC: BLITZ Mini F722 Flight Controller

ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC

Video Transmission: HDZero Race V3 VTX

Camera: HDZero Nano 90 CAM

Frame: 210mm wheelbase

Motor: R5 2207 2050KV motors

Prop: Nazgul R5 V2 propellers

Weight: 300g

Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)

Dimensions (L×W): 148*148*51 mm

Max Speed: 208km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 12 mins (With 6S 1400mAh no load)

Max Wind Speed Resistance: Level 6

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: N/A

Product Name: HDZero Race V3 VTX

Antenna Interface: IPEX

Input Volts: 4~12V

Output Power: 25mW、200mW

Frequency: 5.725~5.850GHz

FC protocol: Smart Audio/MSP

Weight: 5.5g

Mounting pattern: 20*20mm M4

Dimensions: 32*28*5mm

1 x Mach R5 Sport 6S HDZero BNF

1 x Battery strap

2 x R5 Prop(Pairs)

1 x Battery pad
