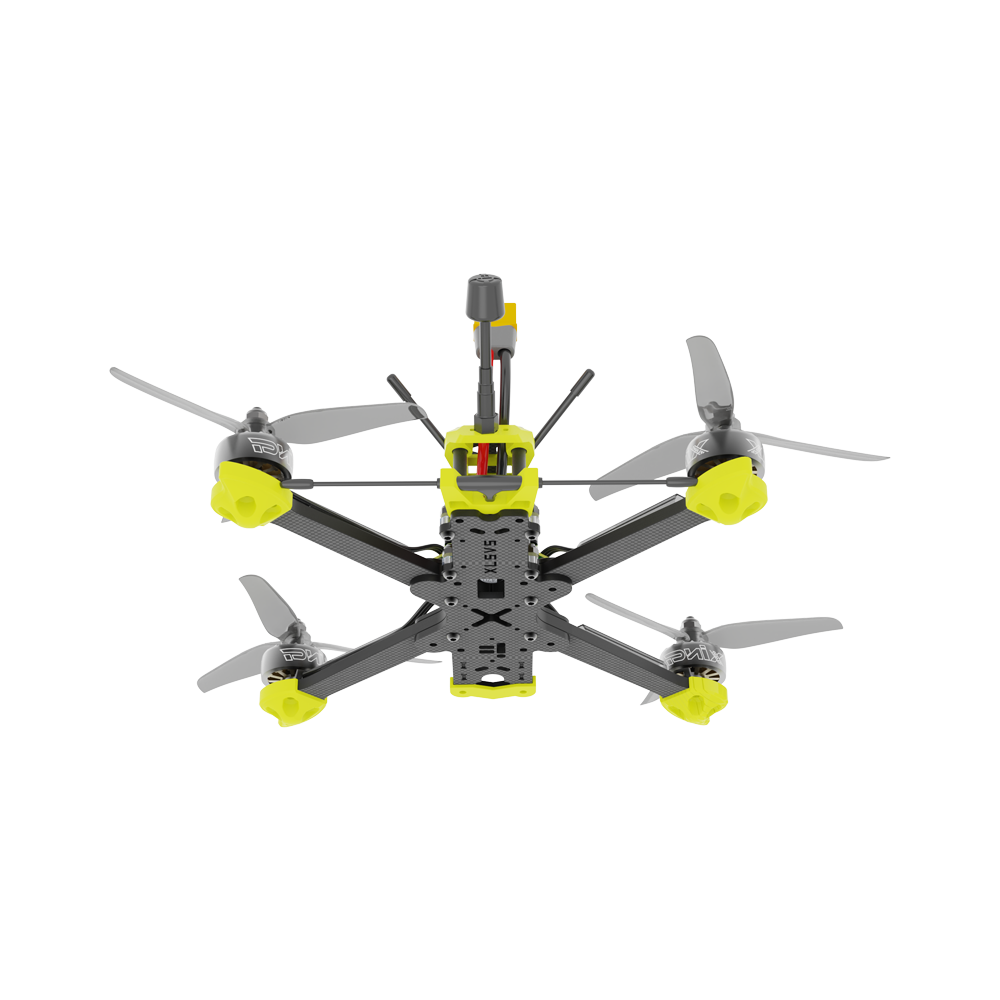

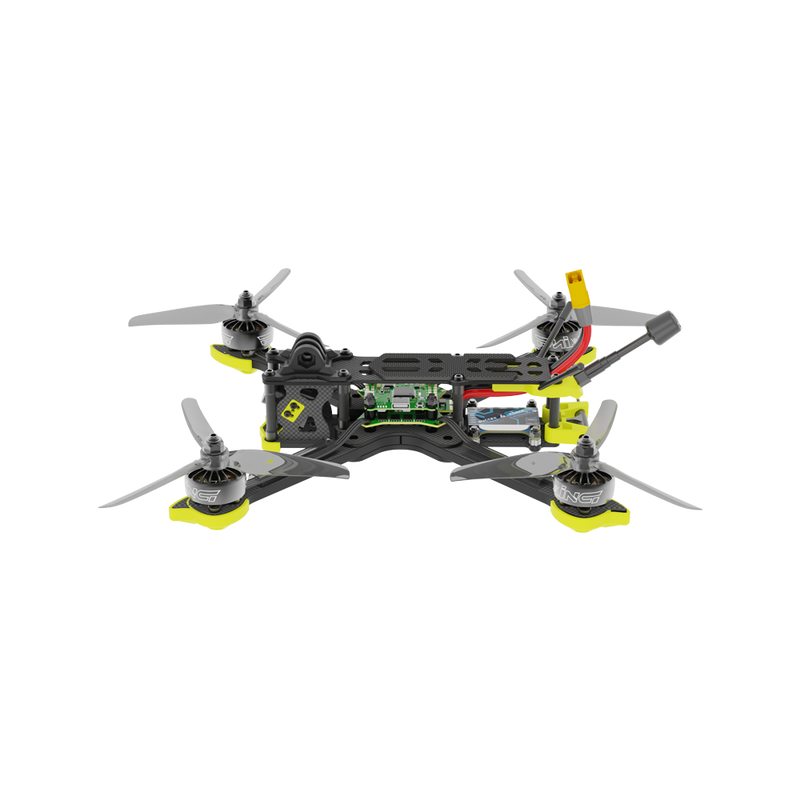

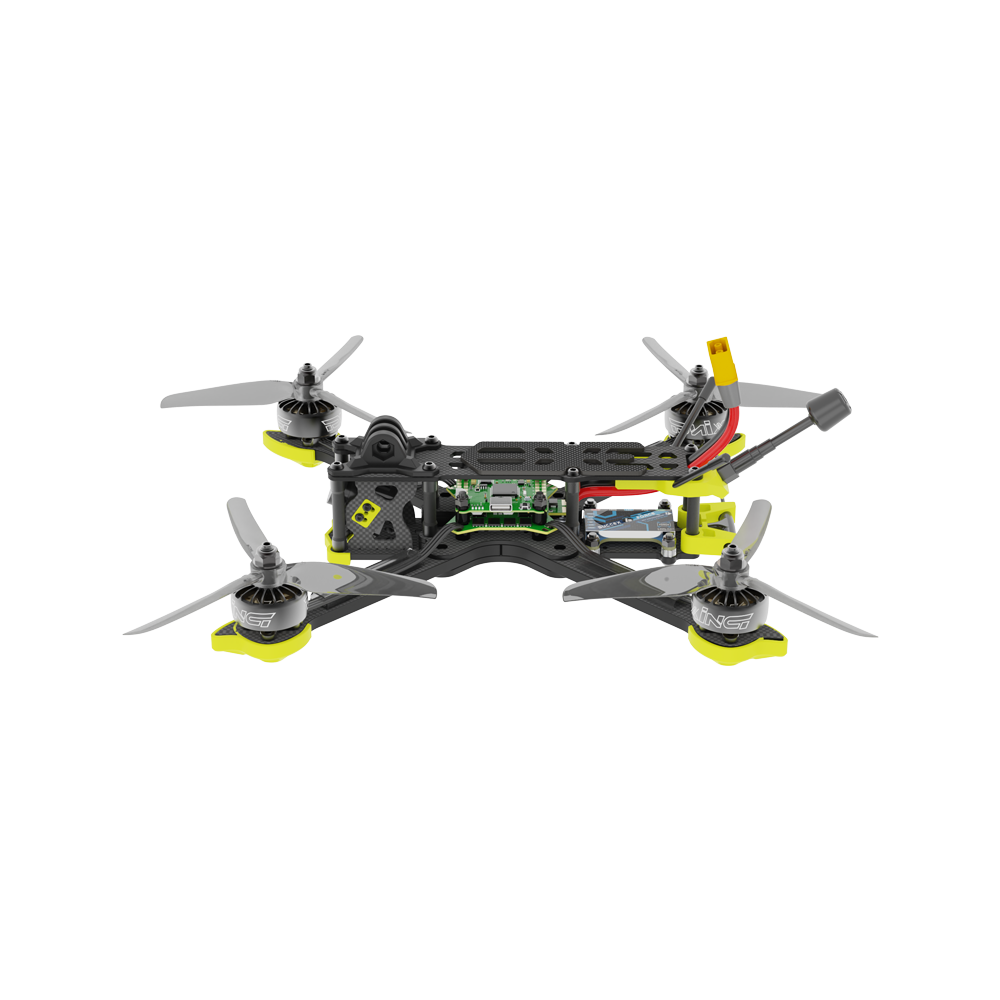

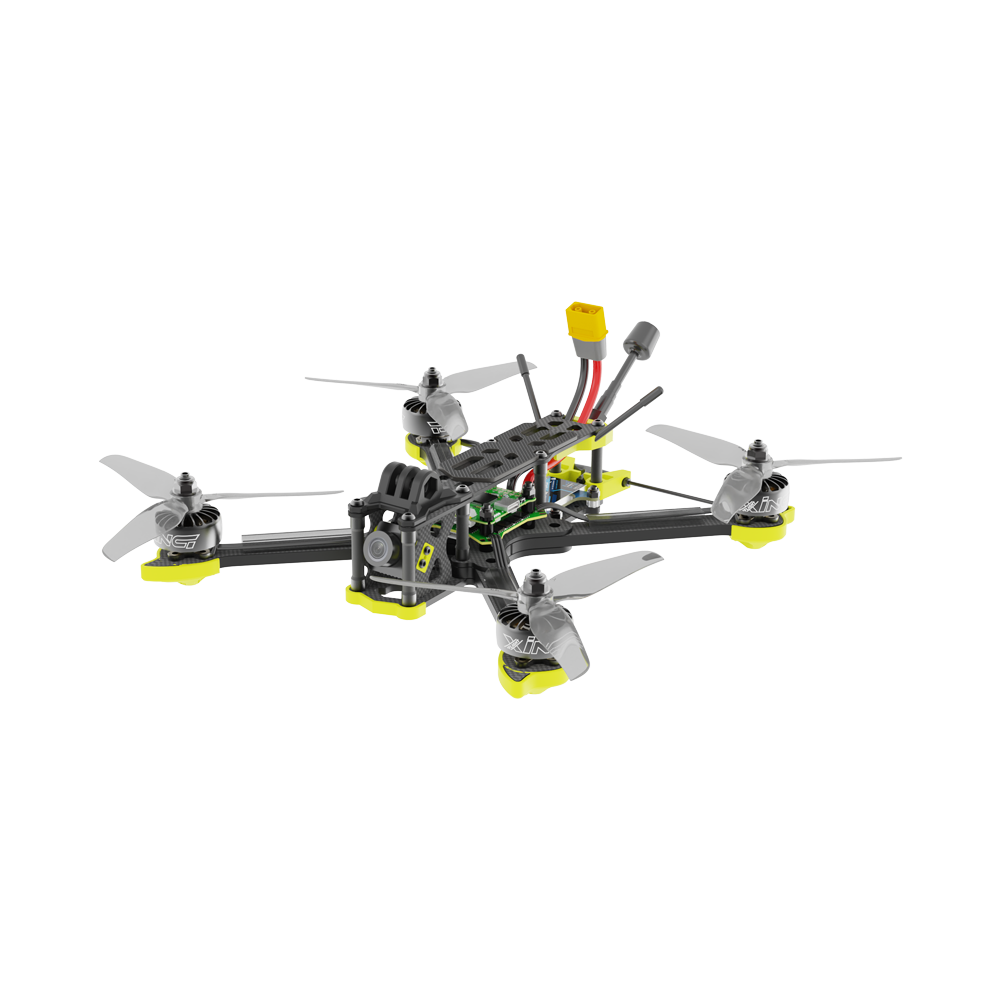

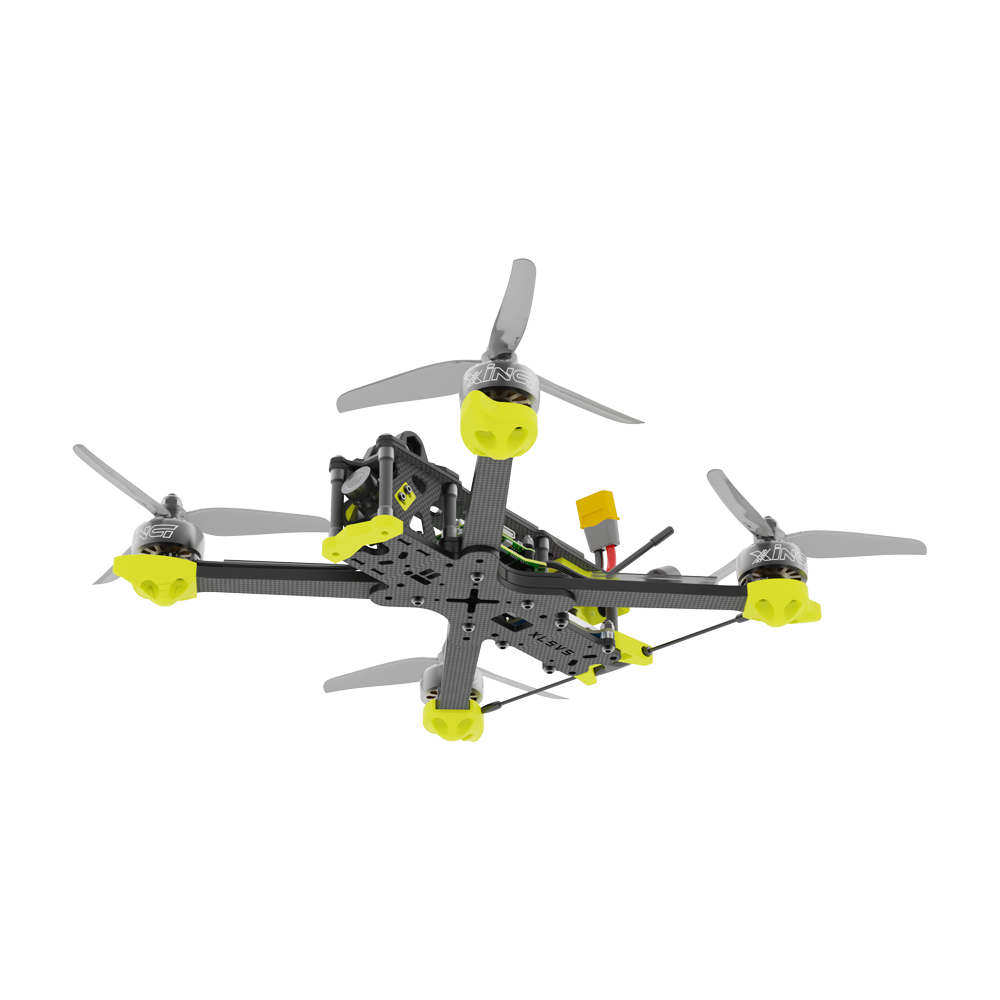

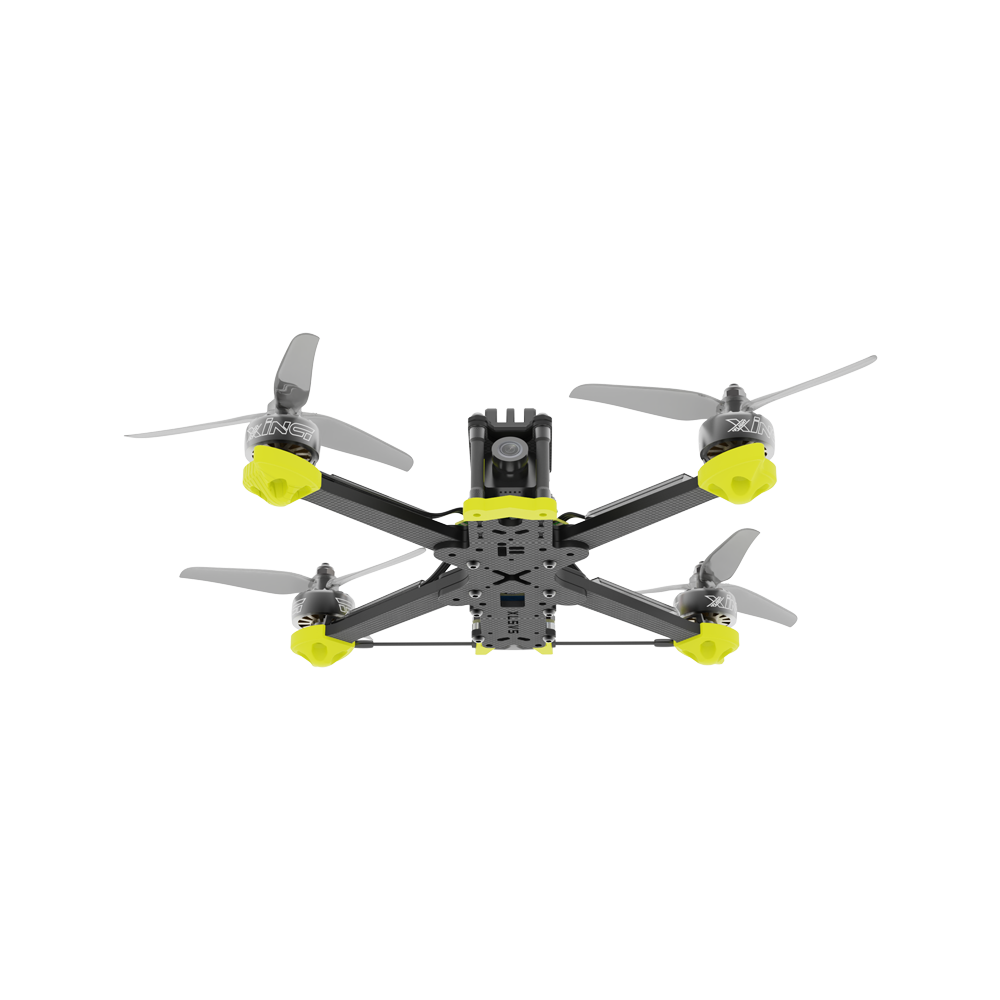

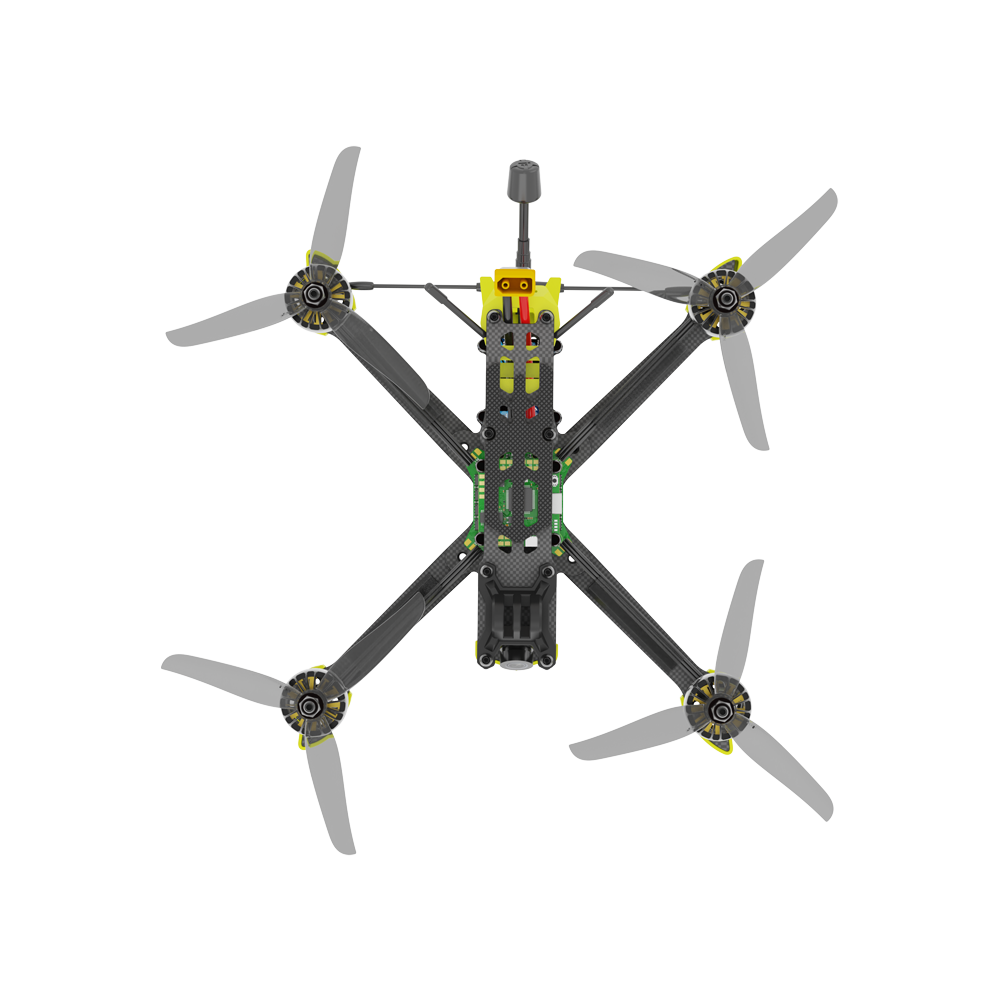

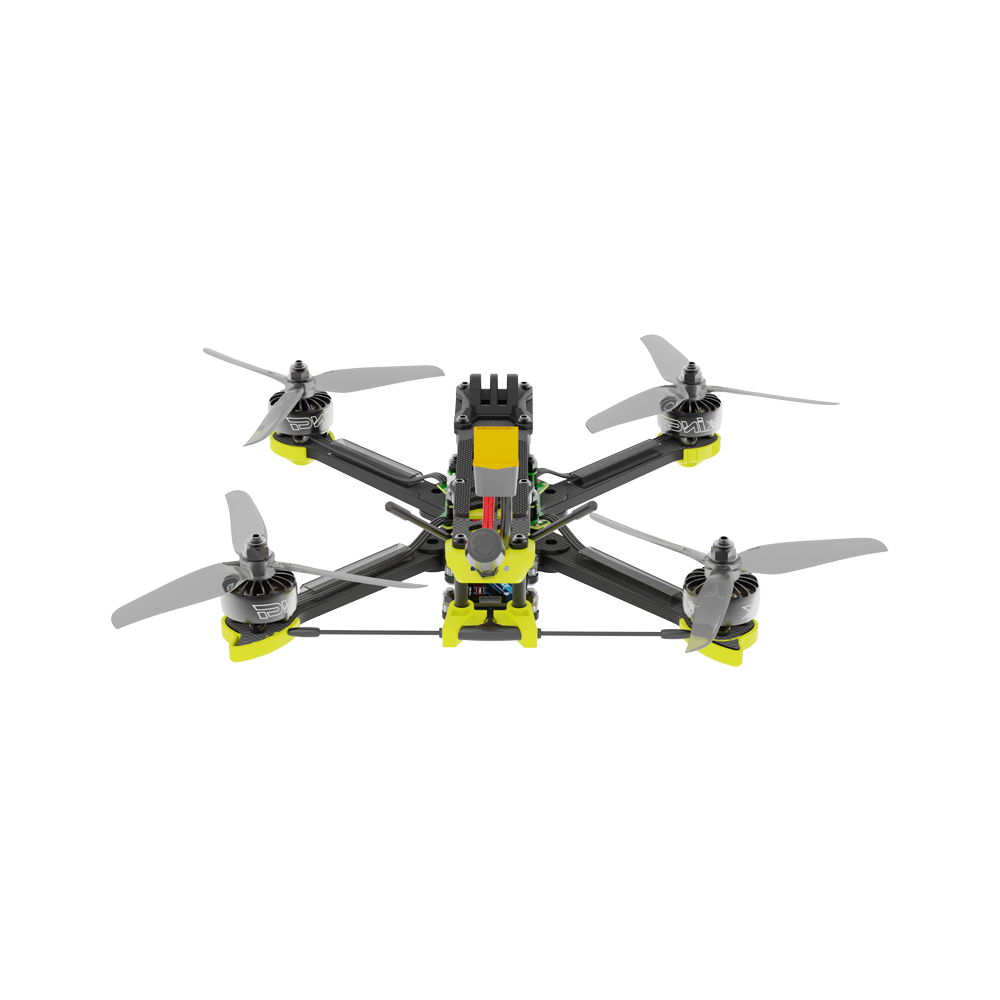

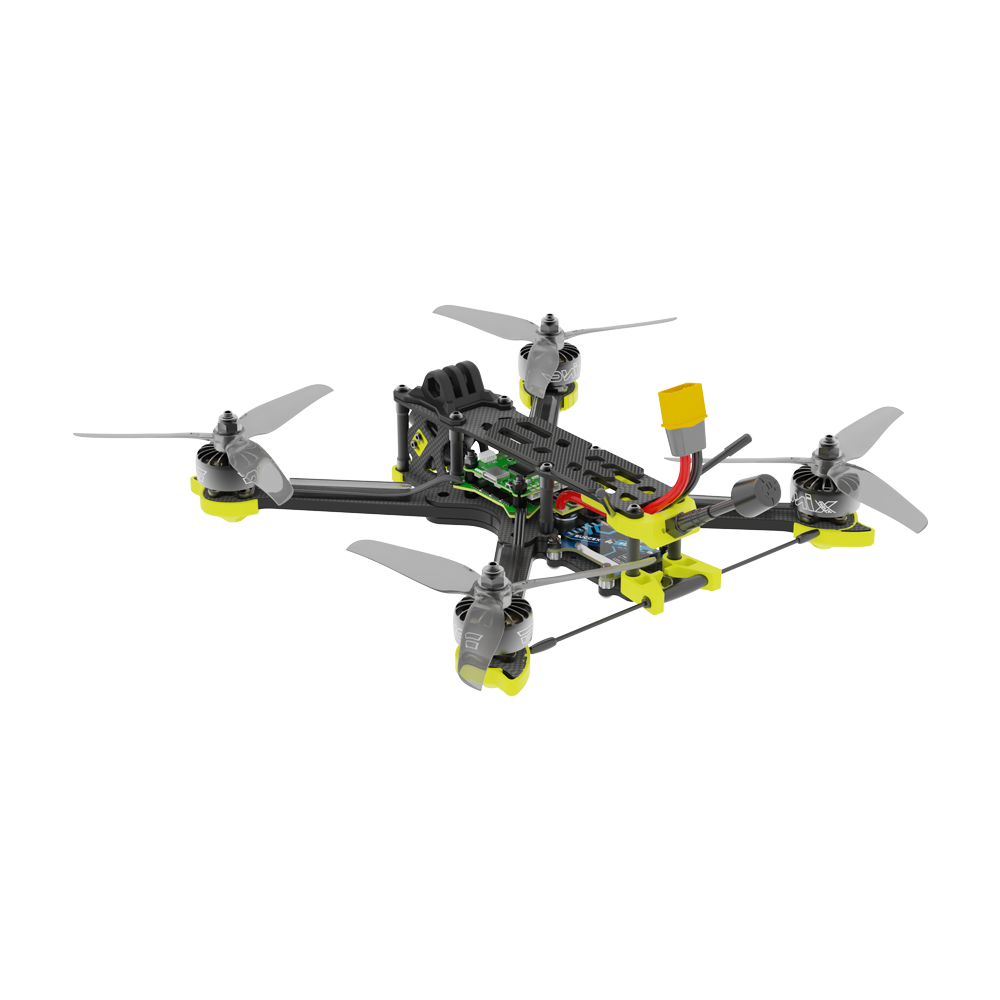

iFlight Nazgul5 V2 6S Analog 5" FPV Freestyle Drone

IFLIGHT

Price:
Sale price$259.99 USD

Description

Descriptions

The iFlight Nazgul5 V2 is a 5" size BNF (Bind-and-Fly) quadcopter that comes with the RaceCam R1 FPV Camera and Nazgul 5" 3-blade propellers. This quad is the updated version of the XL5 V5 FPV frame.

The Nazgul5 V2 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! The Nazgul5 V2 is loaded with lots of power; it comes with the XING-E 2207 (6S 1800KV / 4S 2750KV) motors, SucceX-E F7 Flight Controller, SucceX Force 5.8g 800mW VTX Adjustable, SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC, which makes this quad a must-have!

Features

  •  5mm arm design for more durability
  • Easy-Swap arm
  • LED illuminated Logo
  • XING-E 2207 motors and NAZGUL 5140 props
  • 5" version also fits 5.1" style propellers
  • Popular True-X configuration
  • TPU crash-guards
  • Fits both 30.5x and 20x stacks

Specifications

Product Name:Nazgul5 V2 6S Analog

FC: BLITZ F722

ESC: BLITZ E45 45A 4-IN-1 ESC

Video Transmission: BLITZ 1.6W VTX System

Frame: 235mm wheelbase

Motor: XING-E 2207 motors

Prop: Nazgul 5 inch propellers

Takeoff Weight:Approx. 620 g

Dimensions (L×W×H):180×180×80 mm

Diagonal Distance:245mm

Max Speed:130 Km/h (Manual Mode)

Maximum Takeoff Altitude:5000 m

Max Hover Time:Approx. 8 mins

Max Flight Distance:5 km

Max Wind Speed Resistance:130 Km/H (Level 4)

Operating Temperature Range:-10° to 40° C (14° to 104° F)

Antennas: 1 Antenna

GNSS:N/A

Video Transmission

Product Name: BLITZ 1.6W VTX System

Output Power:0-25-400-800-1000-1600mw

Input Volts:6-36V

Working Current:≤450mA@12V,800mW; ≤850mA@12V,2500mw

Transmission fre:40CH(A-B-E-F-R)

Antenna Interface:MMCX

Mounting Hole: 30.5*30.5mm--20*20mm

Weight: 11 gram (W/O antenna)

Dimensions:L38mm*W36.5mm*H7.2mm

Packing List

1 x Nazgul5 V2 6S Analog BNF

2 x Antennas

2 x Battery pads

2 x Prop(Pairs)
