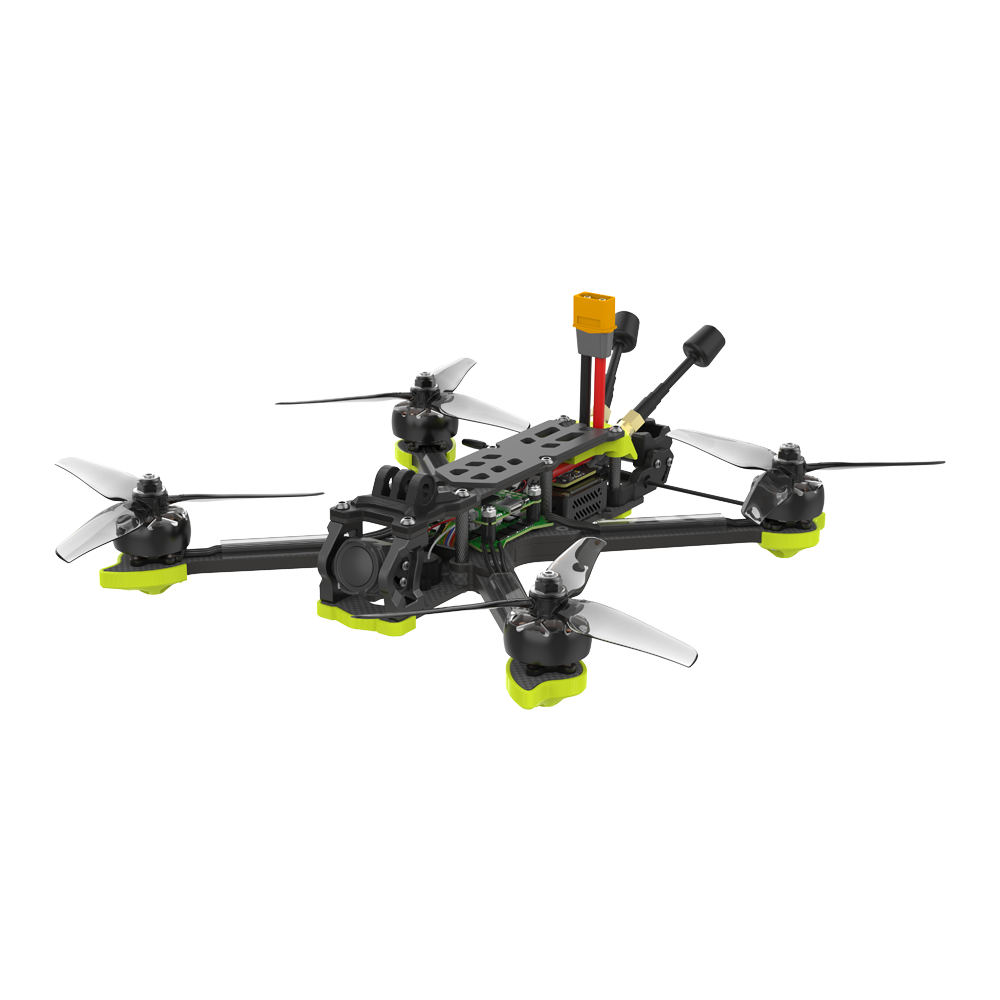

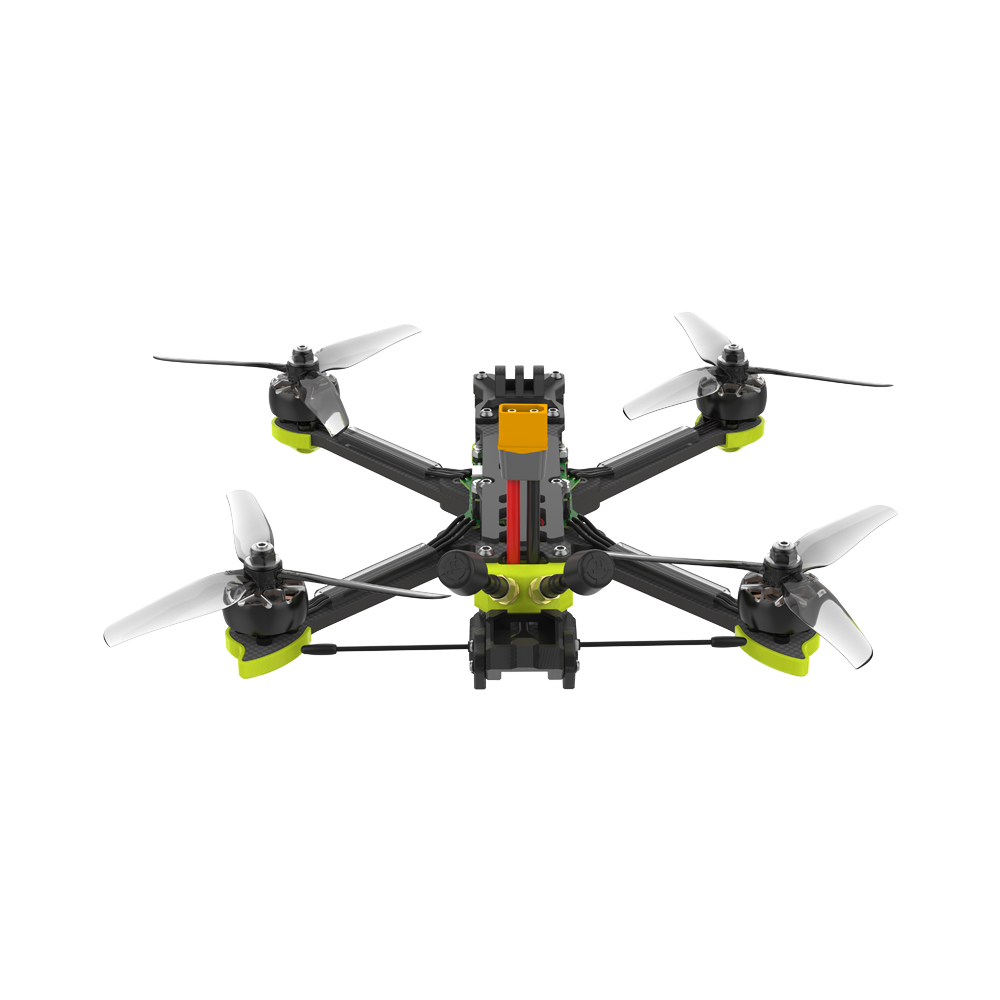

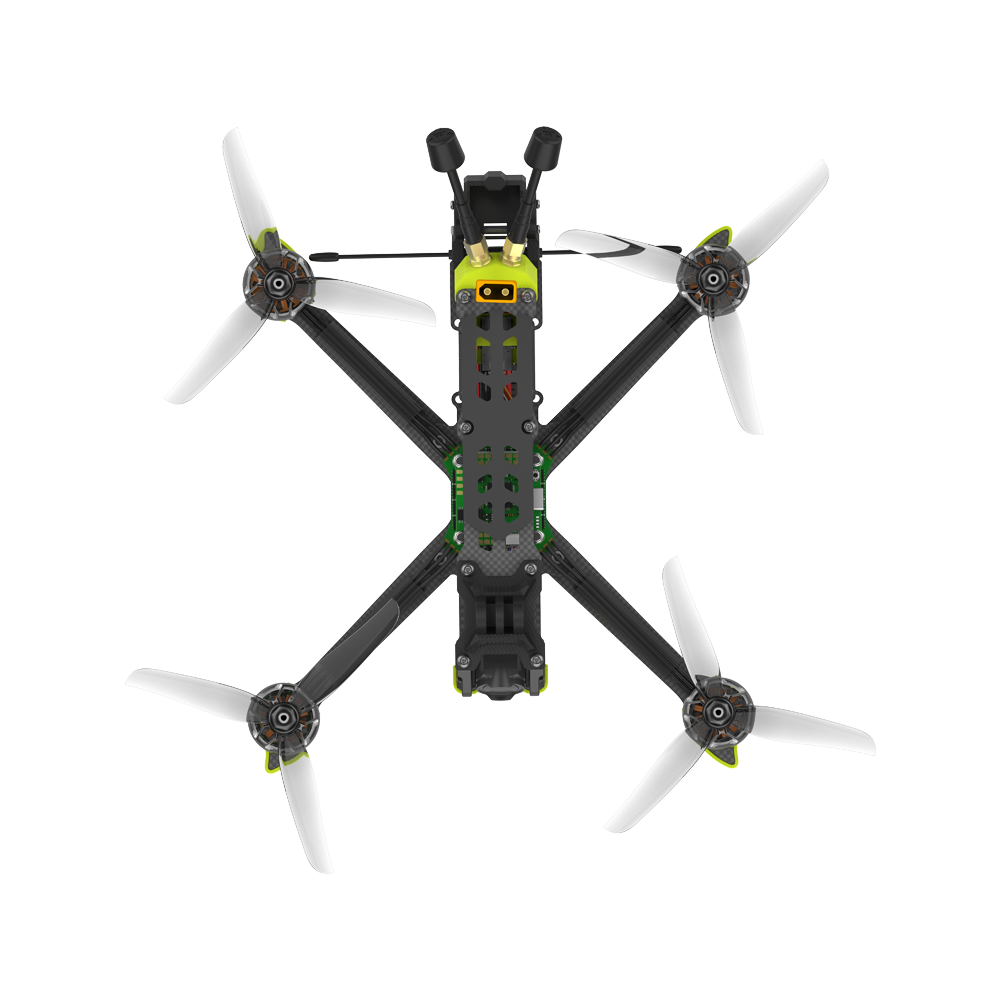

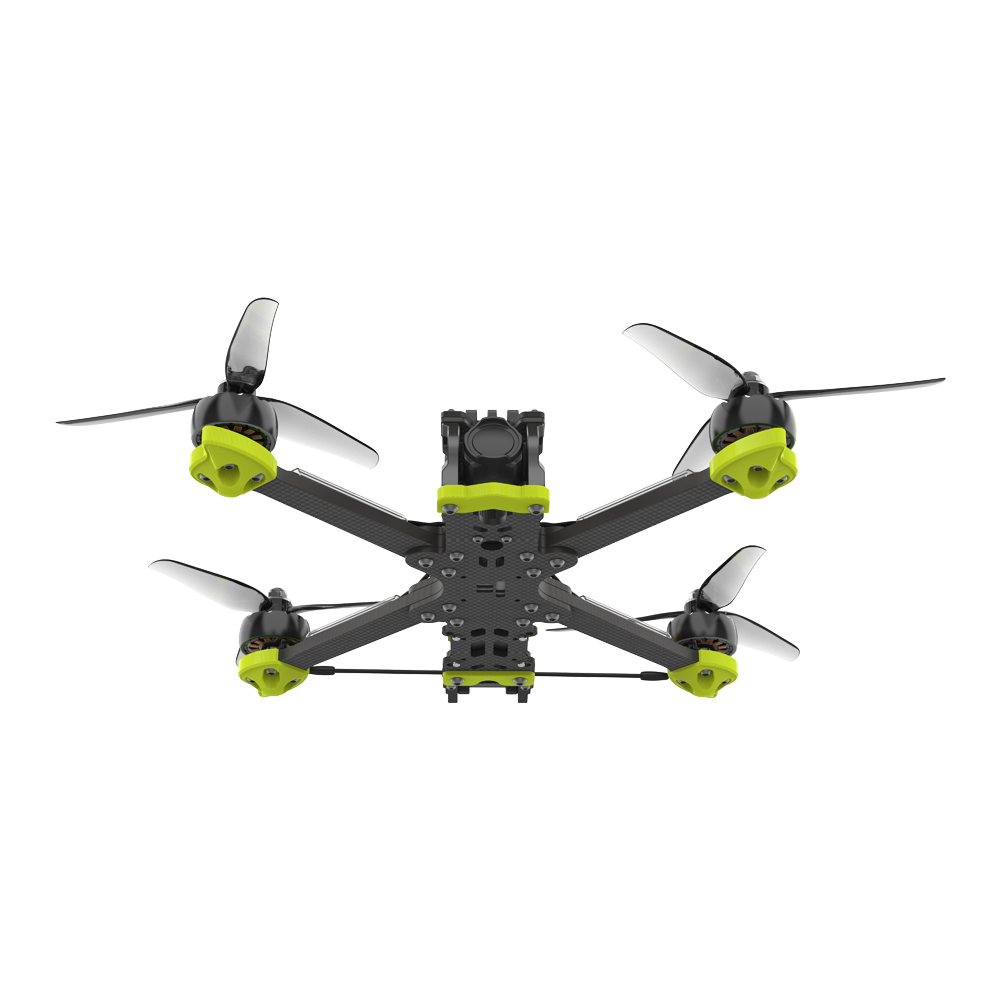

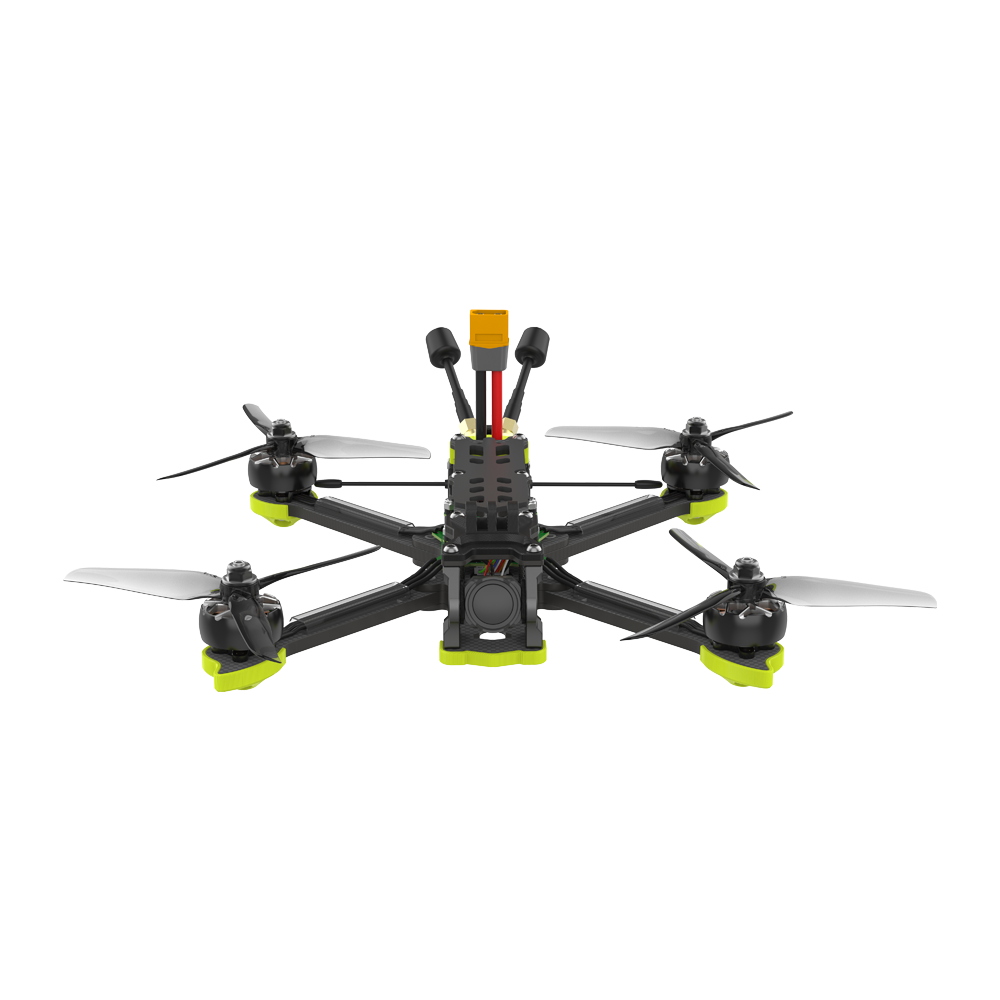

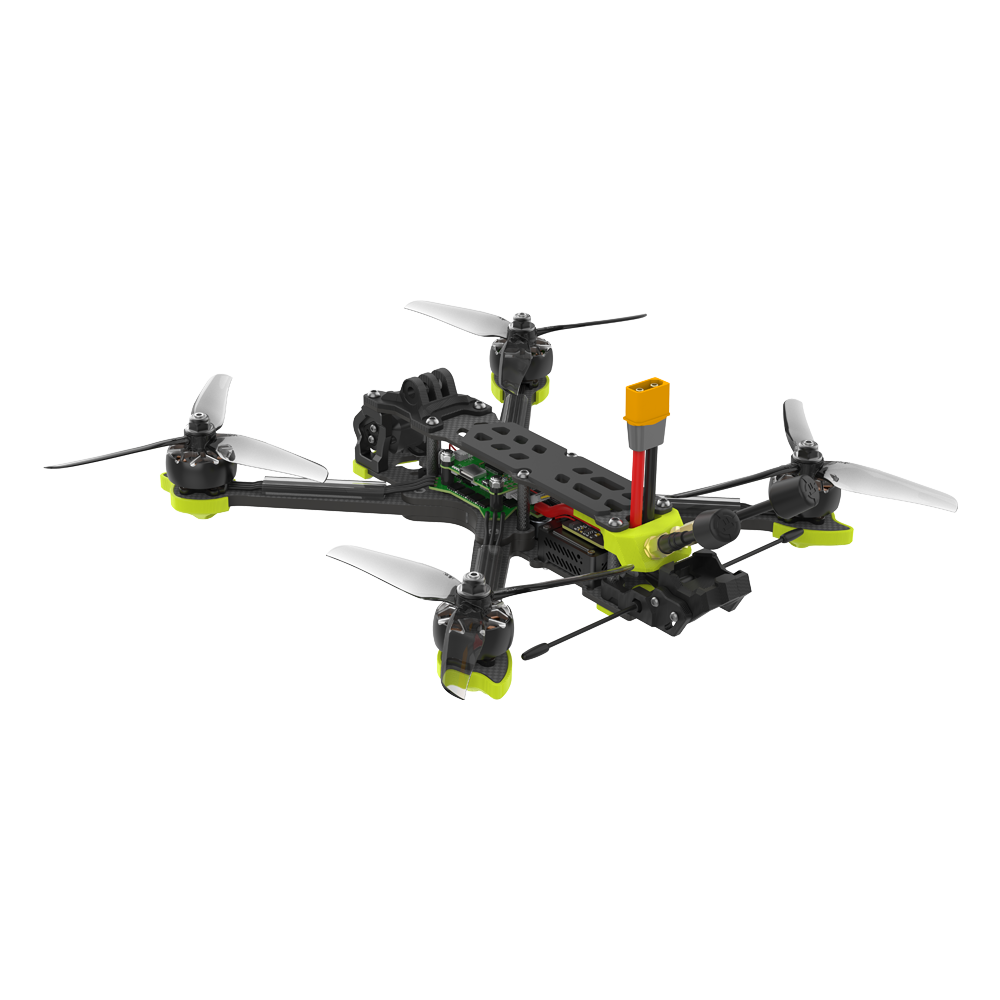

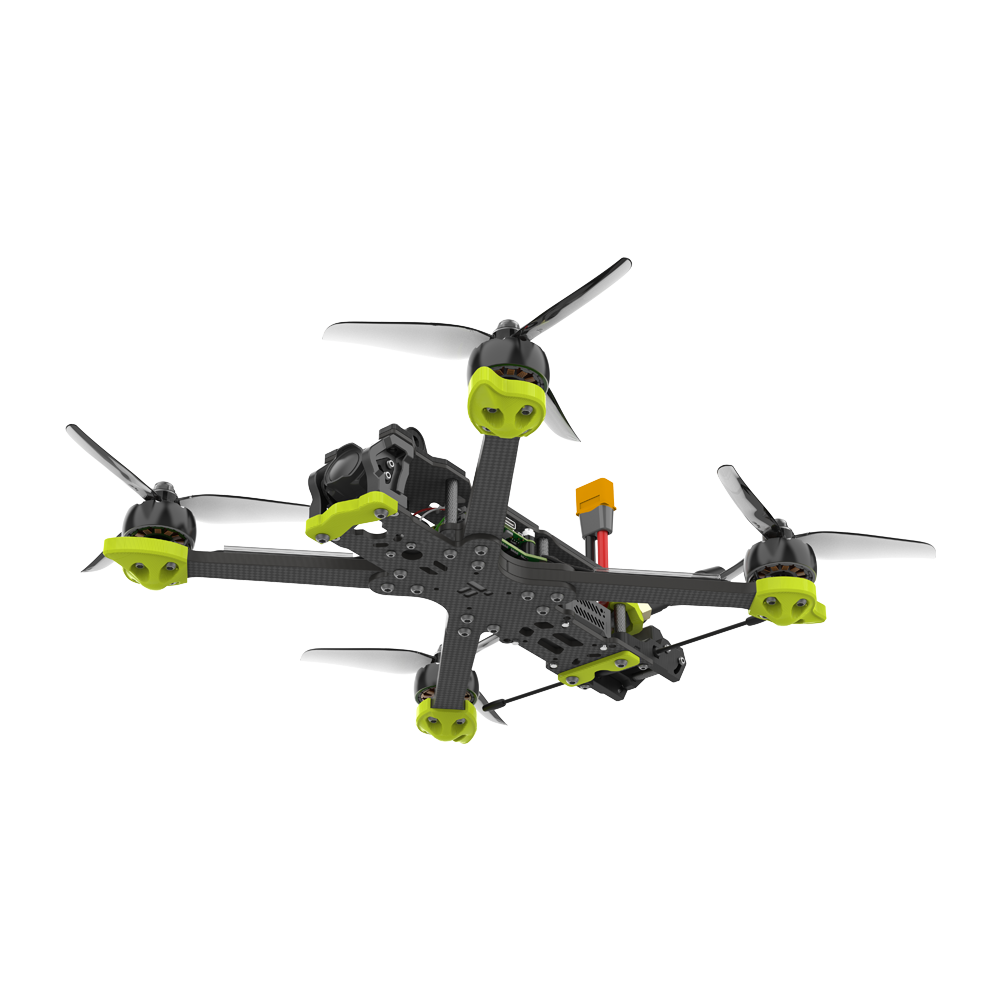

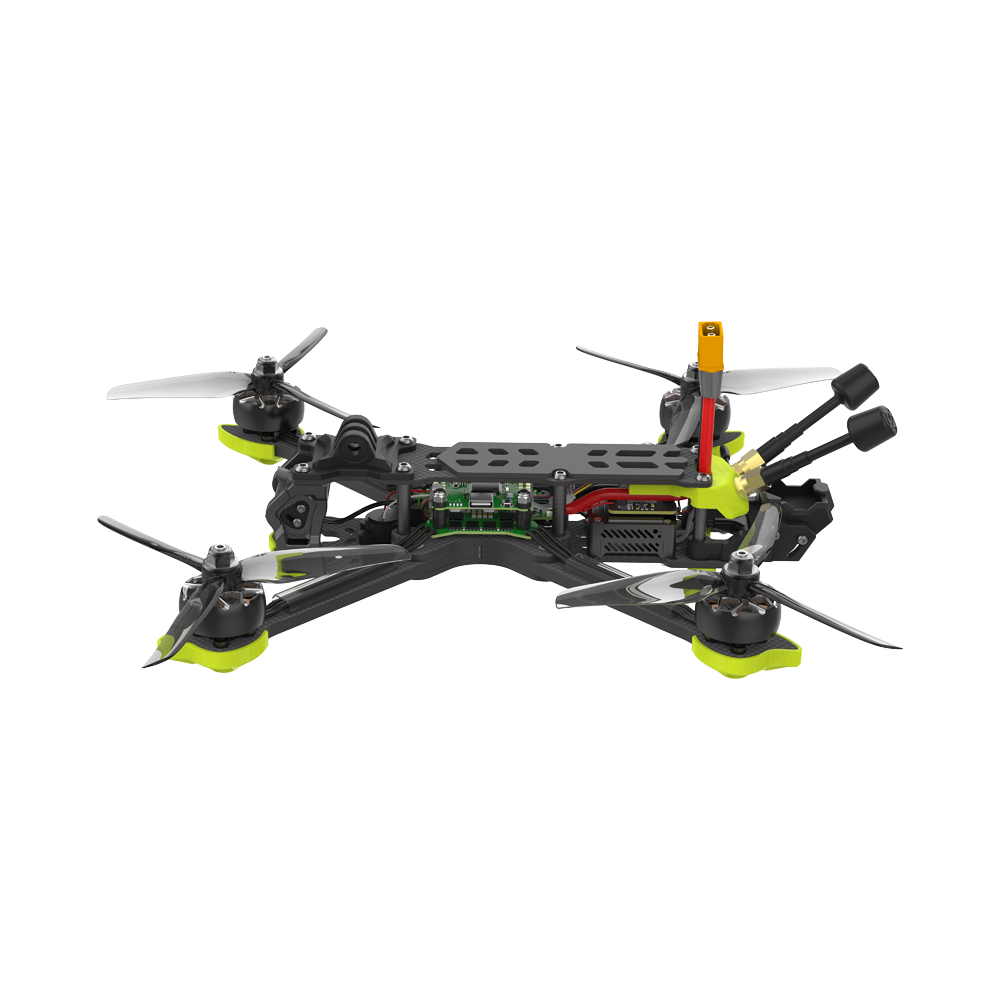

iFlight Nazgul5 V3 O3 6S HD 5inch Drone BNF with O3 Air Unit

IFLIGHT

Price:
Sale price$578.99 USD

Description

Description

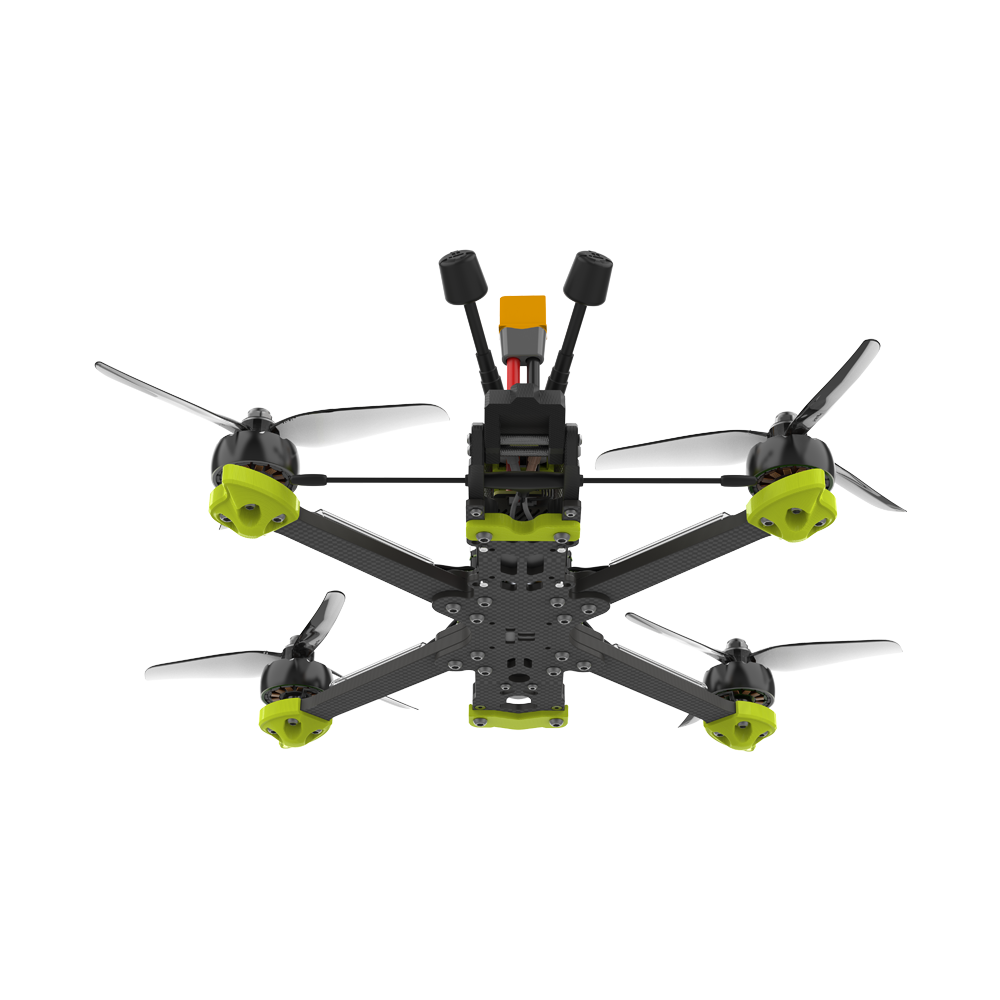

This Nazgul5 V3 HD is a 5" RTF/ BNF (Bind-and-Fly) quadcopter that comes with the DJI Newest O3 Digital HD System, and Nazgul 5" 3-Blade propellers. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight Controller, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC, which make this quad a must-have!

Highlights

XING-E 2207 motors and NAZGUL 5140 props

5" version also fits 5.1" style propellers

Fits both 30.5x30.5 and 20x20 stacks

DJI O3 HD System

5mm arm design for more durability

Popular True-X configuration

LED illuminated Logo

TPU crash-guards

Easy-Swap arms

Changelog

December 13, 2022: New silicone inserts have been designed to replace the TPU ones,which are holding the 03 cam in the side panels.

Specifications

Product Name:Nazgul5 V3 6S HD

FC: BLITZ F722

ESC: BLITZ E45S 45A 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Frame: 245mm wheelbase

Motor: XING-E Pro 2207 motors

Prop: Nazgul F5 propellers

Takeoff Weight: Approx. 457 g

Dimensions (L×W×H): 173×173×34±2 mm

Max Speed: 190 Km/h (Manual Mode)

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 7.5 mins

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 7

Operating Temperature Range:-10° to 40° C (14° to 104° F)

Antennas: 2 Antenna

GNSS: GPS+Galileo (Optional)



Video Transmission

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 grams(headband included)

Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz;5.725-5.850 GHz

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

Package included

1 x Nazgul5 V3 O3 HD BNF

2 x Antennas

2 x Battery pads

2 x Prop(Pairs)

Important

Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
