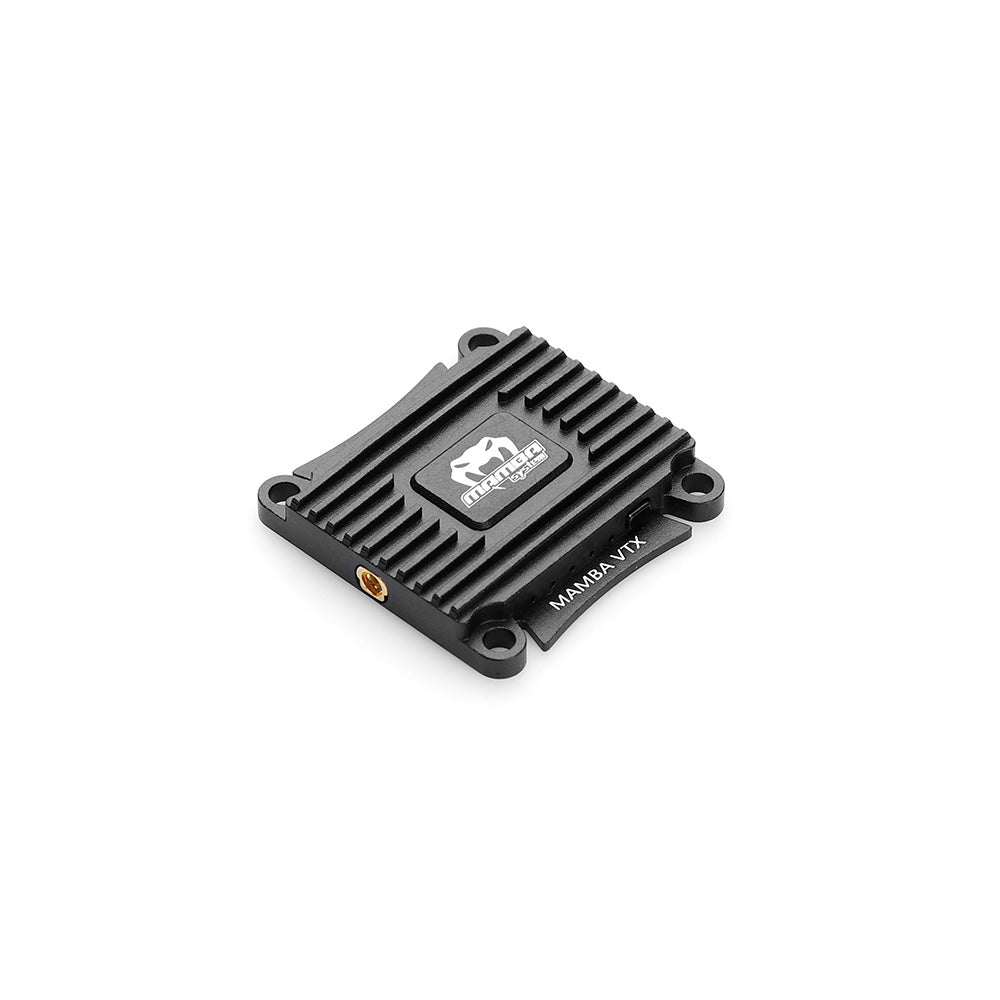

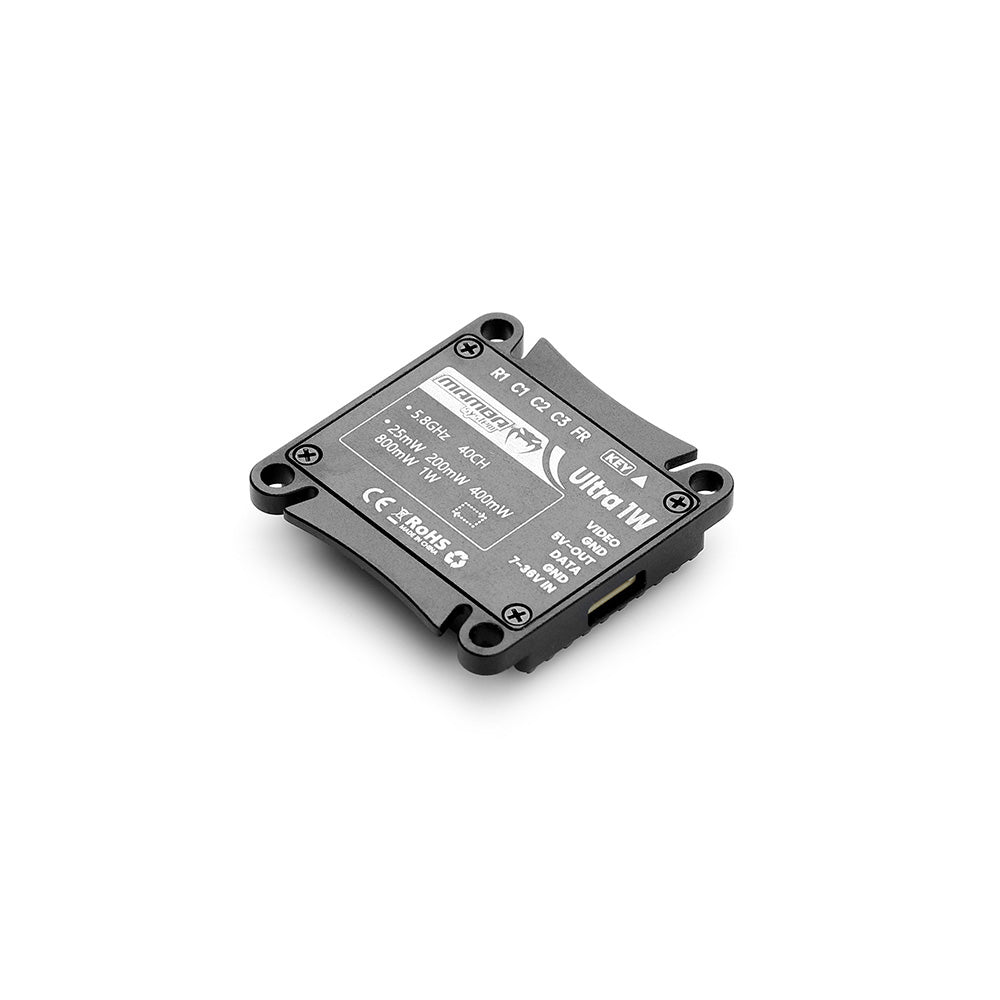

MAMBA Ultra 1000 Video Transmitter

Specification:

Manuel:

Mamba 1000

Working Voltage:7- 36V
Working Current: 450mA (12V/1000mW)
Working Temp: -10~60 ℃
Video Input Impedance:75Ω
Size: 36×36×6.5mm
Antenna Connector: MMCX
Video Format: NTSC / PAL TCP：IRC
Output Power: 25mw/200mw/400mw/800mw/1000mw/

Supply :

MMCX -SMA feeder×1
6pin wire×2
