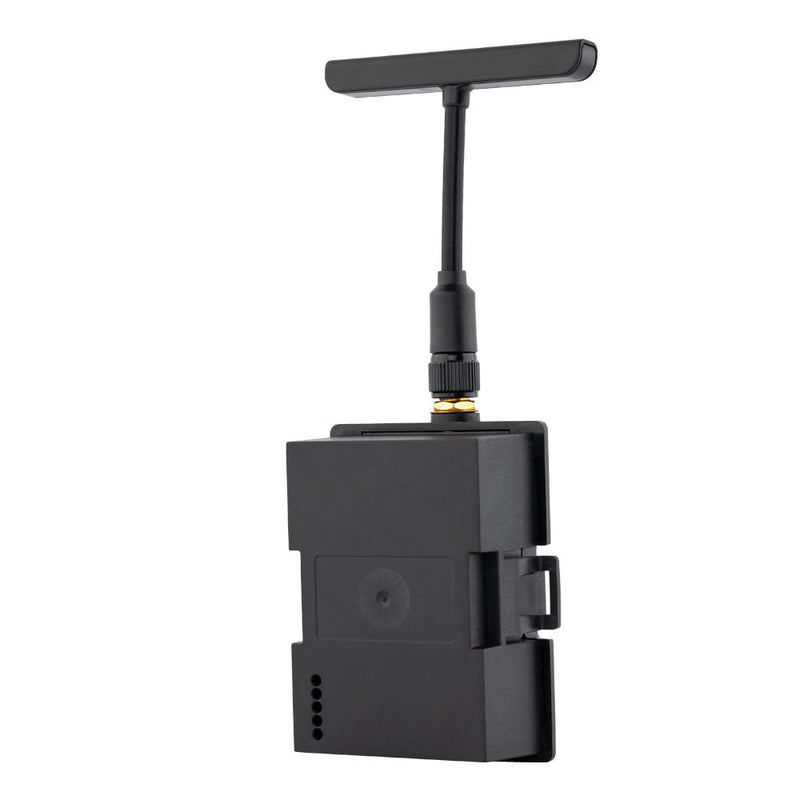

(In stock )RadioMaster Ranger Micro 2.4Ghz ELRS Module

RadioMasterSKU: WG000314

Sale price$69.99 USD


About this product

The RadioMaster Ranger Micro 2.4GHz ELRS Module features a JR module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.


  • The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.
  • Micro ExpresssLRS 2.4GHz Module
  • High-Efficiency Cooling System
  • WiFi and Bluetooth Support
  • Max F-1000Hz Packet Rate
  • 1W Power Output


  • Dimension: 136*49*33mm, 50g (with Moxon antenna) / 74*49*33mm, 40.5g (without antenna)
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • MCU: ESP32(main), ESP8285(aux,as esp backpack)
  • Frequency Range: 2400 MHz to 2480 MHz
  • XT30 Power supply voltage: DC 6V - 16V
  • Maximum packet rate: 500Hz/F1000Hz
  • Minimum receiver refresh rate: 25Hz
  • Weight: 50g (with Moxon antenna)
  • Regulatory Domain: ISM2400
  • Item: Ranger Micro Module
  • RF chip: SX1281IMLTRT
  • Bluetooth support: Yes
  • Wifi Support: Yes


  • Antenna polarization: vertical/horizontal polarization 
  • Type: T-type Omnidirectional Antenna 
  • Connector: RP-SMA Male
  • Frequency: 2.4GHz
  • Weight: 9.5g


  • 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
  • 1x JR Standard 5pin Socket Module Bay Adapter
  • 1x 2.4GHz T Antenna - RP-SMA
  • 1x Connecting Wire
  • 1x Allen Key
  • 3x Screws
