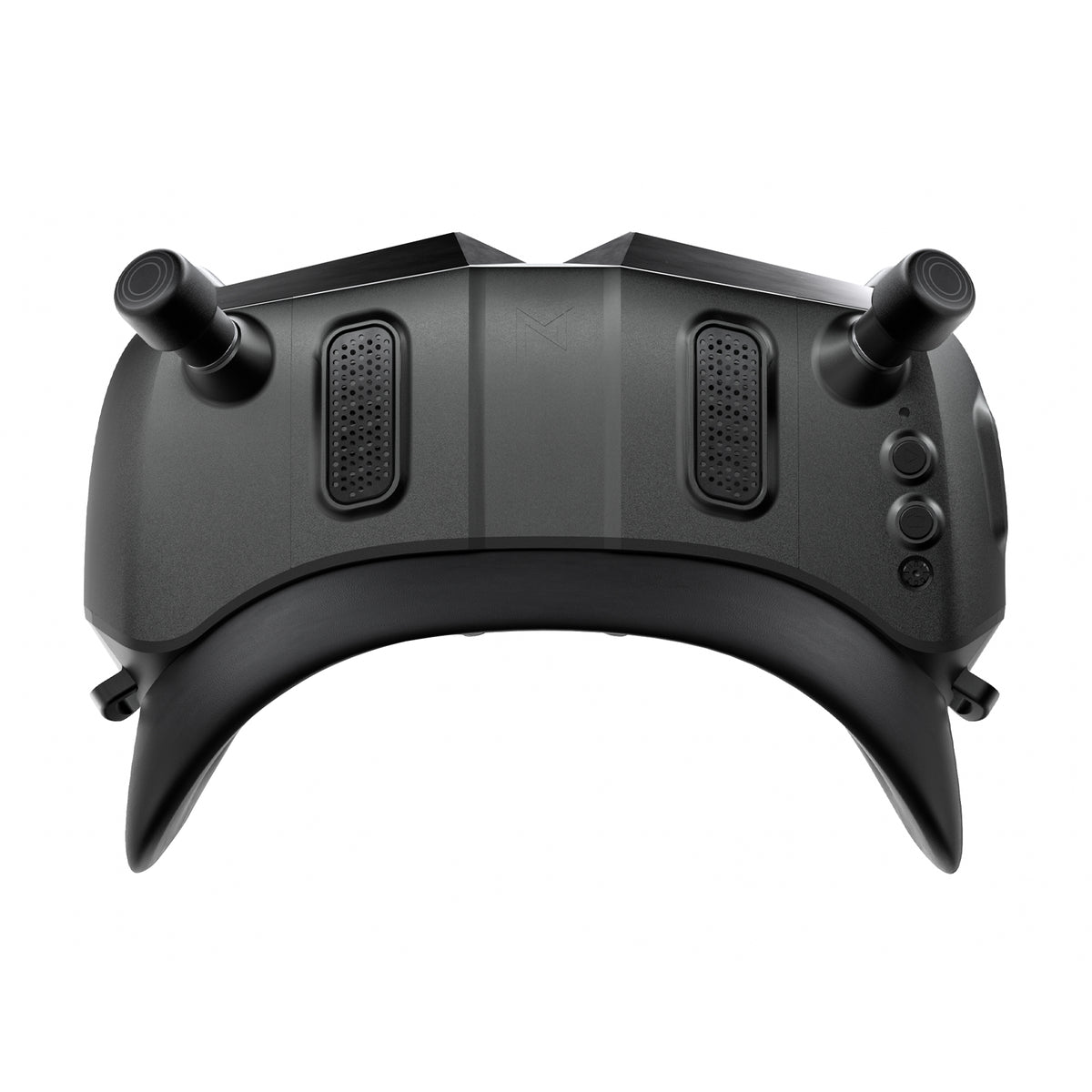

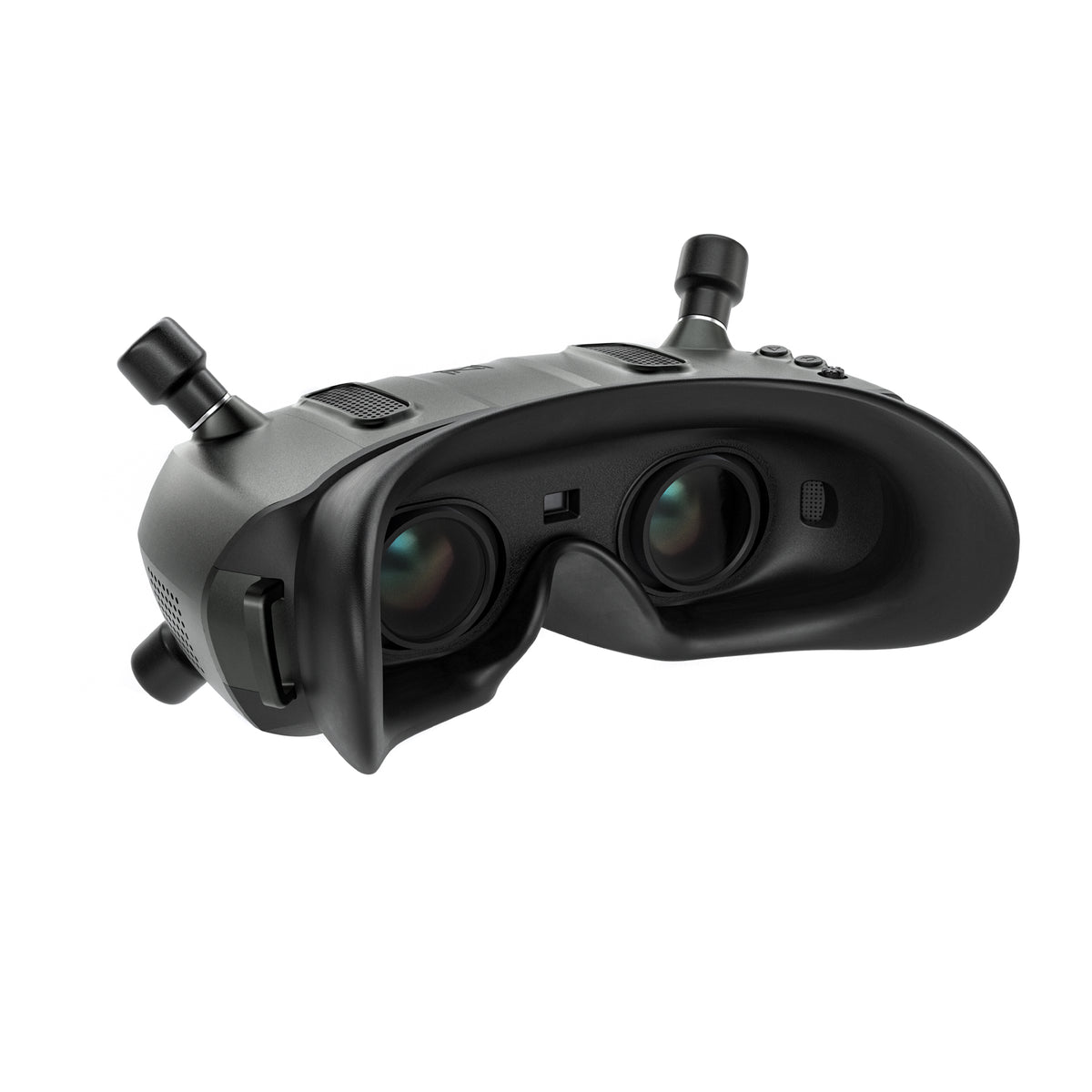

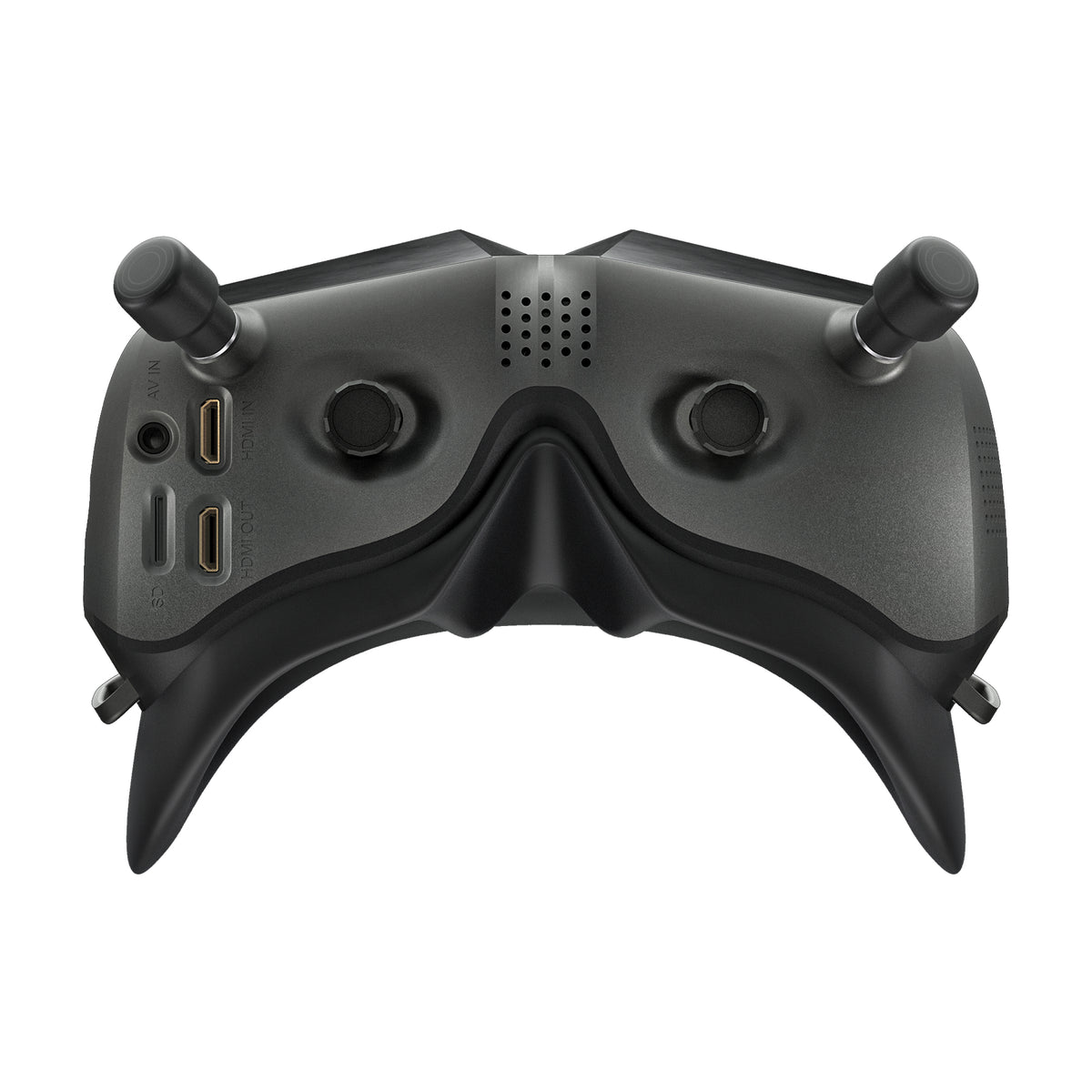

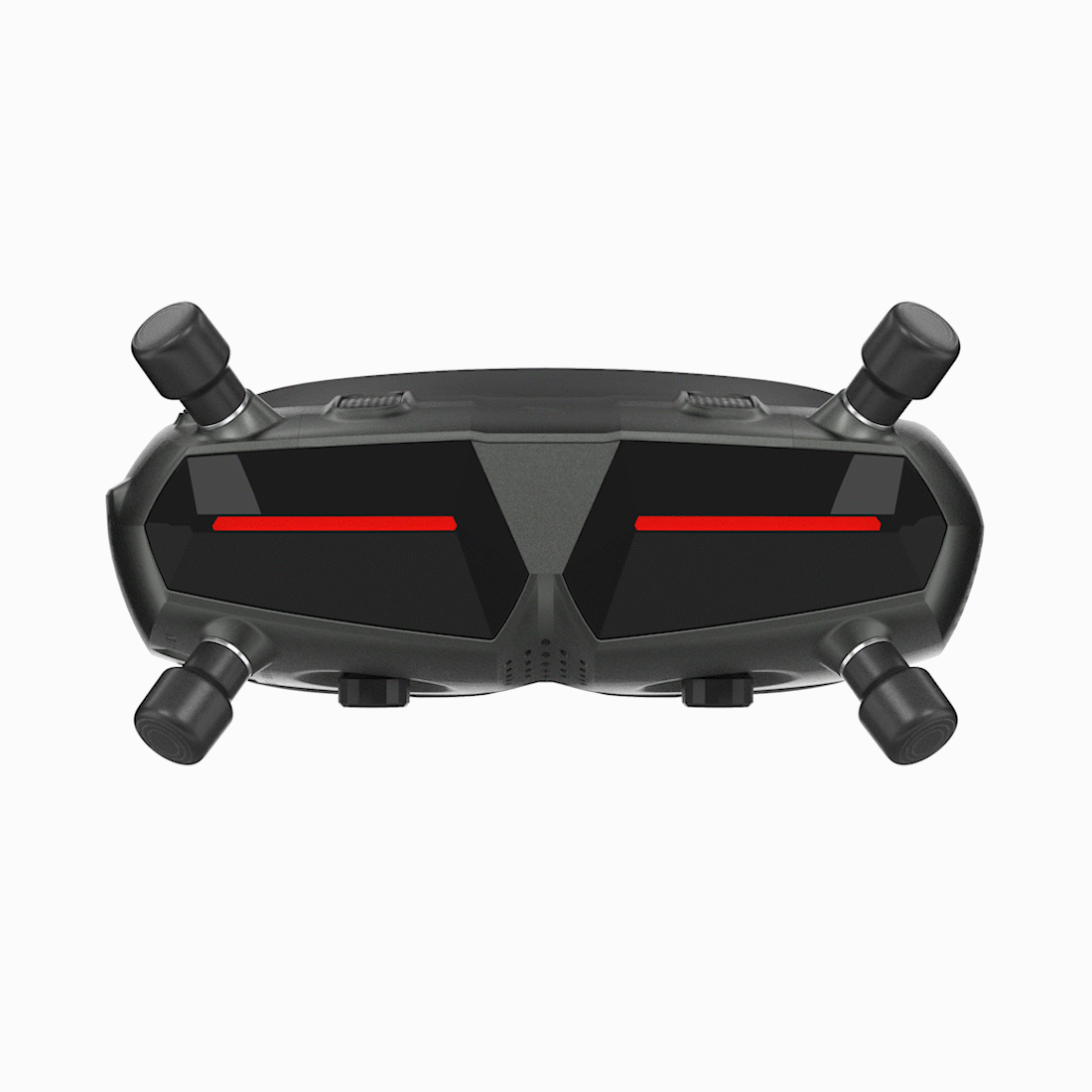

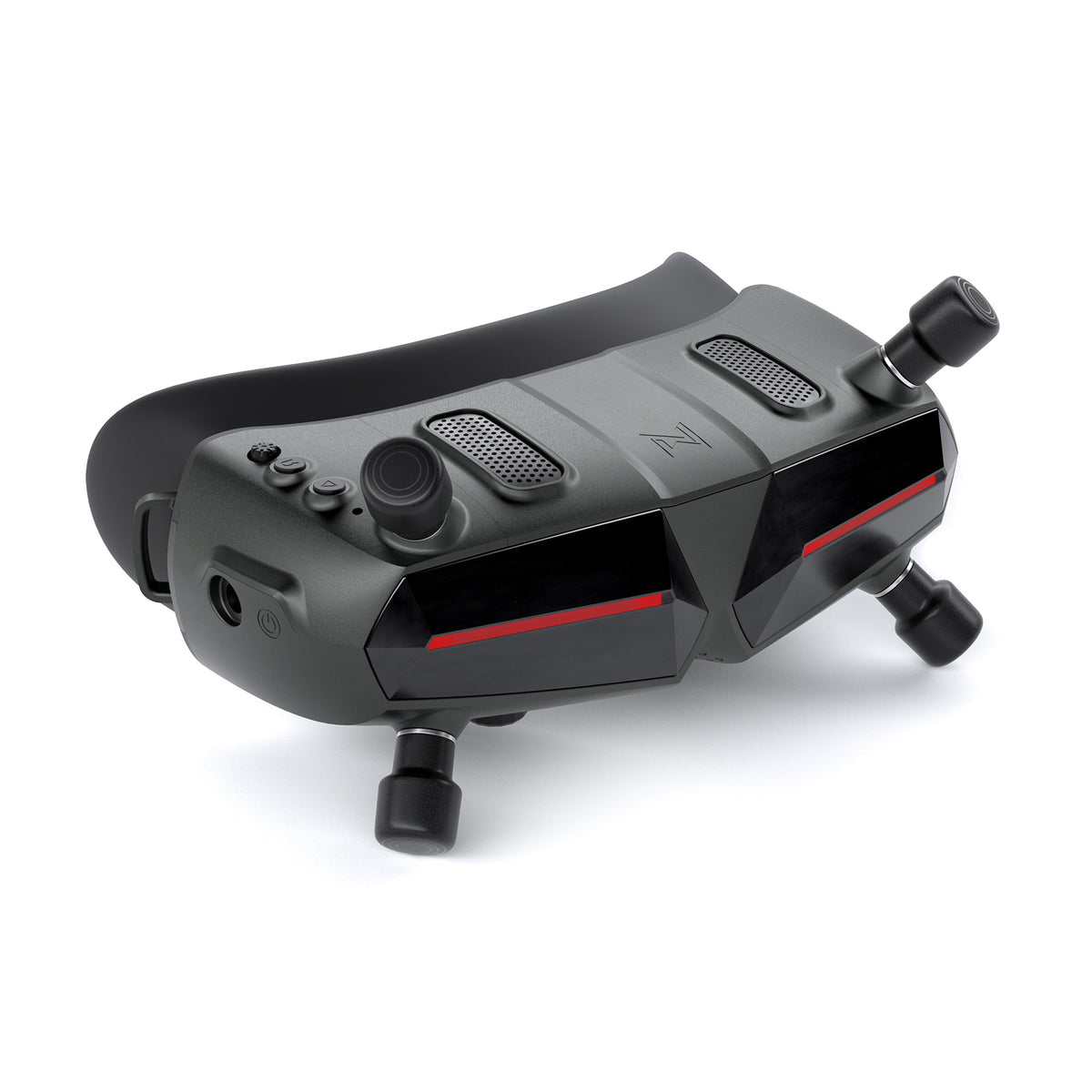

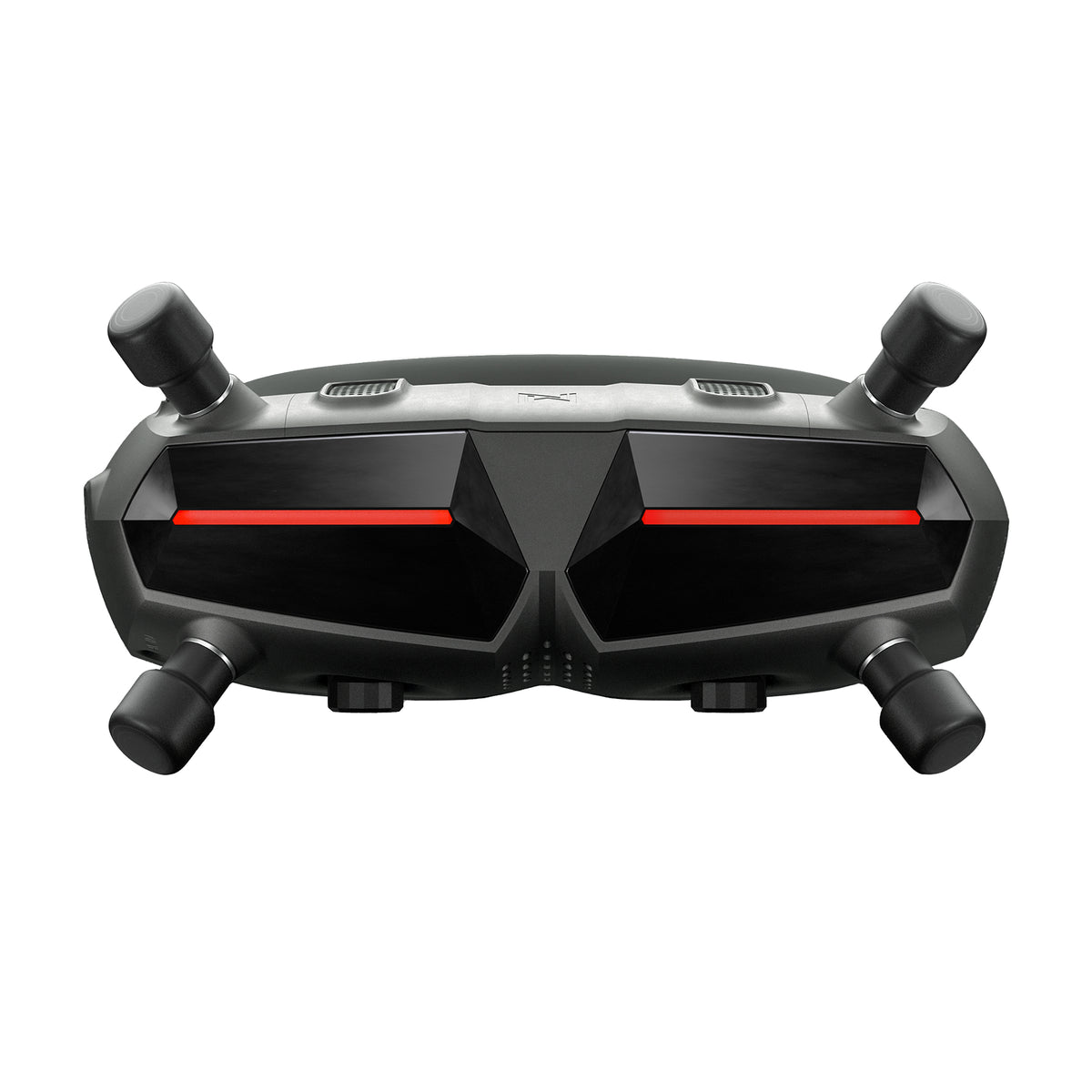

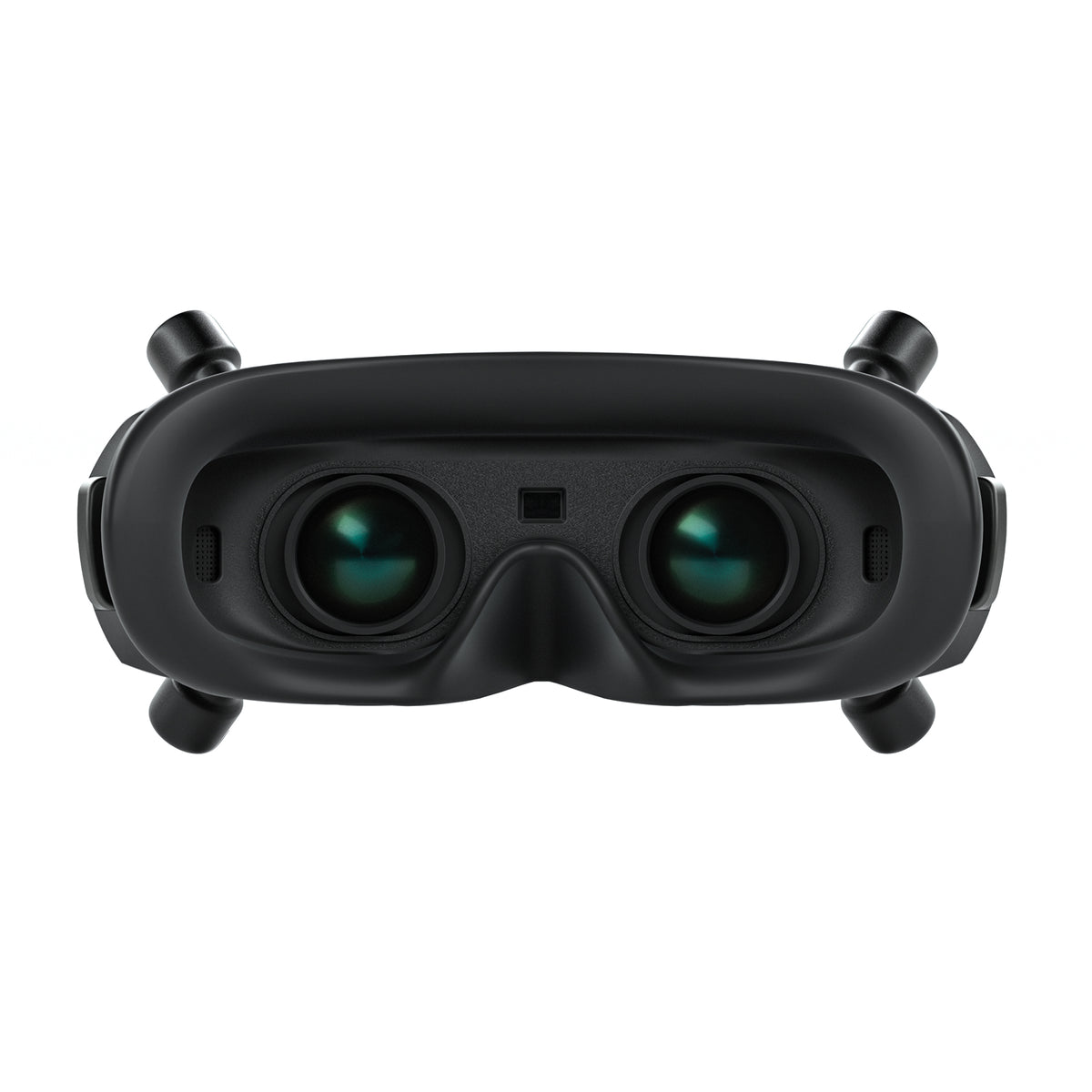

Walksnail Avatar HD Goggles X

WALKSNAILSKU: WG000685

Price:
Sale price$459.00 USD

Description

The Walksnail Avatar HD Goggles X stands to revolutionize the world of FPV goggles, boasting a long list of new features and improvements over its predecessor. The Avatar Goggles X is competing for the title of the most versatile FPV Goggles, with support for Walksnail, Analog, and even HDZero, all at a lower price! Features like 1080P 100fps, FOV 50°, diopters, replaceable lenses, and much more!

The X in Walksnail Avatar HD Goggles X, means infinite possibilities, as Walksnail has designed this goggle for long-term use. Where the upper part of the goggles is removable, making sure the receiving module can be replaced so that you can maintain the latest technology without replacing the goggles every year. The goggles are designed to be lightweight, mini, small, and carry 50° FOV, making them more comfortable for pilots while giving them a more immersive FPV experience.

VIDEO: Walksnail Avatar HD Goggles X Launch Video

Features

  • Built-in Bluetooth Wi-Fi module (in development)
  • Built-in Gyro (in development)
  • Lenses can be replaced
  • Infrared Sensing
  • Front cover DIY
  • 1080P/100FPS
  • 1PD54~74mm
  • Sharing mode
  • Replace VRX
  • 2 to-6 diopter
  • HDMI output
  • Weight 290g
  • HDMI input
  • FOV 50°
  • 7-26V
  • AV in

Additional Features

Since the Walksnail Avatar Birth, Walksnail has constantly collected market feedback and suggestions. In the new generation of research and development, we fully consider each function for customers, like HDMI input and CVBS input (AV IN interface).


Meanwhile, we have also optimized a wider pupil adjustment range and improved optical clarity suitable for different people's face shapes, and Walksnail is committed to developing an app that supports wireless firmware updates, FC adjustment, and social media sharing without cumbersome computer operations.

To reduce the user's cost of the HD system, we designed the upper part of the goggles to be removable to ensure the receiving module can be replaced so that you can maintain the latest without replacing the goggles every year.

The Avatar HD system utilizes industry-leading H.265 encoding technology to provide 1080p/100FPS FPV video quality with low latency, providing an immersive and responsive experience.

The goggles have an AV IN interface and support analog signals, supporting a versatile solution for FPV pilots.

The HDMI input expands the range of devices used with the goggles, providing more flexibility and convenience. The HDMI OUT interface can be connected to other display devices to share your real-time flight footage with pilots.

The front cover of the goggles can be removed and replaced with a new antenna, replacing the two antennas located under the goggles, which provides pilots with more options to optimize their FPV experience.
The cover above the goggles can be opened to easily replace new receiver modules, providing pilots a cost-effective way to upgrade their goggles. Meanwhile, we are developing the next-generation receiving module, which can achieve a breakthrough in flight distance, expected to reach 20 kilometers, and create a sustainable development strategy.

The front cover of the goggles adds a light function and a touch of style to your gear.

100% optical improvement, experience a clearer picture.

Adjustable from +2.0 to -6.0 via diopter knob to personalize the viewing experience and quickly go glasses-free.
The goggles use infrared sensing technology to provide pilots a convenient and energy-efficient way to turn the screen on and off without manually pressing any buttons. This feature helps to extend the life of the screen.

The front cover of the goggles can be DIY, allowing pilots to use their imagination to customize exciting looks for the goggles.

Lenses for astigmatism, myopia, and blue light-blocking glasses can be replaced to meet different vision needs.


The goggles feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features to reduce light leakage.


The goggles are designed to be lightweight, mini, small, and carry 50°FOV, making them more comfortable for pilots while giving them a more immersive FPV experience.


The goggles have built-in gyro hardware, which can be used to develop Fixed-wing RC cars and other scenarios.


The built-in Bluetooth Wi-Fi module allows pilots to connect their goggles to an app and access a range of features, including sharing their FPV experience on social media, wireless upgrading firmware, map mode for locating the drone, and live viewing goggles screen. This feature is around the corner.

Specifications

Avatar HD Goggles X

 Avatar HD Goggles X

Communication Frequency

 5.725-5.850GHz

Transmitter Power(EIRP)

 FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

I/O Interface

 HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot

Transmission Resolution

 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps

Code Rate

 Max 50 Mbps

Min. Latency

 Average 22ms

Average Gain

 2dBi

Polarization

 LHCP

Transmission Distance

 >4km

Channel

 8

Screen Resolution

 1920*1080/100Hz

Screen Material

 OLED

IPD Mechanical Range

 54mm-74mm

Adjustable Focus Range

 +2.0 to-6.0 Diopter

FOV

 50°

Power Input

 7-26V(2S-6S)

SD card

 Support 256G

System

 Avatar HD system

Foam material

 PU

Built-in WIFI

 Yes

Built-in Gyro

 Yes

Built-in Bluetooth

 Yes

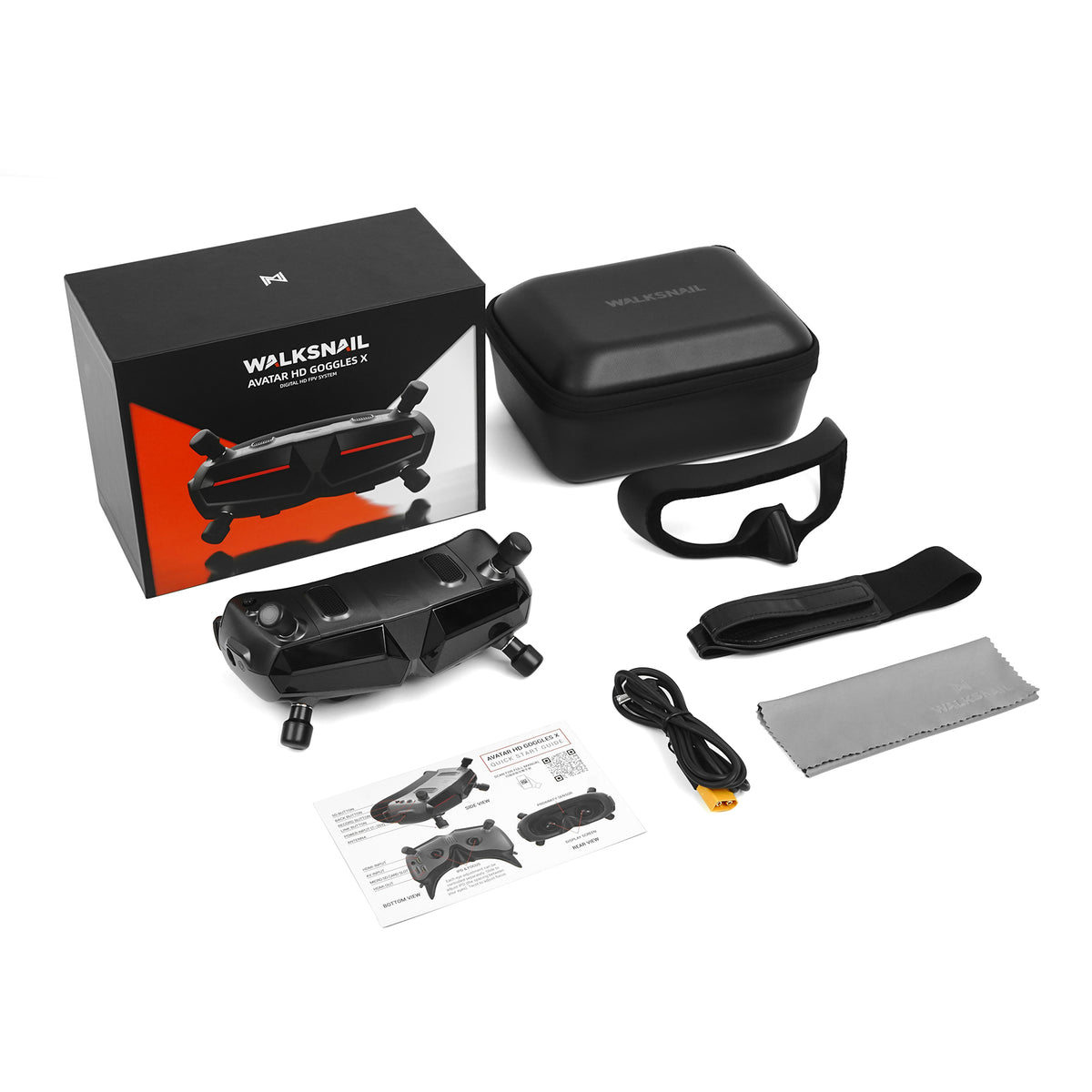

Includes

  • 1x Walksnail Avatar HD Goggles X
  • 1x Foam (PU)
  • 1x Lens cleaning cloth
  • 1x XT60 to DC 5.5*2.1mm power cord
  • 1x Storage Box
