Description
Bullet Point
- Improved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.
- Improved LS/RS Sliders with smoother feel and better centre-detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalised mods.
- Improved internal plastics for better longevity.
Specification
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Internal ELRS (SX1280)
- Transmitting power: Internal ELRS: Max 250mw (transmitting power is adjustable)
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Remote control distance:> 2km @ 22dbm
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: V4.0 Hall sensor with Aluminium fascia
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled).
* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
![RadioMaster TX6S Mark II Radio](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_02.jpg?v=1648877621)
ELRS versions by default
![](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-CN_03.jpg?v=1649239653)
V4.0 Hall Gimbals
Standard version with V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.
![RadioMaster V4.0 Hall Gimbal](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_04_34aca1d0-ddcc-4746-a92c-eb8490048f78.jpg?v=1648877861)
![](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_05.png?v=1649224204)

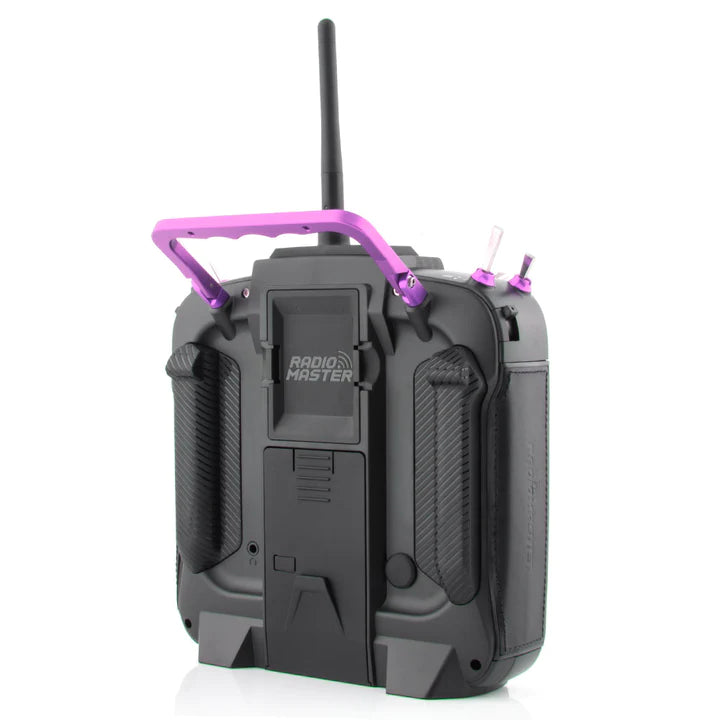

Flat & Raised Grips Included
Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box.
![](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-CN_09.jpg?v=1649239689)
Built-in dual speakers
![](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_14_25dc02c4-0d13-478b-897c-199048a0163e.jpg?v=1648888387)
External Module Bay
The TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.
![RadioMaster TX6S Mark II Radio](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_10.jpg?v=1648878481)
Easy Firmware Updates
![RadioMaster TX6S Mark II Radio](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_12.jpg?v=1648878546)
Upgraded Design
- Retooled faceplate with improved fit and finish
- Improved S1/S2 knobs with center detents
-
4.3¡± IPS Color Display - The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.
![RadioMaster TX6S Mark II Radio](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_06.jpg?v=1648878064)
- Improved LS/RS Sliders with smoother feel and better centre-detents.
![](https://cdn.shopifycdn.net/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-V3_07.jpg?v=1649403403)
- New 3.5mm Audio jack - Rear mounted audio jack minimizes RF interference from external modules and adds headphone audio feature.
- Redesigned battery cover, easier to remove.
- Rear DIY Socket added for personalised mods.
![](https://cdn.shopifycdn.net/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-V3_08_3944e4d2-b2db-41a9-9a76-2ececb5b35f8.jpg?v=1649403586)
![](https://cdn.shopifycdn.net/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-V3_11.jpg?v=1649403765)
![RadioMaster TX6S Mark II Radio](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/TX16S-Mark-II-Details-Page-PC-EN_13.jpg?v=1648878559)
Package Includes
- 1 * TX16S Mark II Max Radio Controller
- 1 * 18650 Tray
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 * LED Gimbal Light Mod Set (White)
- 1 pair of flat grips
- 1 pair of raised grips
- 1 * TX16S Key Chain
