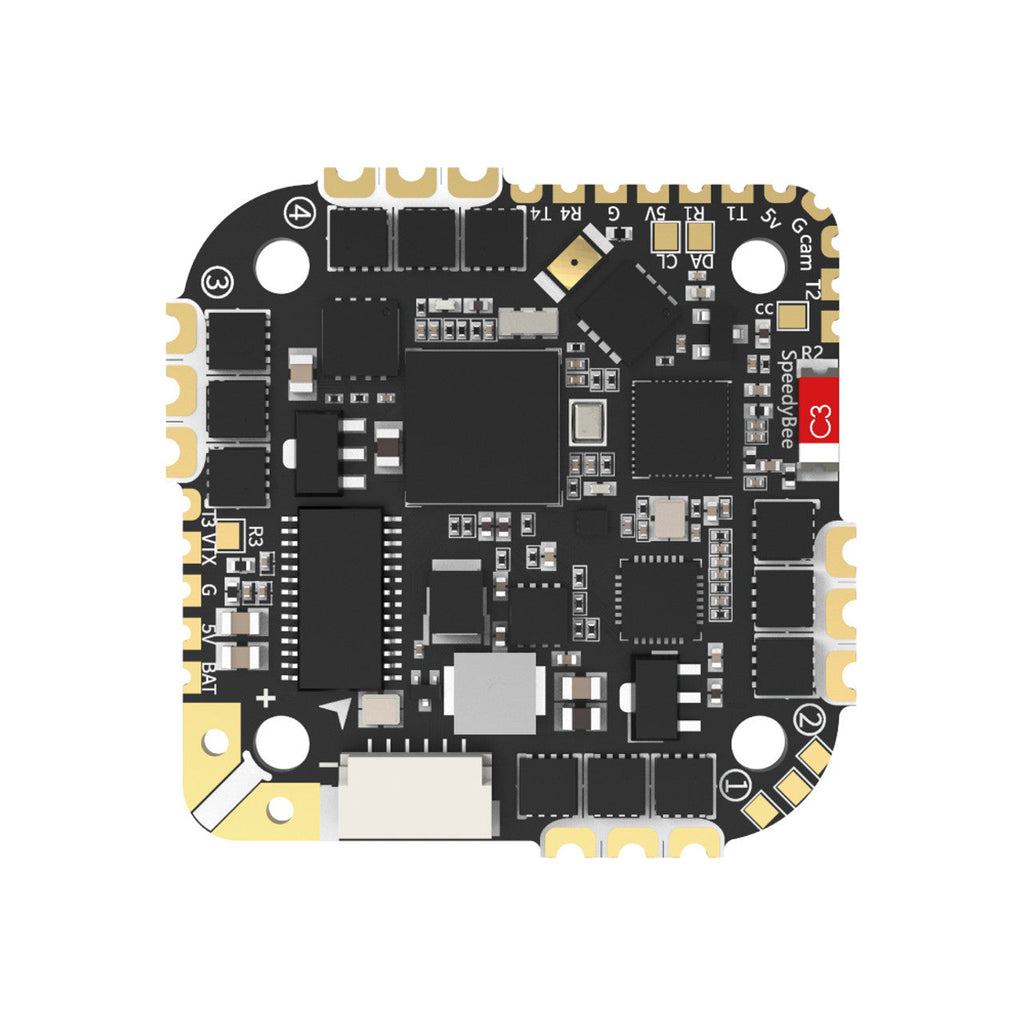

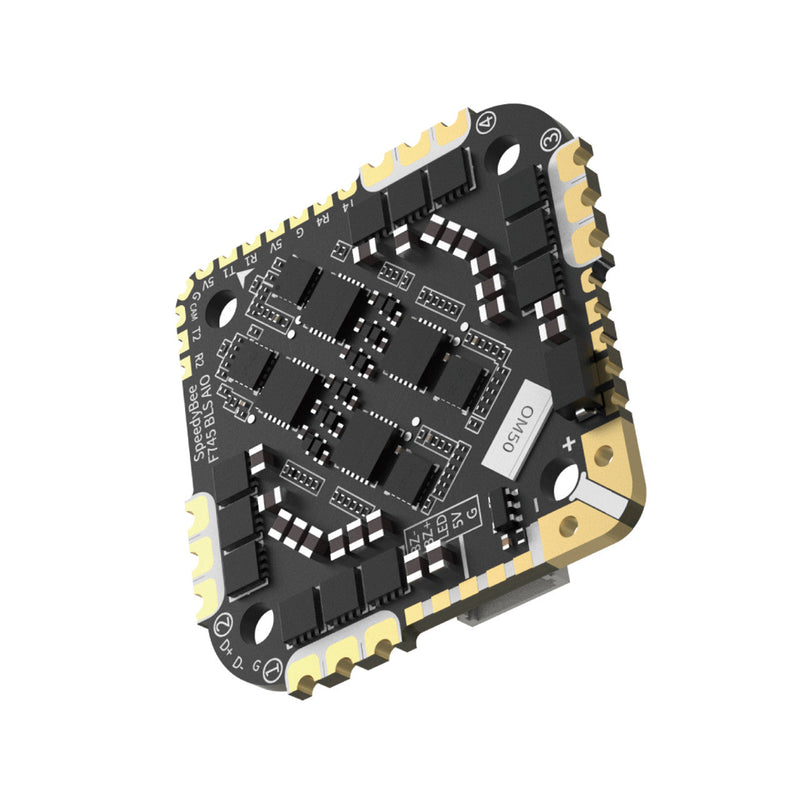

SpeedyBee F745 35A BLHeli_S 3-6S AIO Flight Controller/ESC - 25.5x25.5mm

RunCamSKU: WG000239

Price:
Sale price$115.99 USD

Description

Overview:

Product Name SpeedyBee F745 35A BLS AIO
Power Input 3S - 6S Lipo
Mounting 25.5 x 25.5mm, 3mm hole diameter
Dimension 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above
Weight 10.1g

FC Specifications:

MCU STM32F745
IMU(Gyro) MPU6000
USB Connection Need to solder a USB TYPE-C module to D+,D-,GND pads.
Barometer BMP280
OSD Supported
BLE Bluetooth Supported. Used for parameter configuration
Flash FC Firmware Wirelessly Supported
Download/Analyze Blackbox Supported
DJI Air Unit 6-pin Connector Built-in.
Flash(for BlackBox) 8MB
Current Sensor Supported. Scale=256
BetaFlight Camera Control Pad Yes(CC pad)
5V Output 4 groups of 5V output. The total current load is 2.5A.
9V Output None
3.3V Output Supported. Up to 500mA current load.
ESC Signal Pads M1 - M4
UART Full UART * 4(UART1, UART2, UART3,UART4)
ESC Telemetry UART None
I2C Supported.
LED Pad Used for WS2812 LED
Buzzer BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Used to enter DFU mode
RSSI Input Not supported
SmartPort Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller BetaFlight(Default)
Firmware Firmware Target Name SPEEDYBEE F745AIO

ESC Specifications:

Power Input 3-6S LiPo
Continuous Current 35A * 4
Burst Current 45A(5S)
ESC Protocol DSHOT300/600
Power Output VBAT
Current Sensor Supported(Sacle=256)
Firmware BLHeli_S JH40

Package Includes:

  • 1 x SpeedyBee F745 35A BLHeli_S 3-6S AIO Flight Controller/ESC - 25.5x25.5mm
