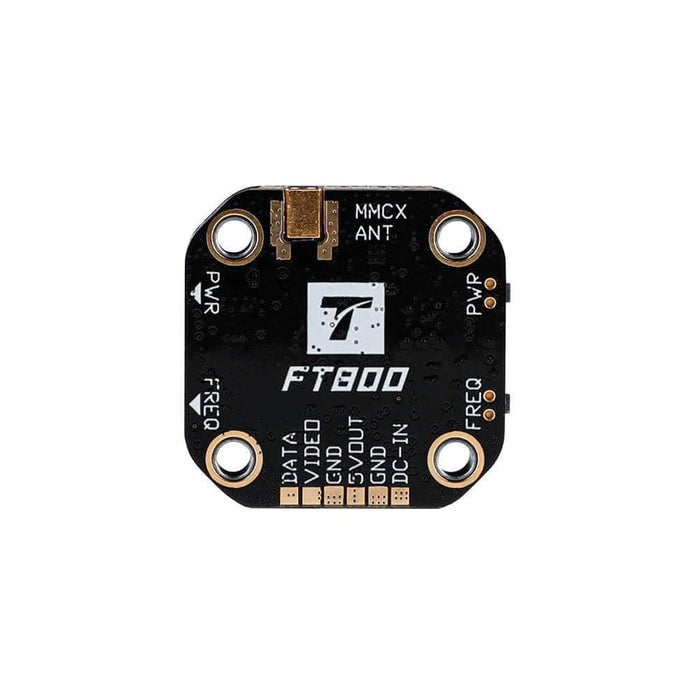

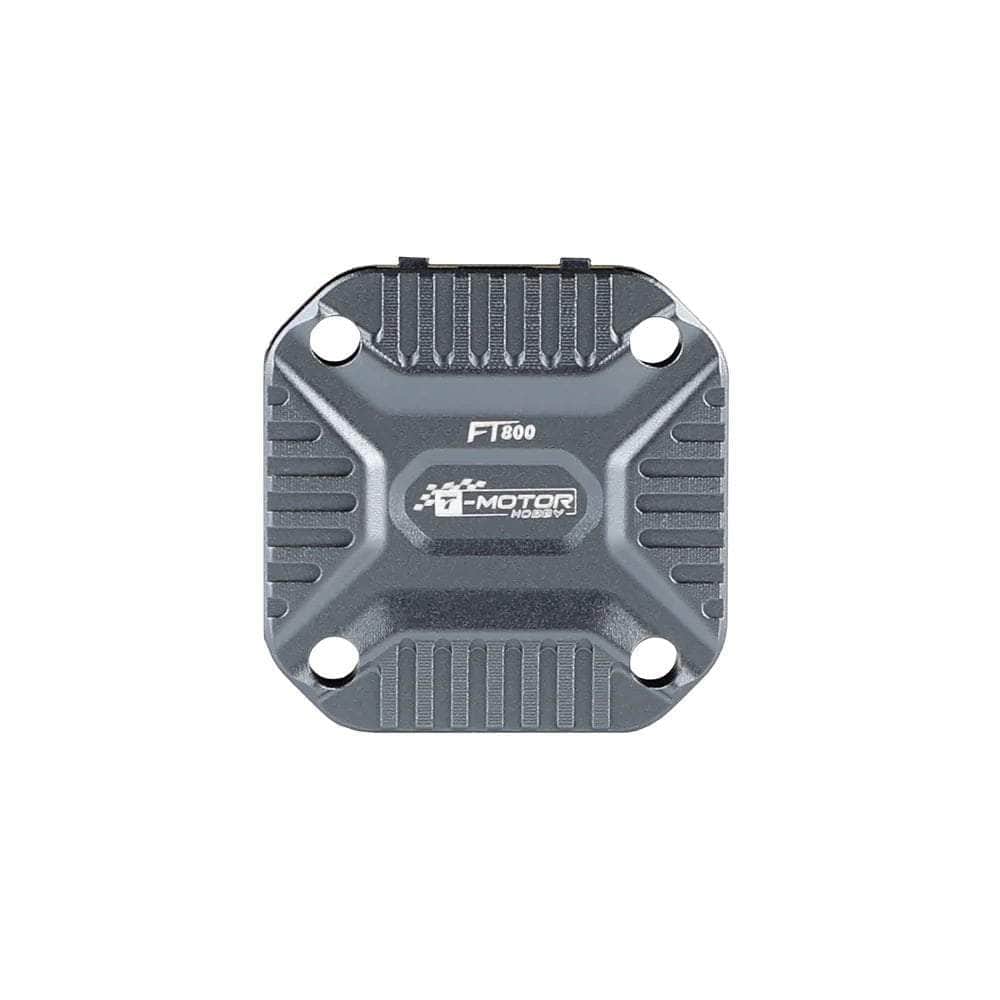

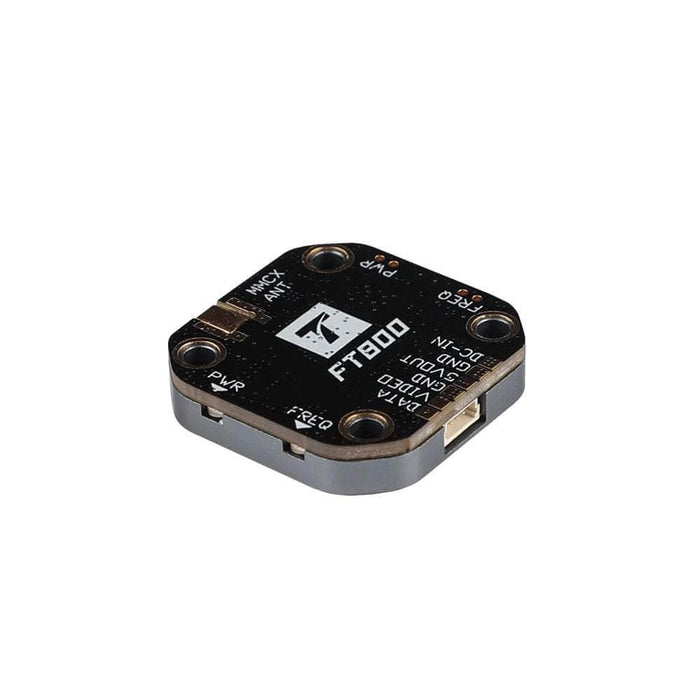

T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX

The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.

Specifications

• Input Voltage: 7-36V
• RF Output Power: 25 / 200 / 500 / 800mW
• Control Protocol: Smartaudio2.1
• Output Voltage: 5V
• Antenna Connector: MMCX
• Power/Video Connection: 4 Pin JST / Solder Pads
• Stack Size: 20x20mm m3
• Weight: 7.58g








  VTX table: T-Motor FT800

  Includes

  • 1x T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX
  • 1x SMA to MMCX Pigtail
  • 1x MMCX Dipole Antenna
  • 1x Wiring Harness
