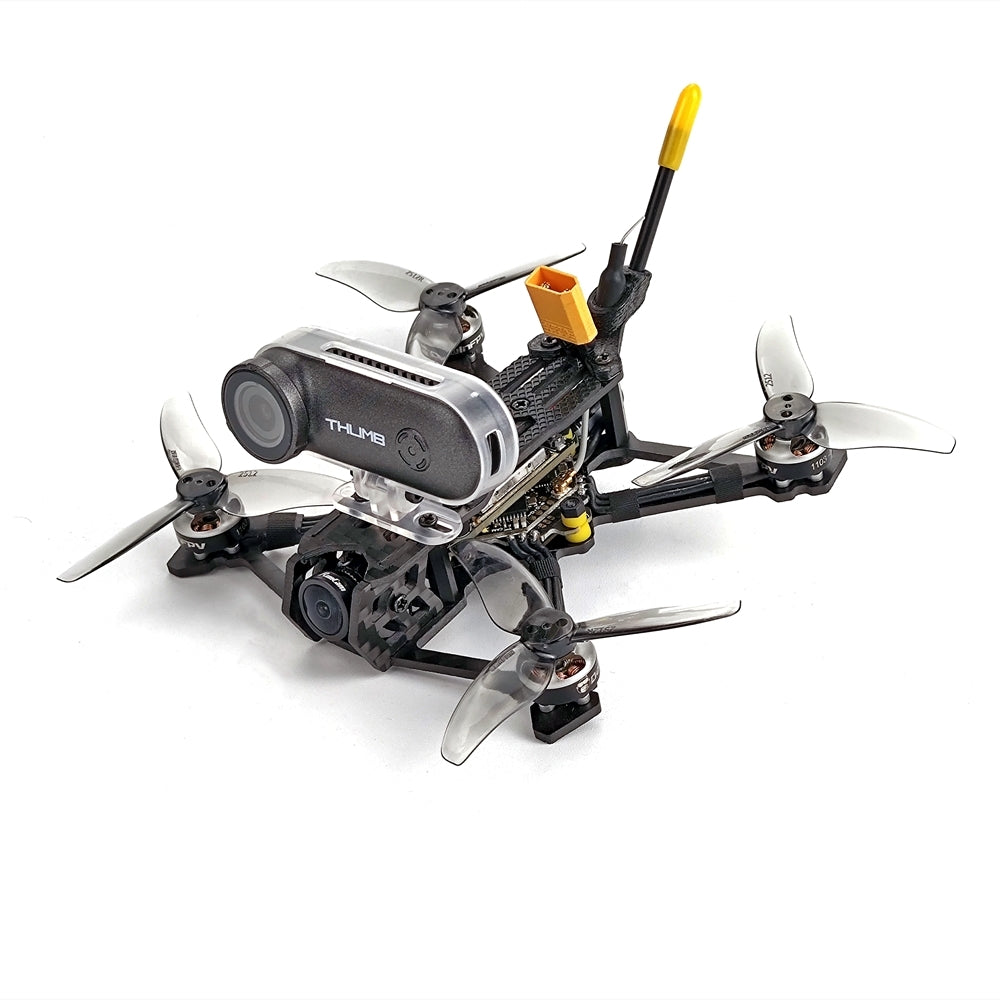

DarwinFPV TinyApe Freestyle

DarwinFPVSKU: Tiny Ape

Price:
Sale price$147.99 USD

Description

Tiny Ape Freestyle is the first 2.5'' drone for Darwinfpv. In order to meet the needs of more friends and we have made multiple attempts. It comes with the Darwin ELRS2.0 F411 15A Bluejay AIO and the VTX006 which has 25-600mW output power.

Drone Configuration:

Weight: 50.3g (without batteries and paddles)

Propeller: Gemfan 2512 3-blade propeller

FC&ESC:F411 1-3S 15A FC(Built-in ELRS 2.4G receiver)

Built-in Receiver Protocol: SPI ELRS 2.4G

Motor: 1103 8000KV Brushless Motor

Camera: RunCam Nano 4

VTX:25-600mW VTX

AIO Firmware: betaflight_4.3.0_BETAFPVF4SX1280

ESC Firmware: Bluejay_S_H_50_48_v0.14

Recommended Battery: 2S 380-450mah

The factory AIO firmware only supports ELRS_V2.0, and can be used with ELRS_V2.0 version TX. The firmware file name of ELRS-V2.0 is BETAFPVF4SX1280

Darwinfpv ELRS-V2.0 CLI

Darwin AIO 002 FC Pairing Tutorial

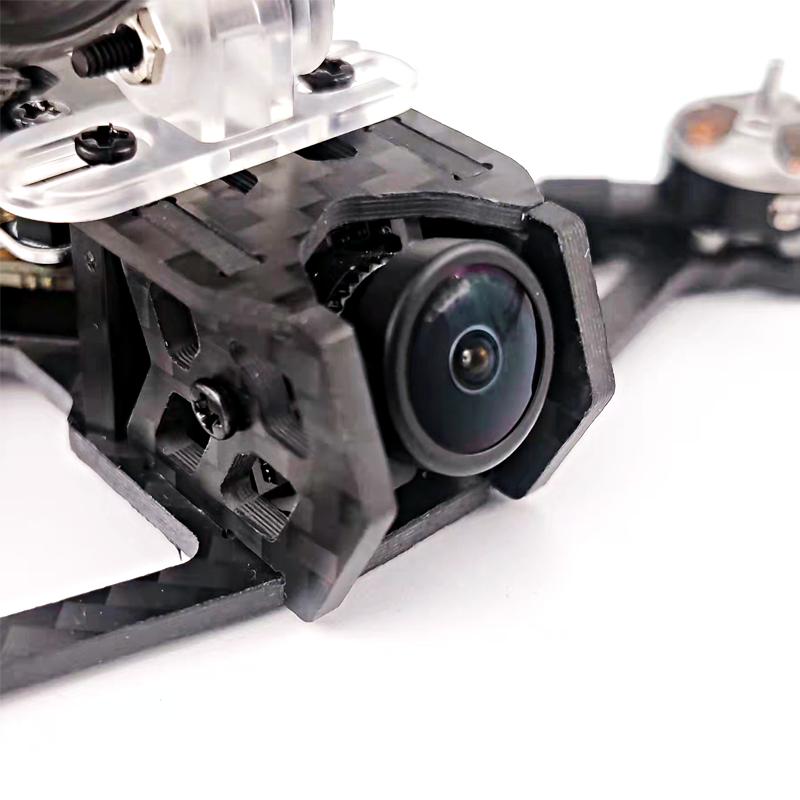

RunCam Nano 4 Camera

The RunCam Nano 4 uses a 1/3'' CMOS sensor, 2.1mm lens and 800TVL resolution for better realistic color and clearer low-light night vision.

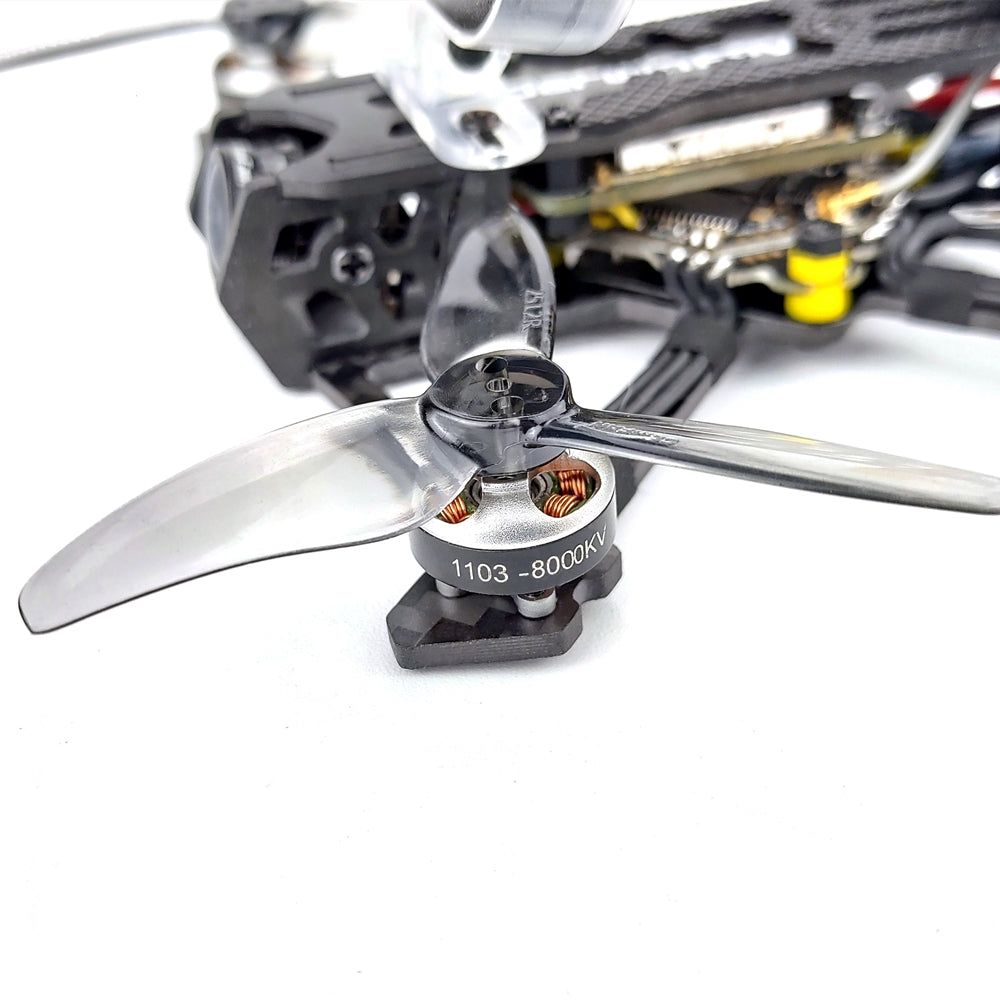

1103 8000KV Brushless motor

1103 8000KV Brushless motor is only 3.7g and it’s power and thrust are surprising, and the flight time can achieve about 5 Minutes. We have notice: the motor only supports 2S batteries, and if it is connected to 3S to push the throttle too much, the motor will be permanently damaged .

380mah(3S)

450mah(2S)

Landing voltage

9.75V

6.5V

VTX Power

400mW

400mW

Fly Time

5.25min

5.18min

VTX

VTX006 has 25-600mW output power and can provide stable images and powerful transmission. You can choose the perfect output power according to you FPV requirements. ( The default setting of the output power for Tiny Ape is 400mW)



Red light flashes frequency



Power

1

25mW

2

200mW

3

400mW

4

600mW

 Flight Control(FC)

This is an updated version of Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to mini drones. The ESC adopts Bluejay firmware, compatible with 1-3S Lipo input, 15A continuous current and 17A peak current. FC provides 2 sets of Uarts interfaces, and also provides various external device interfaces such as SBUS, Softserial, CTR, BUZZ, RGB, etc., which perfectly solves the problem of insufficient number of F411 Uarts.

The built-in receiver is an SPI protocol receiver, so you need to select SPI receiver support (SPI RX support) in the betaflight configurator. Under normal circumstances, the checkbox on the betaflight configurator receiver is empty. If the betaflight configurator used is 10.8.0 and above, the checkbox should select "EXPRESSLRS". As shown below:
