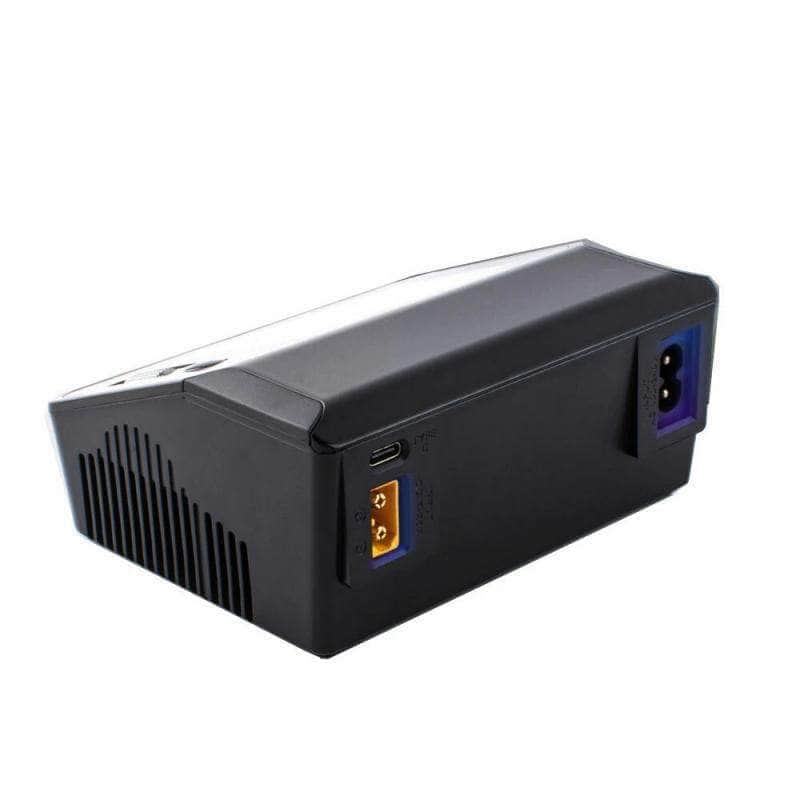

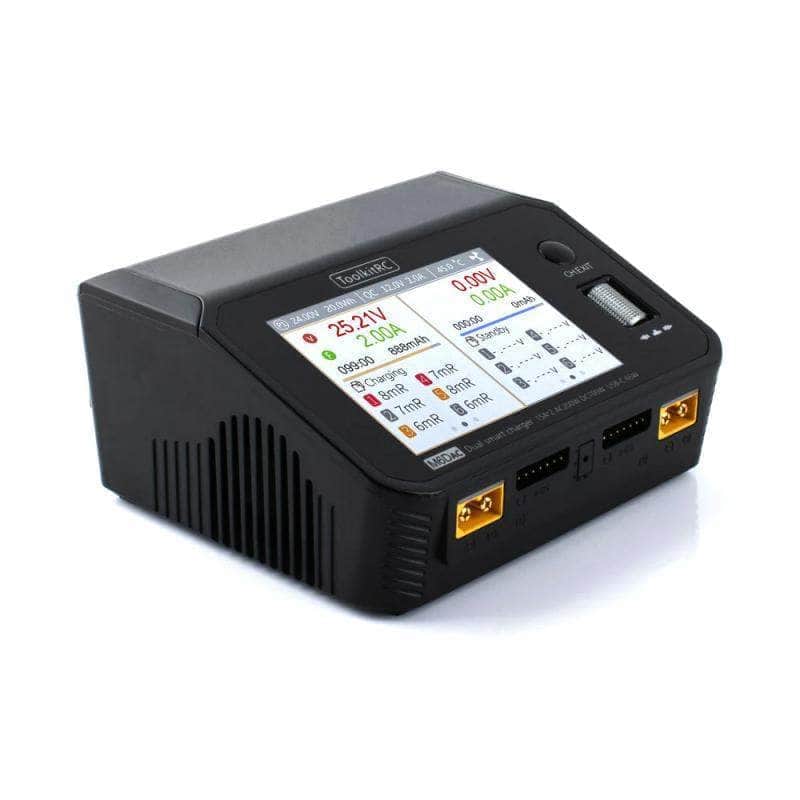

ToolkitRC M6DAC 200W 15A 1-6S Dual Channel AC/DC Smart Charger

ToolkitRC M6DAC 200W 15A 1-6S Dual Channel AC/DC Smart Charger

Regular price $149.99 USD
Regular price Sale price $149.99 USD
Sale Sold out
Shipping calculated at checkout.

Due to this item’s size or weight, it is not available for free shipping and may be shipped via UPS Ground.

ToolkitRC's new AC/DC 2 channel charger operates on an internal 200W AC power supply or up to 700W on DC power! A 65W Type-C interface supports fast charging of laptops, tablets, and other devices. Other features include a bright 3.5" color display with a wide viewing angle, a metal scroll wheel, and the solid ToolkitRC build quality you expect!

Features

  • Two independent charging channels
  • Operates on internal 200W AC power supply or 7-28V DC power
  • 65W USB-C fast charge port
  • Metal Dial Wheel
  • 3.5" IPS Color Display

Specifications

  • Input voltage: DC 7.0-28.0V  @MAX 30A | AC 100-240V @ MAX 2.5A
  • Type of battery: Lipo  LiHV  LiFe Li-Ion @1-6S | NiMh @1-16S   Pb @1-10S
  • Balance current: 1000mA @2-6S
  • Balance accuracy: <0.005V
  • Charger power: 0.1-15A @350Wx2  (Asynchronous mode) | 0.1-25A @700W  (Synchronous mode)
  • Discharge power: 350W  @MAX 15Ax2£¨Recycle mode) | 15W@3A *2 (Normal mode)
  • USBC power: MAX 65W 3.25A @20.0V  or Upgraded
  • USBC protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
  • Battery voltage: 1.0V-5.0V@1-6S
  • Internal resistance: 1-100mR@1-6S
  • Product size: 127x106x57 mm
  • Product weight:520g
  • Pack size: 158x134x63 mm
  • Pack weight: 700g
  • LCD: IPS  3.5 inch LCD 480x320 Pixel

Includes

  • 1x ToolkitRC M6DAC 200W 15A Dual Channel AC/DC Smart Charger

Manual Download
