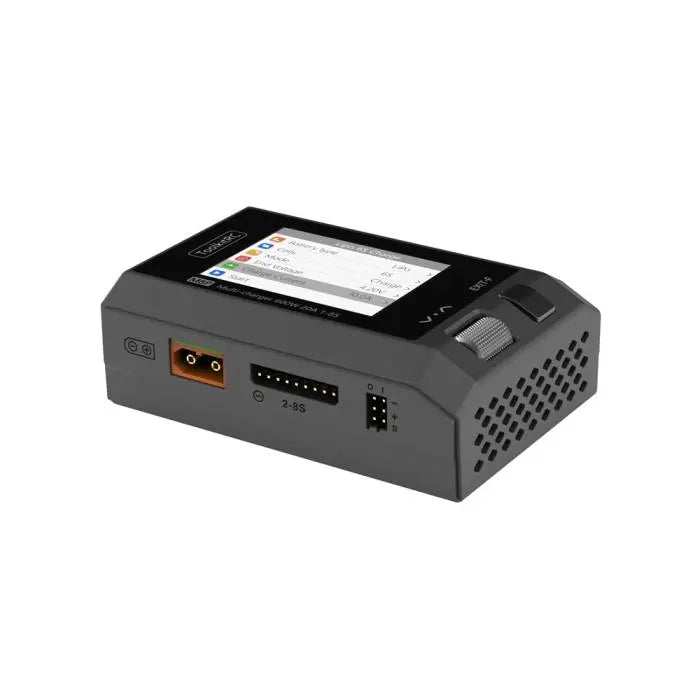

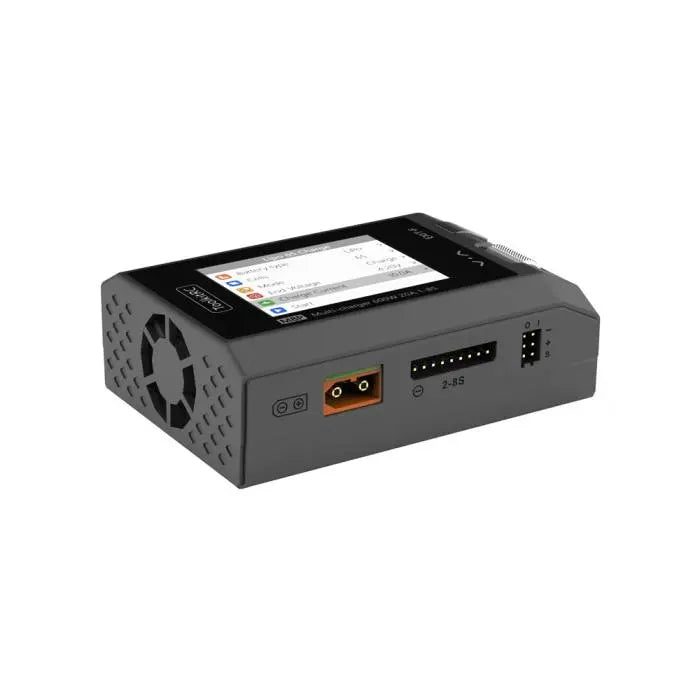

ToolkitRC M8P 1-8S 600W 20A DC Charger - XT60

The ToolkitRC M8P Charger is a reliable and compact charging solution crafted for FPV drone and cinematography applications. Equipped with a vibrant touchscreen interface, it provides intuitive control over charging parameters, supporting a range of XT60 battery types for versatility. With its portable design, the M8P ensures convenient charging on the field, making it an essential tool for drone enthusiasts and cinematographers alike.

• 600W DC Charger
• 1-8S Compatibility
• XT60 Connector

• Product size 100x71x34mm
• Product weight 200g

CHARGING

• Input 7-35V: @MAX25A
• Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
• Charging Power: 0.1-20A@600W
• Discharging Power: 0.1-20A @ 600W Recycle External
• Discharging Power: 0.1-3A @ 20W Normal mode
• Balance current: 1000mA@4.2V
• USB: 5.0V @ 2.1A upgrade

MEASURING

• PWM: 880us-2200us @20-400Hz
• PPM: 880us-2200us*8Ch @20-50hz
• SBUS: 880us-2200us*16ch @20-100Hz
• Voltage: 1.0V-5.0V @1-8S
• IR: 1-99mR @1-8S
• ESC: 1-20A@1-35V MAX600W

OUTPUT

• PWM: 500us-2500us @20-1000Hz
• PPM: 880us-2200us*8ch @50hz
• SBUS: 880us-2200us*16ch @74Hz
• Power: 1-20A @ 1-35V Mode: CC+CV

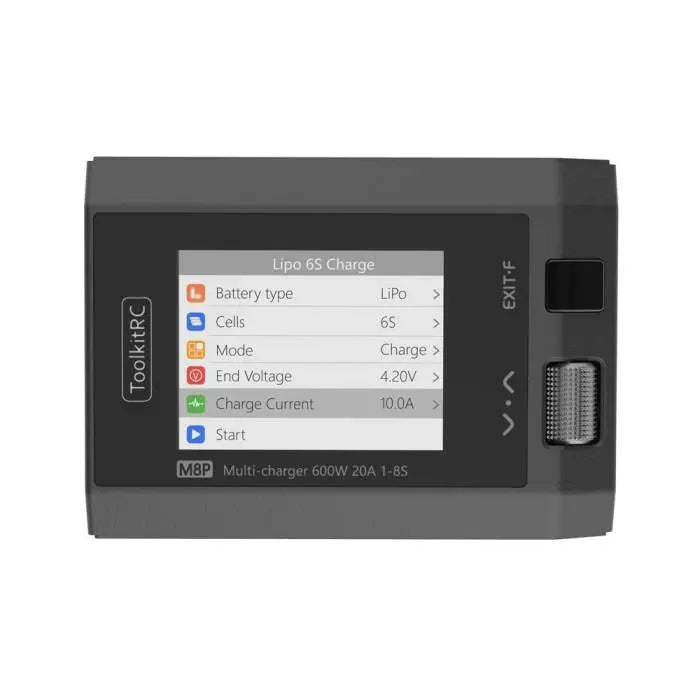

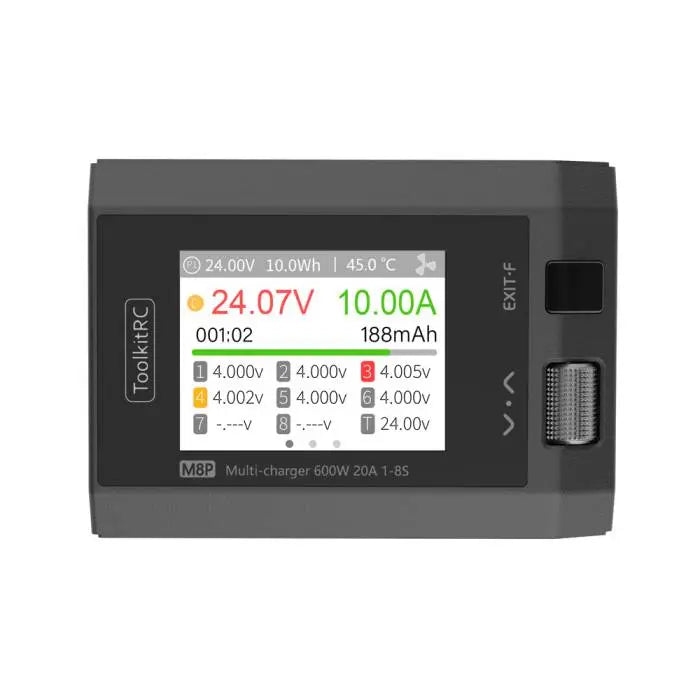

• LCD Display: 2.4 IPS RGB 320x240 pixel

• ToolKitRC M8P Manual

• 1x ToolkitRC M8P 1-8S 600W 20A DC Charger - XT60
