ToolkitRC M8S 400W 18A 1-8S DC Smart Charger & Diagnostic Tool

TOOLKITRCSKU: TOOL-HP110-0003-B

Price:
Sale price$49.99 USD

Description

The upgraded ToolkitRc M8S is much more than just another charger! With a 400w and 18A charger at its heart the M8S also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control!

Features

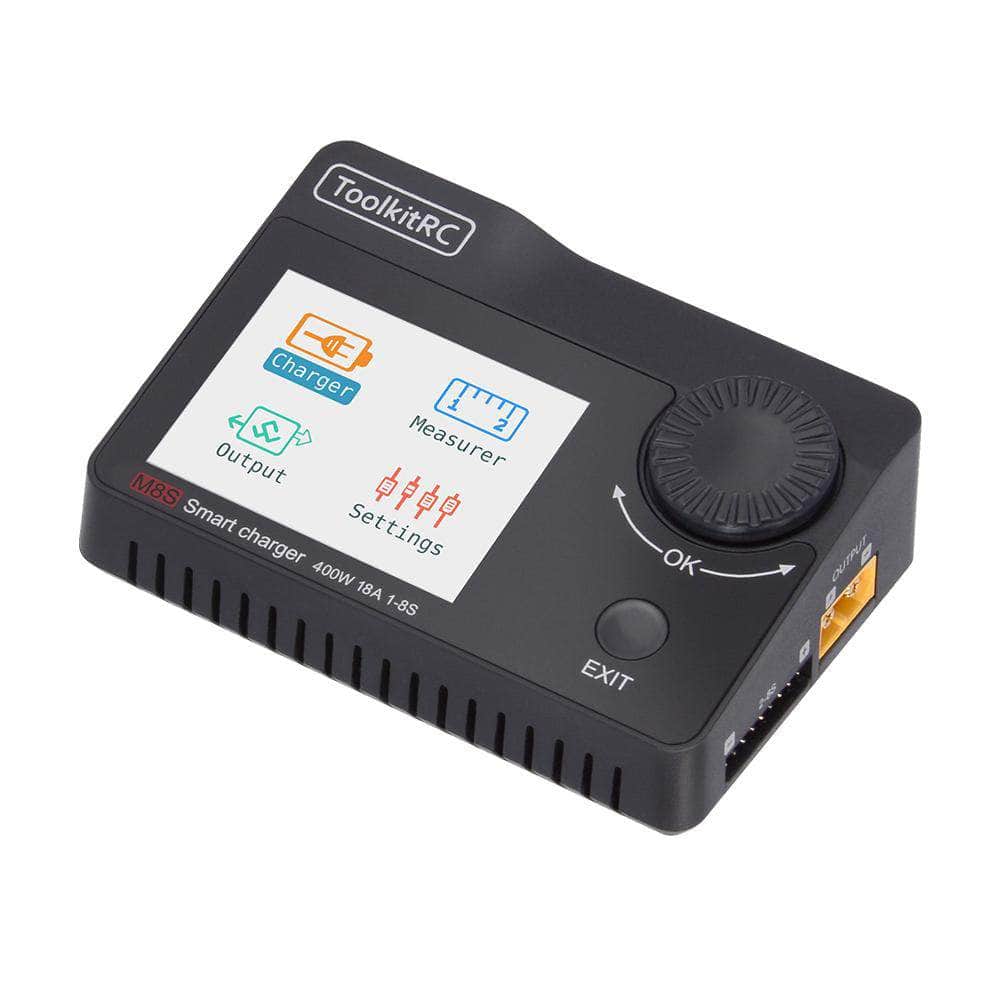

  • 2.4" Color Screen
  • Battery Charger
  • Cell Checker
  • Servo Tester
  • PWM,PPM.SBUS Input/output Receiver & Flight control tester
  • Viable AMp/volt DC Power supply (Required external DC input)

Specification

Charging
  • Input 7-30V: @MAX18A
  • Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
  • Bal Current: 800mA @2-8S
  • Accuracy: ±0.01V
  • Charging Power 0.1-18A @ 400W
  • Discharging Power 0.1-18A @ 400W
  • Recycle Mode 0.1-5A @ 20W Normal Mode
  • USB 2.1A @ 5.0V upgrade

Measuring
  • PWM 880us-2200us @20-400Hz
  • PPM 880us-2200us*8Ch @20-50hz
  • SBUS 880us-2200us*16ch @20-100Hz
  • Voltage 1.0V-5.0V @1-8S
  • IR 1-100mR @1-8S

Output
  • PWM 500us-2500us @20-1000Hz
  • PPM 880us-2200us*8ch @50hz
  • SBUS 880us-2200us*16ch @74Hz
  • Power 1-18A @ 1-30V Mode: CC+CV
  • Display:LCD TFT 2.4 inch 320*240 resolution

Product

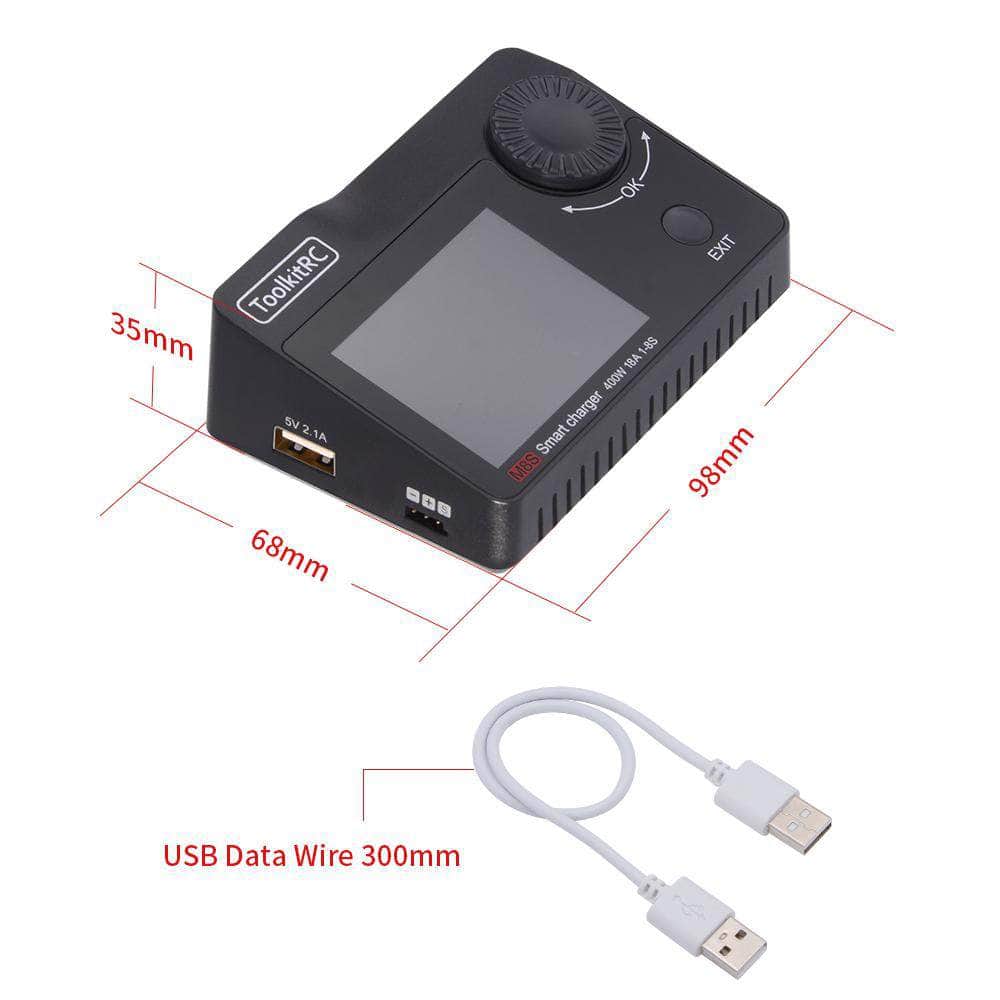

  • Size 98mm*68mm*35mm
  • Weight 170g
  • Packing: Size 108.5mm*80.5mm*46mm Weight 255g

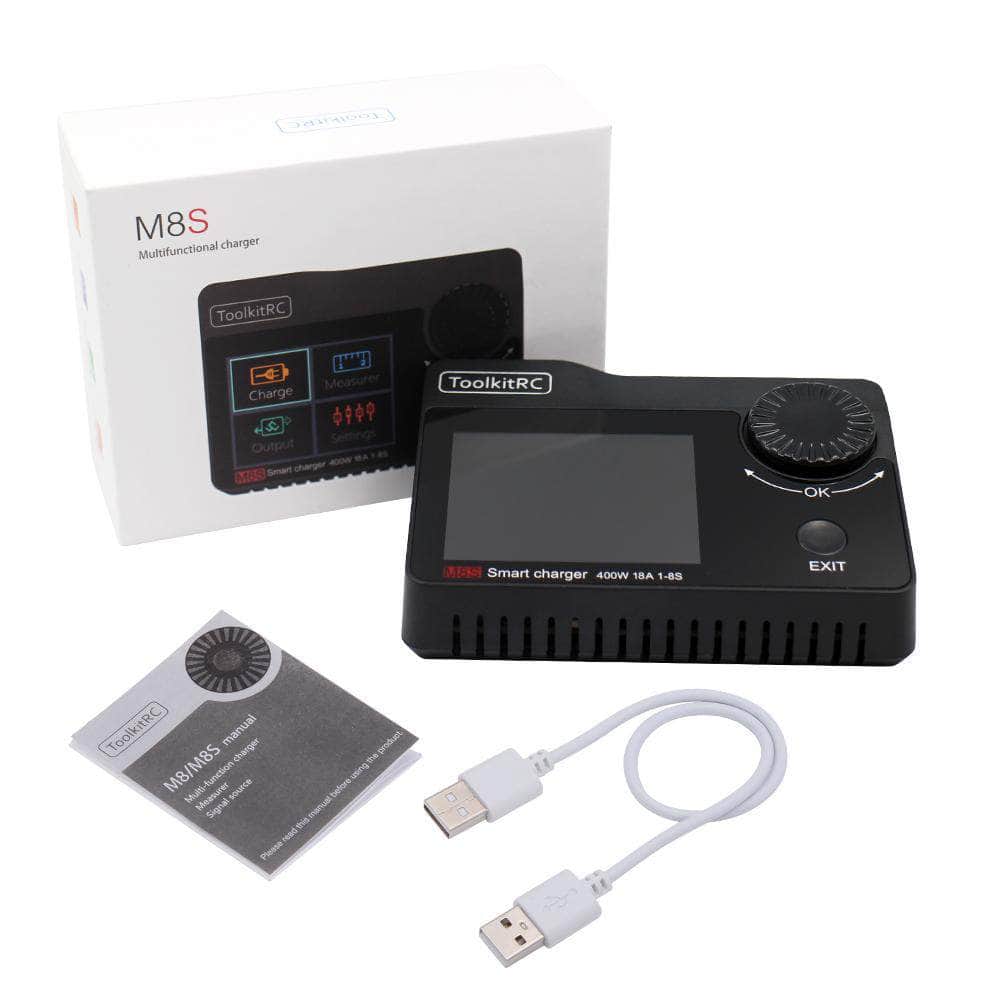

Includes

  • 1x ToolkitRC M8S 400W 18A Battery Charger& Measuring Device

Manual Download

Firmware Download
