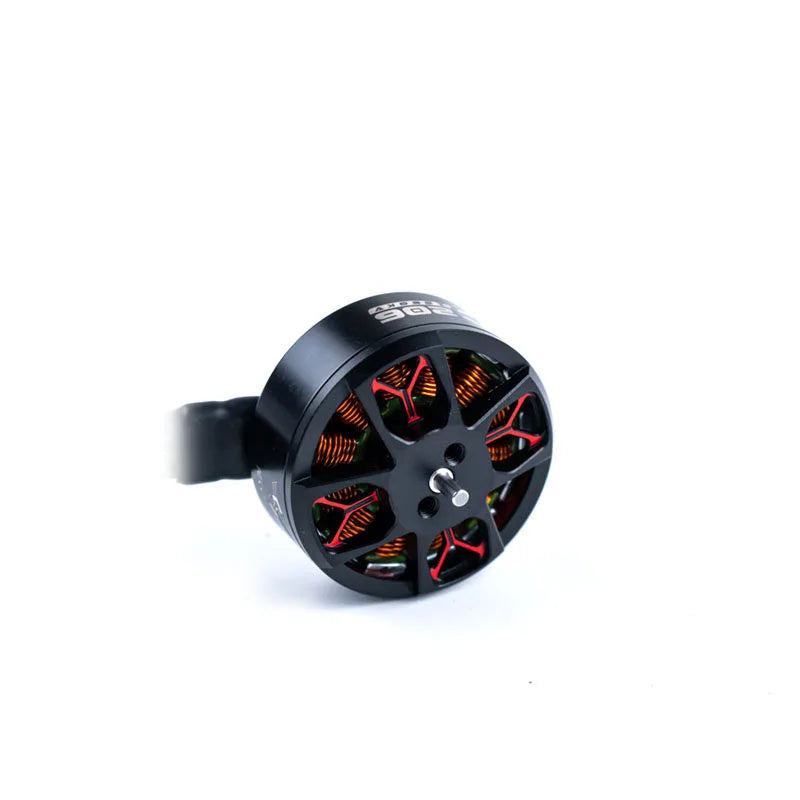

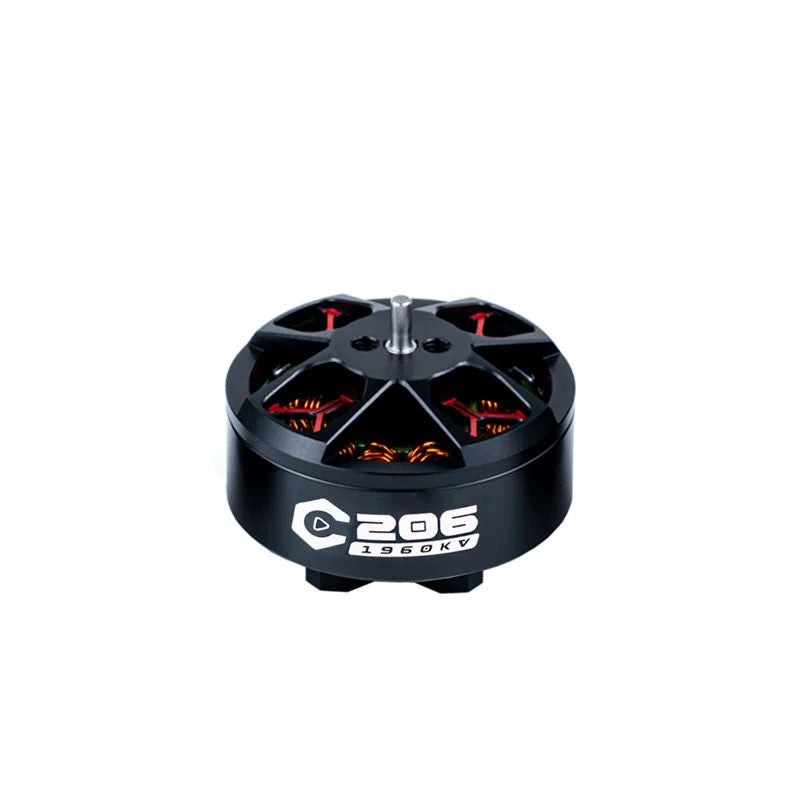

Axisflying Fpv Brushless Motor C206 2006 For 3.5inch Cinewhoop And Cinematic Drone

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

Features

- C206 motor is special designed for 3.5inch cinewhoop and cinematic drone

- It is easy to carry heavy GP Camera 10 or GP Camera 11.

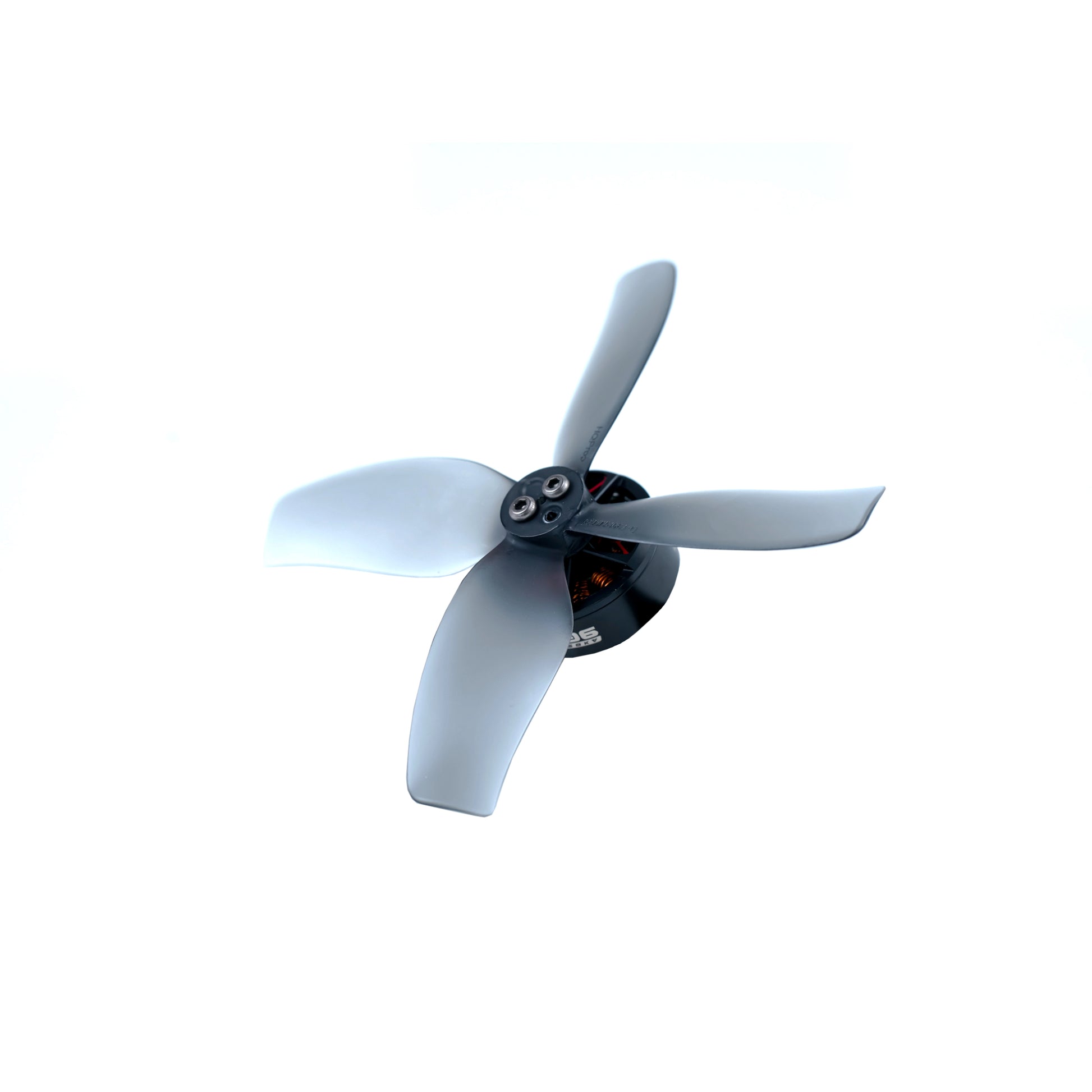

- C206 motors run perfect with Gemfan D90-3 or HQ D90-3 and 4 props.

Bearing Shield Technology

- An IP53 rating dustproof and waterproof bearing placement design.

- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

- Increased thrust effciency and say goodbye to crush motor bearings

Specification

- 1960KV is for 6S

- Configuration: 12N14P / N52H arc magnet

- Motor stator size: 2006

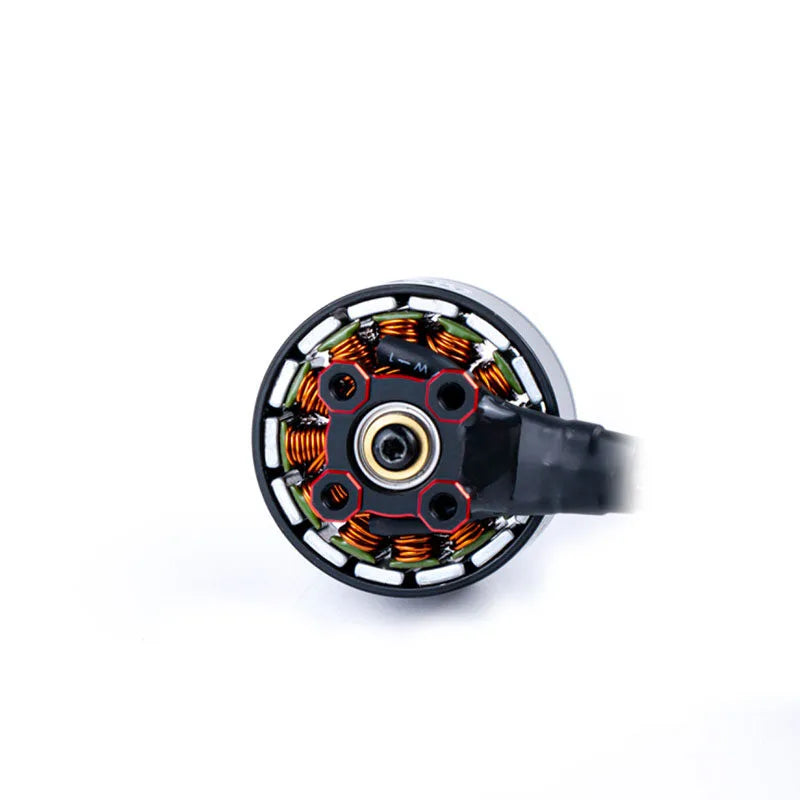

- Motor mounting hole size: 4*M2 (Φ12mm)

- Motor cables: AWG 20#, 150MM

- Motor dimensions (Dia *Len): Φ24.6*20.6MM  / T-MOUNT

- Motor weight (including 150MM cables) : 22g

- The motor is very powerful that can get over 0.9KG and most current is about 21.5A

Package List

- 1* C206 motor

- 4* M2*5 screws for motor

- 1* M3*4 screw for lock shaft

- 2* M2*8 to lock Props
