GEPRC CineLog30 w/ Analog Caddx Ratel2

Save $10.00
GEPRCSKU: GP104746

Price:
Sale price$209.99 USD Regular price$219.99 USD

Description

Summary:

The latest 3-inch Quadcopter developed by GEPRC is officially released now, and two versions are currently available: CineLog30 VISTA Polar and CineLog30 Analog.

CineLog30 is developed on the basis of cinglog25. It has a stronger power output with 1404-3850kv motor and HQProp T76MMX3 propellers.Ultra light fuselage weight, and CineLog30 Analog equipped with 4s 660mah battery take-off weight is only 204g.The duration of the flight is 7.5 minutes. The GP Camera 8 naked camera can be installed, with the mounting base.

We pursue lighter weight, better flying feel and more extended functions of the Quadcopter.

Changelog:

June 6th,2022: Propeller changed from T3x3x3 to HQProp T76MMX3.

Features:

  • Small size, light weight, with GEPRC 4S 660mAh battery, take-off weight is only 204g.

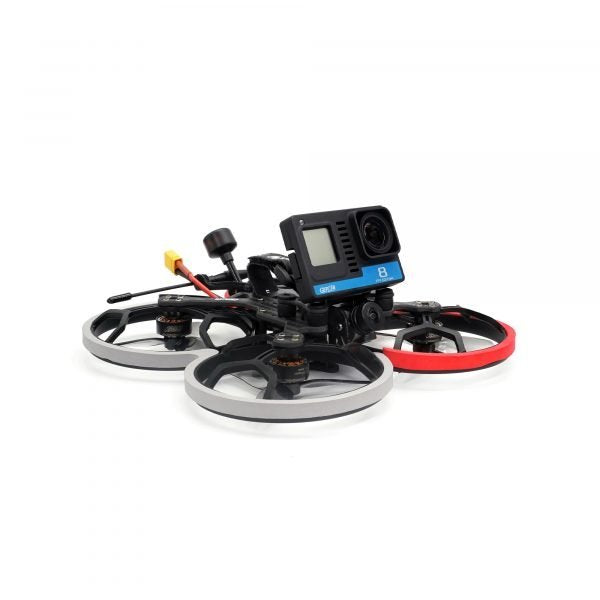

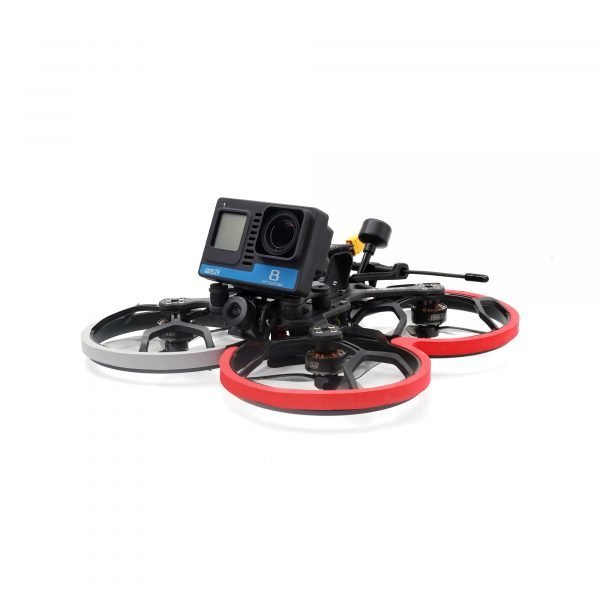

  • The GP Camera Hero 8 naked camera and INSTA 360 GO2 camera can be installed, with the mounting base.
  • Continue the unique design damping pan tilt , and adjust the number of damping balls according to the scene.

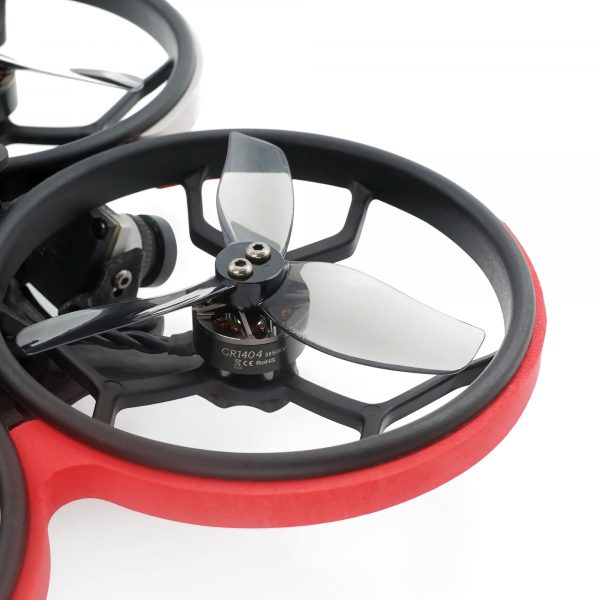

  • 1404-3850KV motor with HQProp T76MMX3 propellers, strong power output.The duration of the flight is 7.5 minutes by 4S 660mAh LIPO Battery.

Specification:

  • Model: CineLog30 Analog
  • Brand: GEPRC
  • Frame: GEP-CL30
  • Wheelbase: 126mm
  • Top plate: 2.0mm
  • Bottom plate: 2.0mm
  • Arm plate3.0mm

FC system: GEP-F411-35A AIO

  • MCU: STM32F411
  • Gyro: 6-Axis
  • OSD: BetaFlight OSD w/AT7456E chip
  • ESC: BLheli_S 35A
  • VTX: GEP-600mW-VTX
  • Camera: Caddx Ratel2
  • Propeller: HQProp T76MMX3
  • Antenna: GEPRC Momoda 5.8g MMCX RHCP 100m
  • Motor: GEPRC GR1404-3850KV

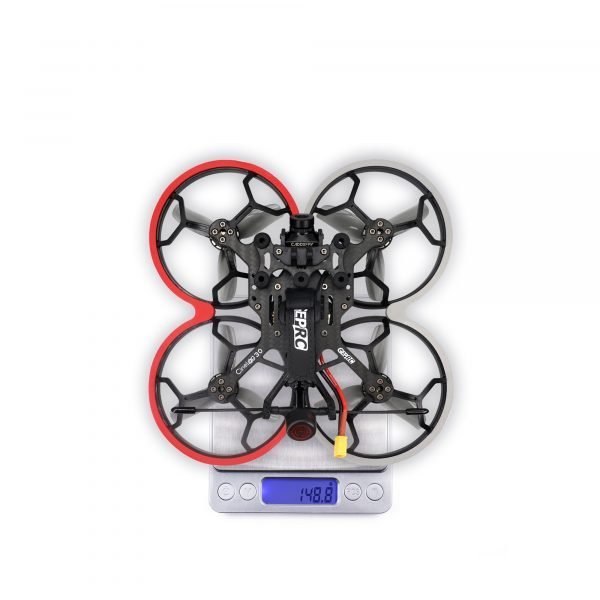

  • CineLog30 Analog weight: 140.0g
  • Receiver: PNP(Without Receiver)/Frsky RXSR /TBS Nano RX

Flight time:

Batteries used: GEPRC 4S 660maH
With naked GP Camera 8(sub250g): 4S 660mAh 7-8min

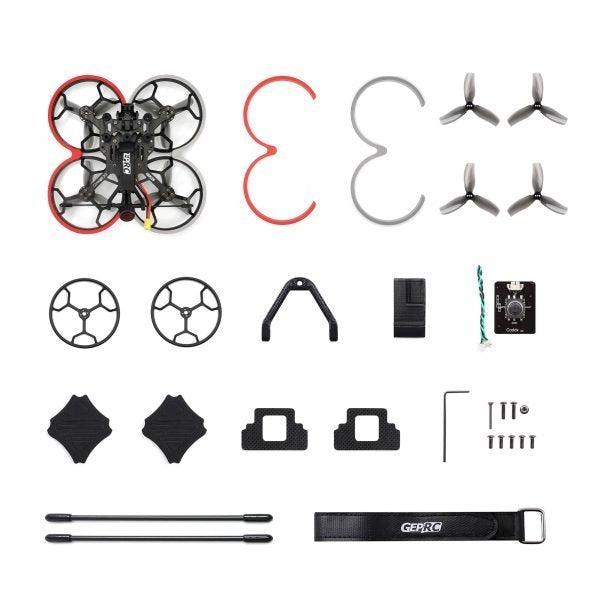

Include:

  • 1 x CineLog30 Analog Quadcopter
  • 1 x Battery straps 20x200mm
  • 2 x T76MMX3 propellers (pair)
  • 2 x Propeller guards
  • 2 x EVA damping rings of guard
  • 2 x EVA landing pads
  • 2 x Battery Silicone Pads
  • 1 x OSD parameter adjusting board
  • 1 x Antenna fixed tube
  • 1 x Screw package
  • 1 x TBS receiver mount(PNP)
  • 1 x TBS receiver antenna mount (PNP)
