HDZero VRX -Digital HD Receiver Module
HDZero VRX -Digital HD Receiver Module
Couldn't load pickup availability
-
4x external SMA antenna connections to allow you to pick your own antennas for best performance
-
Mounting rails to allow for custom patch and other antennas to be secured
-
Real Time Clock for DVR recording to show accurate time and date
-
ELRS Backpack expansion plug
-
Ambient Audio Recording
Description

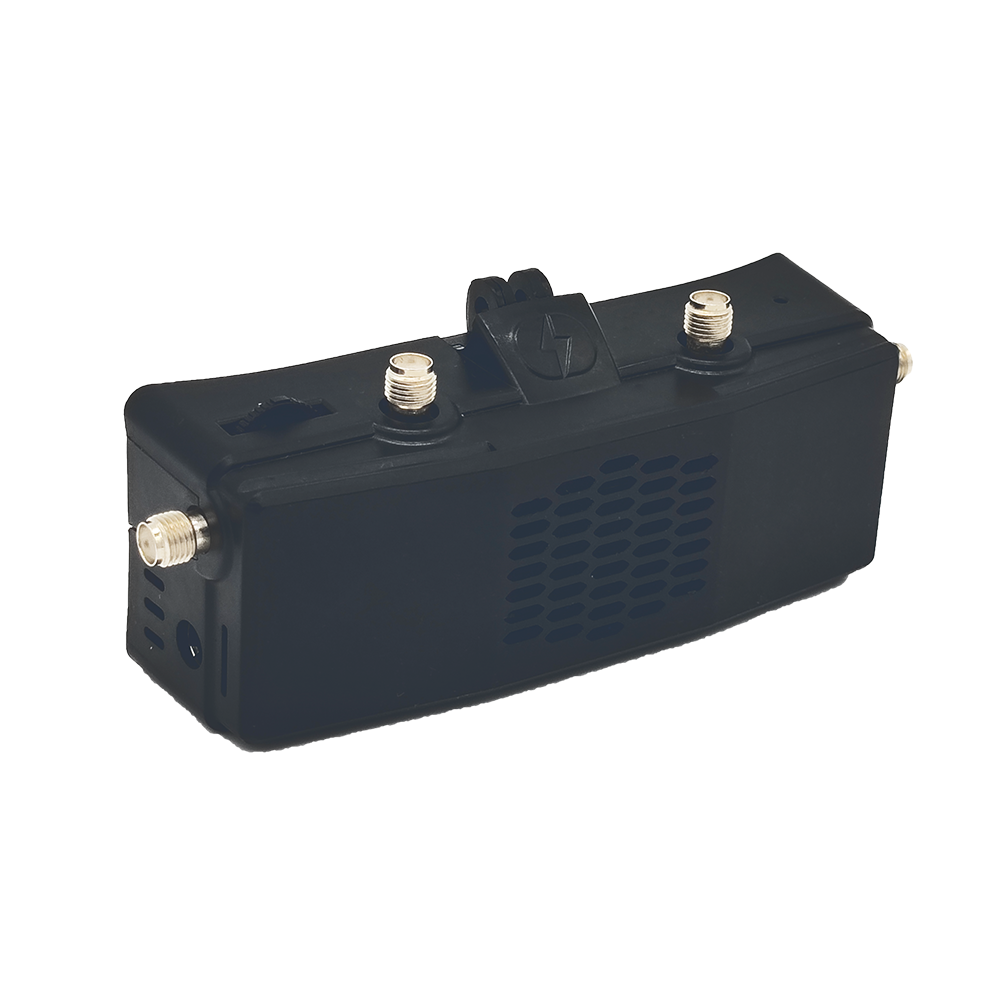

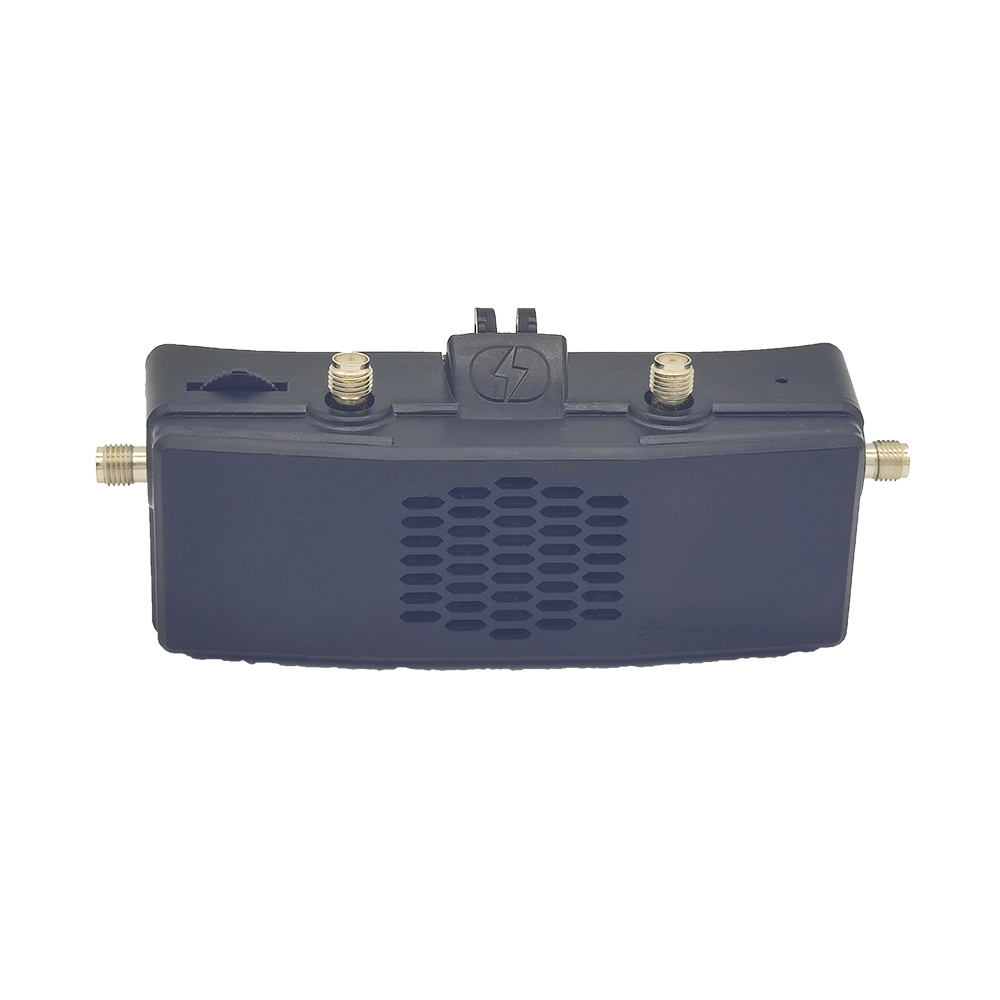

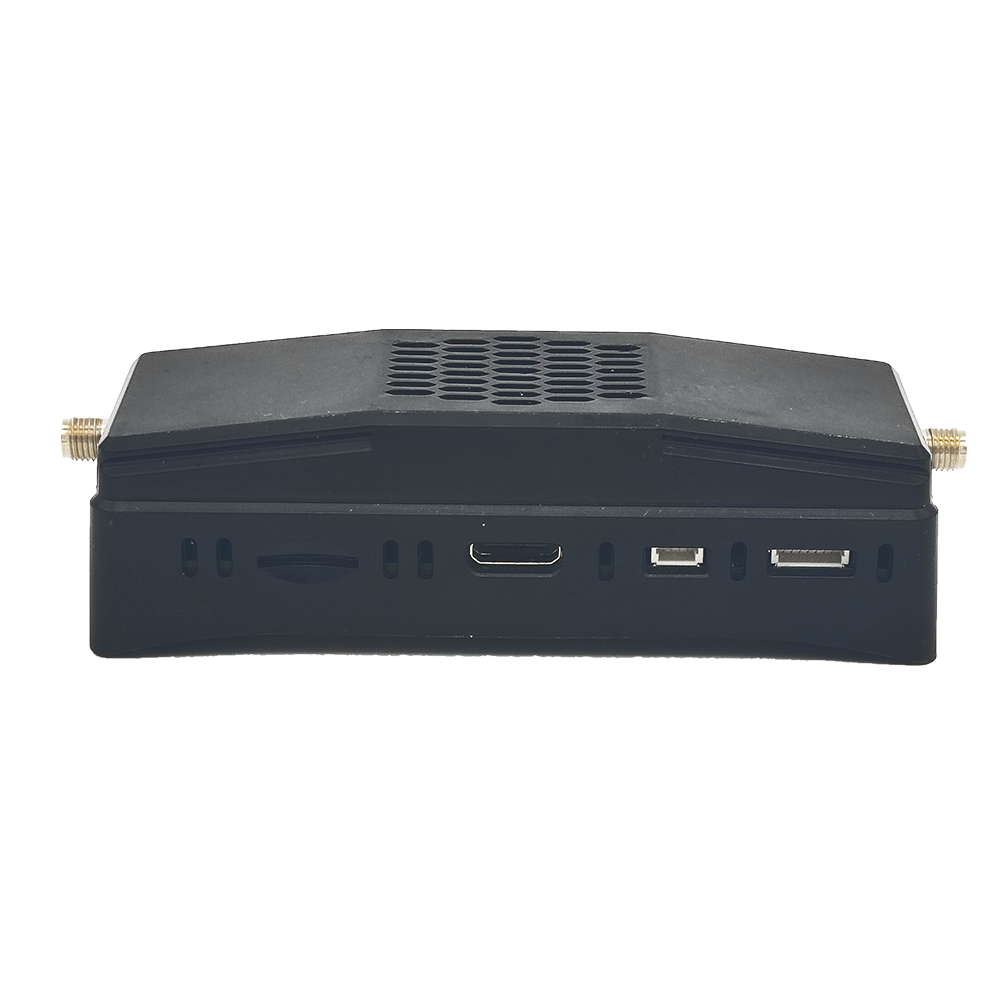

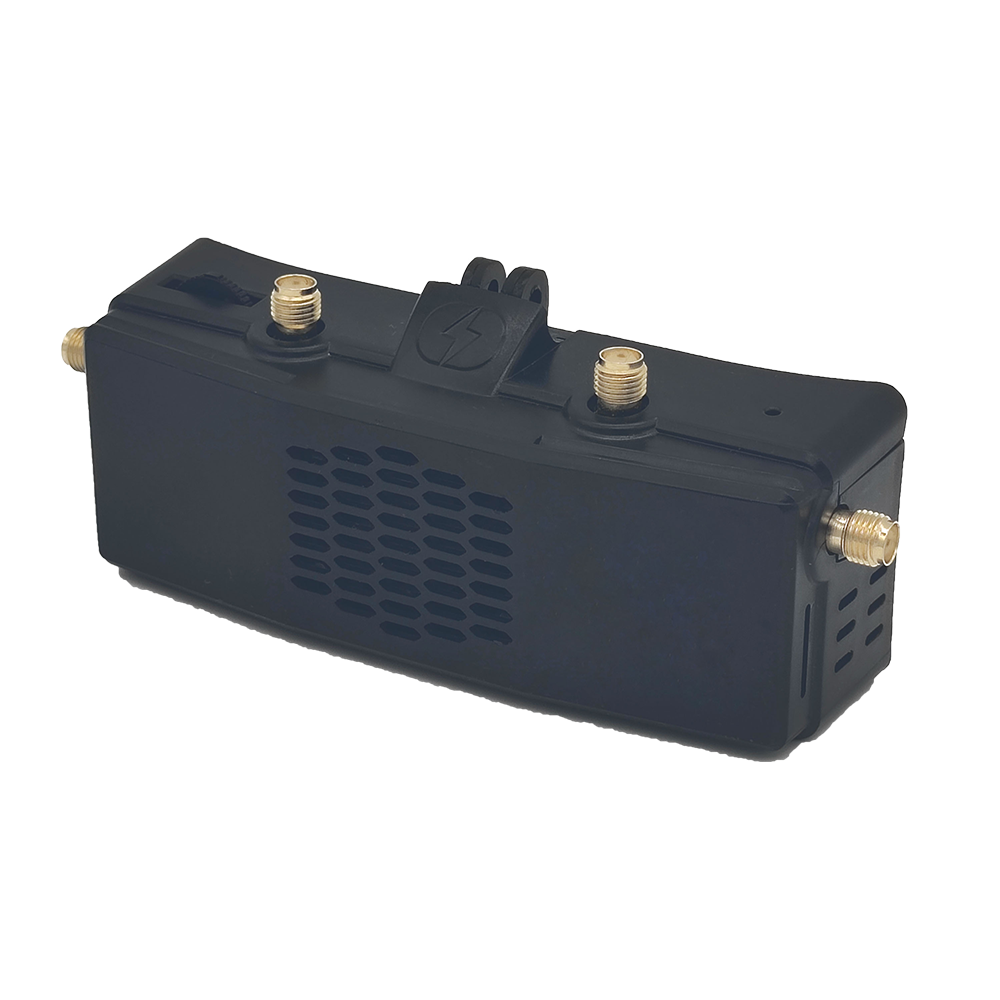

The HDZero VRX is a digital HD 720p 60fps video receiver on 5.8GHz. It works with the HDZero/Shark Byte VTX module to transmit video.
Specifications
|
Model: |
HDZero VRX |
|
SKU： |
HDZ3500 |
|
Frequency: |
5.725-5.850GHz |
|
Resolution Default: |
1280*720@60fps |
|
RF Sensitivity： |
-105dBm |
|
RF Connector: |
4 x SMA |
|
Video Connector: |
HDMI |
|
Additional functions: |
- Real time clock - ELRS Backpack expansion plug - Audio Recording |
|
Size: |
105mm x 47mm x 30mm |
|
Weight: |
85g |
|
Power: |
12W |
|
Power input： |
7V-26V(2S-6S) |
|
Mounting： |
Remove the Goggle’s fan cover |
Includes
- HDZero VRX * 1;
- HDMI Cable * 1;
- DC Cable (Direct-Pass) * 1；
- 15cm Programming Cable * 1；
- ELRS Backpack expansion plug Cable * 1;
- Keyboard * 1
Important Notes:
- Direct-Pass Cable, no regulator inside
- Check Goggle input v oltage range first to av oid goggle damage:
- HDZero VRX supports 2S-6S.
