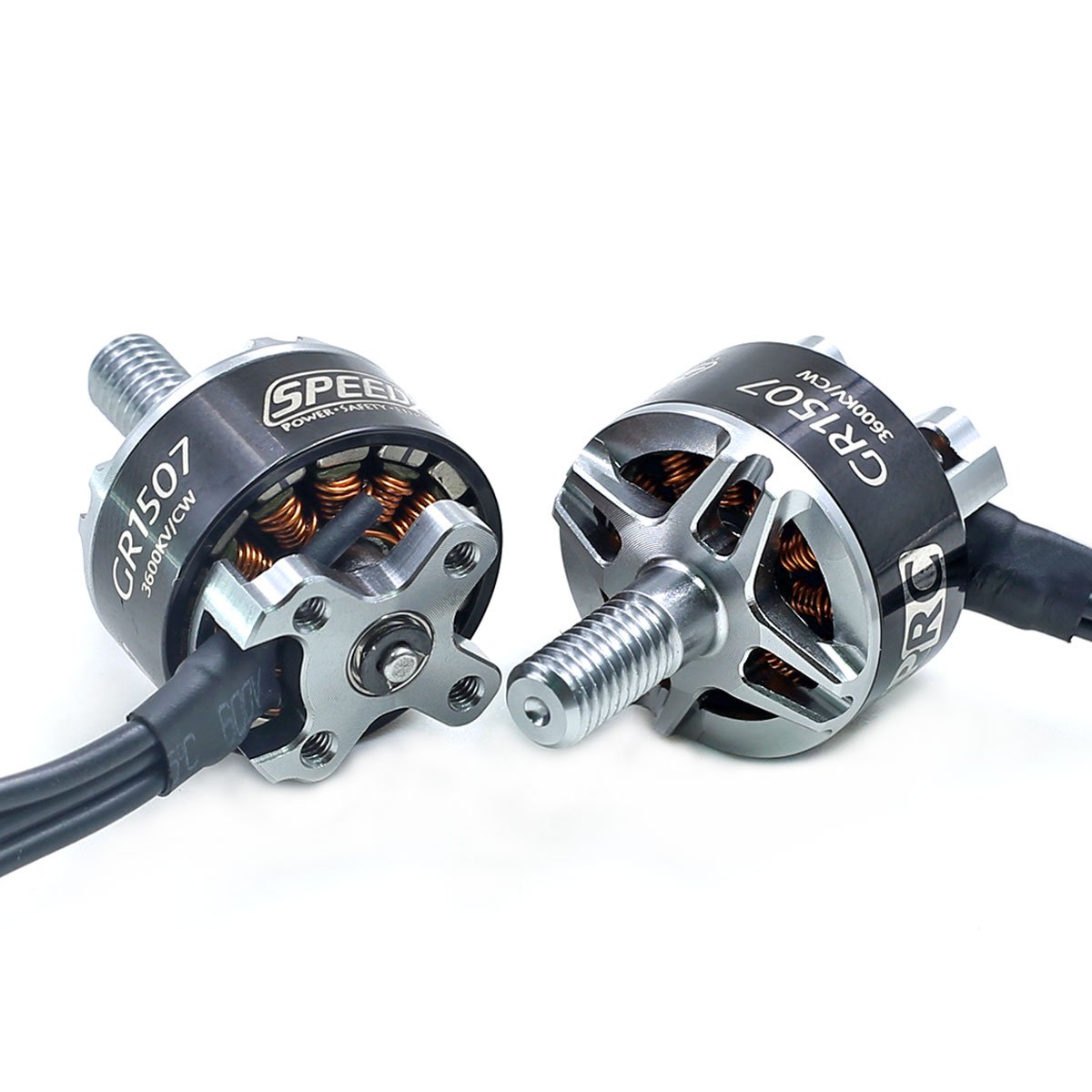

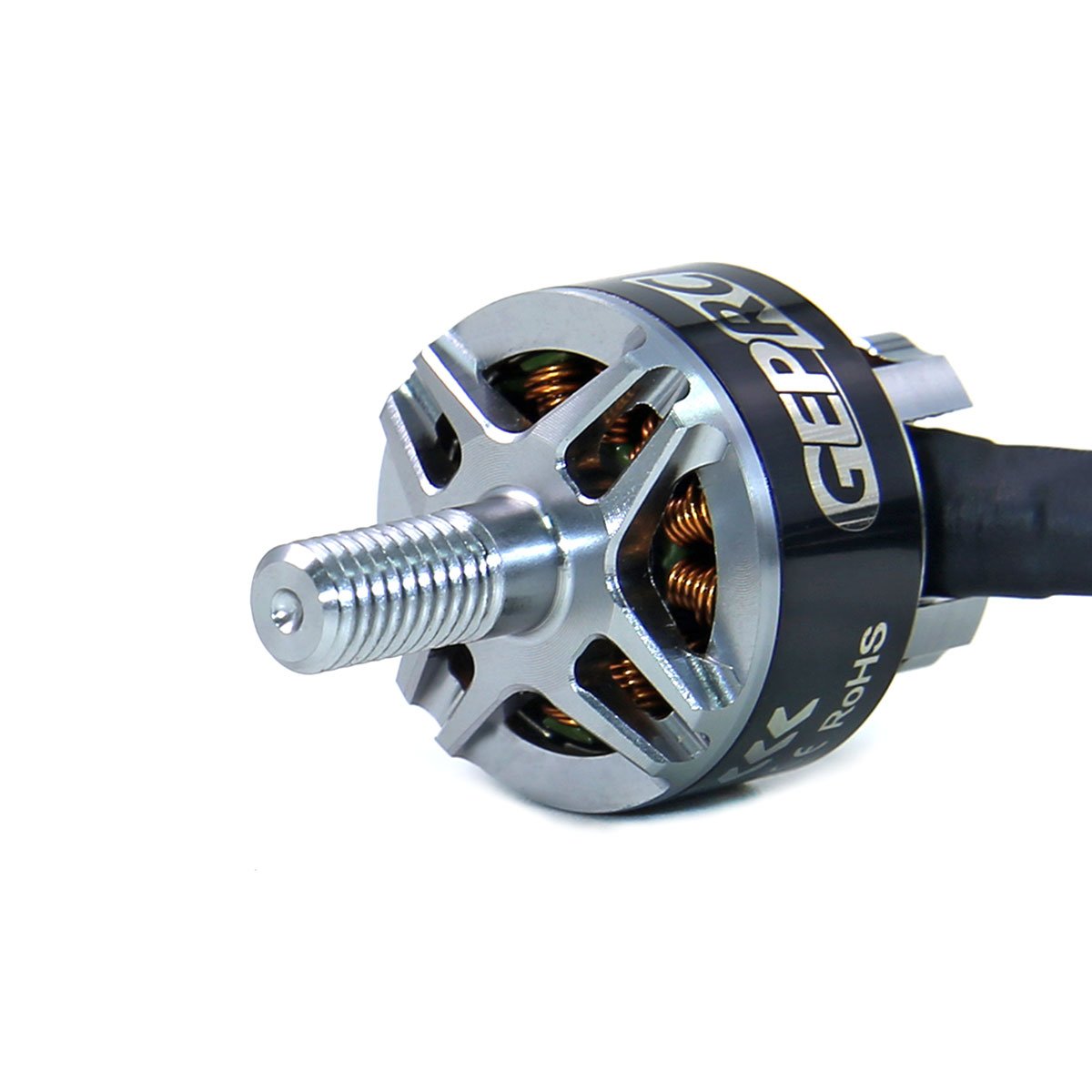

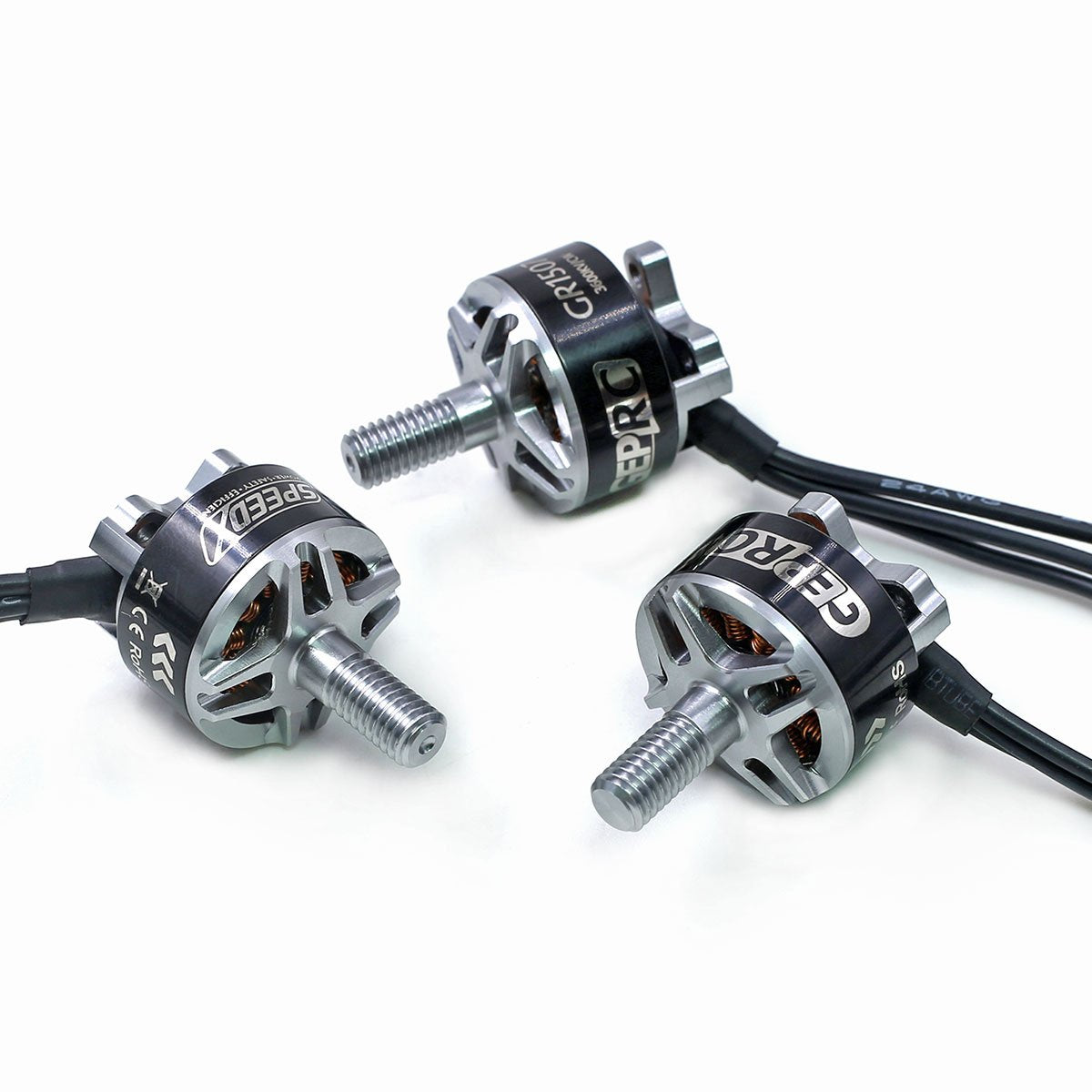

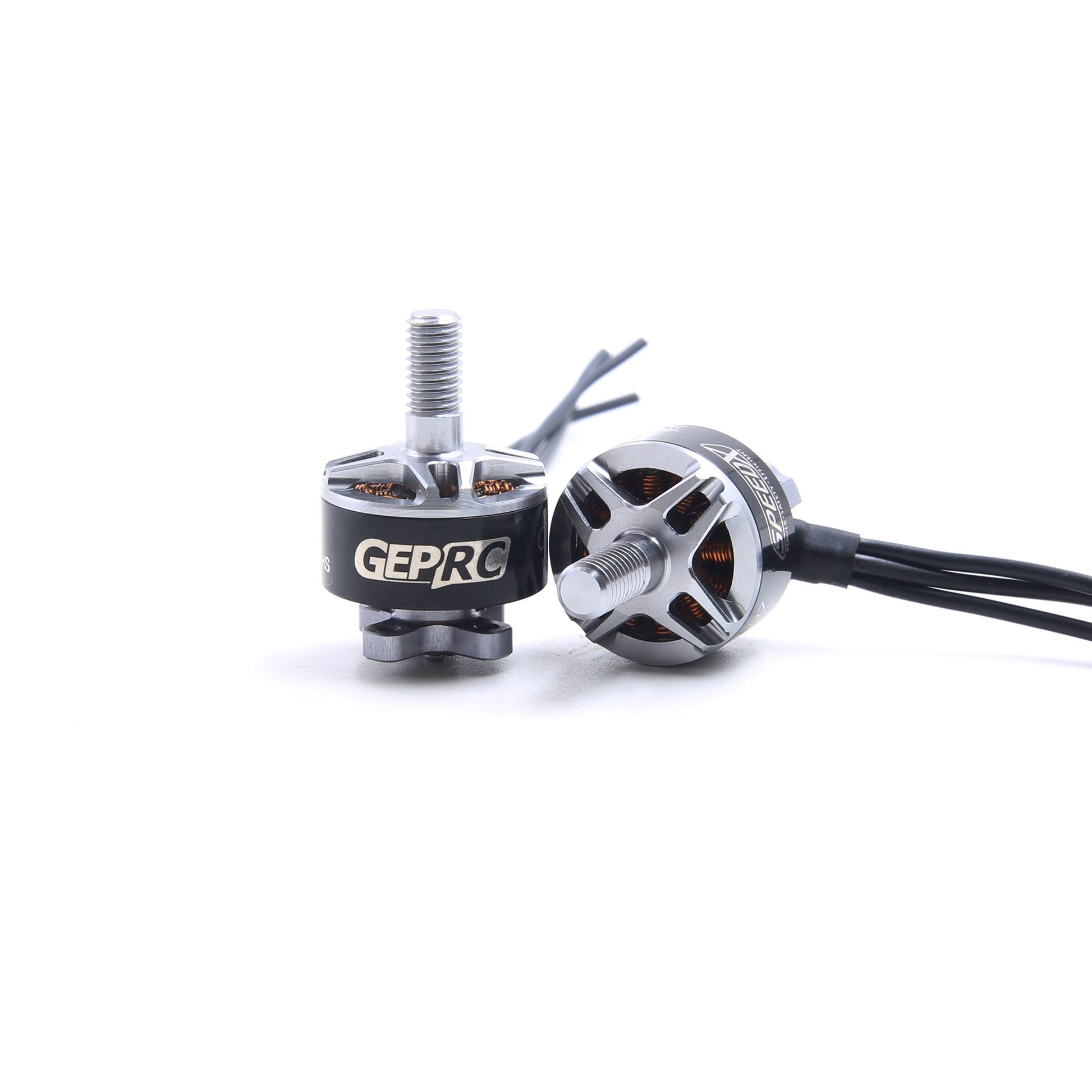

GEPRC GEP-GR1507 Motor

GEPRCSKU: GP102451

Price:
Sale price$4.75 USD

Description

Summary:

The GEP-GR1507 will bring greater efficiency and explosive power to the 3-inch and 4-inch models. Extending the efficient cooling profile of 1507 increases the cooling performance of the motor by 20%.Using 7075 aviation aluminum material to maintain the impact resistance of the motor, N52H tile magnet, Japan NSK bearing, quality assurance.3 KV values:2800KV / 3600KV /4200KVThe GR1507 will be a new choice for the 3-inch and 4-inch models.

Specifications

  • Item name: GEP-GR1507

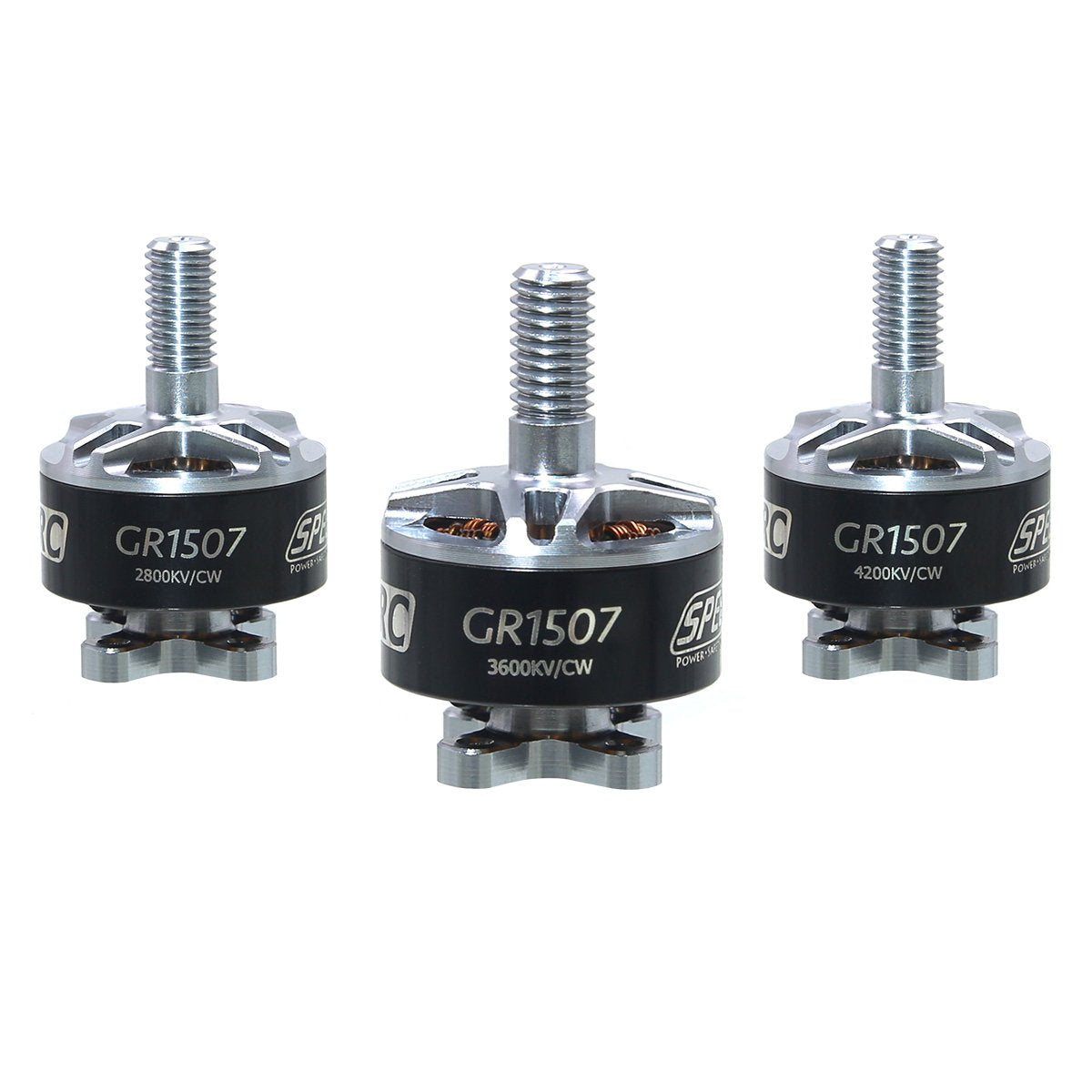

  • KV: 2800KV/3200KV/4200KV
  • Configuration:12N14P2800KV
  • Stator Diamter:15mm
  • Stator Length:7mm
  • Shaft Diameter:2mm(Hollow)
  • Motor (Dimension(Dia.*Len)):Φ 6*29.1mm
  • No.of Cells(Lipo):2~4S
  • Internal Resistance:149mΩ/104mΩ/96mΩ
  • Max Current(180S):22.59A/26.47A/29.21A
  • Rotor: N52H arc magnets
  • Bearings:NSK
  • Base casing: Al 7075
  • Wire AWG: 24AWG
  • Weight(g):15.5

Features:

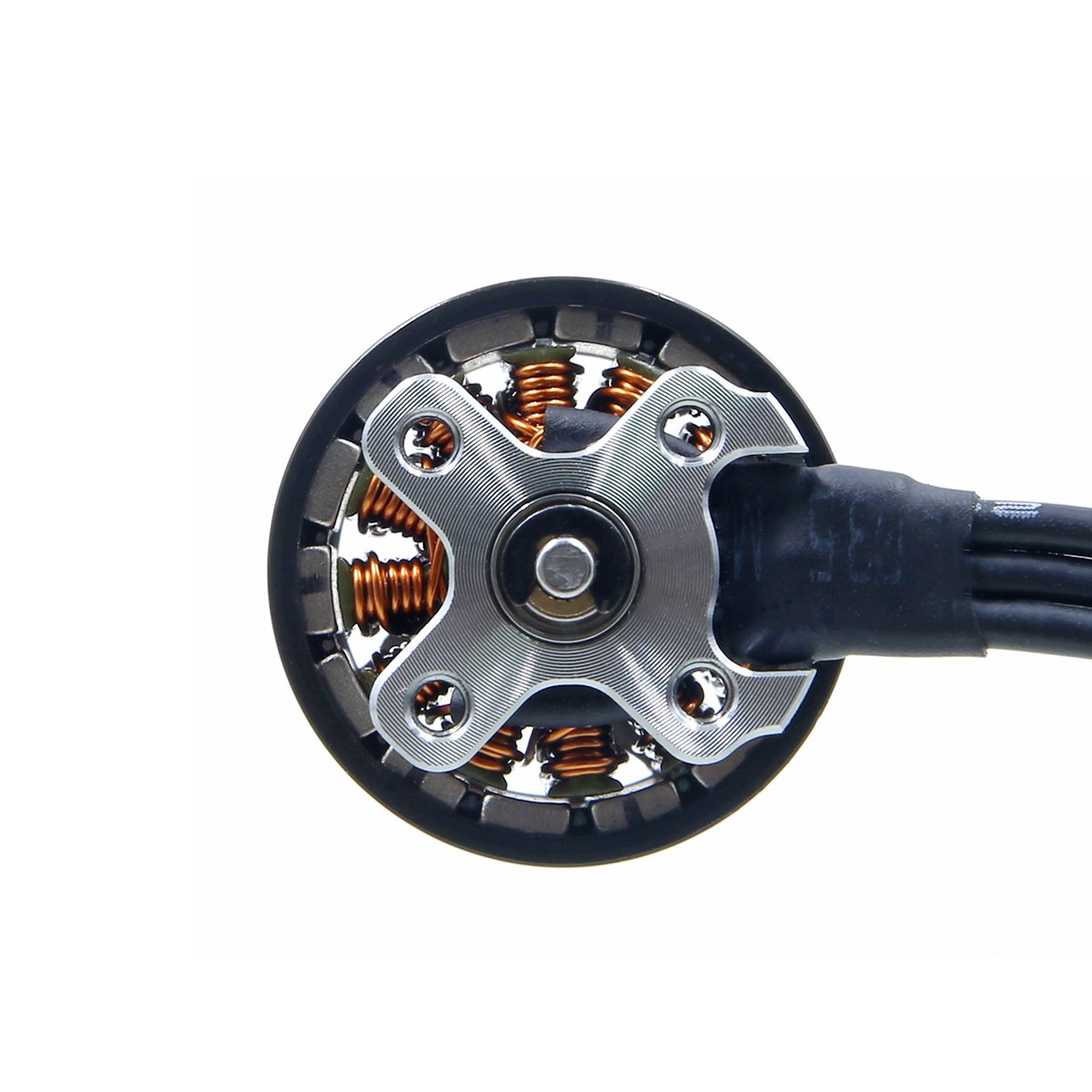

  1. Lightweight base design, powerful power output
  2. Beautiful appearance design, high – efficiency air – flow heat dissipation, strong structure
  3. The whole fuselage is high-precision CNC processing; the aviation aluminum alloy is 7075 aluminum materials, which is high precision and high intensity
  4. It adopts N52H magnet, which ensures the torsion, high temperature resistance and no dropping magnet
  5. The effort and thrust is the best aiming at the accelerator from 50% to 90%
  6. The fuselage is handled with precise dynamic balancing to ensure the vibration and low noise when the electrical machine operates with high speed
  7. Japanese NSK bearing ensures the smooth operation of the electrical machine

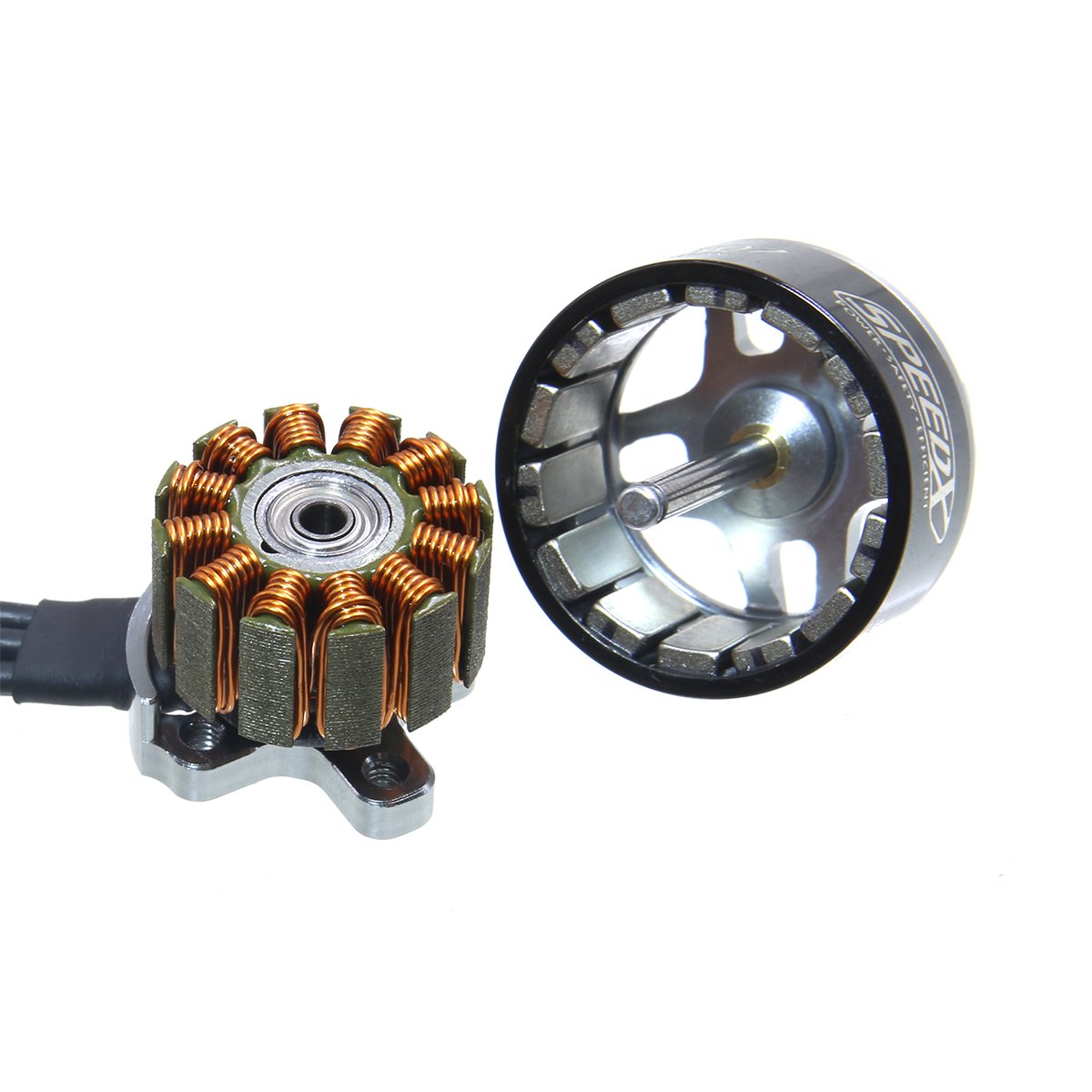

  8. Tile shape magnet and 0.15mm air cleft, the power take-off is stronger
  9. Benign design of heat radiation structure, the temperature reduces 20% compared with the electrical machine in the same type
  10. Reliable magnetic circuit optimization and maximum electric power conversion
  11. The weight is 15.8g only (not include the wire)
