GEPRC GEP-F722-45A AIO

GEPRCSKU: GP104944

Price:
Sale price$109.99 USD

Description

Summary:

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO,it is released now.

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

Changelog:

June 5th,2022: this flight controller has started to use a new MOS tube, the appearance has changed, but the performance is the same as before.

June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification:

  • Model Name:GEP-F722-45A AIO
  • MCU:STM32F722
  • IMU:MPU6000 gyro/accelerometer(SPI)
  • Firmware target:GEPRC_F722_AIO
  • OSD:Betaflight OSD w/ AT7456Ev
  • UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
  • Beeper:YES
  • LED:YES
  • USB:Micro USB
  • BEC output:5V@1A
  • Intergrated LC Filter
  • ESC MCU:8BB21F16G
  • Continuous current:45A
  • MAX current:55A (10s)
  • Input:2~6S
  • Supports:Dshot600,Oneshot,Multishot
  • BlackBox: 16Mb
  • Traget:G_H_30
  • Size:32x32mm Board

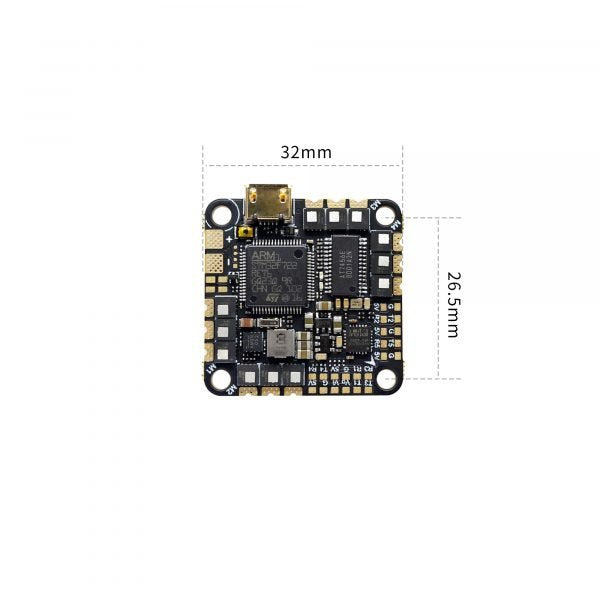

  • Mounting Hole:25.5×25.5mm

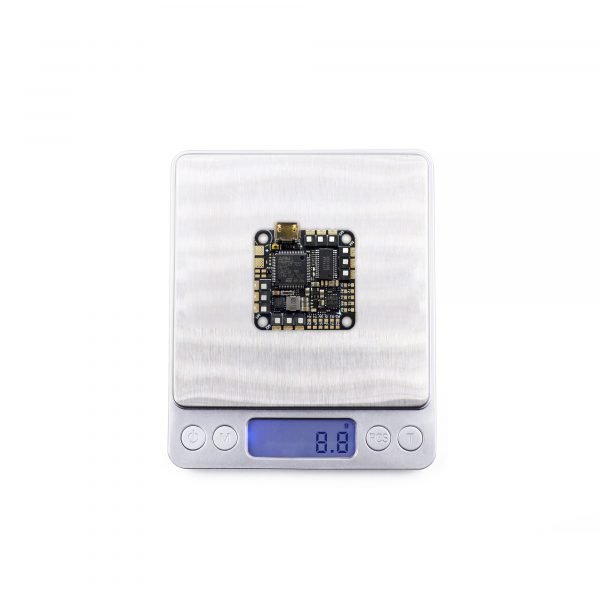

  • Weight:8.8g

Features:

  • MCU:STM32F722,with strong performance and higher computing speed.
  • It has 5 full UART ports, which can connect more external devices
  • Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
  • The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
  • Support OSD parameter adjustment, buzzer, led and other functions.
  • 8g ultra light weight
  • 5mm * 25.5mm mounting hole, suitable for most frames

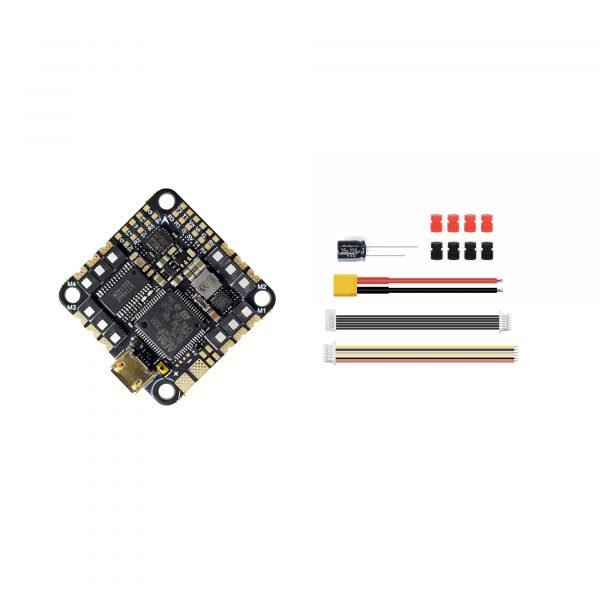

Includes:

  • 1 x GEP-F722-45A AIO
  • 1 x XT30-7CM-18AWG Power cables
  • 1 x 35V220UF capacitor
  • 1 x SH1.0-6Pin to GH1.25-8Pin cables
  • 8 x M2*6.5mm Damping rings

Manual:

GEP-F722-45A AIO USER MANUAL.pdf
