Description

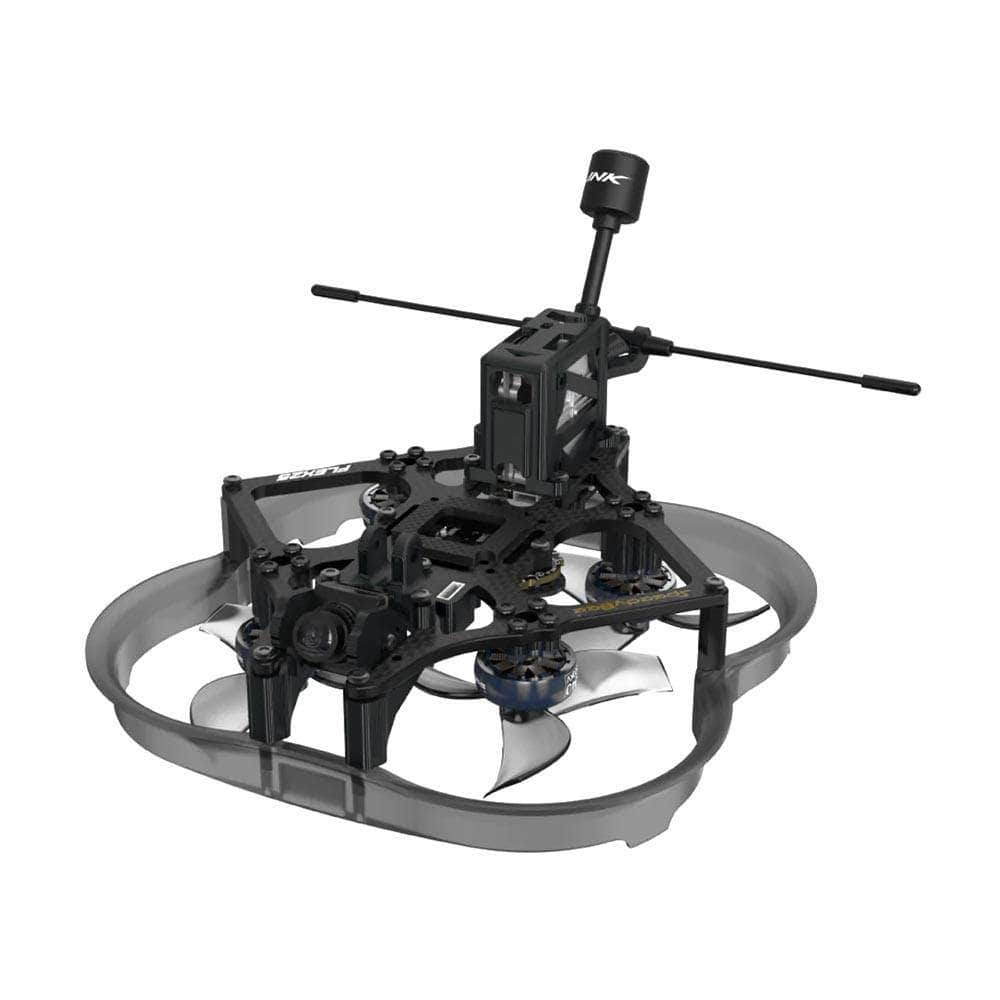

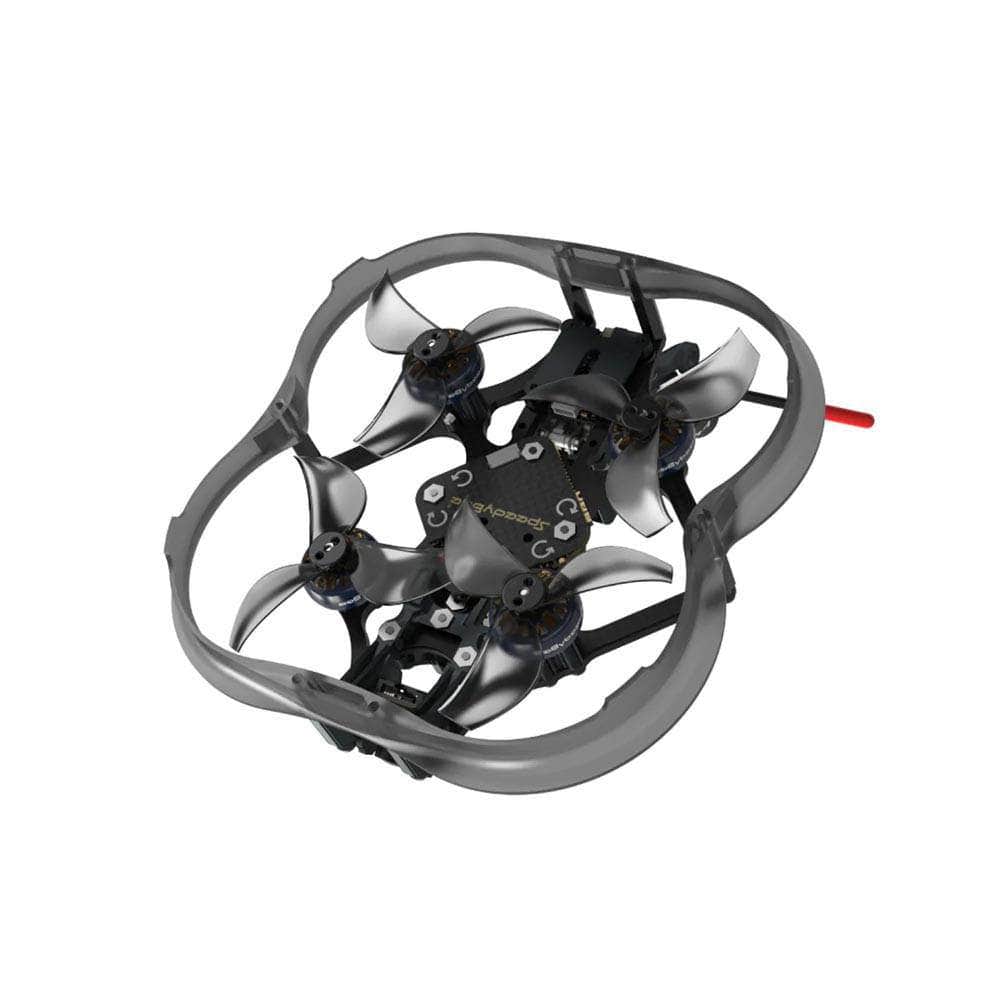

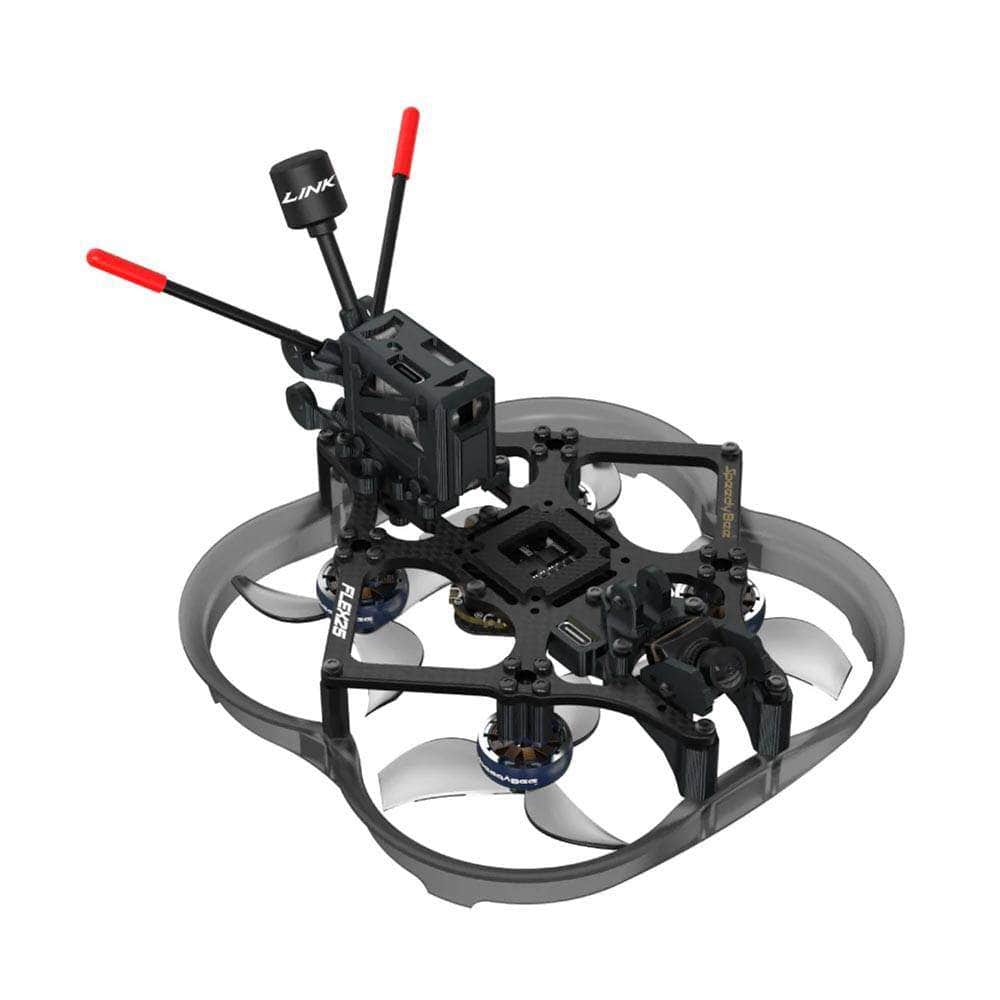

The SpeedyBee Flex25 provides the power of 2.5" props at the size of 2" Cinewhoop! Featuring a 28% smaller wheelbase than most 2.5" whoops, it is lightweight and has a rigid unibody protective duct for greater durability. The RunCam Falcon Nano Camera and Link digital system provide 120fps video recordings.
Features
- Tough unibody protective duct made of durable car bumper material
- Naked GP Camera /Insta360 Go/RunCam Thumb plug and play
- 120fps RunCam Link Falcon Nano Kit digital FPV system

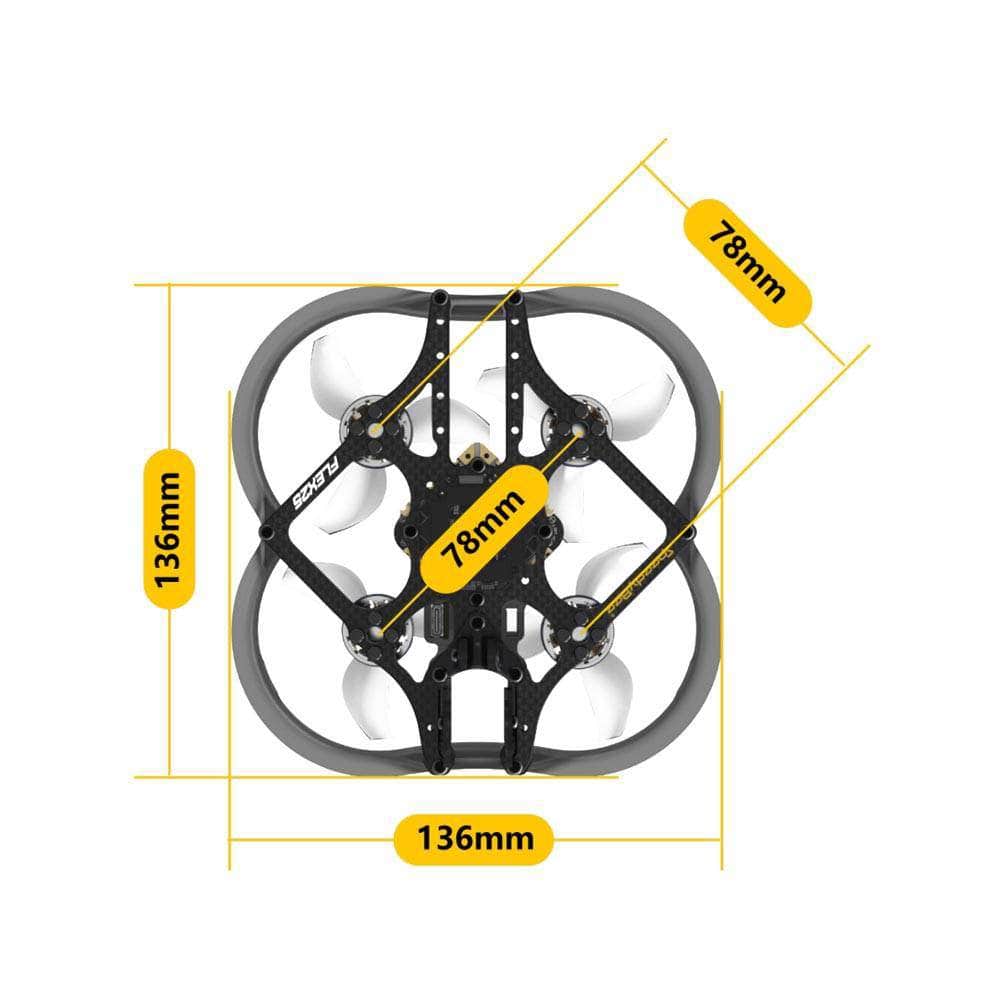

- 28%+ smaller wheelbase vs other 2.5" cinewhoop
- Built-in world's first F745 35A Bluetooth/WiFi AlO
- Optional full-surrounded LED Strips
- Quick receiver binding via app
- Flight time up to 5 minutes
Specifications
F745 AIO
- Input: 3-6S Lipo (11.1V~16.8V)
- MCU: STM32F745
- GYRO: MPU6000
- Black Box: 8MB
- OSD: Yes
- Uarts: 4 Set
- ESC connections: M1-M4
- Firmware: SPEEDYBEE F745AIO
- BEC: NO
- LED Pad: Used for WS2812 LED
- Smart Port: Yes
- RSSI: Not supported
- Buzzer: Supported
- Barometer: BMP280
- Mounting: 25.5x25.5mm, M2
35A 4in1 ESC
- Input Voltage: 3-6S Lipo (11.1V~16.8V)
- Max. Continuous Current 35A
- Max. Burst Current: 45A (5S)
- Firmware: Blheli_S JH40
- Current Sensor: Yes
- Mounting: 25.5x25.5mm, M2
- ESC Protocol: Dshot300/600

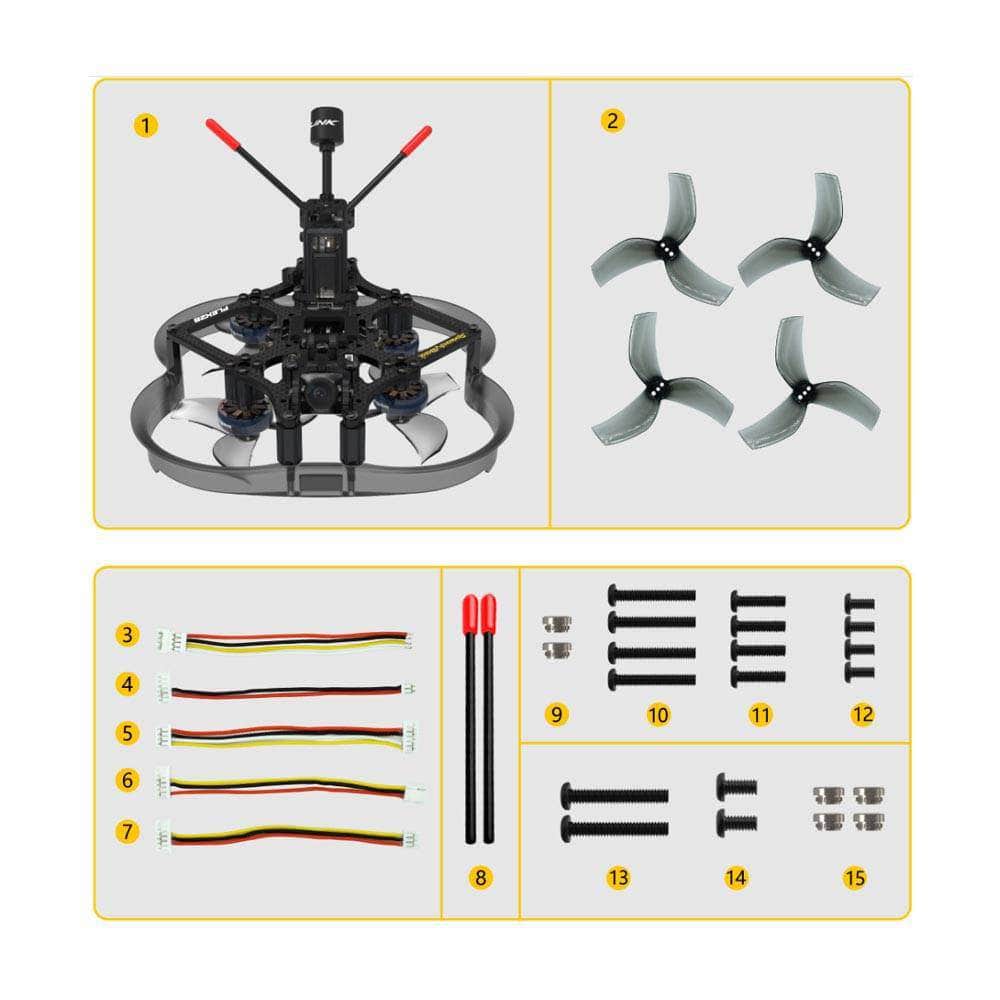

Includes
- 1x SpeedyBee Flex25 2.5" Cinewhoop HD w/ Falcon Nano - Choose Receiver
- 1x 6p-4p 60mm Power and Control Cables for RunCam Thumb Pro
- 1x 6p-3p 60mm Power and Control Cable for Naked GP 6/7
- 1x 6p-3p 60mm Power and Control Cable for Naked GP 8
- 1x 6p-2p 60mm Power Cables for RunCam Thumb
- 2x Receiver Antenna Tubes(For FrSky Receivers)
- 1x 4pin 60mm SH1.0mm cable for Receiver
- 1x Gemfan D63-3 Propeller Set( 2L + 2R)
- 2x M2 x 1.53mm(Height) Press Nuts
- 2x M2 x 2.3mm(Height) Press Nuts
- 2x M2.5 x 16mm Screws
- 2x M2.5 x 6mm Screws
- 4x M2 x 12mm Screws
- 4x M2 x 14mm Screws
- 4x M2 x 7mm Screws
Wiring Diagram
