Description

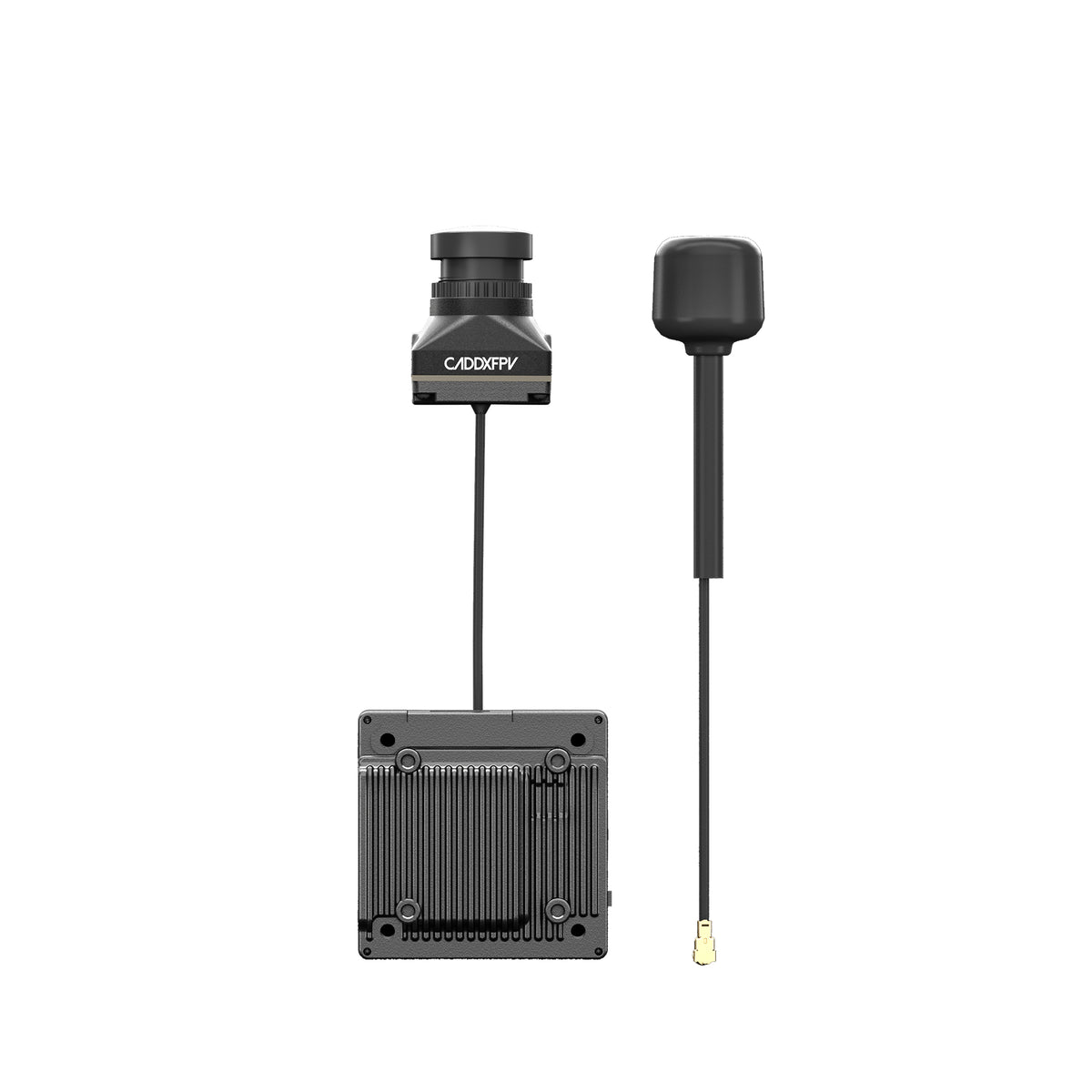

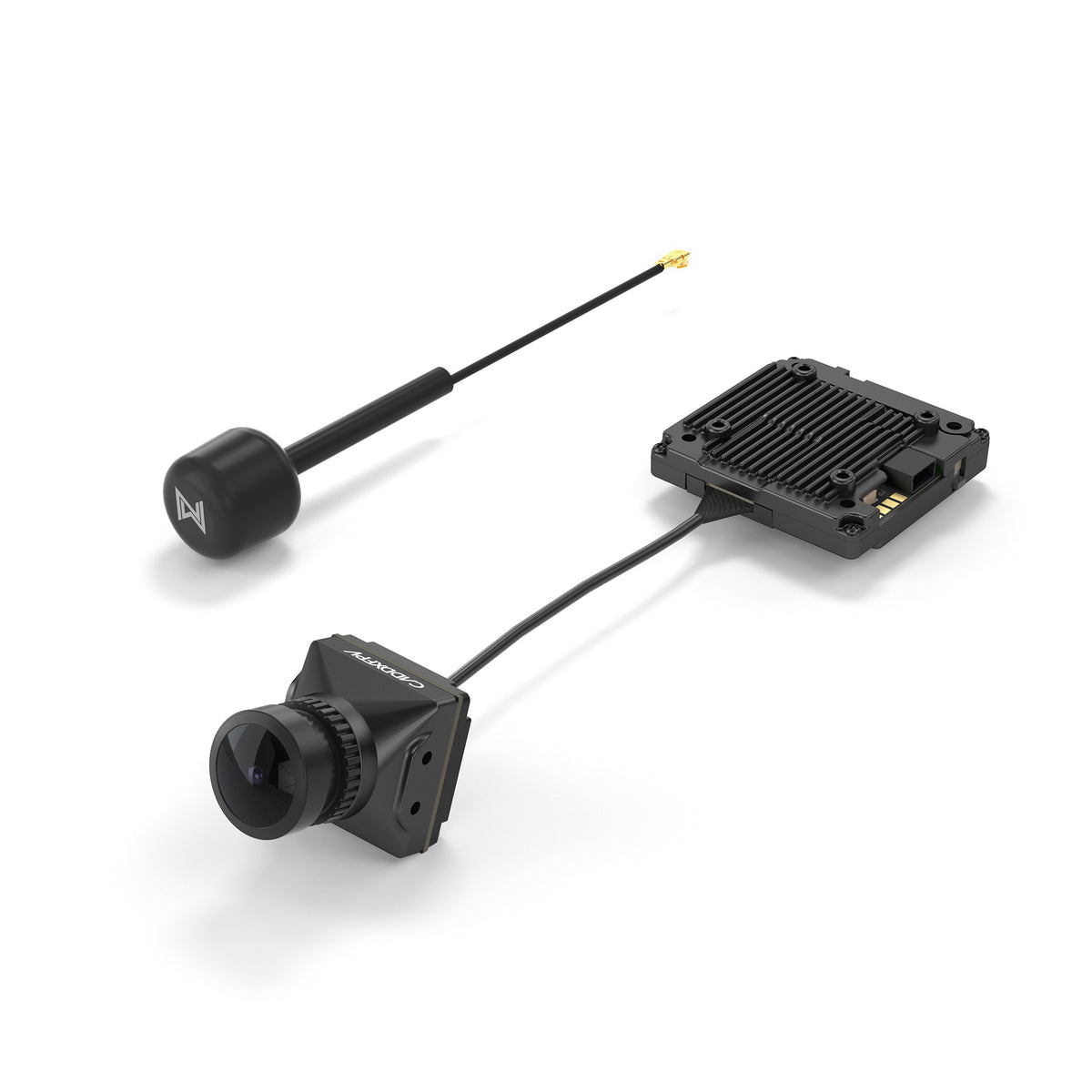

The Walksnail Avatar HD Pro Kit features a VTX with enhanced TVS protection and support for up to 6S. This VTX delivers unmatched stability and resistance to GPS interference with a wide input voltage range of 6V to 25.2V. This kit also features 1080P compatibility, high frame starlight, a 4KM range, and 32GB built-in storage. Enjoy the unparalleled performance and take your FPV adventures to new heights with this cutting-edge technology!
VIDEO: Walksnail Avatar HD Pro Kit + Avatar HD Kit
Features
- 1080P 120fps compatibility
- Sony Starvis Ⅱ Technology
- Built-in 32GB storage
- High frame starlight
- Lightweight design
- 22ms low latency
- Ranging Mode
- 4km range
- 6V-25.2V
- FOV 160°
Specifications

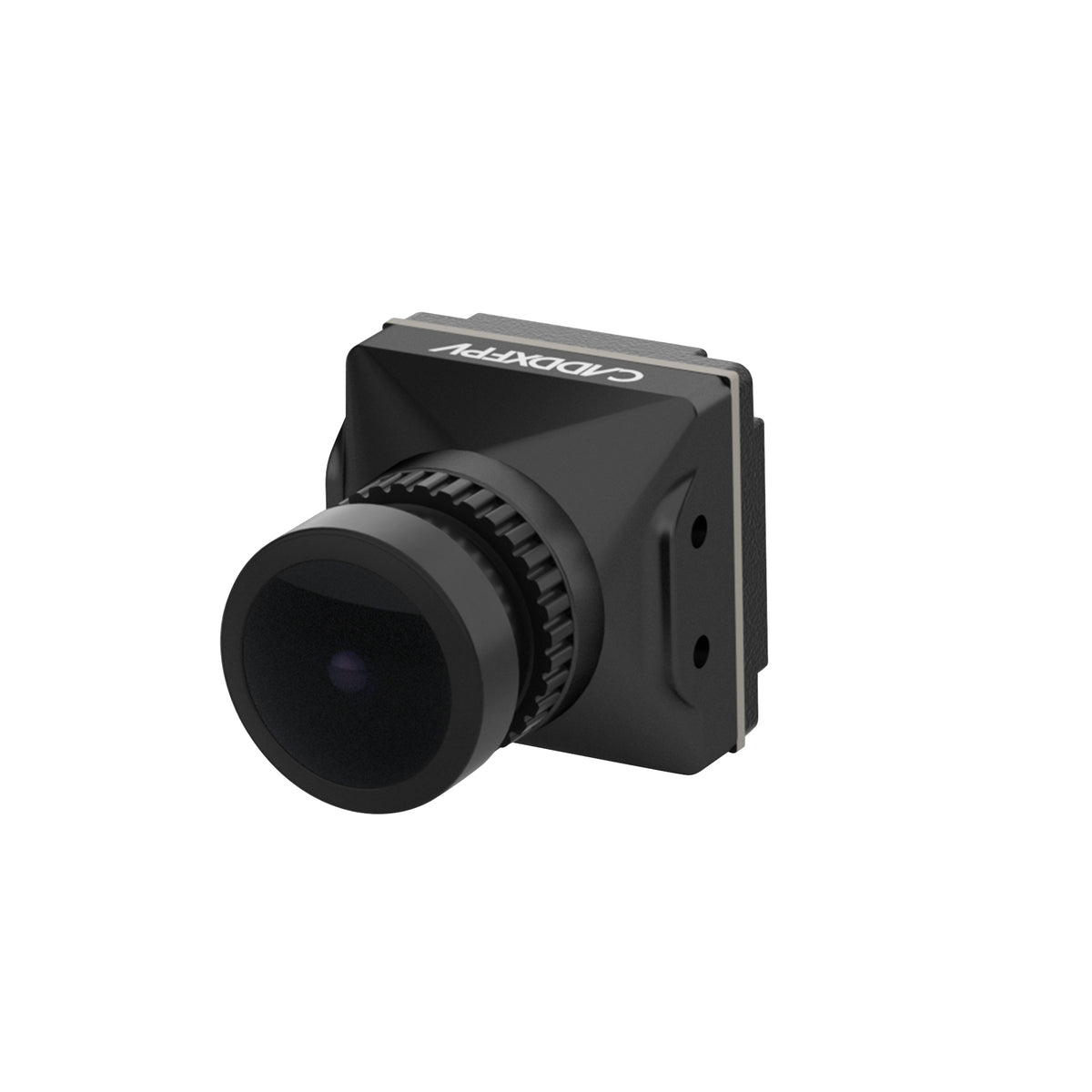

HD PRO CAMERA
- Resolution: 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
- Image Sensor: 1/1.8-Inch Sony Starvis Ⅱ Sensor
- Model: Avatar HD Pro camera
- Min.Illumination: 0.00001Lux
- Dimensions: 19*19*24mm
- Shutter: Rolling shutter
- Coaxial Cable: 140mm
- Ratio: 16/9; 4/3
- Aperture: F1.6
- Weight: 9.5g
- Lens: 8Mp
- FOV: 160°

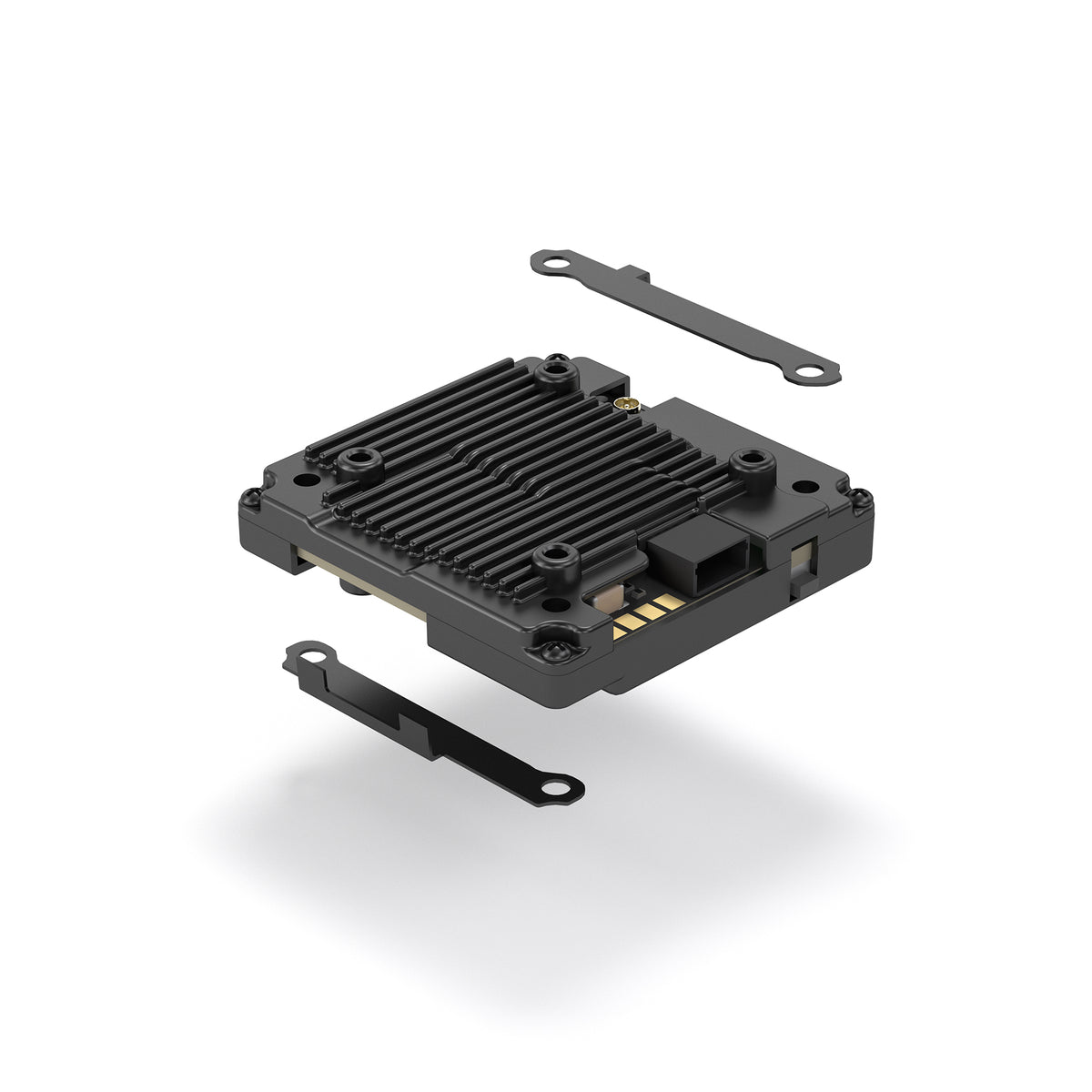

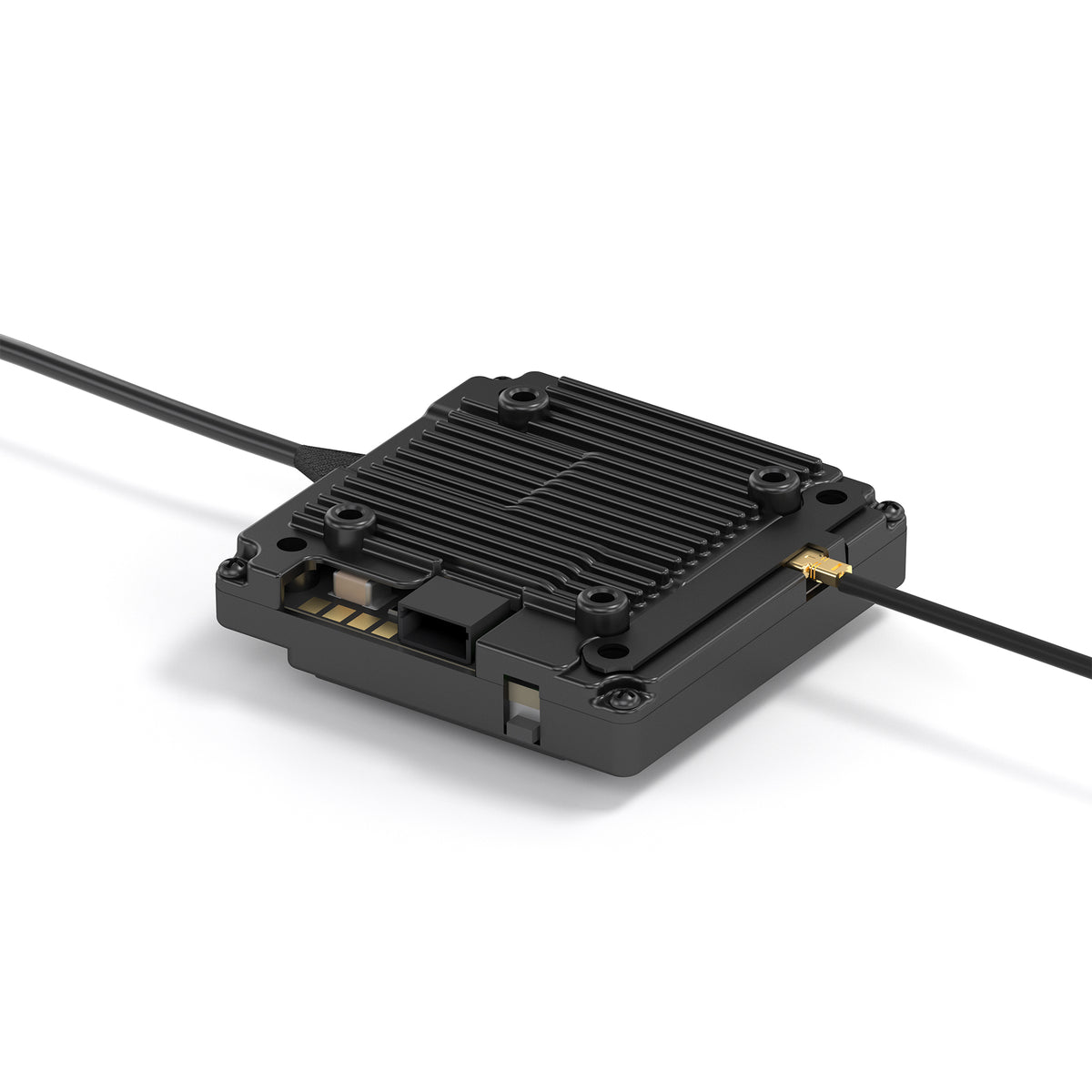

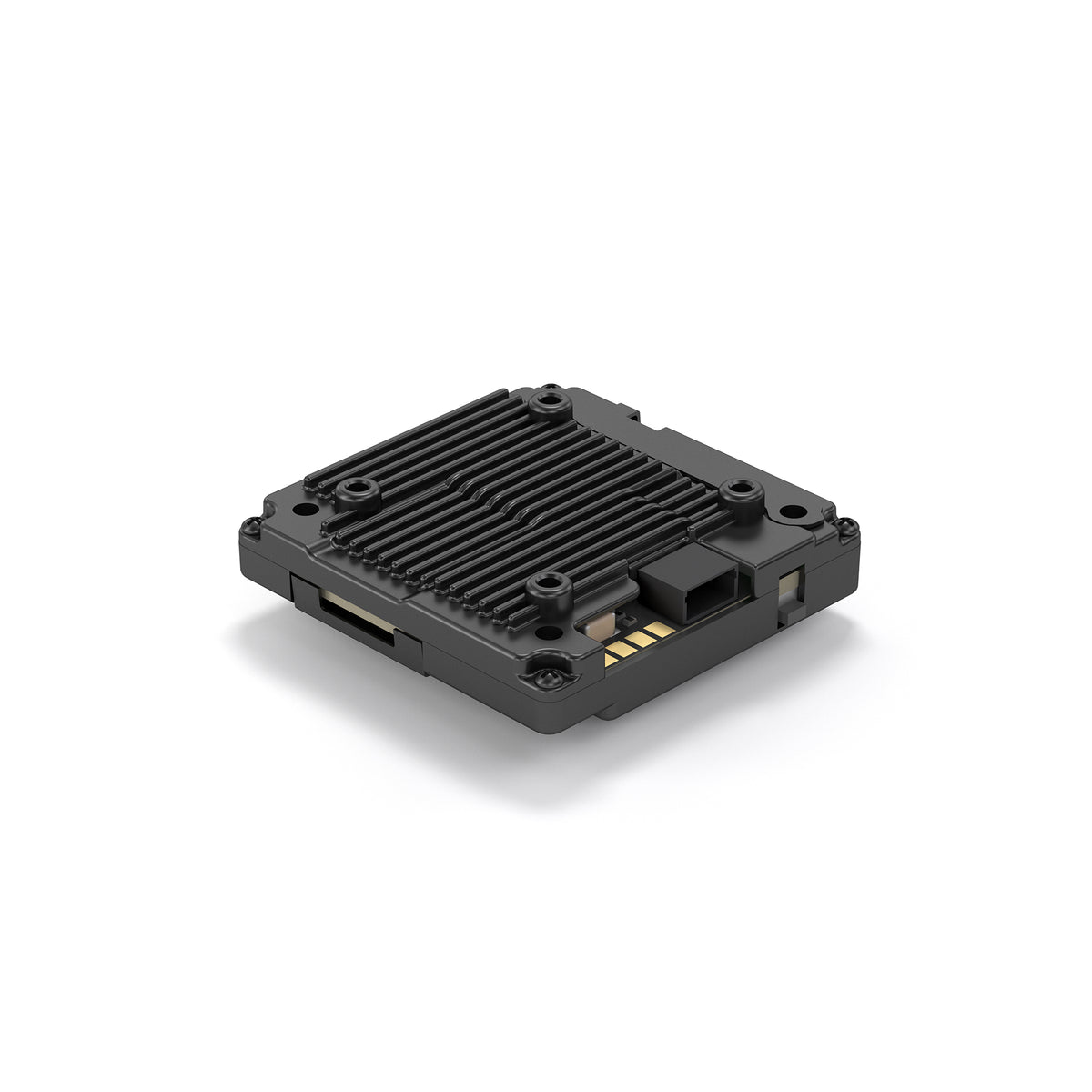

AVATAR V2 VTX
- Transmitter Power (EIRP: FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
- Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss
- 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)
- Communication Frequency: 5.725-5.850GHz
- Mounting Holes: 25.5*25.5mm; 20*20mm
- Operating Temperature: -20-40℃
- Dimensions: 33.5*33.5*10.5mm
- Latency: Average delay 22ms
- Wide Power Input: 6V-25.2V
- Model: Avatar V2 module
- Recording: 1080p/720p
- OSD: Canvas mode
- Antenna: 1(IPEX)
- Storage: 32G
- Weight: 17.6g
- Channels: 8

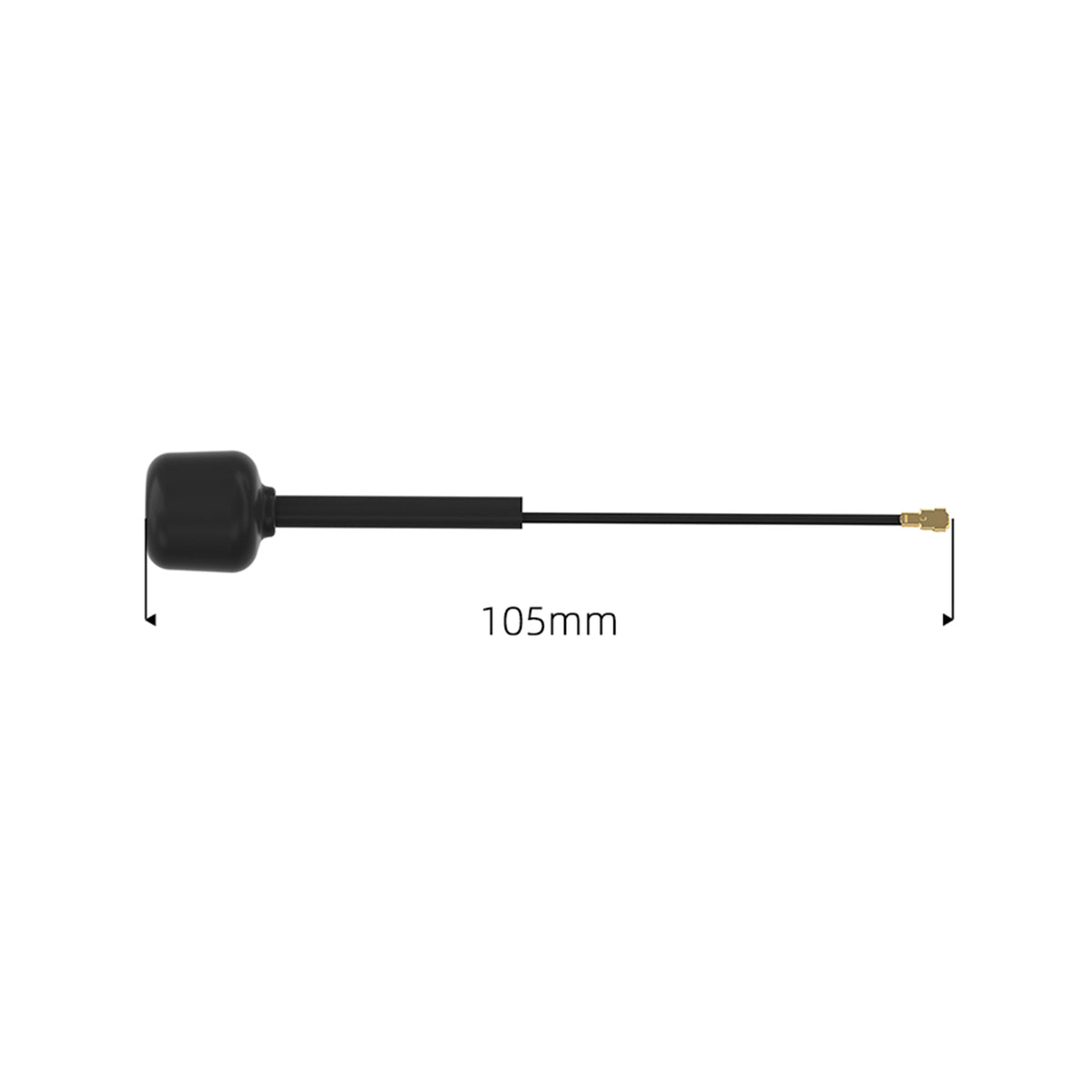

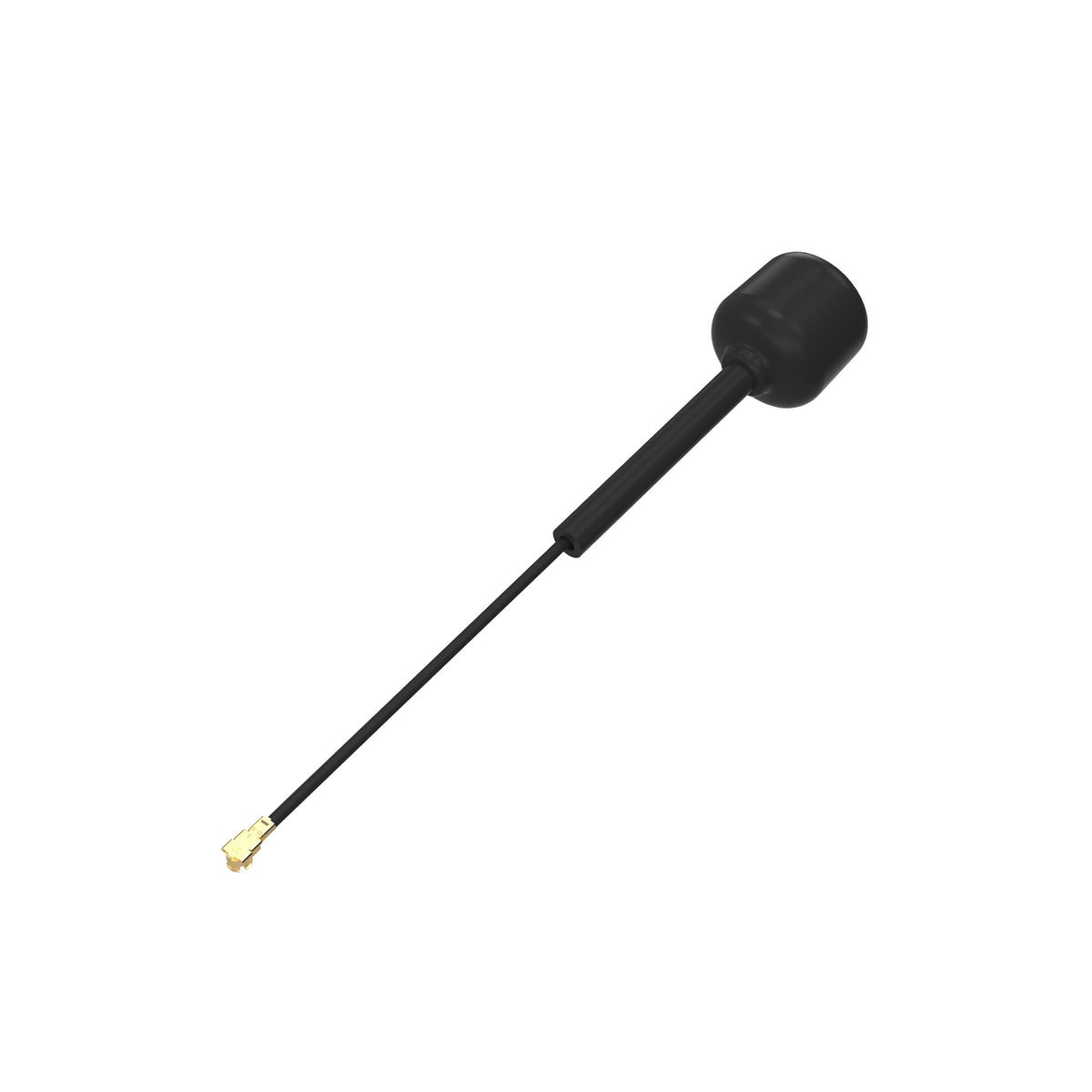

AVATAR V2 ANTENNA
- Frequency range: 5600MHz-6000MHz
- Size: R15 X 45mm(without cable)
- Input Impedance: 50Ω
- Polarization: LHCP
- Interface: IPEX-1
- Gain: 1.9dBi
- VSWR: ≤1.5
- Weight: 2g
Includes
- 1x Walksnail Avatar V2 VTX - 32GB w/ Gyro
- 1x Walksnail Avatar HD Pro Camera
- 1x Walksnail Avatar V2 Antenna
- 1x USB transfer extension cable
- 4x M2*5*0.5mm gasket
- 1x 4 Pin silicone cable
- 4x M2*14mm screws
- 8x M2*4mm screws
- 4x M2*5mm screws
- 4x M2*6mm screws
