Recommend DEPRC 1100mAh Battery For Cinelog35
All CineLog 35 quads we now used XT60 Connector
The CineLog35 HD developed by GEPRC specifically for mounting full GP HD camera is now officially released, There are two versions are currently available: HD VISTA Nebula Pro and Analog.
CineLog35 is improved and developed on the basis of CineLog30. Integrated protection guard design, the overall structure is firmer and durable.We adopts latest FC with higher calculation speed and high efficiency, 4S version uses GEP-F722-35A AIO/6S version uses GEP-F722-45A AIO.The 5 UART Ports bring perfect performance and sufficient extended function. and the electronic system runs more stable.
CineLog35 equips with VISTA HD VTX and the Nebula Pro camera, and the picture quality is extreme clear and clean. Upgraded power system, 2004 motor with HQProp DT90MMX3 propeller has stronger power output. It comes with a 3D Print mount to install the GP Camera 9 & GP Camera10. and the Incidental base can carry Insta360 GO2 camera/ GEP Naked Camera 8 /Caddx Peanut camera.
We are pursuing lighter weight, better flying feel, and more extended functions of Quadcopters.It can bring great visual experience and happiness to every pilot.
May 24th,2022: Propeller changed from D90-3 to HQProp DT90MMX3.
June 27th,2022: Camera mount replaced with the same blue adjustable GP Camera mount.
- Upgrade 3.5-inch integrated protection guard to ensure flight safety.The new design has significant roles at many aspects such as Low noise, Vibration and noise reduction, durable high-strength structural design.
- Equipping with VISTA HD VTX and the Nebula Pro camera.
- It comes with a 3D Print mount to install the GP Camera 9 & GP Camera 10. And the Incidental base can carry Insta360 Go2 camera/Naked Camera 8/Caddx Peanut camera.
- Improving the damping rings, the shooting effect is more stable,clearer and reduce jelly.

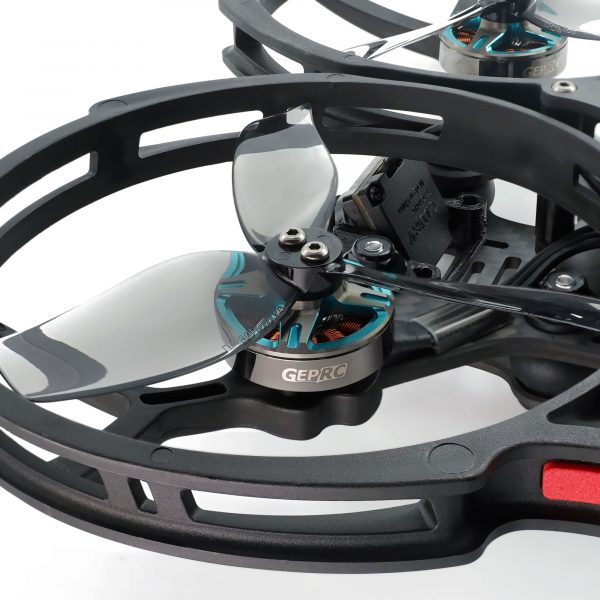

- 2004 motor with HQProp DT90MMX3 propeller has stronger power output.
- Independent receiver cabin, conveniently and quickly to binding.
- The GEPRC Team’s Splendid Tuning and the overall flight feel is delicate and flexible.
- Model: CineLog35 HD Nebula Pro
- Brand: GEPRC
- Wheelbase: 142mm
- Top plate: 2.5mm
- bottom plate: 2.0mm
- Arm plate3.5mm
- FC system:
4S Version：GEP-F722-35A AIO
6S Version：GEP-F722-45A AIO
- MCU: STM32F722
- Gyro: 6-Axis
- OSD: BetaFlight OSD w/AT7456E chip
- ESC: BLheli_S 45A
- VTX: Vista
- Camera: Caddx Nebula Pro
- Propeller:HQProp DT90MMX3
- Antenna: Momoda Long version UFL LHCP 175mm Atenna
GR2004-1750KV 6S Version
GR2004 2550KV 4S Version
- Weight: 236.6g (CineLog35 HD VISTA Nebula Pro 4S PNP)
- Receiver: PNP(Vista built-in DJI receiver)/Frsky R-XSR/TBS Nano RX
LiPo 4S 850mAh-1500mAh
LiPo 6S 850mAh-1100mAh
- 1 x CineLog35 HD VISTA Quadcopter
- 2 x HQProp DT90MMX3 propellers (pair)
- 1 x Battery strap M15x200mm
- 2 x Battery Silicone Pads
- 2 x Landing Pads
- 4 x 15 degree damping rings
- 1 x 3D print mountings combination
- 1 x screw combination
- 1 x screwdriver combination
- 1 x Antenna fixed tube
